TRALERT® 8-PAD LED Lighting Switch Panel with Smartphone App Control – 8-Button RGB Controller, 12/24V, ECE R10

The TRALERT® 8-PAD LED Lighting Switch Panel is a premium, multifunctional vehicle lighting controller designed to provide convenient, centralised control over up to eight independent electrical circuits. Combining an intuitive RGB-backlit keypad, programmable buttons and wireless smartphone app control, the 8-PAD offers a modern and flexible solution for managing auxiliary lighting and electrical accessories.

Ideal for 4x4s, commercial vehicles, recovery trucks, emergency service vehicles, agricultural machinery and specialist applications, the TRALERT® 8-PAD allows drivers and operators to control multiple lighting functions from one compact interface, reducing the need for individual dashboard switches.

The eight programmable buttons can be configured to suit different vehicle applications, while the RGB backlighting provides a distinctive, professional appearance and helps make the controls easy to identify in low-light conditions.

Integrated smartphone app control provides additional flexibility, allowing connected lighting and electrical functions to be operated wirelessly from a compatible mobile device.

Powerful 8-Circuit Control

Unlike basic vehicle switch panels, the TRALERT® 8-PAD features a dedicated control system capable of managing electrical accessories with different power requirements.

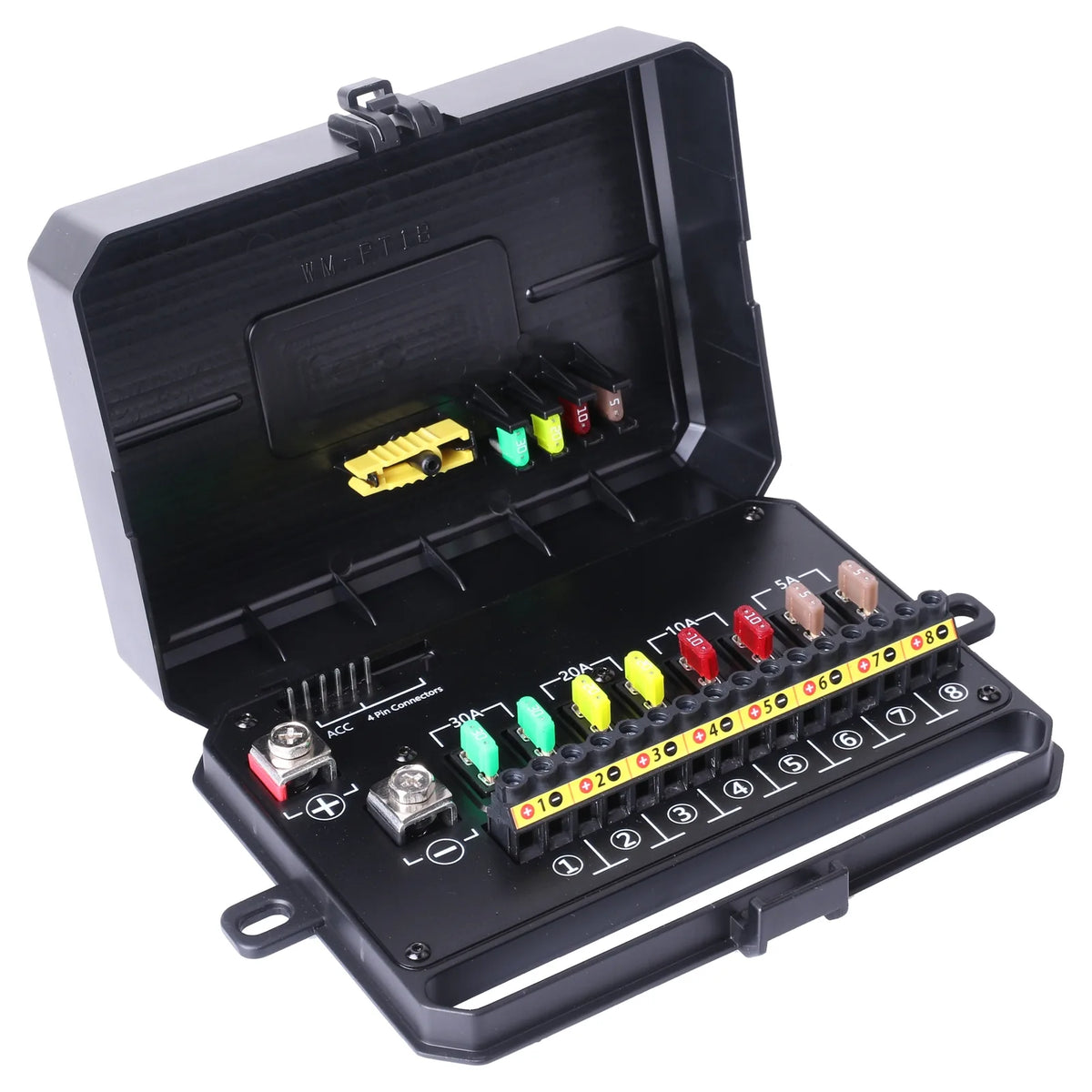

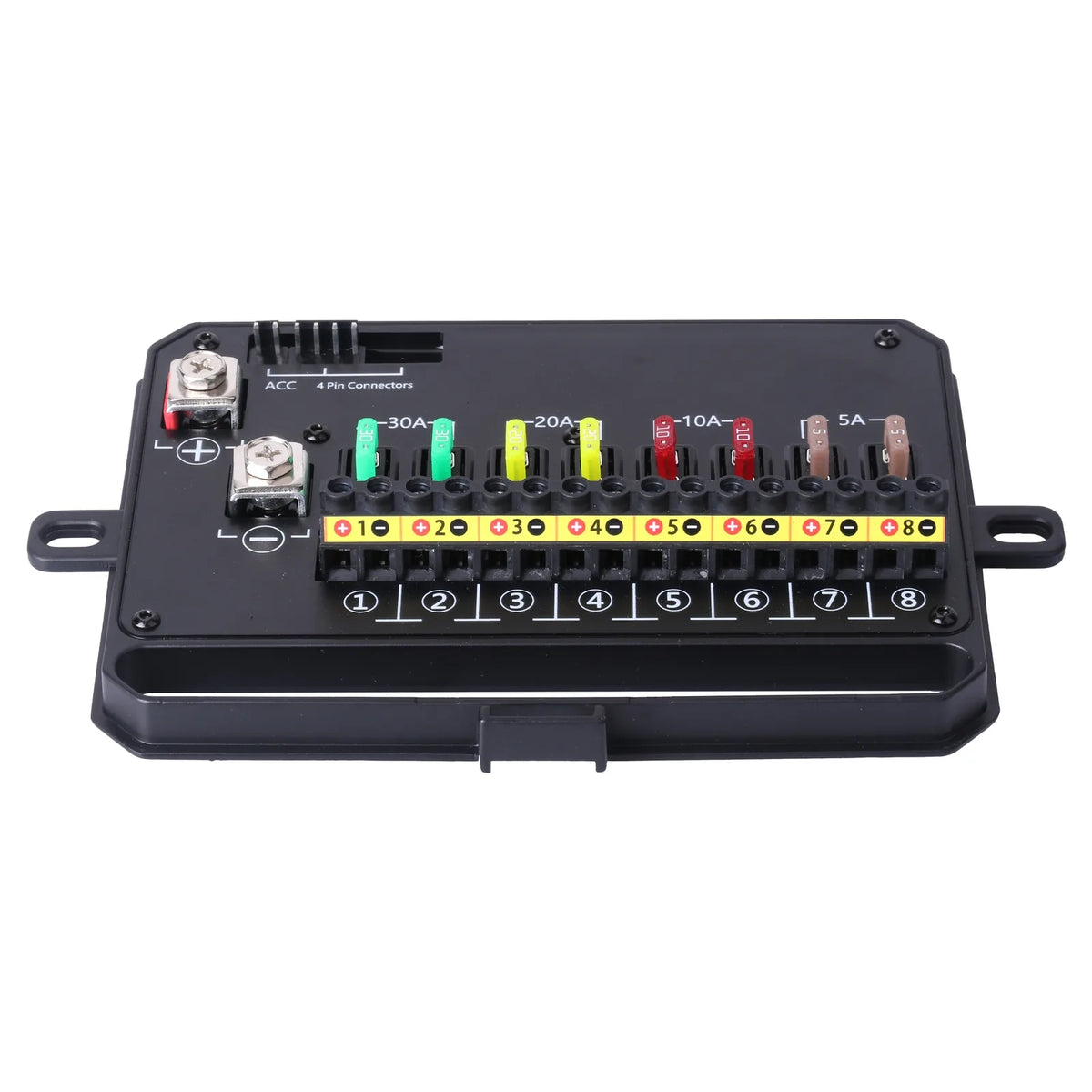

The eight individually controlled circuits provide the following current capacities:

• 2 × 30A circuits – suitable for higher-current accessories

• 2 × 20A circuits – suitable for medium-to-high-current equipment

• 2 × 10A circuits – suitable for lower-current lighting and accessories

• 2 × 5A circuits – suitable for low-current electrical functions

This flexibility makes the 8-PAD particularly useful for vehicles fitted with a combination of LED driving lights, work lights, warning beacons, lightbars and other compatible electrical accessories.

Designed for Professional Vehicle Installations

Operating across 12V and 24V vehicle electrical systems, the 8-PAD is suitable for everything from pickups and 4x4s to trucks, heavy commercial vehicles and specialist machinery.

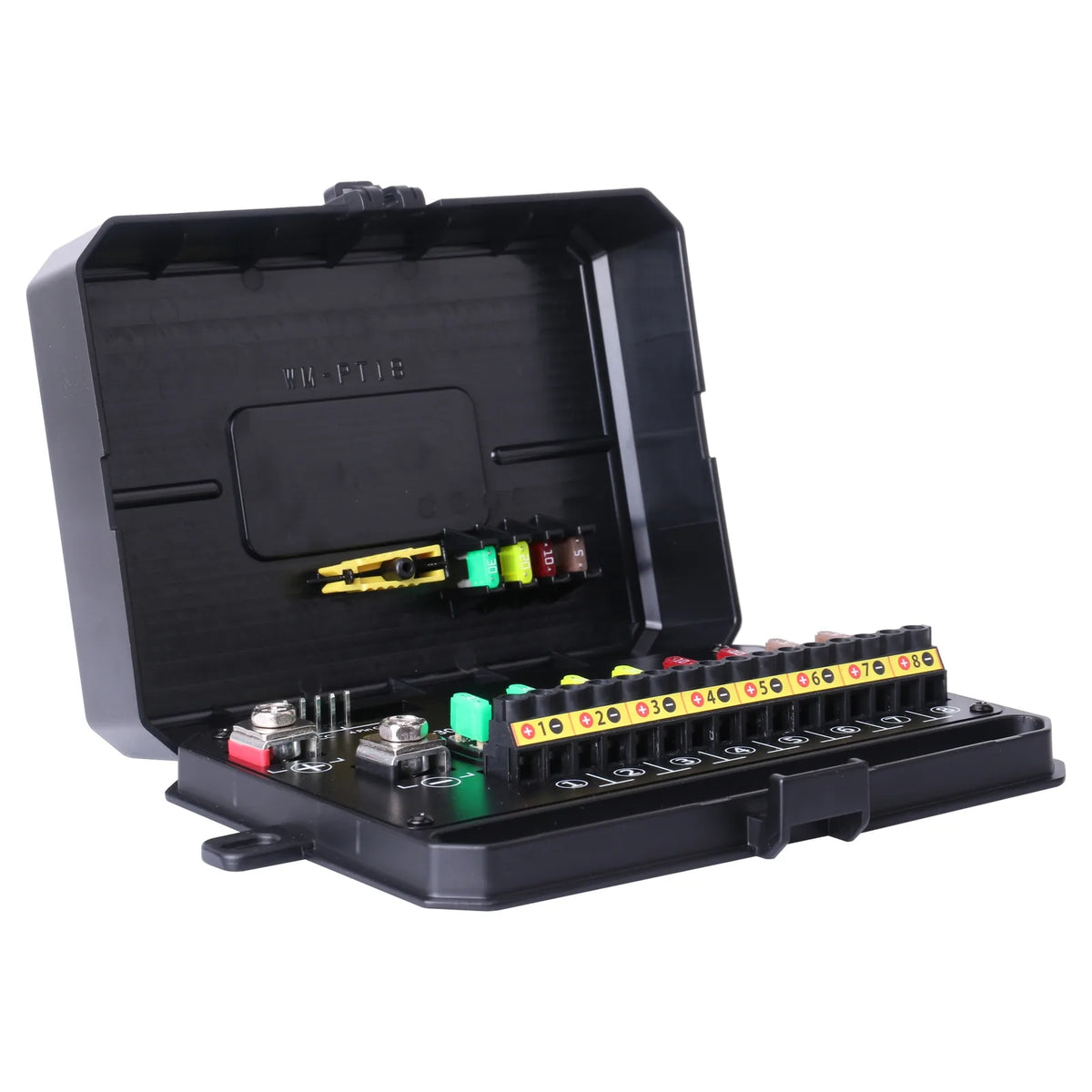

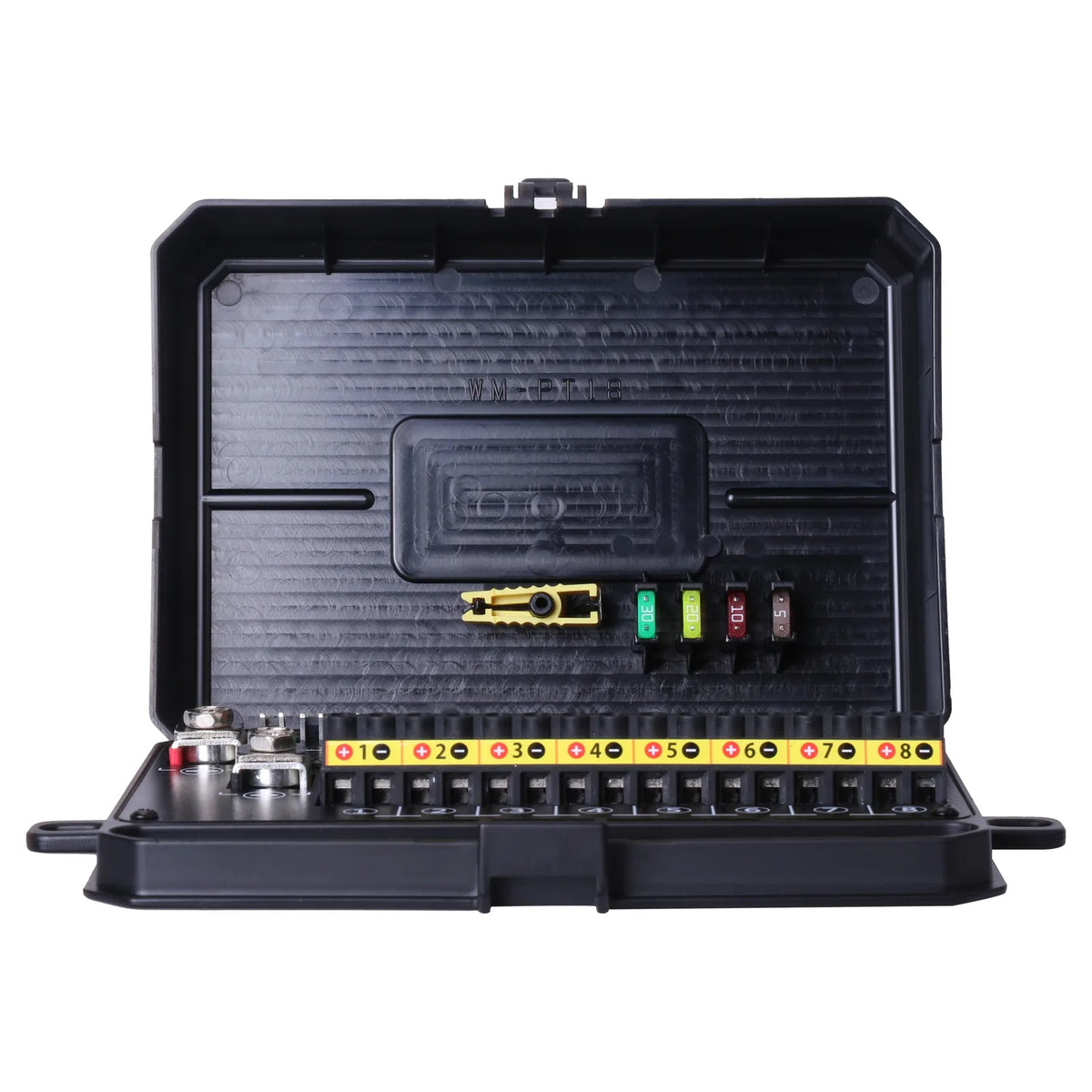

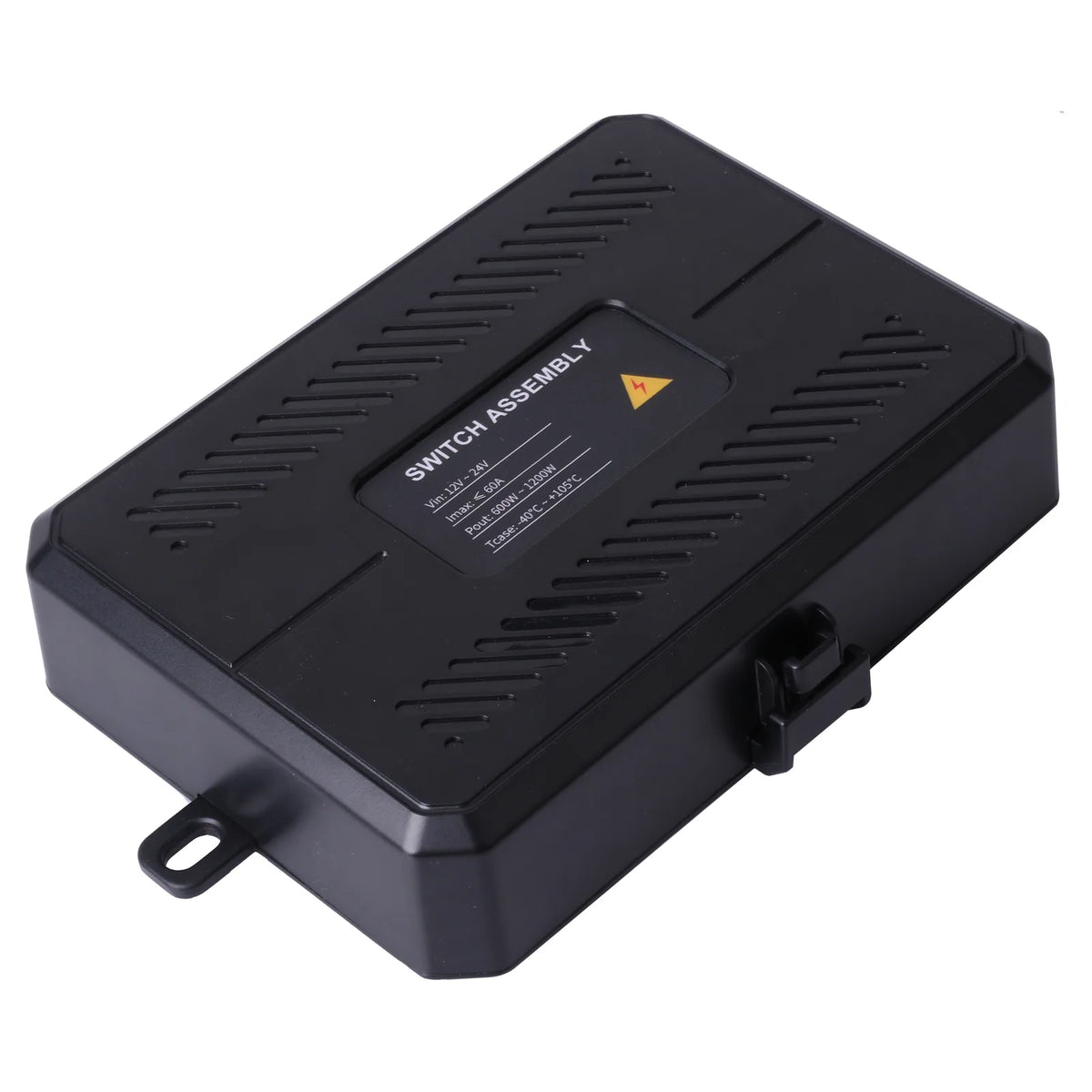

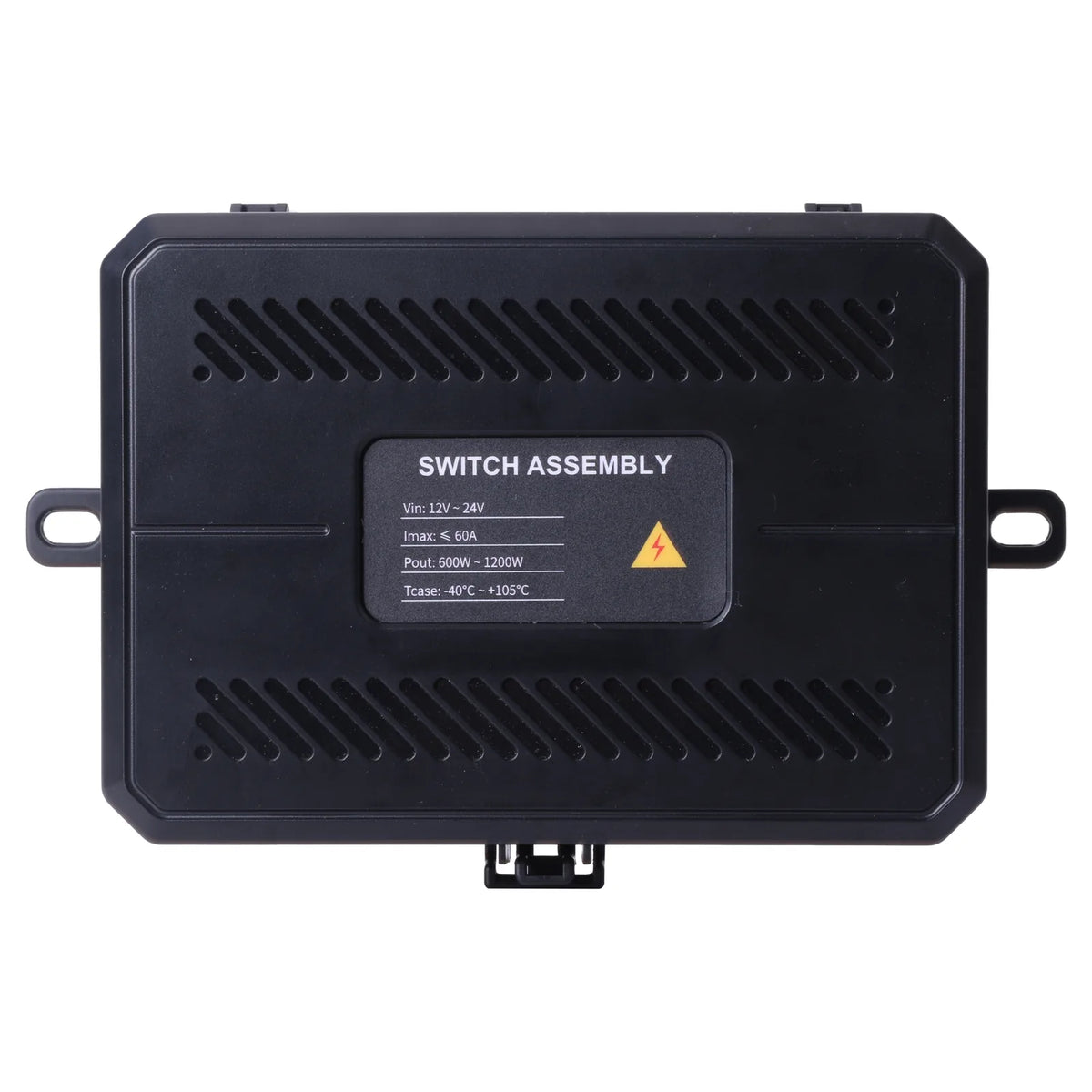

The robust aluminium control box features built-in reverse polarity protection and voltage spike resistance, helping protect the system against electrical faults and fluctuations.

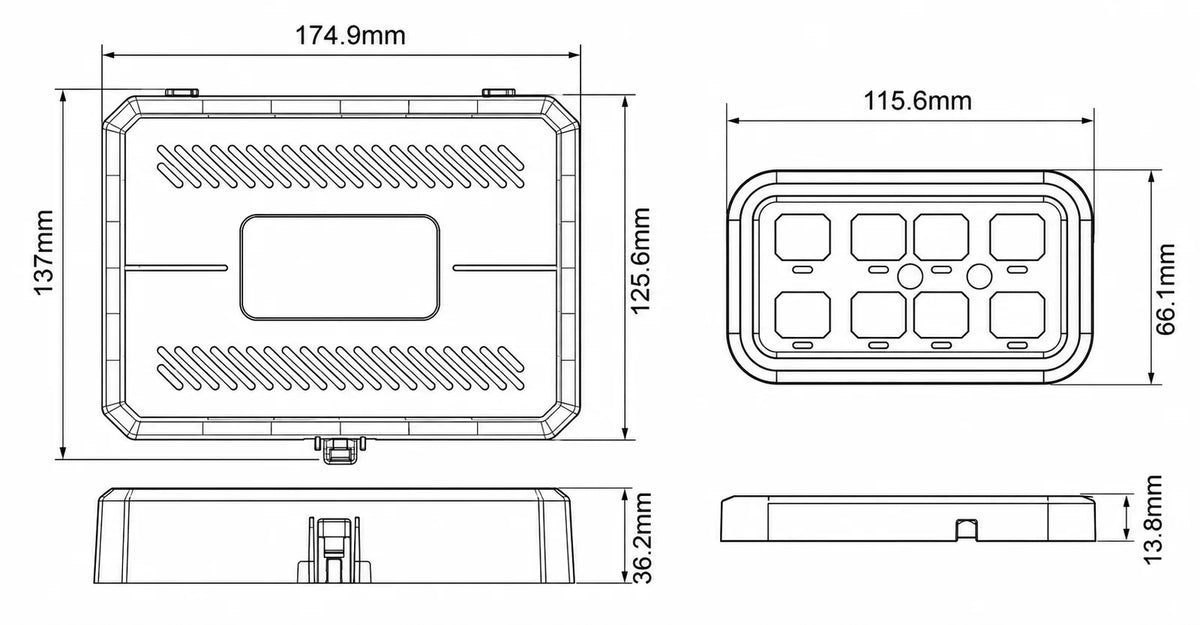

The compact keypad measures just 115.6 × 66.1 × 13.8mm, allowing it to be neatly integrated into vehicle dashboards and control areas without taking up excessive space.

With IP65 protection against dust and water ingress and ECE R10 EMC approval, the TRALERT® 8-PAD is designed for dependable operation in demanding vehicle environments.

Supplied with mounting materials, fuses and fuse holders, keypad stickers and an installation manual, the 8-PAD provides a comprehensive solution for professional vehicle lighting control.

Backed by a 3-year warranty, it combines versatility, durability and modern control technology in one premium system.

Key Features

• Premium TRALERT® 8-PAD vehicle lighting controller

• Control up to 8 independent electrical circuits

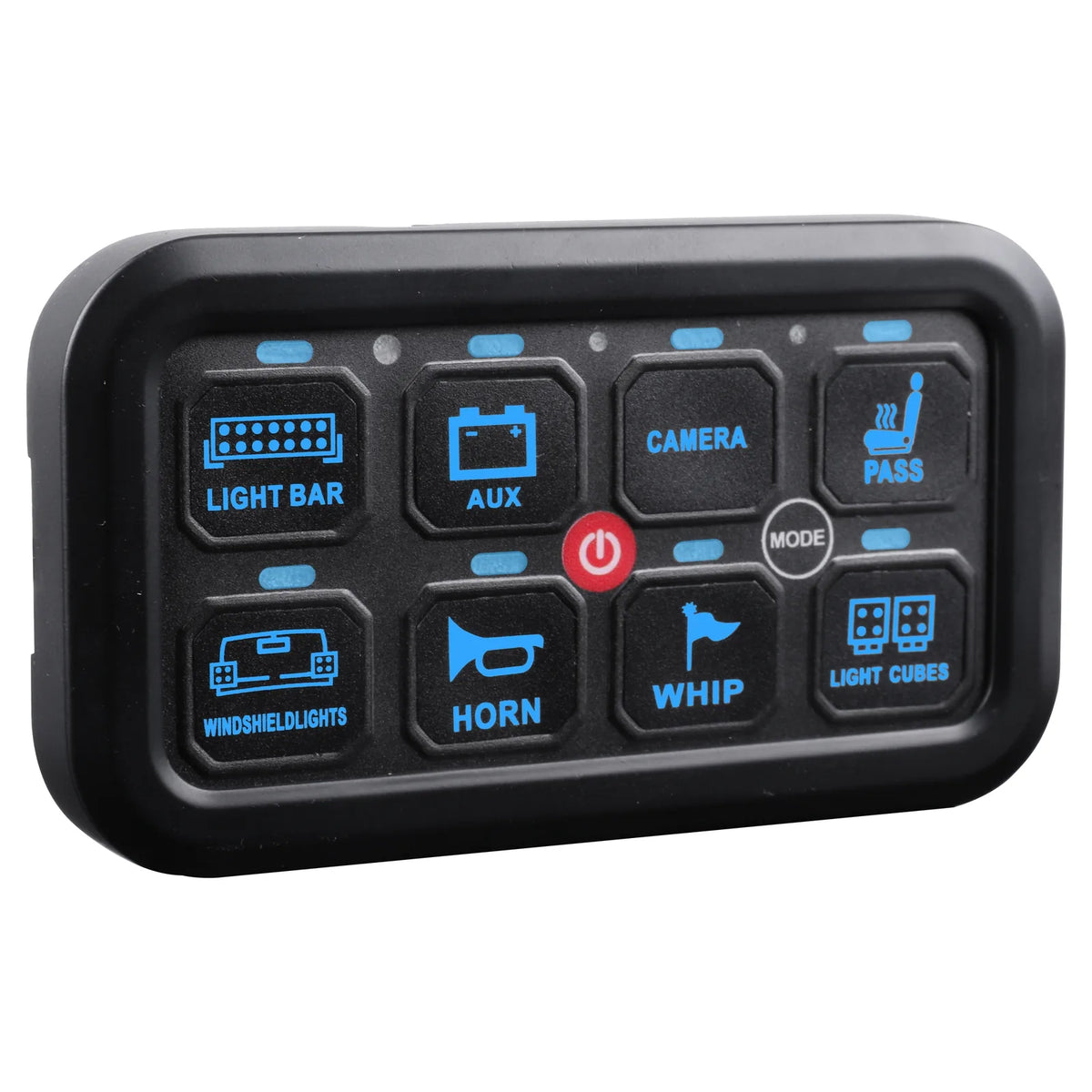

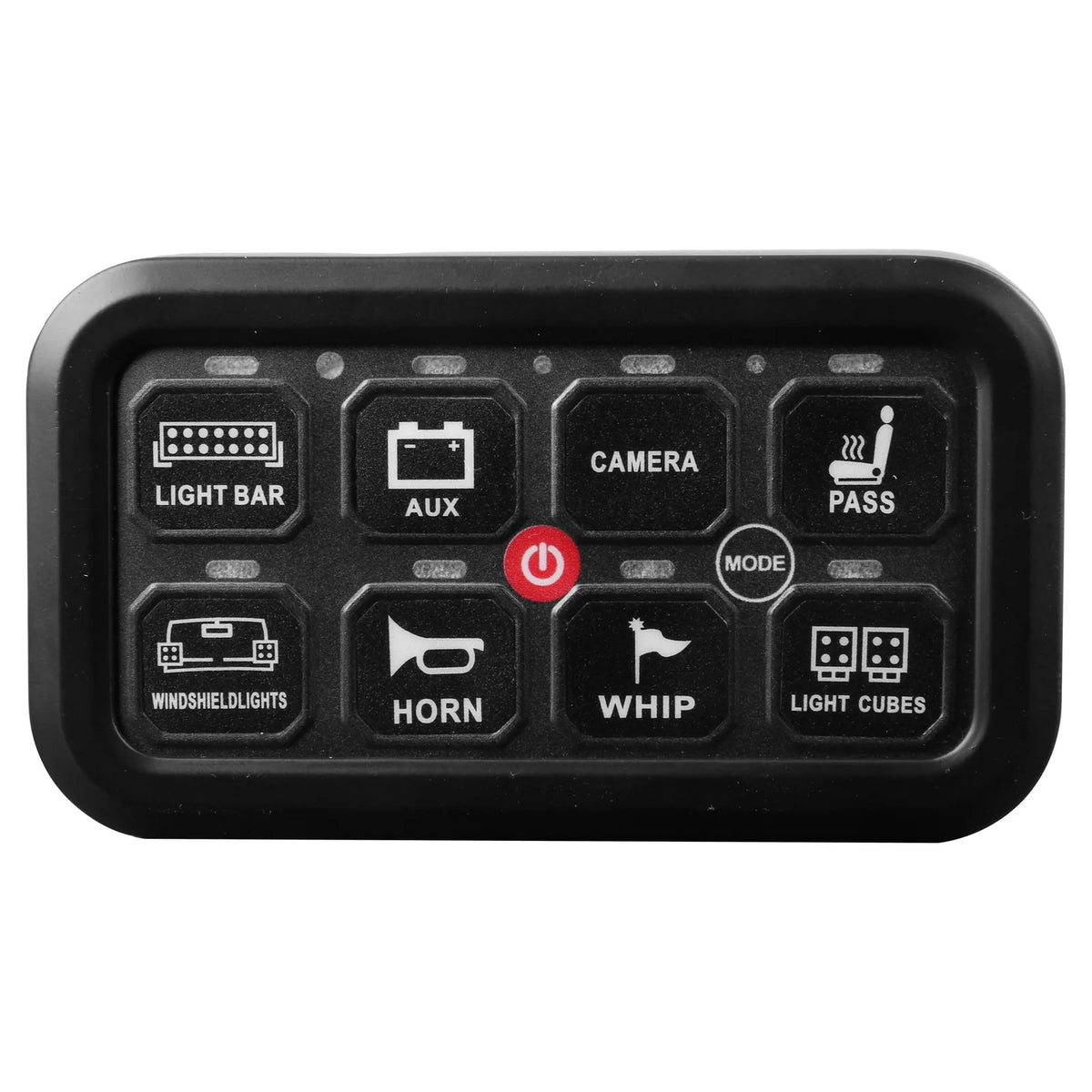

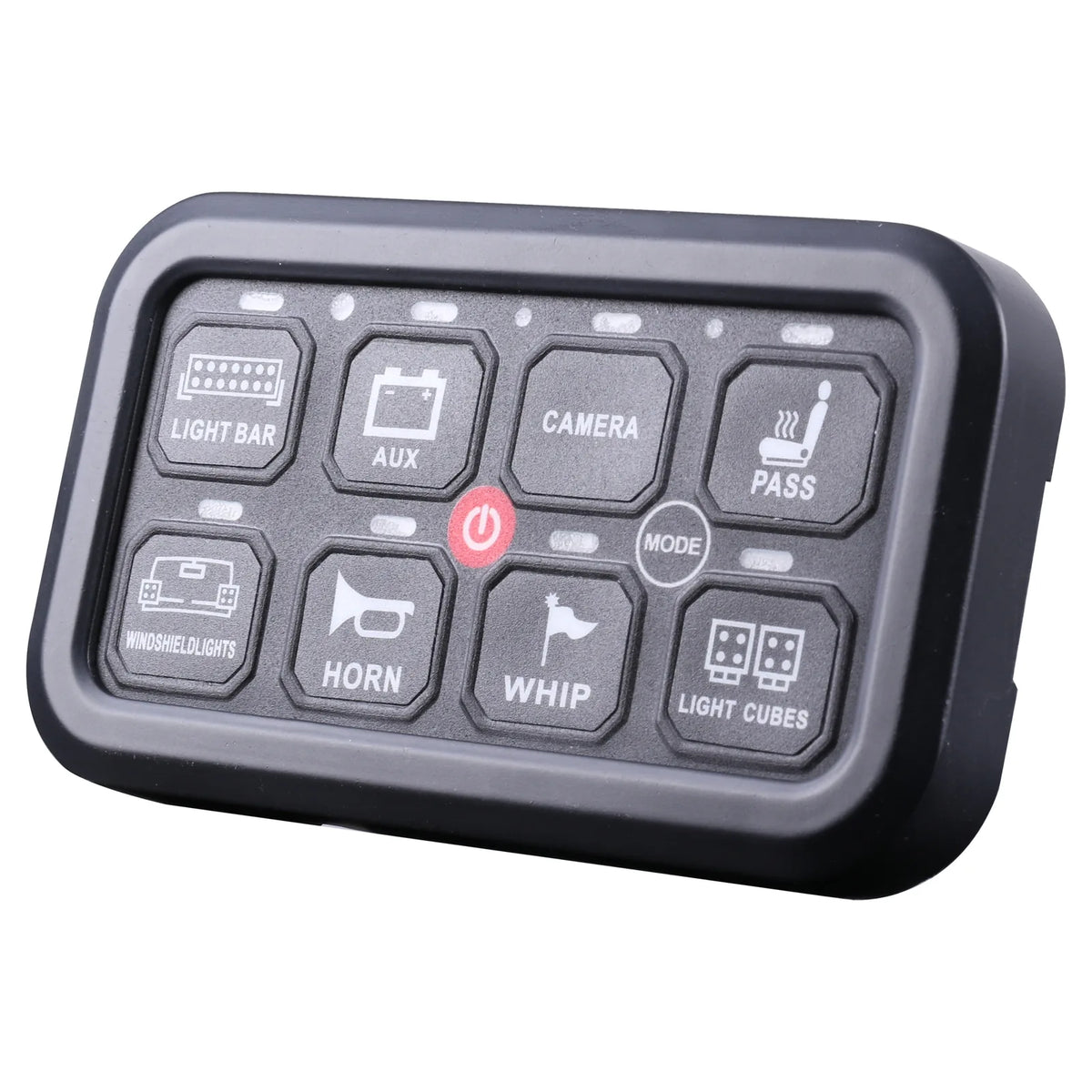

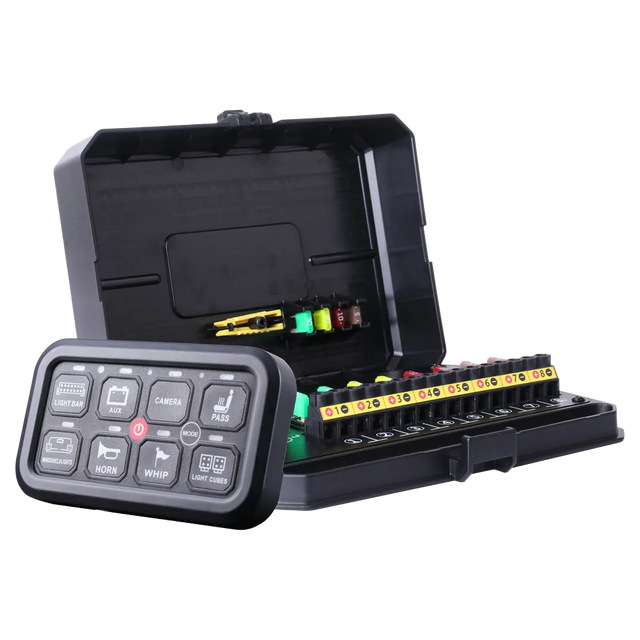

• Compact 8-button RGB-backlit keypad

• Integrated wireless smartphone app control

• Programmable buttons for customised operation

• Adjustable RGB button illumination

• 2 × 30A output circuits

• 2 × 20A output circuits

• 2 × 10A output circuits

• 2 × 5A output circuits

• Centralised control for auxiliary vehicle lighting and accessories

• Helps eliminate multiple individual dashboard switches

• 12/24V dual-voltage compatibility

• ECE R10 EMC approved

• Robust aluminium control box

• Built-in reverse polarity protection

• Protection against voltage spikes

• IP65 dust and water protection

• Slim keypad measuring just 13.8mm deep

• Supplied with mounting materials, fuses, fuse holders and keypad stickers

• Ideal for 4x4s, recovery vehicles, trucks and emergency service applications

• 3-year warranty

Technical Specifications

• Brand: TRALERT®

• Product Type: Vehicle Lighting Switch Panel / Programmable Controller

• Model: 8-PAD

• Number of Control Buttons: 8

• Number of Output Circuits: 8

• Voltage: 12–24V DC

• Control Method: Physical Keypad / Smartphone App

• Smartphone App Control: Yes

• Button Configuration: Programmable

• Keypad Illumination: RGB Backlit

• Output Capacity: 2 × 30A / 2 × 20A / 2 × 10A / 2 × 5A

• Electrical Protection: Reverse Polarity / Voltage Spike Protection

• Approval: ECE R10

• Protection Rating: IP65

• Control Box Material: Aluminium

• Housing Colour: Black

• Keypad Dimensions: 115.6 × 66.1 × 13.8mm

• Application: Auxiliary Vehicle Lighting & Electrical Accessory Control

• Suitable Vehicles: 4x4s / Commercial Vehicles / Trucks / Recovery Vehicles / Emergency Services / Plant Machinery

• Warranty: 3 Years

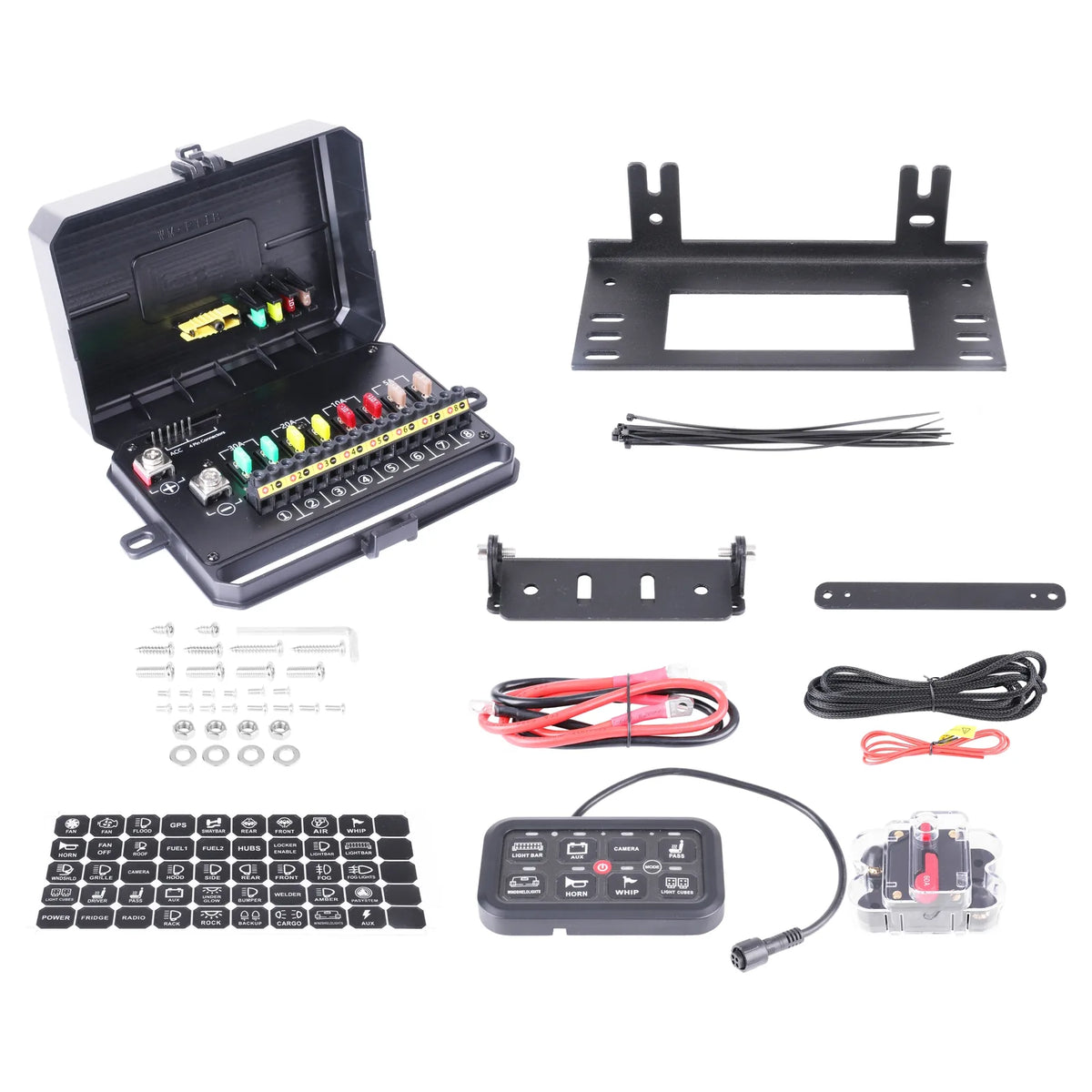

What's Included?

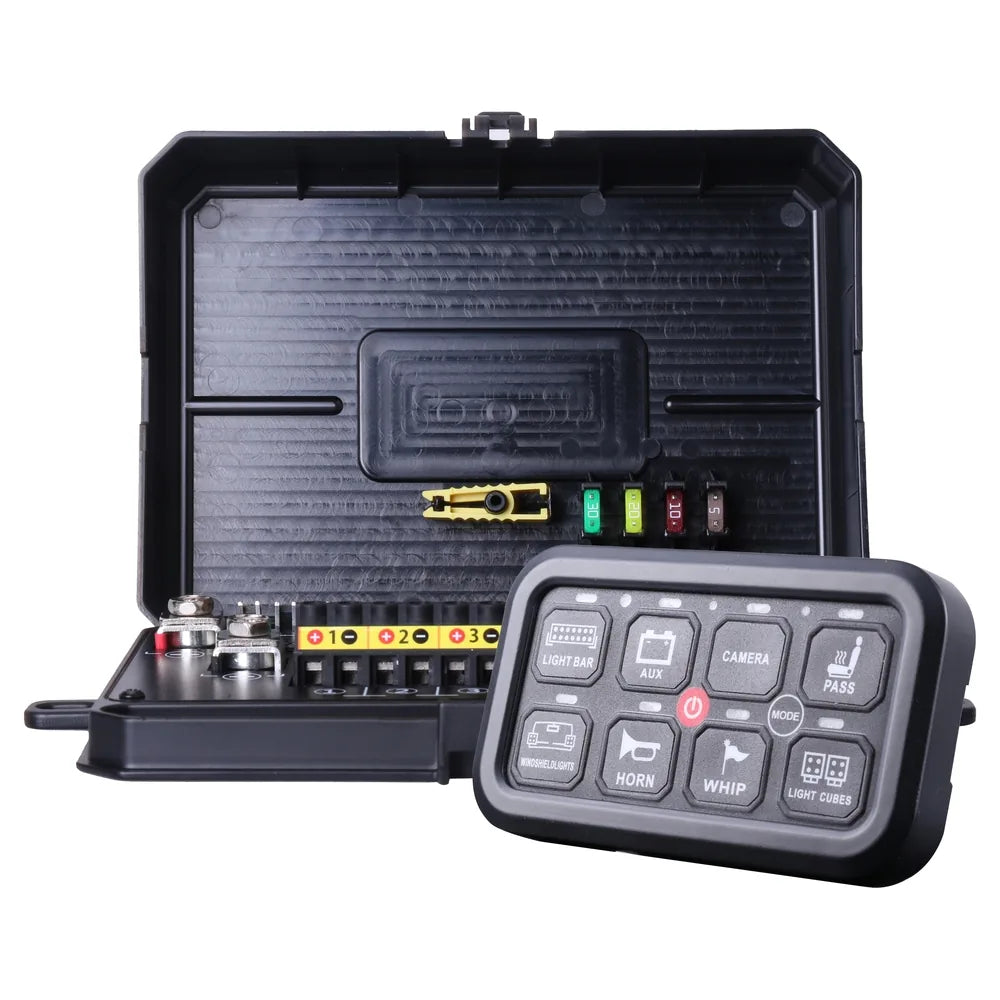

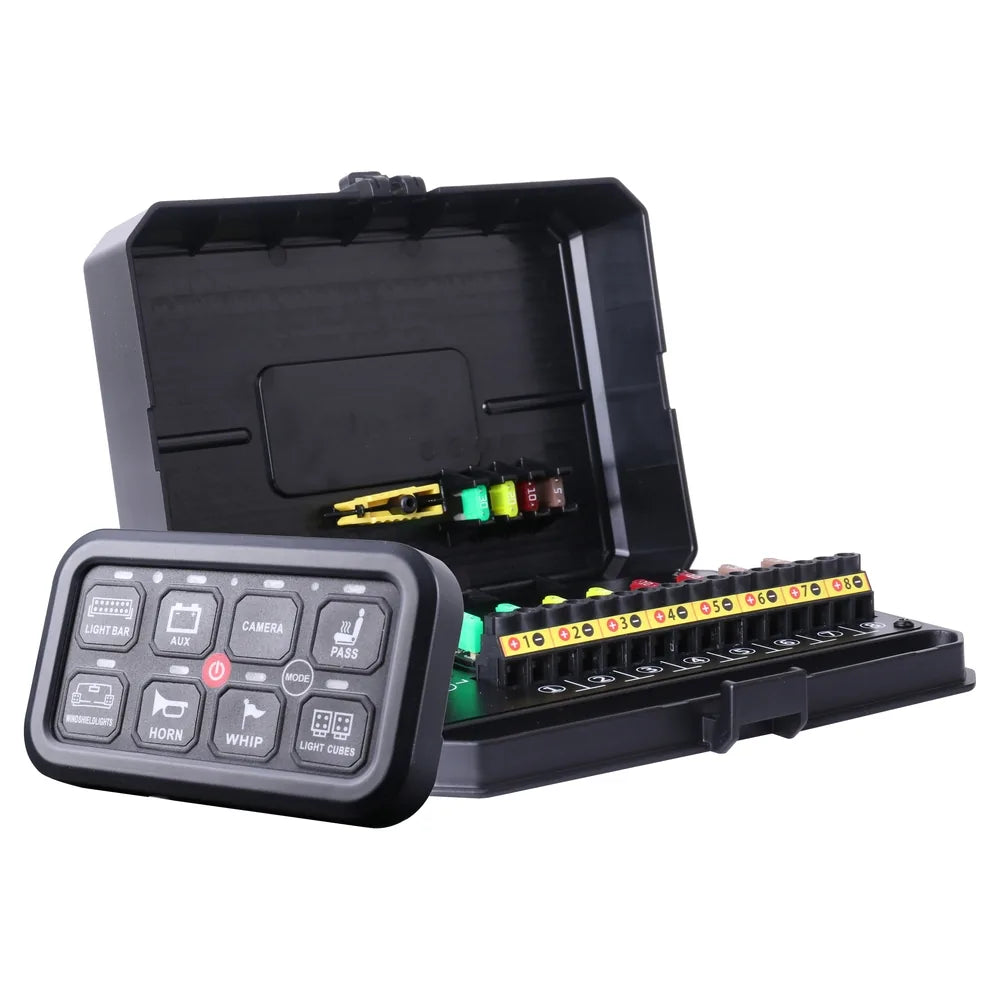

• TRALERT® 8-PAD RGB-backlit control keypad

• Aluminium control box

• Mounting and fixing materials

• Fuses and fuse holders

• Keypad identification stickers

• Installation manual

Why Choose the TRALERT® 8-PAD?

The TRALERT® 8-PAD offers a sophisticated alternative to traditional dashboard switches, providing a centralised solution for controlling multiple vehicle lighting and electrical accessories.

Its combination of eight programmable circuits, RGB-backlit buttons and wireless smartphone app control makes it particularly attractive for professional vehicle installations where flexibility, convenience and a clean dashboard layout are important.

The generous circuit capacities, including two 30A outputs, allow the controller to accommodate a broad range of compatible electrical accessories, from smaller LED marker and warning lights to higher-current driving and work lighting systems.

For recovery operators, emergency service vehicles, commercial fleets and 4x4 enthusiasts, the ability to manage multiple lighting functions from one intuitive panel can simplify vehicle operation and improve the overall installation.

With its robust aluminium control box, built-in electrical protection, ECE R10 approval, IP65-rated keypad and 3-year warranty, the TRALERT® 8-PAD delivers a professional, reliable and highly versatile lighting control solution.

For customers looking to control multiple lighting functions without cluttering their dashboard with individual switches, the TRALERT® 8-PAD is an excellent premium upgrade.
