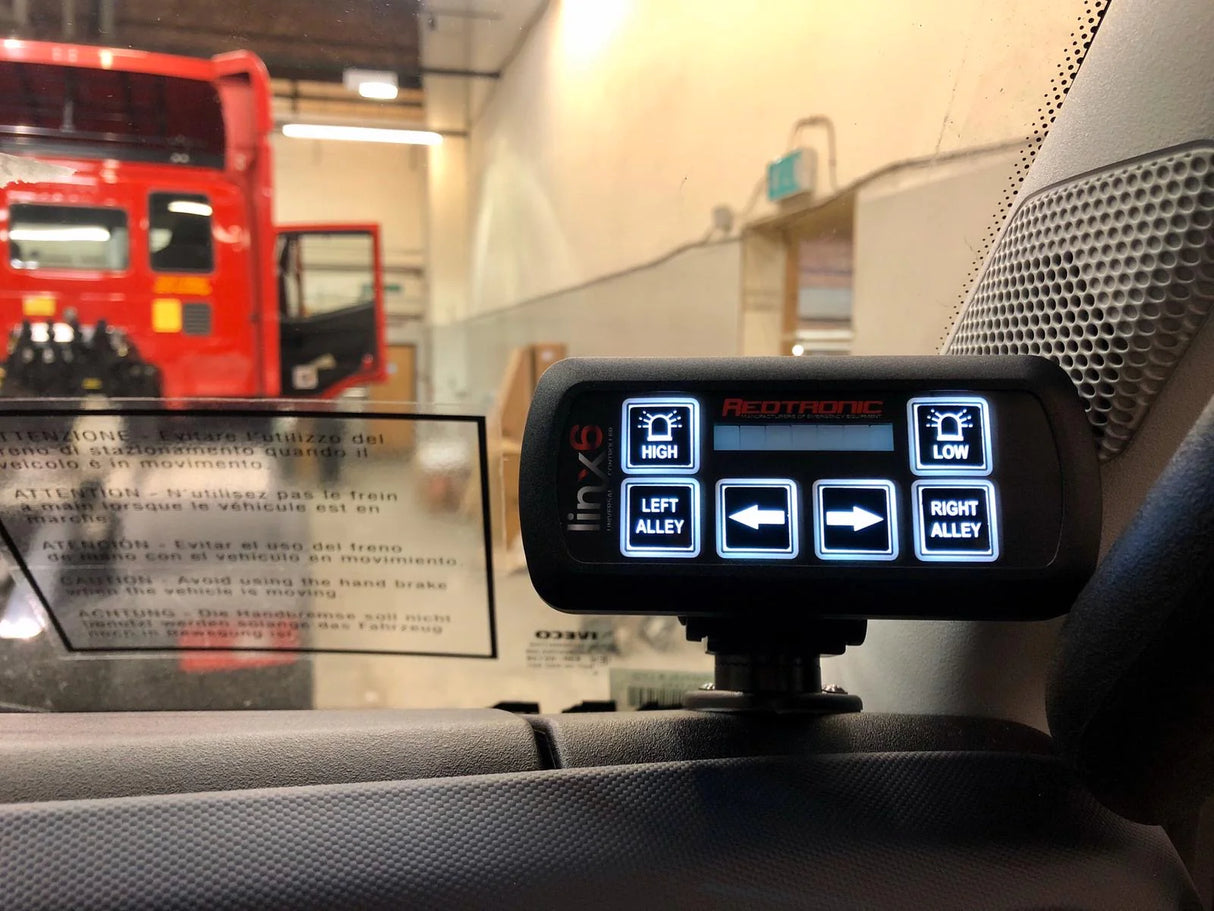

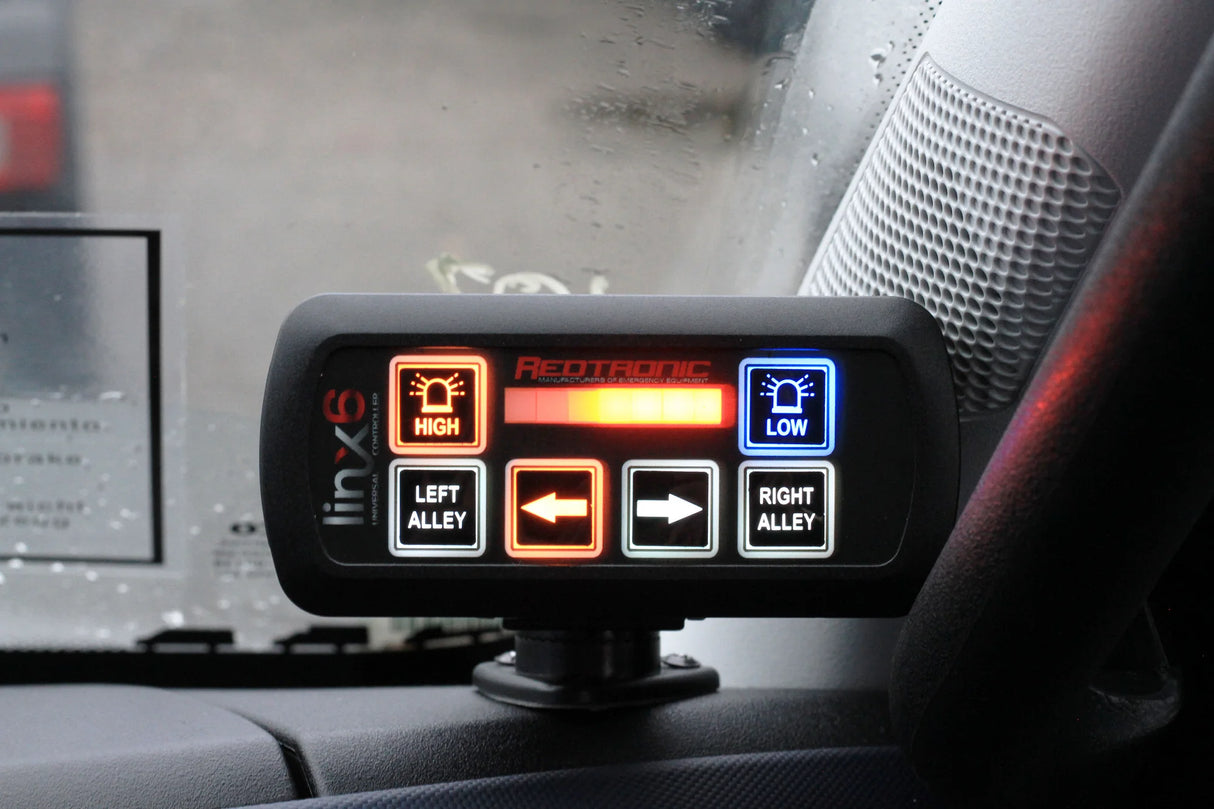

The LINX6 is a 6-way dynamic universal controller. This switched output is capable of switching all types of load applications including resistive, inductive and capacitive. The primary purpose is to switch Redtronic lighting and audible products and is ideal for traffic director control.
The LINX6 consists of 6 independently controlled outputs, two with a high current switching output of 10A each and four with a maximum switching of 2A per output and an overall limit across the 6 outputs of 23A.
The outputs are monitored and if overcurrent is detected the outputs are immediately switched off. A fault will be indicated with 3 flashes and 3 beeps. The output cannot be re-enabled until the LINX6 has been power cycled.
The end user has the ability to place legends on the keys to indicate what the output does. There is also an ability to change the activation colour and mode of the switches (the default is red and latching). This allows the end user to customise the LINX6 to fit their needs.
- 6 Dynamic RGB switches
- Dynamic hierarchy switch selection (parent & child configurable)
- Dynamic master switch selection
- Dynamic 999 & kill switch feature
- Easy user configurable latching or momentary functions
- F actory Reset Feature
- User configurable traffic director LED signal bar (can be deactivated)
- User configurable back light & activation switch colour
- Standard transparent decal labels included
- Over current monitor and deactivation feature (3 flashes & beeps)
- Automatic 90 minute sleep mode & single switch wake-up feature
- Activate/deactivate audible buzzer
- EMC/R10 Compliant
- IP52 rated
- Voltage Spec: 12 & 24 volt operation (minimum working voltage (DC) 8v / maximum working voltage (DC) 30v)
- Operating Temperature: -40C TO +85C
- Dimensions, Without Connector: Length 116mm (4.56") x Width 54mm (2.12") x Depth 21mm (0.82")
- Dimensions, With Connector: Length 116mm (4.56") x Width 54mm (2.12") x Depth 39mm (1.53")
- 2 year warranty
- Manufactured in the United Kingdom
