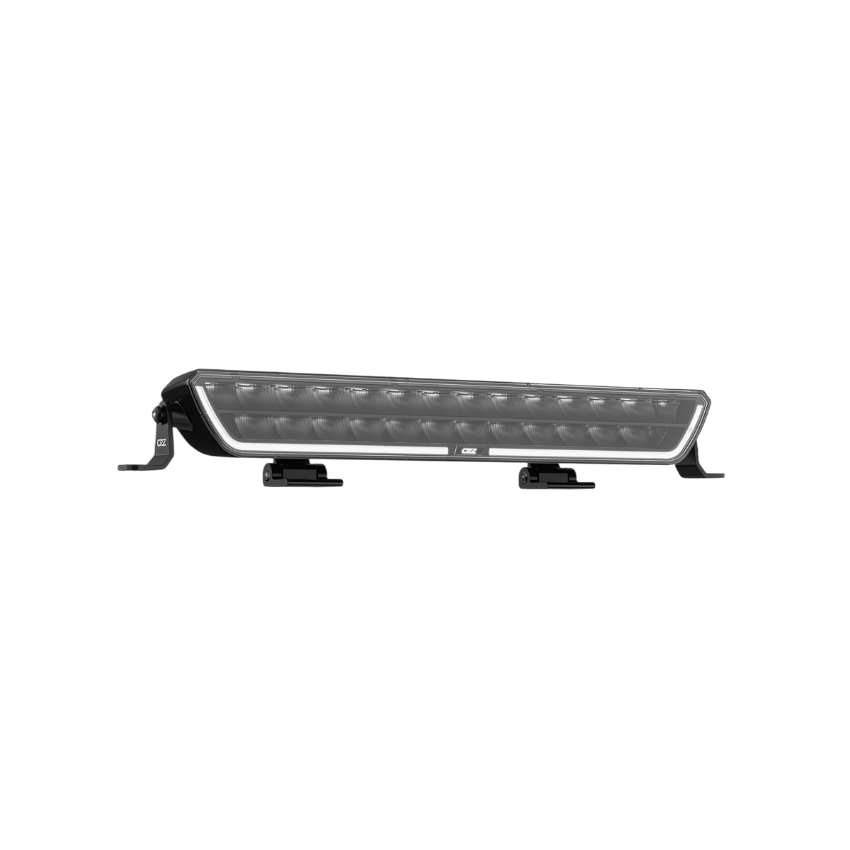

OZZ HP P20" LED Driving Light Bar – 17,500 True Lumens, 1,100m Range, ECE R149, White/Amber Position Light

The OZZ HP P20" LED Driving Light Bar is a premium, ultra-high-performance auxiliary driving light engineered for exceptional long-distance visibility. Combining an impressive 17,500 true lumens in Boost mode with a tightly controlled driving beam reaching 1 lux at 1,100 metres, the HP P20" is designed for drivers who demand serious illumination when operating after dark.

Featuring 28 high-performance LEDs, the OZZ HP P20" concentrates its substantial output into a precise driving beam, delivering powerful long-range illumination rather than simply flooding the immediate area with light. This makes it particularly well suited to 4x4s, trucks, commercial vehicles, agricultural machinery and specialist vehicles operating on dark roads and in demanding environments.

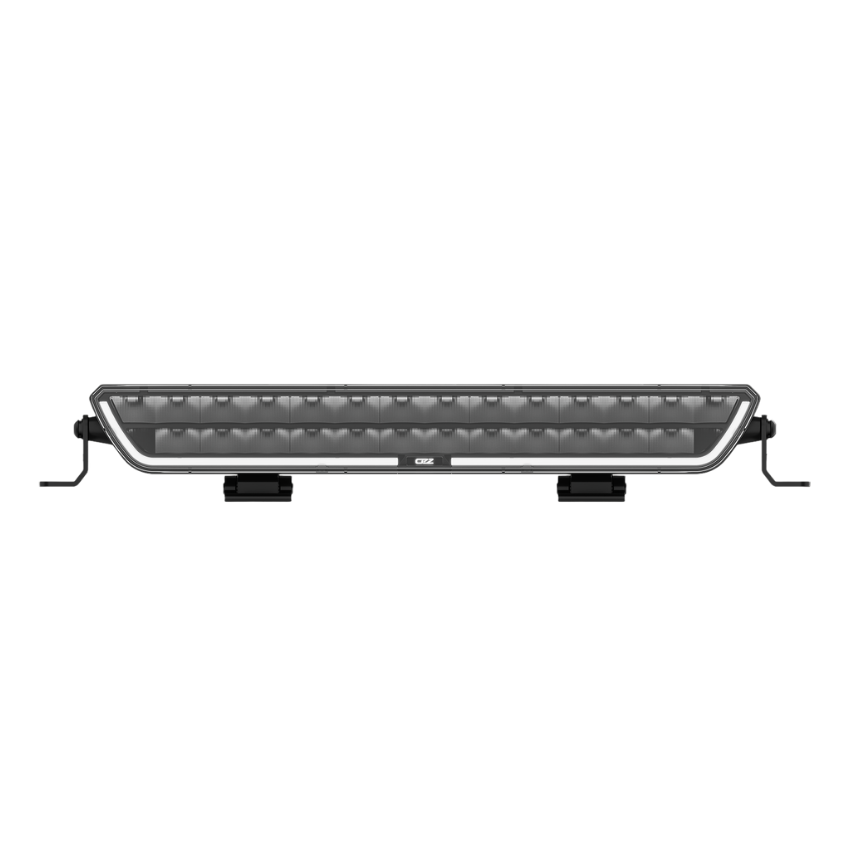

Despite its exceptional performance, the HP P20" measures just 523mm wide, providing serious long-range lighting capability from a relatively compact 20" lightbar.

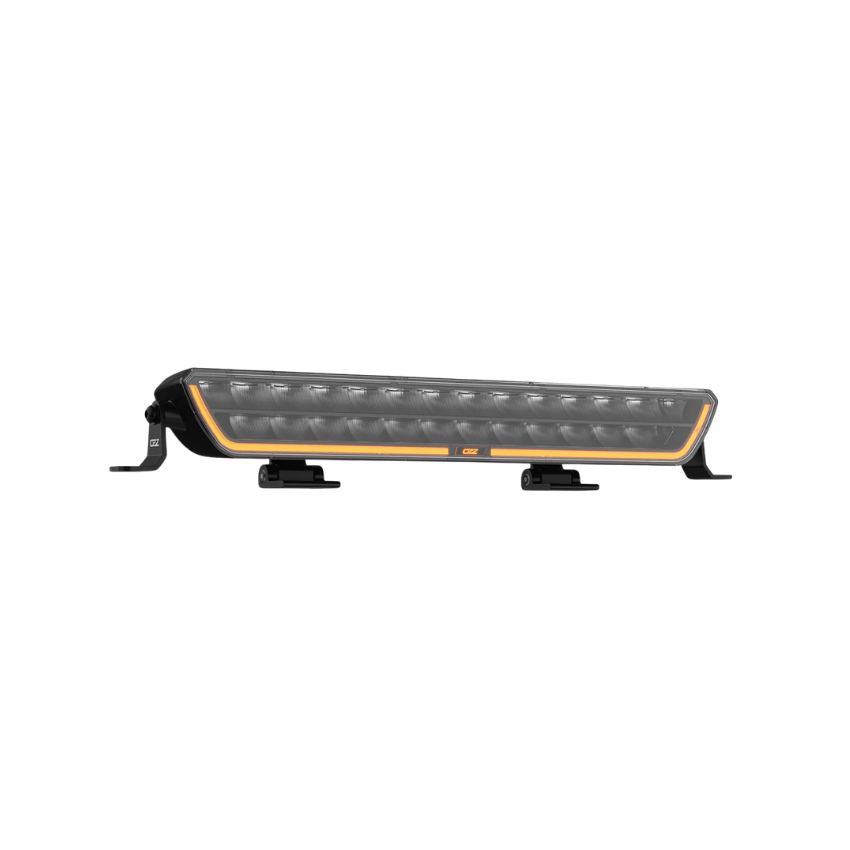

The integrated white and amber position light functions give the OZZ its distinctive signature appearance, allowing the installation to be tailored to the vehicle and desired look.

Unlike many extreme-output LED lightbars, the OZZ HP P20" isn't limited to off-road use. It carries ECE R149 driving light approval together with ECE R148 and ECE R10, providing a fully homologated professional lighting solution when correctly installed and operated in accordance with applicable requirements.

Extreme Long-Range Performance

The OZZ HP P20" has been developed specifically for situations where seeing further ahead matters.

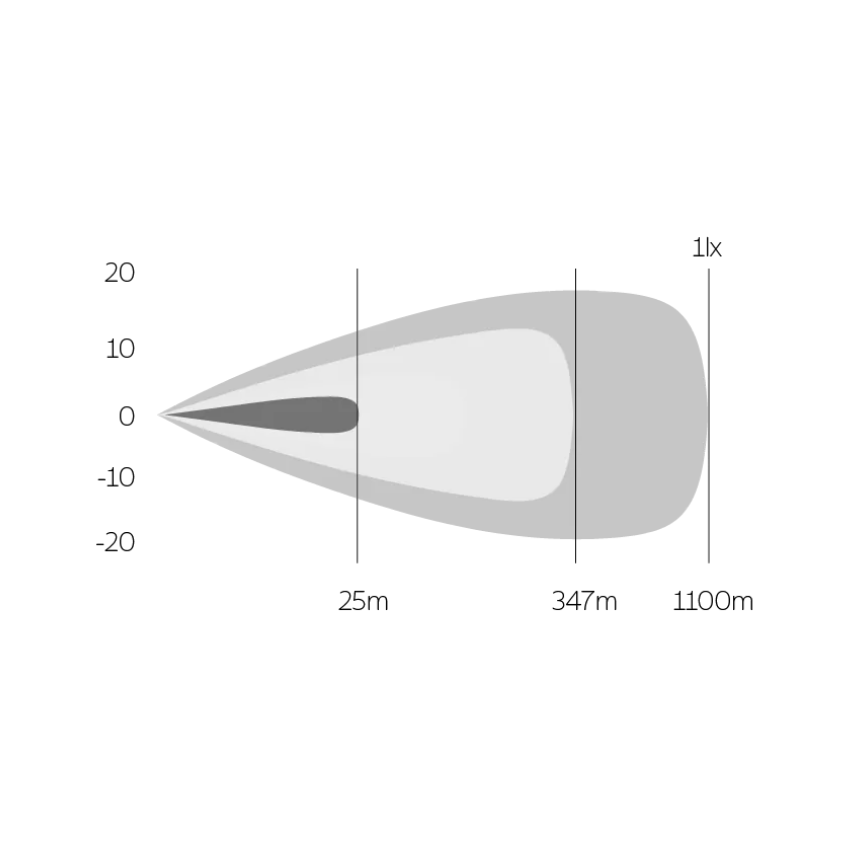

With 17,500 true lumens in Boost mode and an extraordinary 1 lux at 1,100 metres, the focused driving beam provides exceptional visibility over long distances.

With a reference number of 40, the road-approved lighting configuration combines serious driving-light performance with ECE R149 compliance, while Boost mode unlocks the lightbar's maximum output for appropriate applications.

Built for Demanding Environments

The HP P20" combines its lighting performance with construction designed for professional use.

A rugged aluminium housing and impact-resistant polycarbonate lens provide excellent durability, while IP68/IP69K protection makes the lightbar resistant to dust, water ingress and high-pressure cleaning.

Its wide 9-36V operating range makes it suitable for both 12V and 24V vehicle electrical systems, while the supplied mounting brackets and 4-PIN Deutsch connector provide a robust professional installation.

Key Features

• Premium OZZ HP P20" LED driving light bar
• Exceptional 17,500 true lumens in Boost mode
• Rated output up to 23,000 lumens
• Incredible 1 lux @ 1,100m light range
• 28 high-performance LEDs
• Precision long-range driving beam
• ECE R149 approved driving light
• ECE R148 approved
• ECE R10 EMC compliant
• Reference number 40
• Integrated white position light

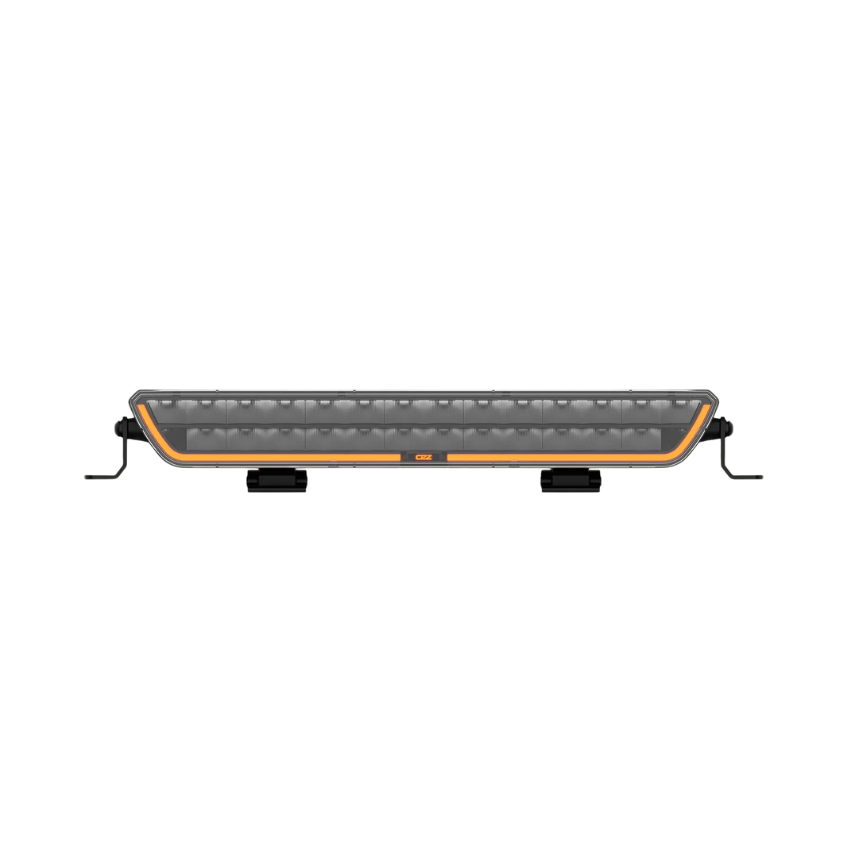

• Integrated amber position light
• Wide 9-36V DC operating range
• Powerful 274W maximum output
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• IP68/IP69K protection

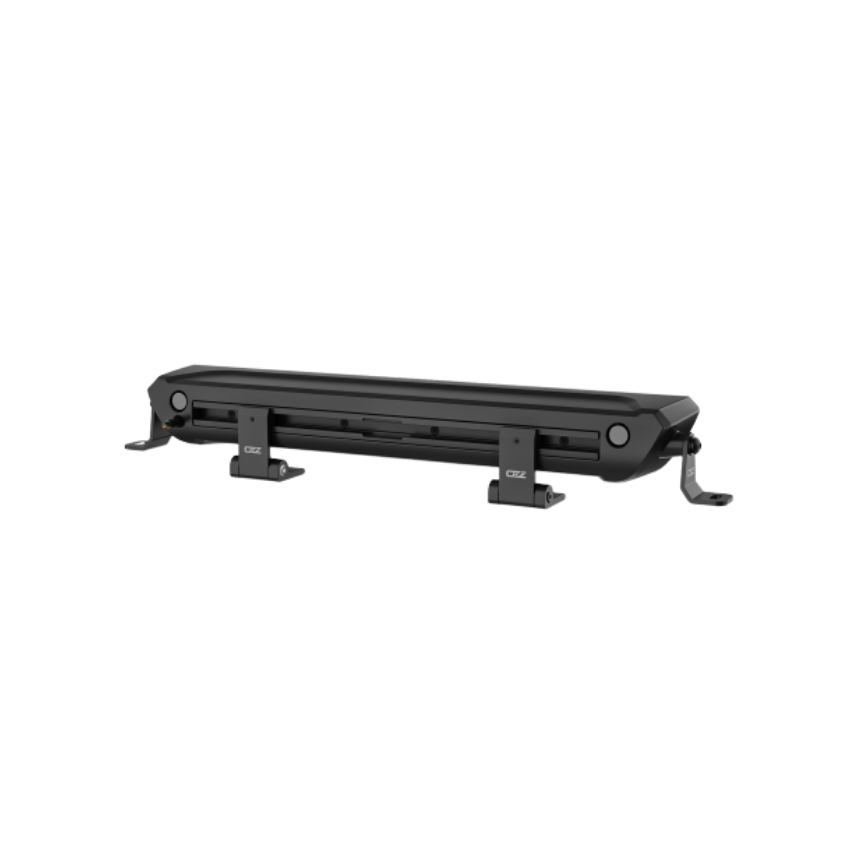

• Supplied with mounting brackets
• 4-PIN Deutsch connector
• Compact 523mm / 20" format
• 3-year warranty

Technical Specifications

• Brand: OZZ
• Range: HP
• Model: P20"
• Product Type: High-Performance LED Driving Light Bar
• Voltage: 9-36V DC
• LEDs: 28
• Rated Light Output: 23,000 Lumens
• True Light Output: 17,500 Lumens in Boost Mode
• Light Range: 1 lux @ 1,100m
• Beam Pattern: Driving Beam
• Light Colour: White
• Position Lights: White / Amber
• Reference Number: 40
• Maximum Power: 274W
• Approvals: ECE R149 / ECE R148 / ECE R10
• Protection Rating: IP68 / IP69K
• Housing: Aluminium
• Housing Colour: Black
• Lens: Transparent Polycarbonate
• Connector: 4-PIN Deutsch
• Cable Length: 1,000mm (800 + 200mm)
• Mounting: Surface Mount
• Mounting Brackets: Included

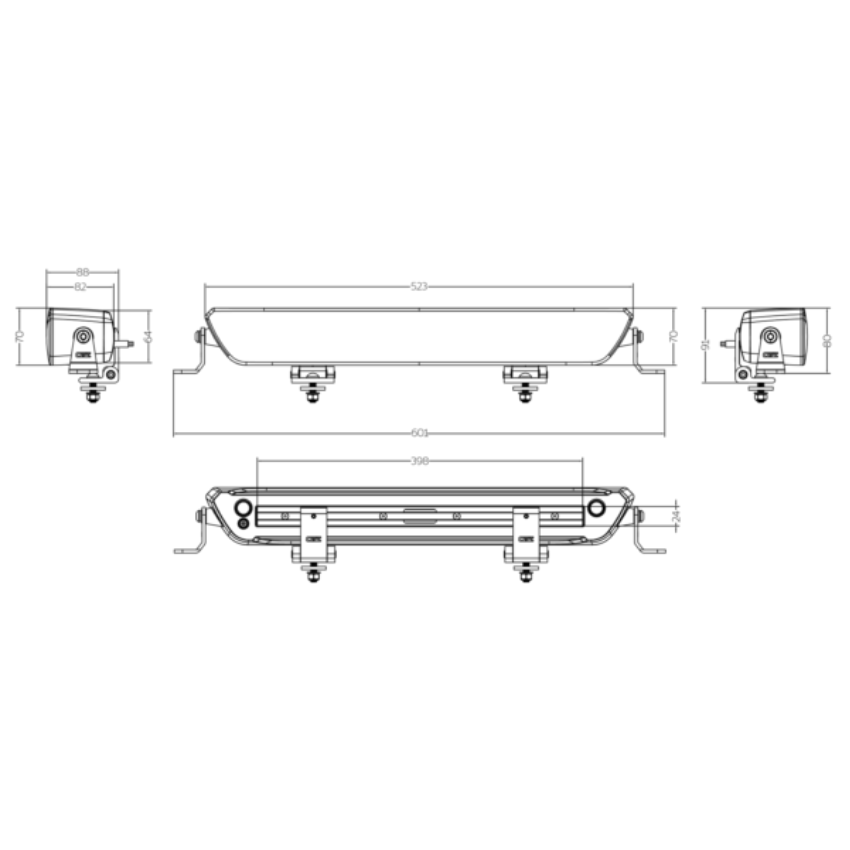

• Dimensions: 523 × 82 × 70mm
• Warranty: 3 Years

Why Choose the OZZ HP P20"?

The OZZ HP P20" is designed for customers who want considerably more than a conventional LED lightbar.

Its combination of 17,500 true lumens and a 1,100-metre reach at 1 lux provides exceptional long-distance visibility, while the tightly controlled driving beam directs that output where it is most useful rather than simply producing excessive foreground illumination.

At only 523mm wide, this level of performance is packaged into a remarkably compact lightbar suitable for everything from 4x4s and pickups to trucks, commercial vehicles and agricultural machinery.

Add ECE R149 road approval, ECE R148 approved position lighting, selectable white or amber position lights, IP68/IP69K protection, Deutsch connectivity and a 3-year warranty, and the HP P20" represents one of the most capable premium driving lightbars in the OZZ range.

For customers looking for maximum long-range performance from a compact 20" LED driving lightbar, the OZZ HP P20" is a serious lighting upgrade.
