LUX LED Interior Strip Light 500mm – 1400 Lumen Surface Mount Vehicle Utility Lamp, 10-30V

The LUX 500mm LED Interior Strip Light provides bright, reliable illumination for vehicle interiors, cargo areas, workshops and utility compartments. Producing a powerful, even spread of neutral white light (4000–4500K), it delivers excellent visibility across larger spaces without the harsh glare often associated with cooler colour temperatures.

Designed for demanding commercial and automotive environments, the lamp features a slim, low-profile design and a robust ADC12 aluminium housing for excellent durability and heat dissipation. The longer 500mm format provides increased light coverage, making it ideal for vans, service vehicles, welfare units, horseboxes, trailers, mobile workshops and commercial vehicle conversions where enhanced interior illumination is required.

Operating across a wide 10–30V DC voltage range, the lamp is suitable for both 12V and 24V electrical systems. The IP67-rated construction protects against dust and water ingress, while ECE R10 approval ensures reliable electromagnetic compatibility in modern vehicles.

Available in Direct Feed, Touch Switch and PIR Sensor variants, allowing you to select the control method best suited to your vehicle or application. Whether you're connecting the lamp to an existing switch panel, require convenient touch control, or want automatic motion-activated operation, the LUX Interior Strip Light provides a professional solution for every installation.

Whether you're upgrading a van interior, illuminating a cargo area or fitting out a commercial vehicle, the LUX 500mm Interior Strip Light delivers dependable performance, excellent light distribution and long-term reliability in demanding working environments.

Main Features

• 10–30V DC wide voltage operation
• Power: 294 x 0.2W
• Lumen: 1400
• Neutral white light output (4000–4500K)
• Extended 500mm design for greater light coverage
• Slim low-profile surface-mount installation
• Durable ADC12 aluminium housing
• Polycarbonate lens construction
• IP67 rated against dust and water ingress
• ECE R10 approved
• Suitable for 12V and 24V vehicles
• Ideal for vans, trailers, workshops and utility vehicles
• Operating temperature: -45°C to +65°C
• Dimensions: 500 x 54 x 11mm
• 3-year warranty

Available Control Options

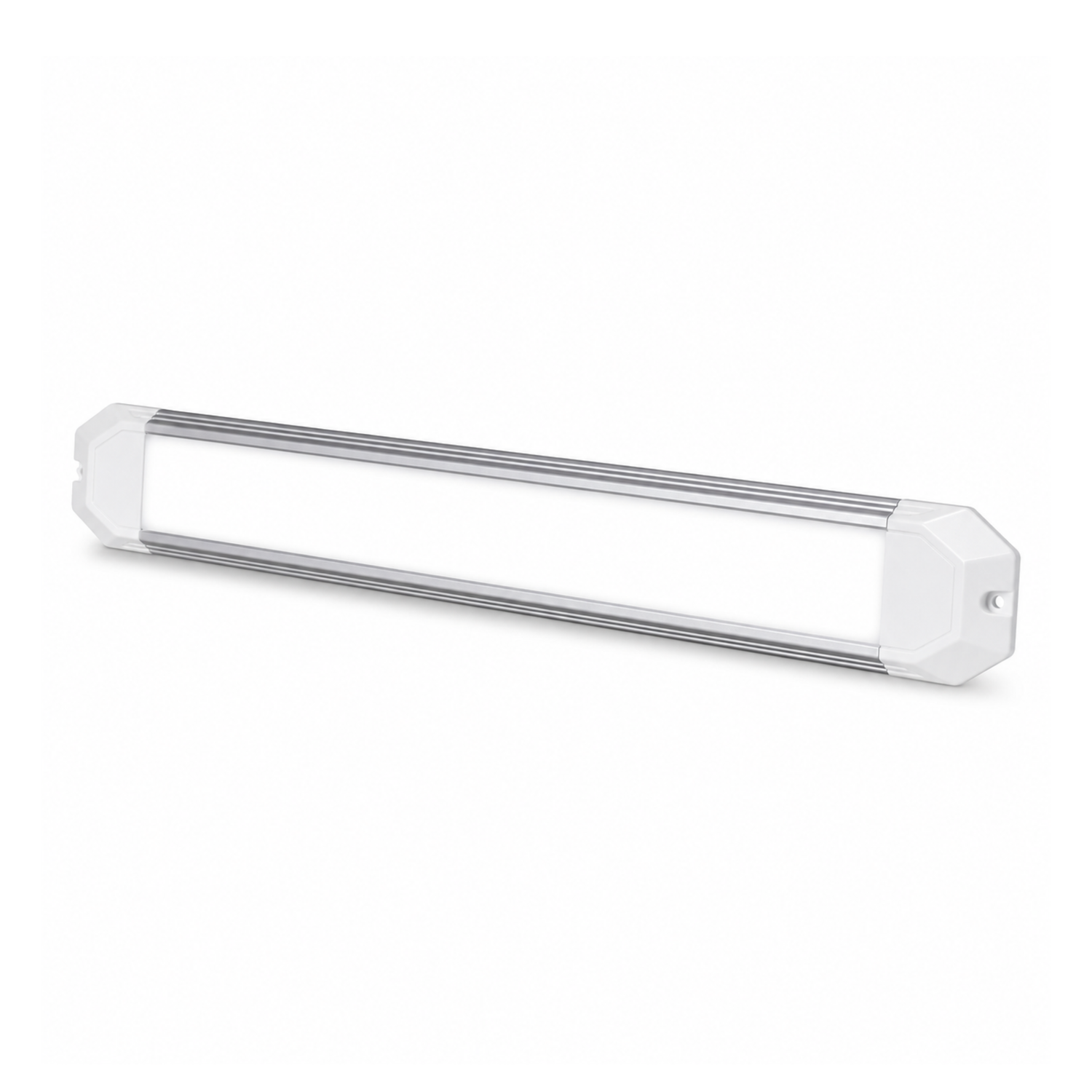

Direct Feed

Ideal for permanent installations controlled by the vehicle's existing switch panel or electrical system. Perfect for professional vehicle conversions, commercial fleets and fixed installations.

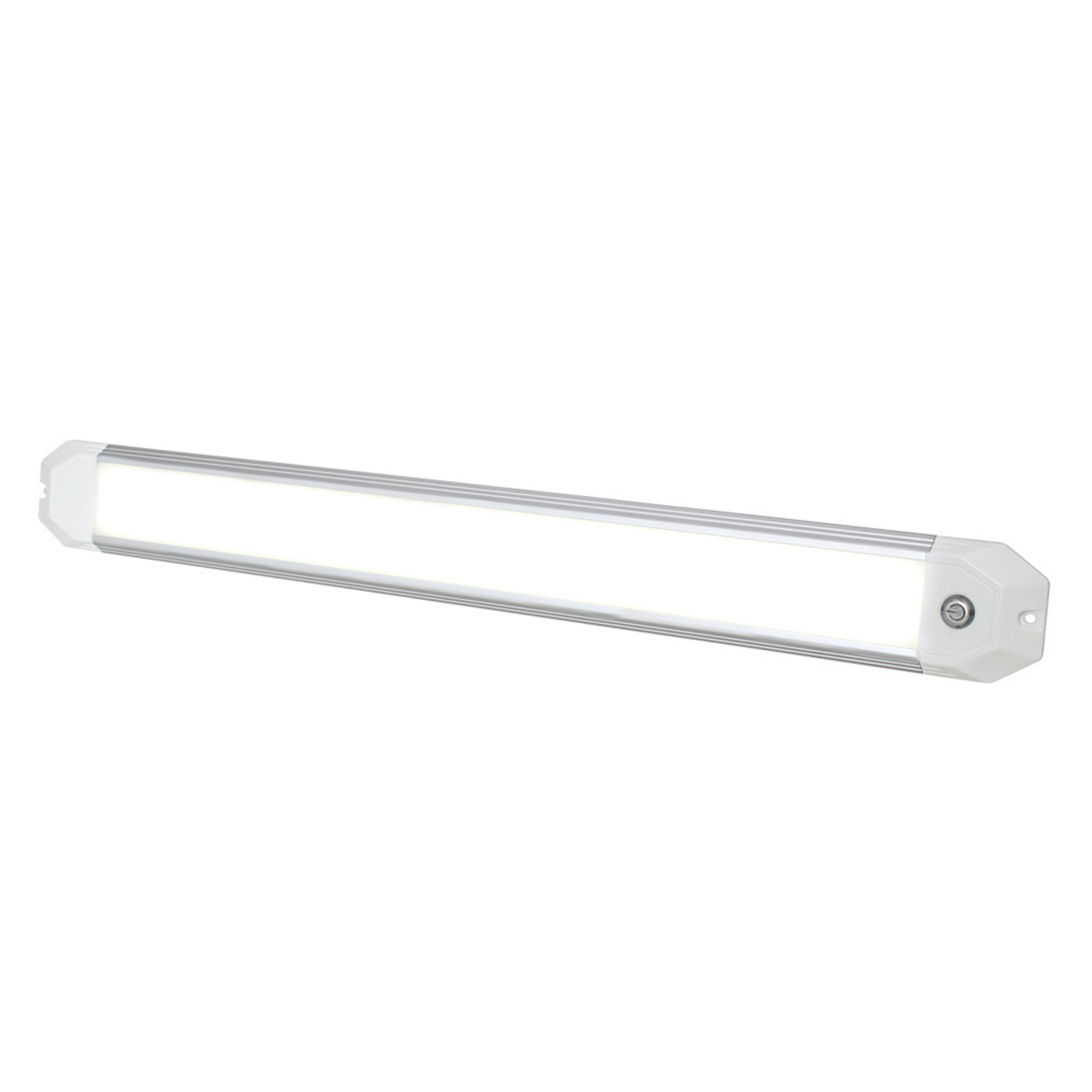

Touch Switch

Features an integrated touch-sensitive switch built into the lamp, allowing convenient on/off operation directly from the light unit without requiring an additional external switch.

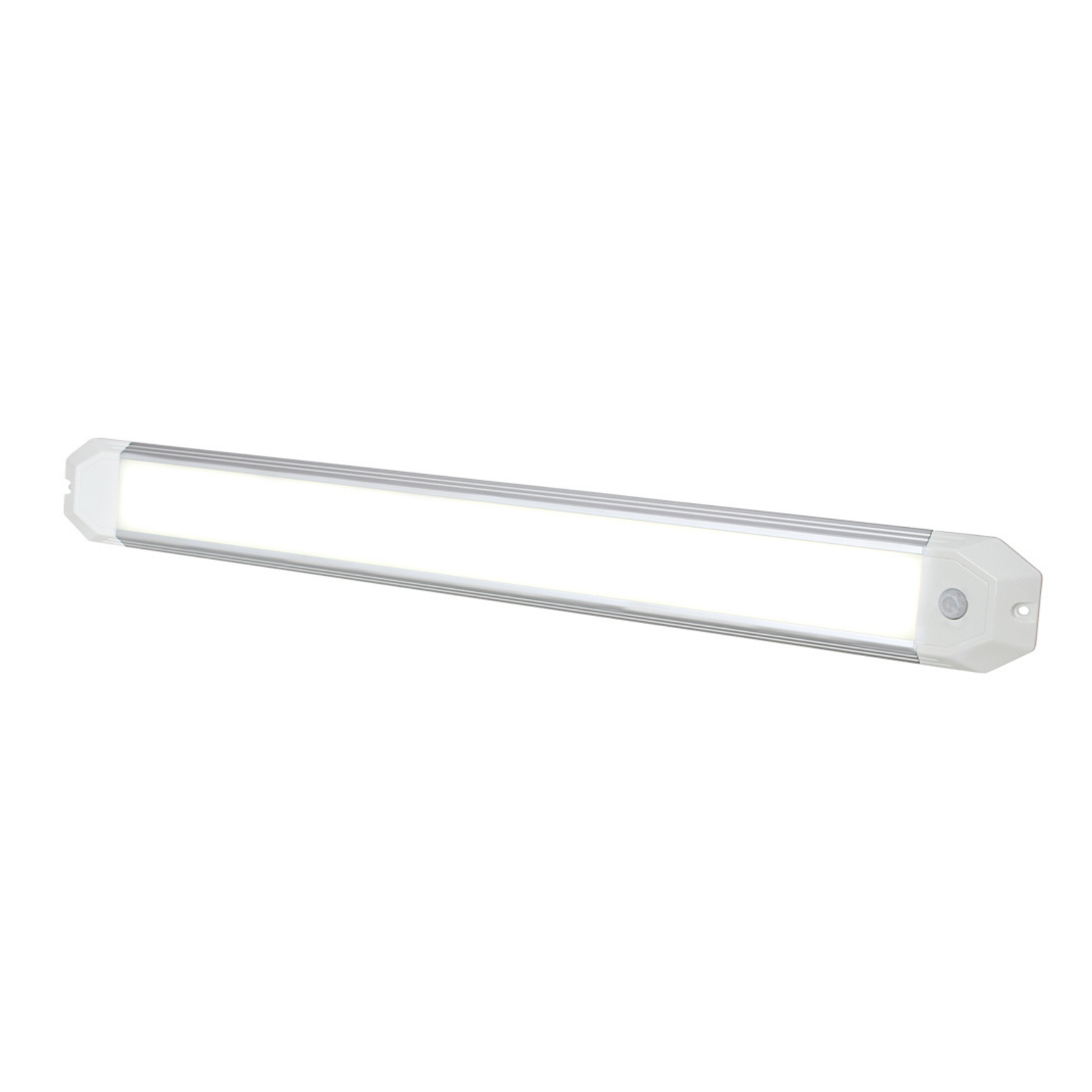

PIR Sensor

Automatically activates when movement is detected and switches off after a period of inactivity. Ideal for cargo areas, service vans, welfare units, tool compartments and utility vehicles where hands-free operation improves convenience and efficiency.

Ideal Applications

• Van interior lighting
• Cargo area lighting
• Service vehicle lighting
• Tool compartments
• Welfare units
• Horseboxes and trailers
• Mobile workshops
• Utility and commercial vehicles
• Fleet vehicle conversions
