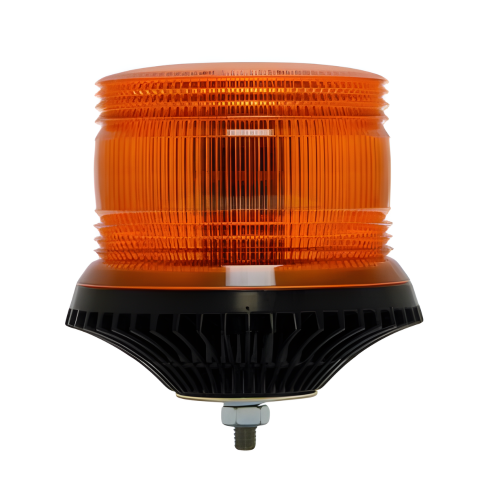

LAP LFB Single Bolt LED Fresnel Beacon – ECE R65, 12/24V, IP69K

The LAP LFB Single Bolt LED Fresnel Beacon is a compact, British-manufactured LED warning beacon designed to deliver reliable 360° warning illumination for commercial vehicles, agricultural machinery, recovery trucks and specialist equipment.

Featuring high-performance LED Fresnel technology and a practical single-bolt mounting configuration, this beacon provides a convenient solution for permanent vehicle warning light installations.

Available in Amber or Green, the LAP LFB Single Bolt Beacon combines ECE R65-approved warning performance with robust construction and versatile 12/24V compatibility.

High-Visibility Warning Performance & Synchronisation

The LAP LFB Single Bolt Beacon features selectable single, triple and quad flash patterns, providing effective visual warning for demanding commercial and specialist vehicle applications.

Operating at 120 flashes per minute, the beacon also features an integrated memory function that automatically recalls the last selected flash pattern.

The single-bolt model supports synchronisation with compatible LFB single-point and three-point beacons, allowing multiple units to operate together for coordinated vehicle warning illumination.

Manufactured in the UK

Proudly manufactured in the United Kingdom, the LAP LFB range combines British manufacturing with dependable LED Fresnel warning technology.

Its practical single-bolt mounting arrangement provides a straightforward installation solution for suitable vehicle bodywork and mounting surfaces.

The beacon features a lightweight polyamide heat sink, durable polycarbonate lens and conformal-coated PCB for dependable performance in challenging working environments.

With IP69K ingress protection, ECE R10 EMC approval, reverse polarity protection and a wide 10–30V operating range, the beacon is engineered for demanding professional applications.

Key Features

• Manufactured in the United Kingdom

• LAP LFB LED Fresnel warning beacon

• Practical single-bolt mounting

• Available in Amber or Green

• ECE R65-approved warning performance

• Selectable single, triple and quad flash patterns

• 120 flashes per minute

• Flash pattern memory function

• Synchronisation with compatible LFB beacons

• ECE R10 EMC approved

• 10–30V DC operating range

• Suitable for 12V and 24V vehicles

• IP69K ingress protection

• Lightweight polyamide heat sink

• Durable polycarbonate lens

• Conformal-coated PCB

• Reverse polarity protection

• 3-year manufacturer's warranty

Technical Specifications

• Brand: LAP Electrical

• Range: LFB LED Fresnel

• Product Type: LED Warning Beacon

• Mounting: Single Bolt / Single Point

• Colour Options: Amber / Green

• Flash Patterns: Single / Triple / Quad

• Flash Rate: 120 Flashes Per Minute

• Memory Function: Yes

• Synchronisation: Yes, with Compatible LFB Models

• Voltage: 10–30V DC

• Warning Approval: ECE R65 (applicable approved patterns and variants)

• EMC Approval: ECE R10

• Ingress Protection: IP69K

• Heat Sink Material: Polyamide

• Lens Material: Polycarbonate

• PCB Protection: Conformal Coating

• Polarity Protection: Reverse Polarity

• Country of Manufacture: United Kingdom

• Warranty: 3 Years

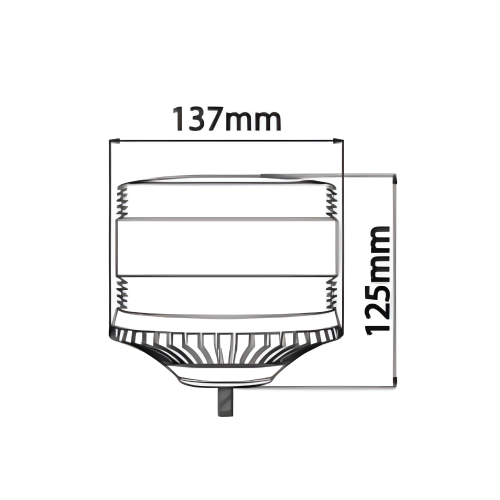

• Dimensions: 137 (dia) x 125 (H) mm

Why Choose the LAP LFB Single Bolt LED Beacon?

The LAP LFB Single Bolt Beacon combines British manufacturing, professional warning illumination and convenient permanent mounting in one versatile lighting solution.

Its selectable flash patterns, synchronisation capability and IP69K protection make it an excellent choice for commercial vehicles, agricultural machinery and specialist equipment.

With ECE R10 approval, 12/24V compatibility and a 3-year warranty, this British-made beacon offers dependable performance for professional installations.

A compact, British-made LED warning beacon with practical single-bolt mounting and synchronisation capability.
