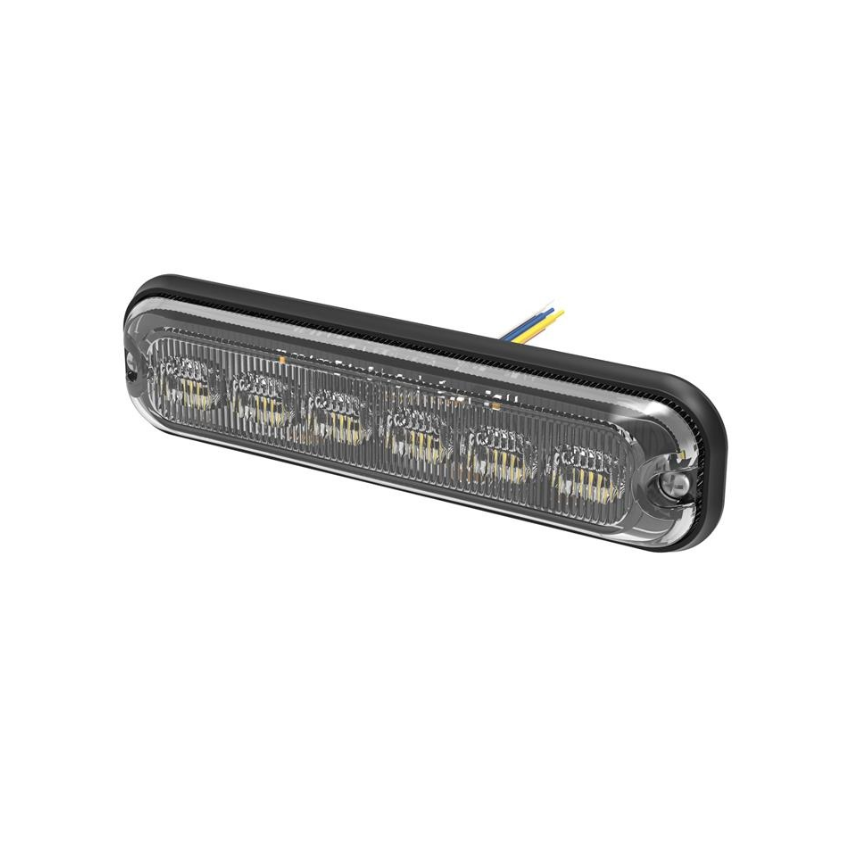

LAP HLED6A 6 LED Amber Warning Light Head – ECE R65 Class II, 12/24V, IP69K

The LAP HLED6A 6 LED Amber Warning Light Head is a high-performance, ultra-slim LED warning light designed for demanding commercial vehicle and specialist warning lighting applications.

Featuring six high-output 3W amber LEDs, the HLED6A combines an expanded LED configuration with ECE R65 Class II approval, making it particularly suitable for installations requiring a Class II approved warning light head.

Despite its six-LED design, the HLED6A maintains a compact housing measuring just 130 x 30 x 11mm, allowing professional installers to incorporate warning illumination into a wide range of vehicle applications.

With ECE R10 EMC approval, IP69K ingress protection and 10–30V DC multivoltage operation, the HLED6A offers dependable performance for both 12V and 24V vehicle systems.

Six High-Output Amber LEDs

The HLED6A incorporates six 3W amber LEDs within a slim rectangular housing, providing a larger LED configuration than the HLED3A and HLED4A models.

Its low-profile design makes it suitable for professional warning lighting installations on recovery vehicles, commercial vans, plant machinery and specialist vehicle conversions.

ECE R65 Class II Approved

Unlike the three- and four-LED models in the HLED range, the HLED6A carries ECE R65 Class II approval.

This makes it particularly relevant for installations where Class II approved amber warning lighting is required.

The light head also carries ECE R10 electromagnetic compatibility approval, supporting integration into vehicle electrical systems.

Ultra-Slim, IP69K-Protected Design

Measuring just 11mm deep, the HLED6A provides a discreet installation profile despite its six-LED configuration.

Its IP69K ingress protection offers resistance to dust and high-pressure, high-temperature water jets, making it suitable for demanding vehicle environments.

A rubber mounting gasket and fixing screws are included.

Key Features

• 6 x 3W amber LEDs

• ECE R65 Class II approved

• ECE R10 EMC approved

• 10–30V DC multivoltage operation

• Suitable for 12V and 24V vehicles

• IP69K ingress protection

• Ultra-slim 11mm housing depth

• Compact 130mm body length

• Rubber mounting gasket and fixing screws included

• Suitable for recovery trucks, commercial vehicles and specialist equipment

• 3-year manufacturer warranty

Technical Specifications

• Brand: LAP Electrical

• Model: HLED6A

• Product Type: LED Warning Light Head

• LED Configuration: 6 x 3W

• LED Colour: Amber

• Operating Voltage: 10–30V DC

• Warning Light Approval: ECE R65 Class II

• EMC Approval: ECE R10

• Ingress Protection: IP69K

• Dimensions: 130 x 30 x 11mm (L x W x D)

• Included Accessories: Rubber Mounting Gasket & Fixing Screws

• Warranty: 3 Years

Why Choose the LAP HLED6A?

The LAP HLED6A is designed for professional installers requiring a compact, six-LED amber warning light with ECE R65 Class II approval.

Combining its slim 11mm profile with IP69K protection, multivoltage operation and a three-year warranty, it provides a versatile warning lighting solution for demanding vehicle applications.

Six high-output amber LEDs. ECE R65 Class II approval. Ultra-slim professional design.
