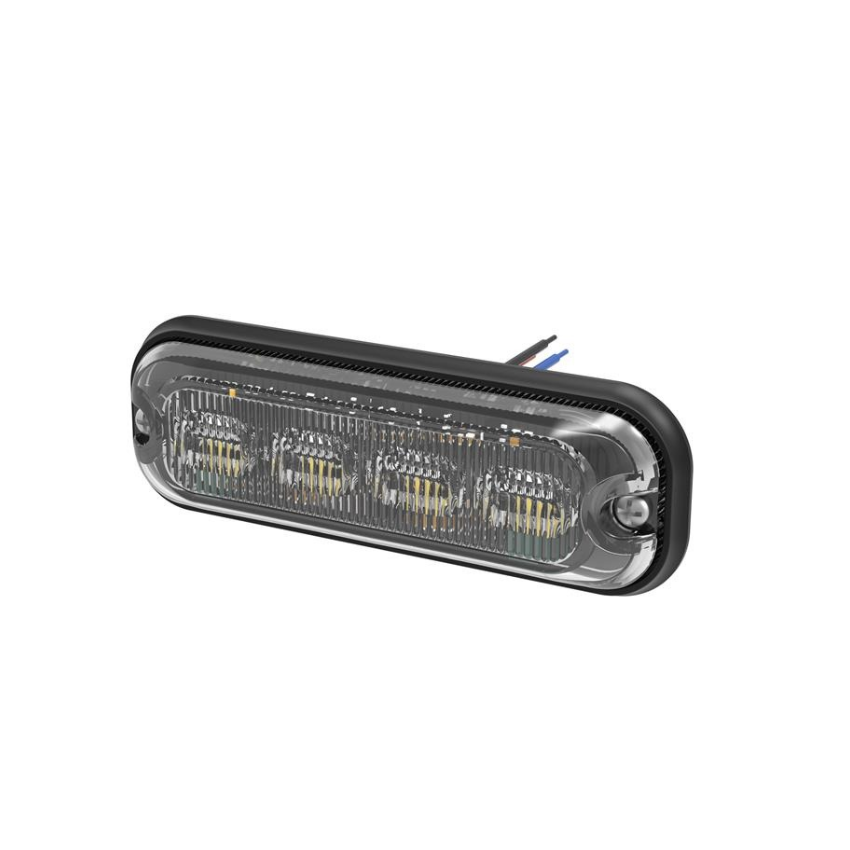

LAP HLED4A 4 LED Amber Warning Light Head – ECE R65 Class I, 12/24V, IP69K

The LAP HLED4A 4 LED Amber Warning Light Head is a compact, professional vehicle warning light designed to deliver dependable amber warning illumination across a wide range of commercial and specialist vehicle applications.

Equipped with four high-output 3W amber LEDs, the HLED4A offers an additional LED compared with the HLED3A while maintaining an ultra-slim housing measuring just 98 x 30 x 11mm.

Featuring ECE R65 Class I approval, ECE R10 EMC compliance and IP69K ingress protection, this versatile warning light head is engineered for demanding working environments.

Its 10–30V DC operating range makes it suitable for integration into both 12V and 24V vehicle electrical systems.

Versatile 4 LED Amber Warning Lighting

The HLED4A combines four 3W amber LEDs with a compact rectangular housing, providing a practical warning lighting solution for recovery vehicles, service vans, agricultural equipment and specialist vehicle conversions.

At just 98mm long and 11mm deep, the light head offers a discreet installation profile without requiring the space associated with larger warning lamps.

ECE R65 Class I Approved

The HLED4A is ECE R65 Class I approved for amber warning illumination and carries ECE R10 EMC approval.

These approvals make it suitable for professional warning light applications where the relevant Class I requirements apply.

IP69K Protection for Demanding Applications

With IP69K ingress protection, the HLED4A is designed to withstand exposure to dust and high-pressure, high-temperature water jets.

A supplied rubber mounting gasket and fixing screws support secure installation on suitable vehicle surfaces.

Key Features

• 4 x 3W amber LEDs

• ECE R65 Class I approved

• ECE R10 EMC approved

• 10–30V DC multivoltage operation

• Compatible with 12V and 24V vehicle systems

• IP69K ingress protection

• Ultra-slim 11mm housing depth

• Compact 98mm body length

• Supplied with rubber gasket and fixing screws

• Suitable for recovery, commercial and specialist vehicles

• 3-year manufacturer warranty

Technical Specifications

• Brand: LAP Electrical

• Model: HLED4A

• Product Type: LED Warning Light Head

• LED Configuration: 4 x 3W

• LED Colour: Amber

• Operating Voltage: 10–30V DC

• Warning Light Approval: ECE R65 Class I

• EMC Approval: ECE R10

• Ingress Protection: IP69K

• Dimensions: 98 x 30 x 11mm (L x W x D)

• Included Accessories: Rubber Mounting Gasket & Fixing Screws

• Warranty: 3 Years

Why Choose the LAP HLED4A?

The LAP HLED4A provides a versatile amber warning light solution for professional vehicle installations, combining four high-output LEDs with a compact, low-profile design.

Its ECE R65 Class I approval, 12/24V compatibility and IP69K protection make it a practical option for installers seeking dependable warning illumination in a compact format.

Four high-output amber LEDs. Ultra-slim construction. Professional vehicle warning performance.
