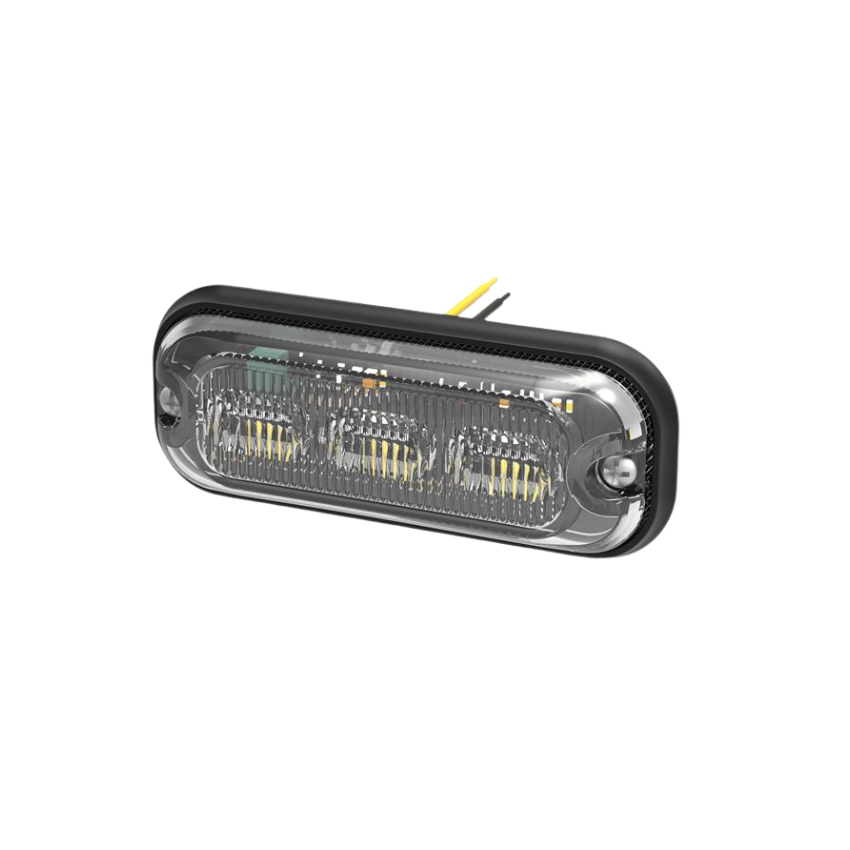

LAP HLED3A 3 LED Amber Warning Light Head – ECE R65 Class I, 12/24V, IP69K

The LAP HLED3A 3 LED Amber Warning Light Head is an ultra-slim, professional LED warning light designed for commercial vehicles, recovery trucks, agricultural machinery and specialist vehicle installations.

Featuring three high-output 3W amber LEDs, the HLED3A delivers compact warning illumination in a discreet housing measuring just 82 x 30 x 11mm.

With ECE R65 Class I approval, ECE R10 EMC compliance and IP69K ingress protection, this compact LED light head provides a reliable warning lighting solution for demanding vehicle applications.

Its 10–30V DC multivoltage operation makes it suitable for both 12V and 24V vehicle electrical systems.

Compact, High-Visibility Amber Warning Lighting

The HLED3A combines three 3W amber LEDs with an ultra-slim housing, making it particularly suitable for installations where mounting space is limited.

Its compact design allows professional vehicle installers to incorporate warning illumination into a wide range of vehicle applications without the bulk of larger warning lamps.

ECE R65 Class I Approved

The HLED3A carries ECE R65 Class I approval for amber warning illumination, alongside ECE R10 electromagnetic compatibility approval.

This makes it a practical choice for professional vehicle warning installations where Class I approved lighting is specified.

Durable IP69K Construction

Engineered for demanding environments, the HLED3A features IP69K ingress protection, providing resistance to dust and high-pressure, high-temperature water jets.

The light head is supplied with a rubber mounting gasket and fixing screws to support a neat and secure installation.

Key Features

• 3 x 3W amber LEDs

• ECE R65 Class I approved

• ECE R10 EMC approved

• 10–30V DC multivoltage operation

• Suitable for 12V and 24V vehicle systems

• IP69K ingress protection

• Ultra-slim 11mm depth

• Compact 82mm housing length

• Rubber gasket and fixing screws included

• Ideal for commercial and specialist vehicles

• 3-year manufacturer warranty

Technical Specifications

• Brand: LAP Electrical

• Model: HLED3A

• Product Type: LED Warning Light Head

• LED Configuration: 3 x 3W

• LED Colour: Amber

• Operating Voltage: 10–30V DC

• Warning Light Approval: ECE R65 Class I

• EMC Approval: ECE R10

• Ingress Protection: IP69K

• Dimensions: 82 x 30 x 11mm (L x W x D)

• Included Accessories: Rubber Mounting Gasket & Fixing Screws

• Warranty: 3 Years

Why Choose the LAP HLED3A?

The LAP HLED3A offers an excellent combination of compact dimensions, professional warning light approval and durable construction.

With its ECE R65 Class I approval, IP69K protection and ultra-slim 11mm profile, it is particularly well suited to commercial vehicle installations where space is limited.

Compact amber warning performance. Professional approval. Built for demanding environments.
