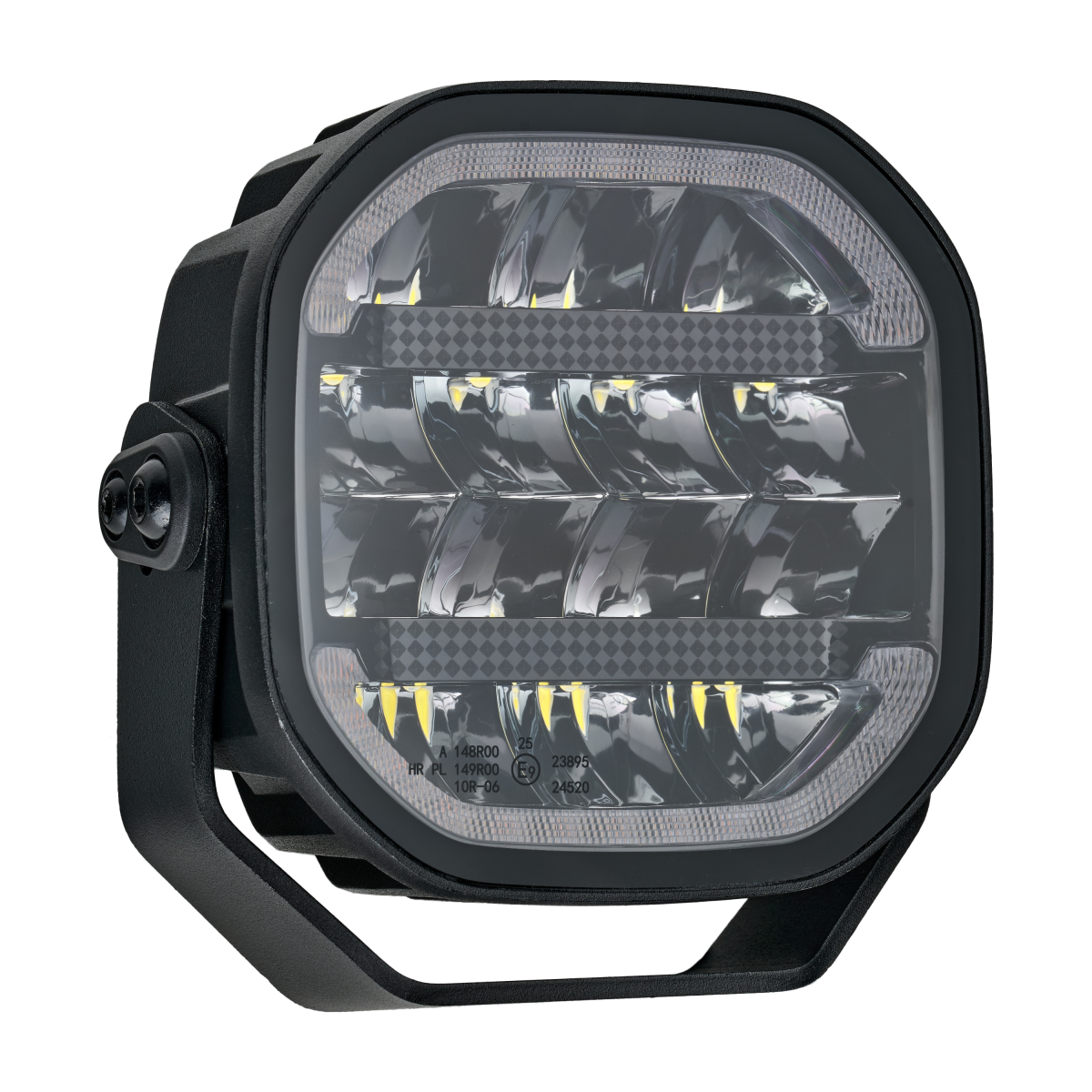

LAP Electrical Osram 5" LED Driving Light - 6300 Lumen with Dynamic White & Amber Position Light, ECE Approved, 10–30V

The LAP 5" Round LED Driving Light is a premium auxiliary driving light designed to deliver exceptional visibility for commercial vehicles, 4x4s, pickups, agricultural machinery and specialist vehicles. Producing an impressive 6300 lumens from 14 high-performance OSRAM LEDs, it provides a powerful, ECE-approved driving beam to improve visibility and driver confidence in challenging conditions.

Featuring both white and amber position light functions, the integrated Dynamic Start-Up sequence gives the lamp a modern, premium appearance every time the position lights are activated. The selectable amber or white marker light allows the driving light to complement a wide range of vehicle styles and applications.

Designed for demanding environments, the lamp features a heavy-duty aluminium housing and impact-resistant polycarbonate lens for excellent durability. With IP67 and IP69K ingress protection, it is built to withstand dust, heavy rain and high-pressure washing, making it suitable for year-round professional use.

Operating across a wide 10–30V DC voltage range, the lamp is compatible with both 12V and 24V electrical systems and is supplied complete with a 4-way Deutsch connector and mating plug for straightforward installation.

Whether fitted to a pickup, recovery truck, commercial vehicle or agricultural machine, the LAP 5" Round LED Driving Light delivers powerful long-range illumination with the added benefit of stylish dual-colour position lighting.

Main Features

• 5" round LED driving light
• 6300 lumen ECE-approved driving beam
• 14 high-performance OSRAM LEDs
• White and amber position light functions
• Dynamic Start-Up position light
• Suitable for 10–30V DC systems
• Compatible with 12V and 24V vehicles
• ECE-approved driving light
• ECE R148 approved white marker light
• IP67 & IP69K rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• Supplied with 4-way Deutsch connector and mating plug
• Operating temperature suitable for demanding environments
• 2-year warranty

Ideal Applications

• 4x4 vehicles
• Pickup trucks
• Commercial vehicles
• Recovery trucks
• Agricultural machinery
• Tractors and telehandlers
• Utility vehicles
• Off-road vehicles
• Plant and construction equipment

Technical Specifications

• Voltage: 10–30V DC
• Light Source: 14 × 5W OSRAM LEDs
• Light Output: 6300 Lumens
• Driving Beam: ECE Approved
• Marker Lights: White (ECE R148) & Amber
• Dynamic Start-Up: Yes
• Protection Rating: IP67 / IP69K
• Housing: Heavy-duty aluminium
• Lens: Polycarbonate
• Connection: 4-way Deutsch connector with mating plug
• Current Draw: 5.8A @ 12V / 2.8A @ 24V
• Dimensions: 148 (L) × 148/132 (H) × 70 (D) mm
• Warranty: 2 Years
