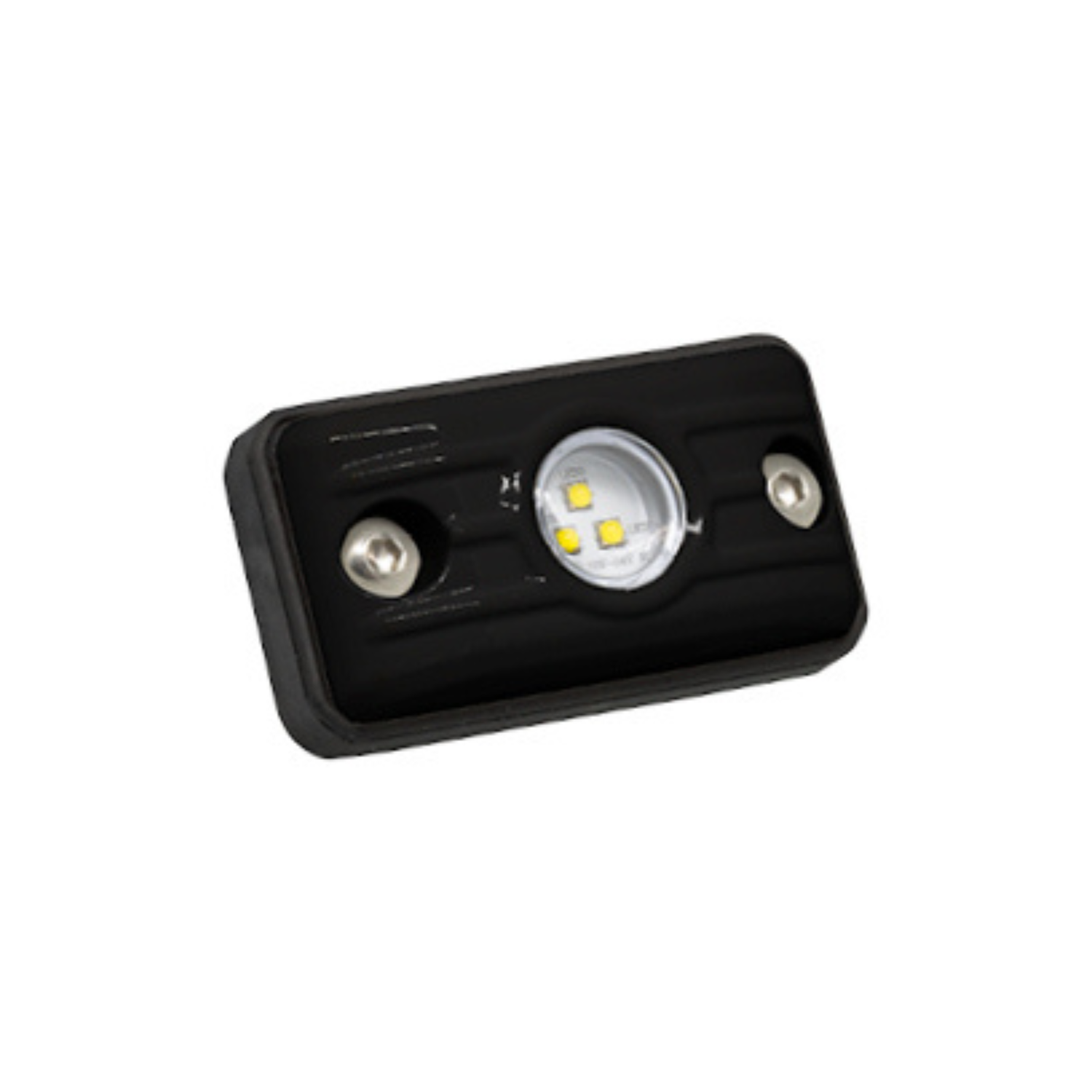

LAP Compact Low Profile LED Work Lamp – 1000 Lumen Flood Beam, Black Housing, 10–30V

The LAP Compact LED Work Lamp is a low-profile, high-performance lighting solution designed for commercial vehicles, agricultural machinery, plant equipment, recovery trucks and specialist applications where installation space is limited. Producing 1000 lumens through a wide flood beam, it provides bright, even illumination while maintaining an exceptionally compact footprint.

Manufactured with 3 high-performance 5W LEDs, this work lamp offers reliable lighting performance for both 12V and 24V vehicle electrical systems. Its slim black housing makes it ideal for installations where a discreet appearance is preferred, including service bodies, tool compartments, recovery vehicles, trailers and under-body applications.

Built for demanding commercial environments, the lamp features a heavy-duty aluminium housing, impact-resistant polycarbonate lens, and 304 grade stainless steel mounting brackets and fixings for excellent durability and corrosion resistance. The IP67-rated construction protects against dust and water ingress, ensuring dependable operation in harsh weather and challenging working conditions.

Fully ECE R10 approved, the LAP Compact LED Work Lamp delivers reliable electromagnetic compatibility for modern vehicles and machinery. An optional rubber mounting grommet (Part No. 63201855) is also available, allowing for a cleaner, more integrated installation where required.

Whether fitted to a commercial van, recovery truck, tractor, utility vehicle or plant machinery, this compact LED work lamp provides dependable illumination wherever additional working light is needed.

Main Features

• Compact low-profile LED work lamp
• 1000 lumen light output
• 3 high-performance 5W LEDs
• Wide flood beam pattern
• Slim black housing
• Suitable for 10–30V DC systems
• Compatible with 12V and 24V vehicles
• ECE R10 EMC approved
• IP67 rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• 304 grade stainless steel mounting brackets and fixings
• Optional rubber mounting grommet available (Part No. 63201855)
• Operating temperature: -30°C to +50°C
• 2-year warranty

Ideal Applications

• Commercial vehicles
• Recovery trucks
• Agricultural machinery
• Plant and construction equipment
• Utility vehicles
• Service vans
• Tool compartments
• Under-body lighting
• Trailers
• Mobile workshops

Technical Specifications

• Voltage: 10–30V DC
• LEDs: 3 × 5W
• Light Output: 1000 Lumens
• Beam Pattern: Flood
• Current Draw: 1.3A @ 12V / 0.6A @ 24V
• Protection Rating: IP67
• Approvals: ECE R10
• Housing: Heavy-duty aluminium
• Lens: Polycarbonate
• Colour: Black Housing
• Mounting: 304 grade stainless steel brackets and fixings
• Operating Temperature: -30°C to +50°C
• Dimensions: 78 (L) × 43 (H) × 24 (D) mm
• Warranty: 2 Years
