TRALERT® Ypsilon 9 LED Driving Light with Amber Warning Strobe – 7,800 Lumens, White/Amber Position Lights, 9–36V | WD-12078.1

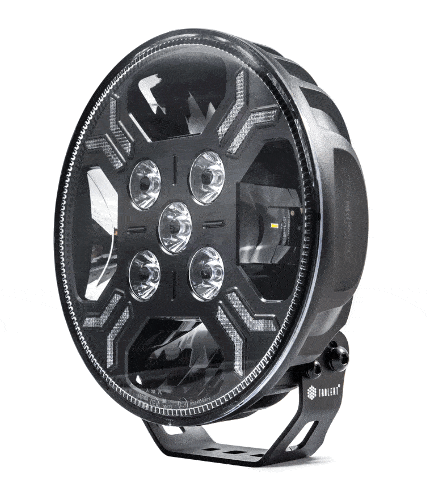

The TRALERT® Ypsilon 9 LED Driving Light with Amber Warning Strobe is a premium, multifunctional auxiliary driving lamp combining powerful forward illumination, integrated amber warning lights and distinctive dual-colour position lighting in one robust unit.

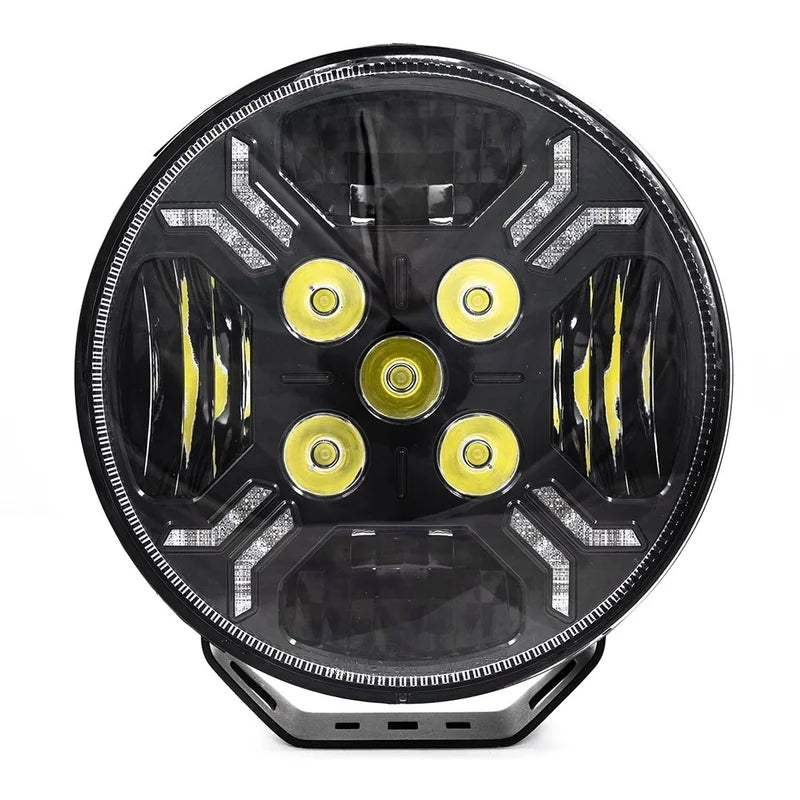

Producing an impressive 7,800 lumens from nine high-performance LEDs, the Ypsilon features a dedicated driving beam reaching 1 lux at 490 metres, providing exceptional forward visibility when travelling on dark roads or operating in demanding environments.

Unlike conventional LED driving lights, the Ypsilon incorporates an integrated amber warning strobe with four selectable flash patterns, providing an additional warning function for commercial vehicles, trucks, recovery vehicles and specialist applications. This makes it particularly useful for vehicles requiring both powerful driving illumination and enhanced warning visibility without installing separate lighting units.

The distinctive white and amber position lights give the Ypsilon its signature appearance, allowing the lighting installation to be tailored to the vehicle and application.

Designed for professional road-going applications, the driving light carries ECE R149 approval, alongside ECE R148 position light approval and ECE R10 EMC compliance, providing a high-quality lighting solution when correctly installed and operated in accordance with applicable regulations.

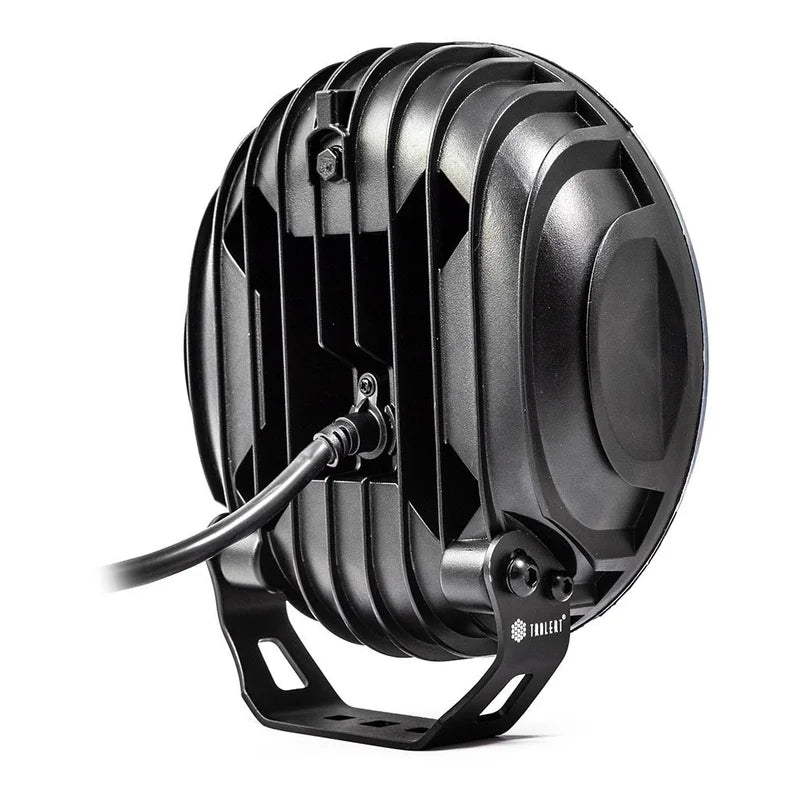

Built for demanding environments, the Ypsilon combines a durable black aluminium housing with an impact-resistant polycarbonate lens and IP68 protection against dust and water ingress.

Its wide 9–36V operating range provides compatibility with both 12V and 24V vehicle electrical systems, while the supplied 330cm cable and 6-PIN Deutsch connector allow for secure, professional installation.

With its unique styling, versatile lighting functions and 3-year warranty, the TRALERT® Ypsilon 9 is an excellent choice for customers seeking a premium combined driving and warning light solution.

Key Features

• Premium TRALERT® Ypsilon 9 LED driving light

• Powerful 7,800 lumen output

• 9 high-performance LEDs

• Dedicated long-range driving beam

• Impressive 1 lux @ 490m light range

• Integrated amber LED warning strobe

• 4 selectable warning flash patterns

• Distinctive white position light

• Integrated amber position light

• ECE R149 approved driving light

• ECE R148 approved position lighting

• ECE R10 EMC compliant

• CE certified

• Reference number 30

• Wide 9–36V DC operating range

• 120W power consumption

• Heavy-duty black aluminium housing

• Impact-resistant polycarbonate lens

• IP68 dust and water protection

• Professional 6-PIN Deutsch connector

• Generous 330cm cable

• Compact 214mm round design

• Ideal for trucks, commercial vehicles, recovery and specialist applications

• 3-year warranty

Technical Specifications

• Brand: TRALERT®

• Range: Ypsilon

• Model: Ypsilon 9

• Product Code: WD-12078.1

• Product Type: Multifunction LED Driving Light with Amber Warning Strobe

• Voltage: 9–36V DC

• Power: 120W

• Light Output: 7,800 Lumens

• Number of LEDs: 9

• Beam Pattern: Driving Beam

• Light Range: 10 lux @ 130m / 1 lux @ 490m

• Reference Number: 30

• Driving Light Colour: White

• Position Lights: White / Amber

• Warning Light: Integrated Amber LED Strobe

• Warning Flash Patterns: 4

• Approvals: CE / ECE R10 / ECE R148 / ECE R149 / ECE R23

• Protection Rating: IP68

• Housing Material: Aluminium

• Housing Colour: Black

• Lens Material: Polycarbonate

• Lens Colour: Transparent

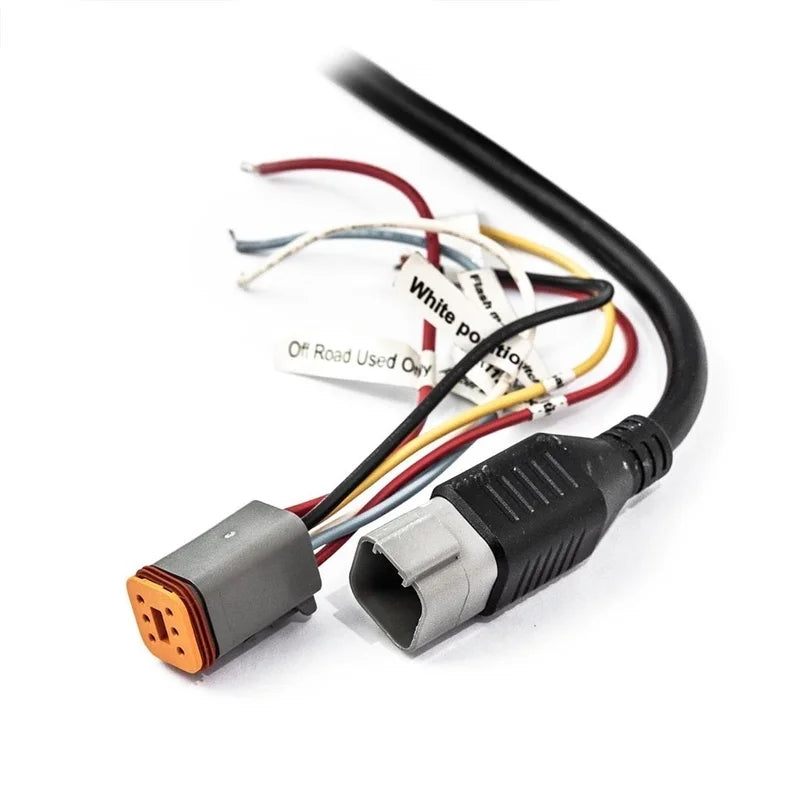

• Connector: 6-PIN Deutsch

• Cable Length: 3,300mm

• Current Draw: 10A @ 12V / 5A @ 24V

• Mounting: Surface Mount

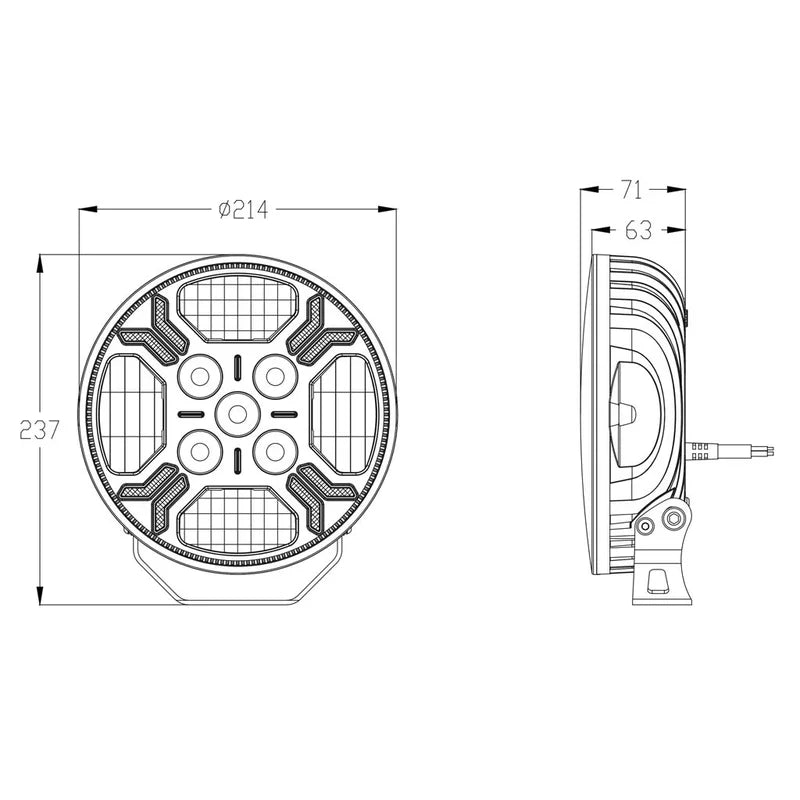

• Dimensions: Ø214 × 71mm

• Warranty: 3 Years

Why Choose the TRALERT® Ypsilon 9?

The TRALERT® Ypsilon 9 offers an exceptionally versatile lighting solution by combining three essential vehicle lighting functions in one premium lamp: powerful auxiliary driving illumination, integrated amber warning lights and dual-colour position lighting.

Its 7,800-lumen driving beam reaches 1 lux at 490 metres, delivering substantial additional forward visibility for trucks and commercial vehicles operating after dark.

The integrated amber warning strobe with four selectable flash patterns makes the Ypsilon particularly attractive for recovery operators, highway maintenance vehicles, heavy-duty trucks and specialist fleets requiring additional warning visibility.

Meanwhile, the distinctive white and amber position lights provide the contemporary styling associated with premium TRALERT® lighting products.

With ECE R149 driving-light approval, ECE R148 position-light approval, IP68 protection, a sealed Deutsch connector and a 3-year warranty, the Ypsilon 9 combines performance, durability and distinctive styling in one professional lighting solution.

For customers looking to combine powerful driving lights and amber warning functions without fitting multiple separate lamps, the TRALERT® Ypsilon 9 is an excellent choice.
