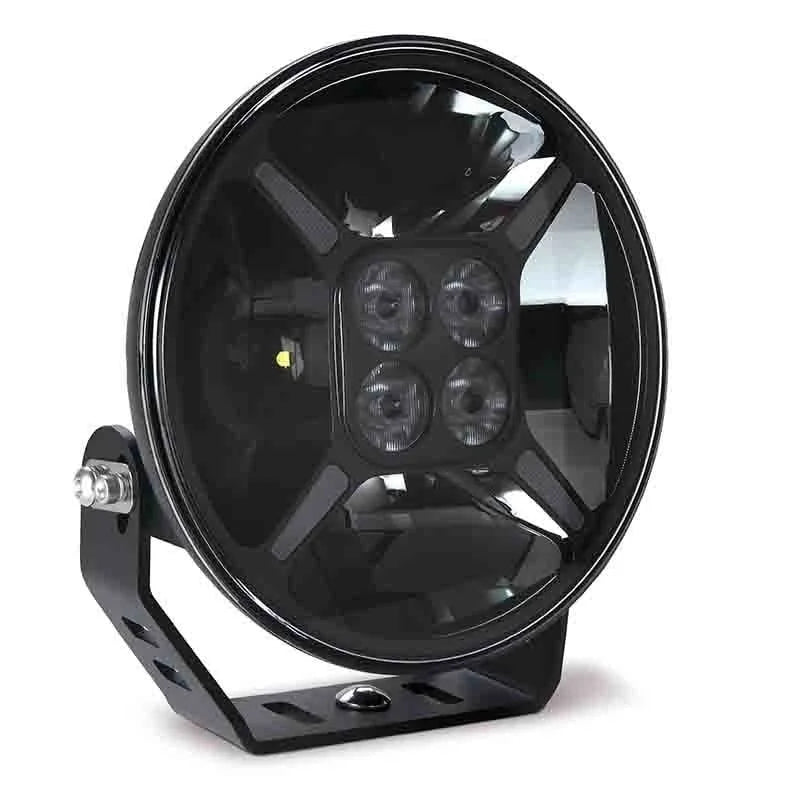

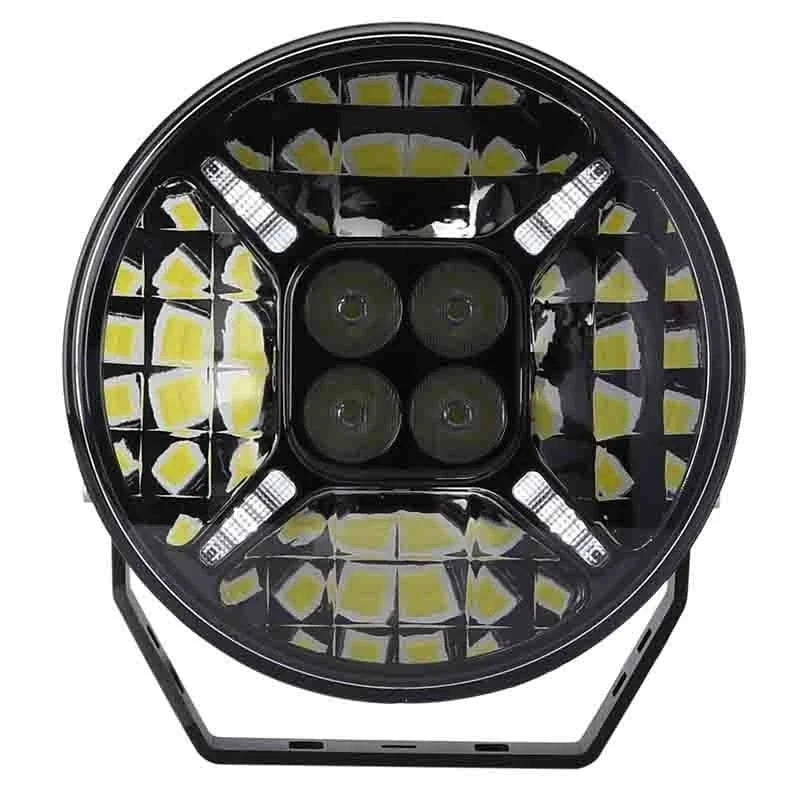

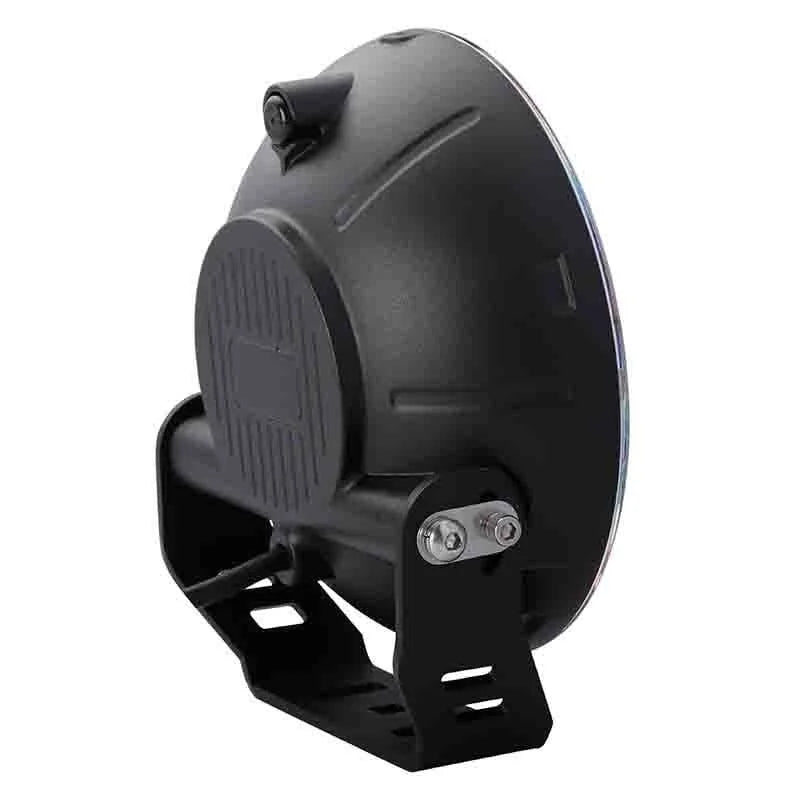

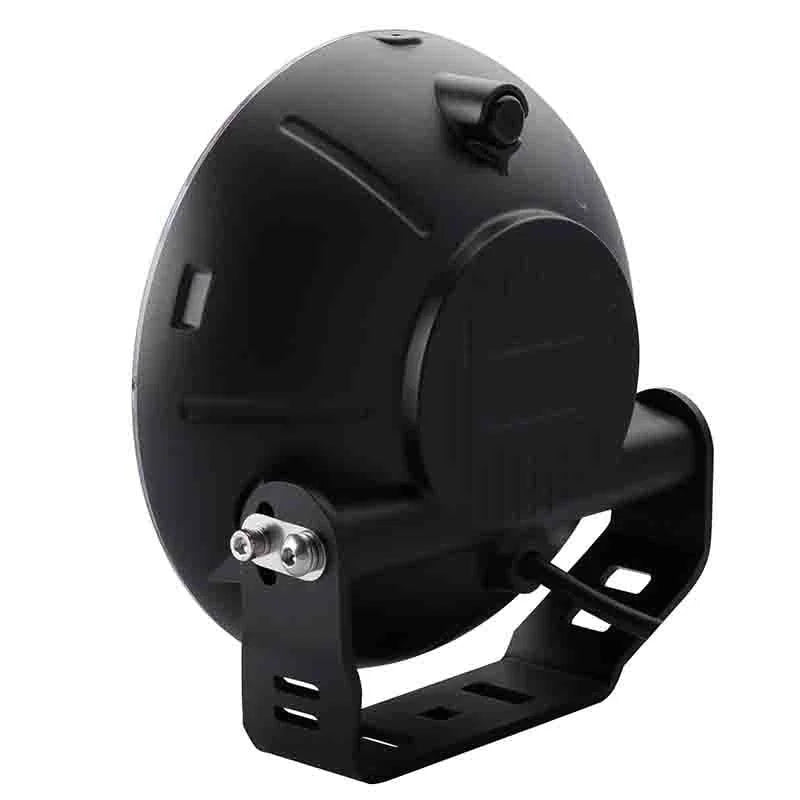

TRALERT® Graveler Round LED Driving Light – 12,000 Lumen with White & Amber Position Light, ECE Approved, 9–36V

The TRALERT® Graveler series round LED driving light is a premium auxiliary driving light engineered for commercial vehicles, 4x4s, pickups, trucks and agricultural machinery where powerful long-range illumination is essential. Delivering an impressive 12,000 lumens, it produces a focused driving beam to improve visibility and driver confidence when travelling on unlit roads and challenging terrain.

Powered by high-performance Cree LEDs, the lamp combines outstanding light output with excellent energy efficiency. The integrated dual-colour position light allows you to select either white or amber illumination, offering a modern appearance while enhancing vehicle visibility in different applications.

Built for demanding environments, the lamp features a heavy-duty aluminium housing with an impact-resistant polycarbonate lens for maximum durability. With an IP69K protection rating, it is resistant to dust, water and high-pressure washing, making it ideal for year-round professional use on vehicles operating in harsh conditions.

Operating across a wide 9–36V DC voltage range, the lamp is suitable for both 12V and 24V electrical systems and is supplied with a 4-pin Deutsch connector and 3-metre cable for straightforward installation.

Fully approved to ECE R112 for driving beam performance, ECE R7 for the white position light and ECE R10 for electromagnetic compatibility, the TRALERT® Round LED Driving Light is designed to meet the demands of professional operators while delivering exceptional performance and reliability.

Main Features

• Premium round LED driving light
• High-output 12,000 lumen driving beam
• Focused long-range beam pattern

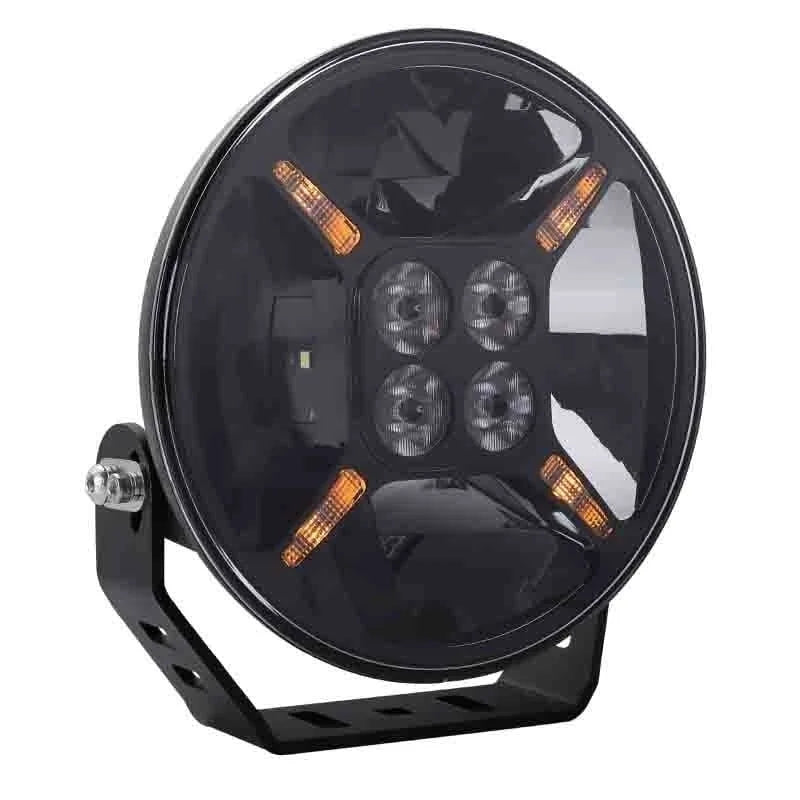

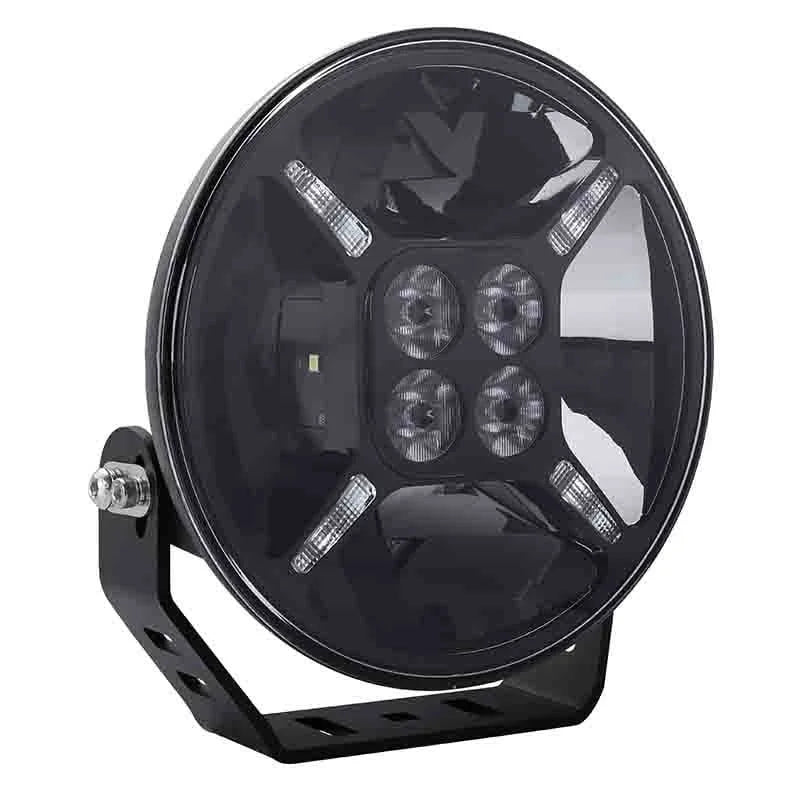

• Dual-colour white & amber position light
• High-performance Cree LEDs
• Suitable for 9–36V DC systems
• Compatible with 12V and 24V vehicles
• ECE R112 approved driving beam
• ECE R7 approved white position light
• ECE R10 EMC approved
• IP69K rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• 4-pin Deutsch connector
• 3-metre cable
• Surface mount installation
• 2-year warranty

Ideal Applications

• Trucks
• 4x4 vehicles
• Pickup trucks
• Agricultural machinery
• Tractors and telehandlers
• Utility vehicles
• Recovery trucks
• Off-road vehicles
• Plant and construction equipment

Technical Specifications

• Voltage: 9–36V DC
• Light Source: 4 × 20W Cree LEDs + 4 × 10W Cree LEDs
• Light Output: 12,000 Lumens
• Beam Pattern: Driving Beam
• Reference Number: 45
• Position Lights: White & Amber
• Protection Rating: IP69K
• Approvals: CE, ECE R10, ECE R112, ECE R7
• Housing: Aluminium
• Lens: Polycarbonate
• Connection: 4-pin Deutsch connector
• Cable Length: 3m
• Current Draw: 6.5A @ 12V / 3.3A @ 24V
• Dimensions: Ø218 × 84mm
• Warranty: 2 Years
• Alternative for: Ledson Sarox 9+
