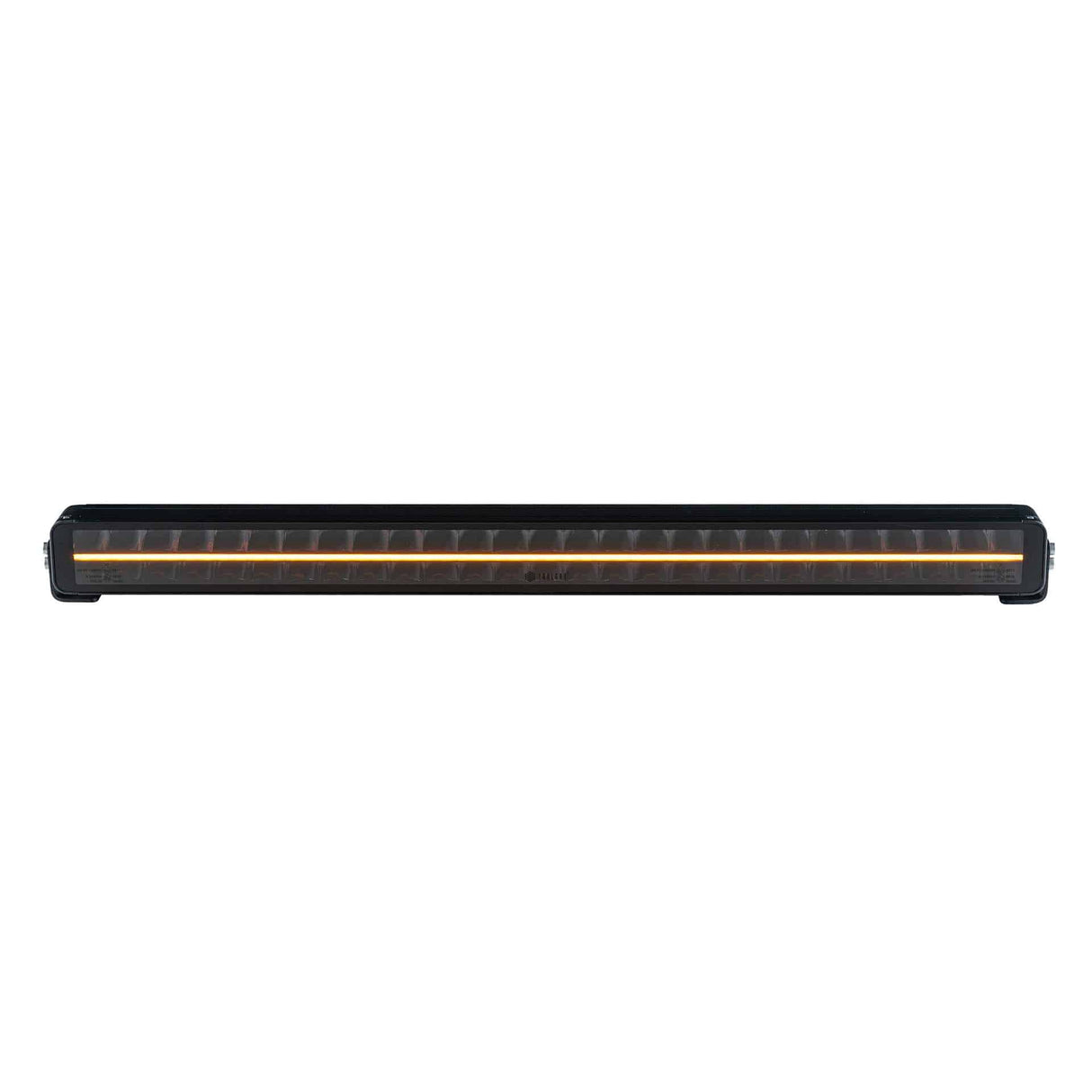

TRALERT® Nemesis XL 790 LED Driving Light Bar – 22,680 Lumen with White & Amber Position Light, ECE Approved, 10–32V

The TRALERT® Nemesis XL 790 LED Driving Light Bar is the most powerful model in the Nemesis XL range, engineered for trucks, commercial vehicles, agricultural machinery, construction equipment and off-road vehicles where exceptional long-range illumination is essential. Delivering an outstanding 22,680 lumens, it produces a powerful driving beam to maximise visibility and improve driver confidence in the most demanding working and driving conditions.

Manufactured with 54 high-performance 5W LEDs in a double-row configuration, the Nemesis XL 790 combines exceptional light output with a robust, professional design. The integrated white and amber position lights feature a distinctive dynamic start-up sequence, providing a premium appearance while enhancing vehicle visibility both on and off the road.

Built for heavy-duty use, the light bar features a durable aluminium housing and an impact-resistant polycarbonate lens for excellent resistance to vibration, impact and harsh weather. With an IP69K protection rating, it offers maximum protection against dust, water ingress and high-pressure washing, making it ideal for year-round operation in demanding commercial environments.

Operating across a wide 10–32V DC voltage range, the Nemesis XL 790 is compatible with both 12V and 24V electrical systems. Supplied complete with a 3-metre cable, Deutsch connector, and both side and rear mounting brackets, it offers flexible installation across a wide range of vehicles.

Fully approved to ECE R149 for driving beam performance and ECE R10 for electromagnetic compatibility, the TRALERT® Nemesis XL 790 delivers exceptional lighting performance, premium styling and dependable reliability for professional applications.

Main Features

• Premium double-row LED driving light bar
• High-output 22,680 lumen driving beam
• 54 high-performance 5W LEDs
• White & amber position lights
• Dynamic start-up position light
• Suitable for 10–32V DC systems
• Compatible with 12V and 24V vehicles
• ECE R149 approved driving beam
• ECE R10 EMC approved
• IP69K rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• Supplied with side and rear mounting brackets
• Deutsch connector with 3-metre cable
• 2-year warranty

Ideal Applications

• Trucks
• Commercial vehicles
• Heavy haulage vehicles
• Agricultural machinery
• Tractors and telehandlers
• Excavators
• Construction and plant equipment
• Utility vehicles
• 4x4 vehicles
• Off-road vehicles

Technical Specifications

• Voltage: 10–32V DC
• Light Source: 54 × 5W LEDs
• Light Output: 22,680 Lumens
• Beam Pattern: Driving Beam
• Reference Number: 50
• Position Lights: White & Amber with Dynamic Start-Up
• Protection Rating: IP69K
• Approvals: CE, ECE R10, ECE R149
• Housing: Aluminium
• Lens: Polycarbonate
• Connection: Deutsch connector
• Cable Length: 3m
• Mounting: Side and rear mounting brackets included
• Dimensions: 789.5 × 62.5 × 70.1mm
• Power Consumption: 270W
• Warranty: 2 Years
