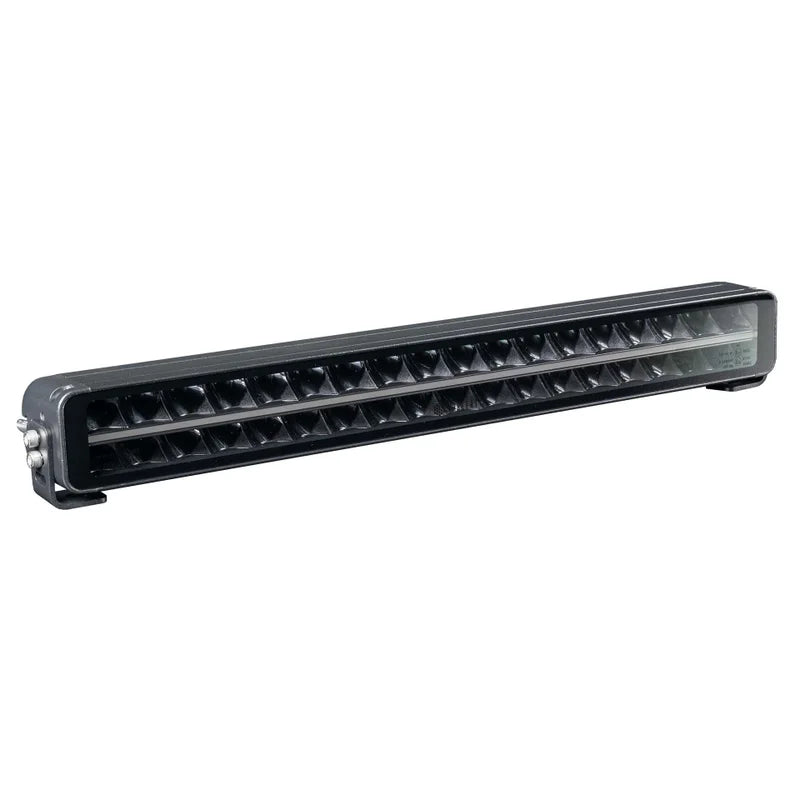

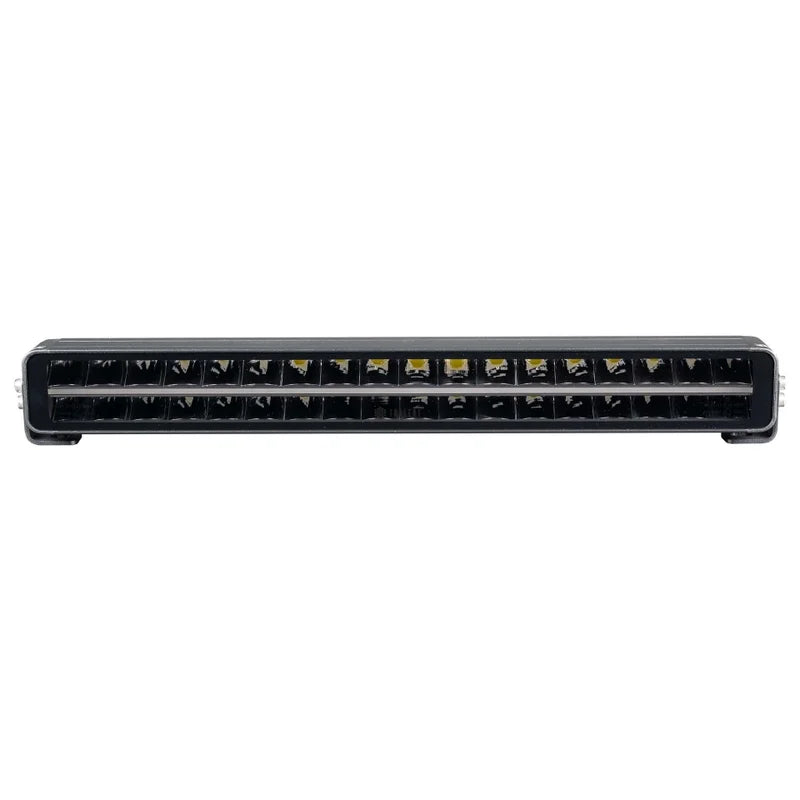

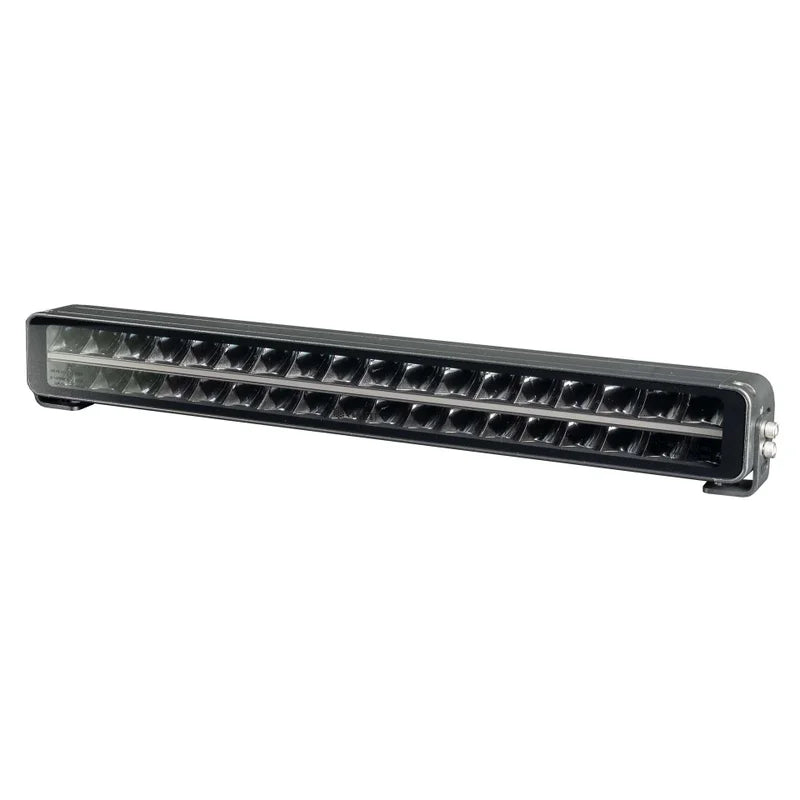

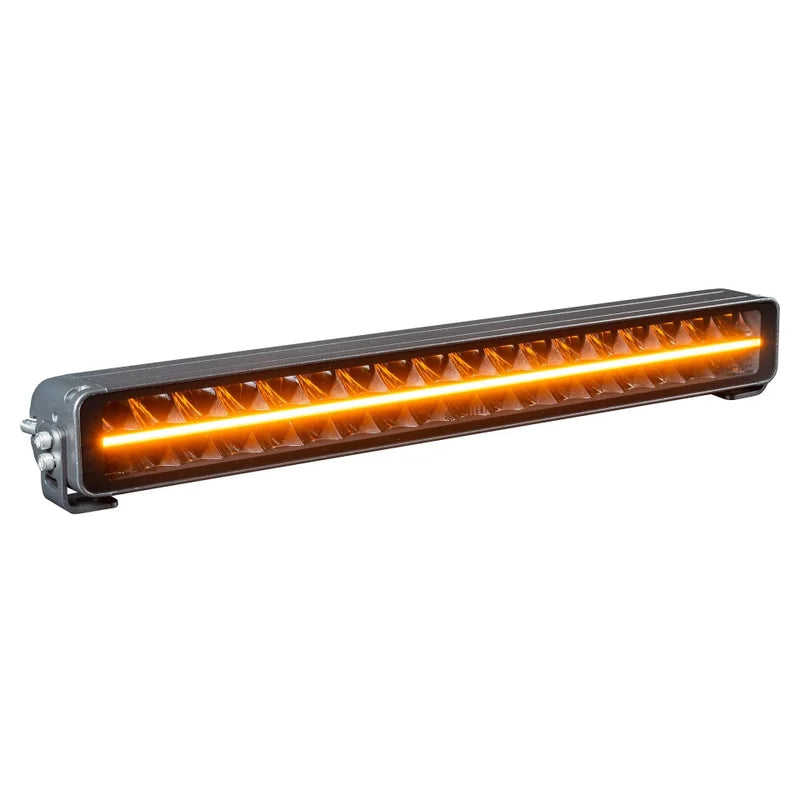

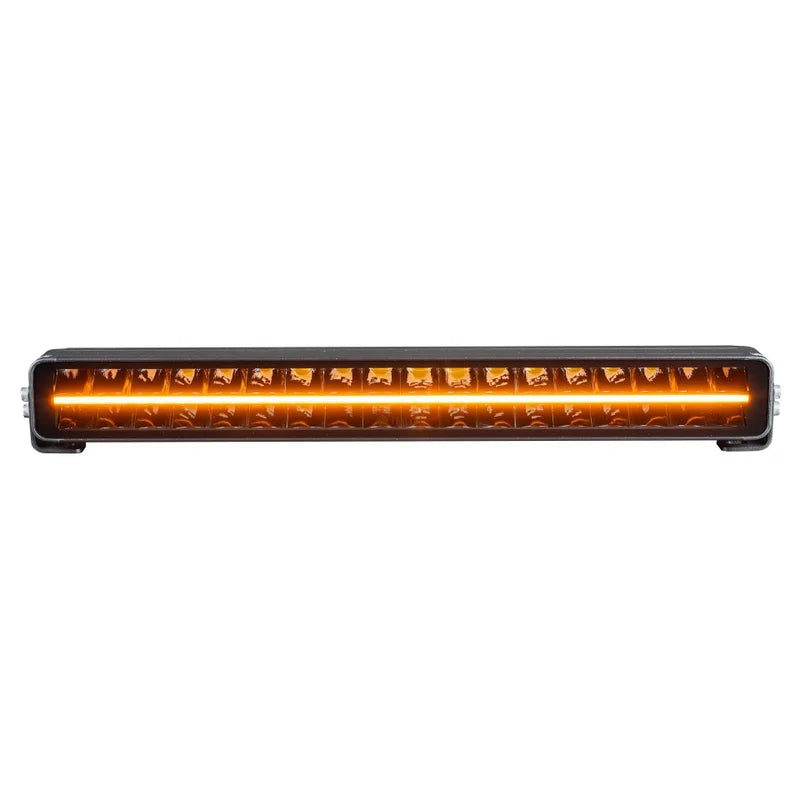

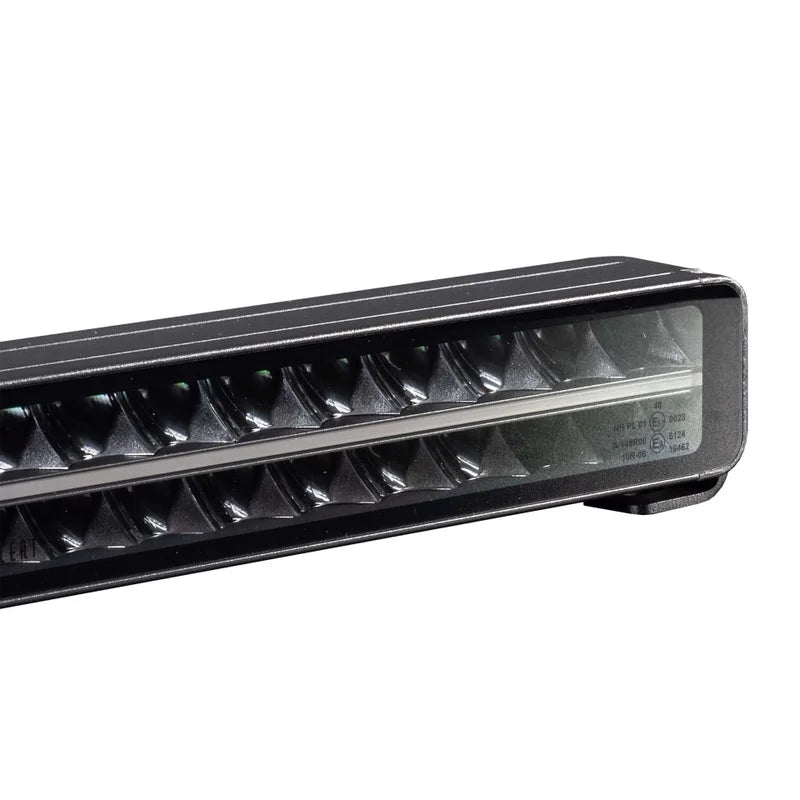

TRALERT® Nemesis XL 530 LED Driving Light Bar – 15,120 Lumen with White & Amber Position Light, ECE Approved, 10–32V

The TRALERT® Nemesis XL 530 LED Driving Light Bar is a premium double-row auxiliary driving light designed for trucks, commercial vehicles, agricultural machinery, construction equipment and 4x4s where exceptional long-range illumination is required. Producing an impressive 15,120 lumens, it delivers a powerful driving beam to maximise visibility and improve driver confidence in challenging conditions.

Manufactured with 36 high-performance 5W LEDs in a double-row configuration, the Nemesis XL combines outstanding light output with a robust, professional design. The integrated white and amber position lights feature a distinctive dynamic start-up sequence, giving the light bar a premium appearance while enhancing vehicle visibility both on and off the road.

Built to withstand demanding working environments, the light bar features a heavy-duty aluminium housing and an impact-resistant polycarbonate lens for excellent durability. With an IP69K protection rating, it offers outstanding resistance to dust, water ingress and high-pressure washing, making it ideal for year-round use in harsh commercial and off-road environments.

Operating across a wide 10–32V DC voltage range, the Nemesis XL 530 is suitable for both 12V and 24V electrical systems. Supplied complete with a 3-metre cable, Deutsch connector, and both side and rear mounting brackets, it offers flexible installation across a wide range of vehicles.

Fully approved to ECE R149 for driving beam performance and ECE R10 for electromagnetic compatibility, the TRALERT® Nemesis XL 530 delivers exceptional performance, premium styling and dependable reliability for professional applications.

Main Features

• Premium double-row LED driving light bar
• High-output 15,120 lumen driving beam
• 36 high-performance 5W LEDs

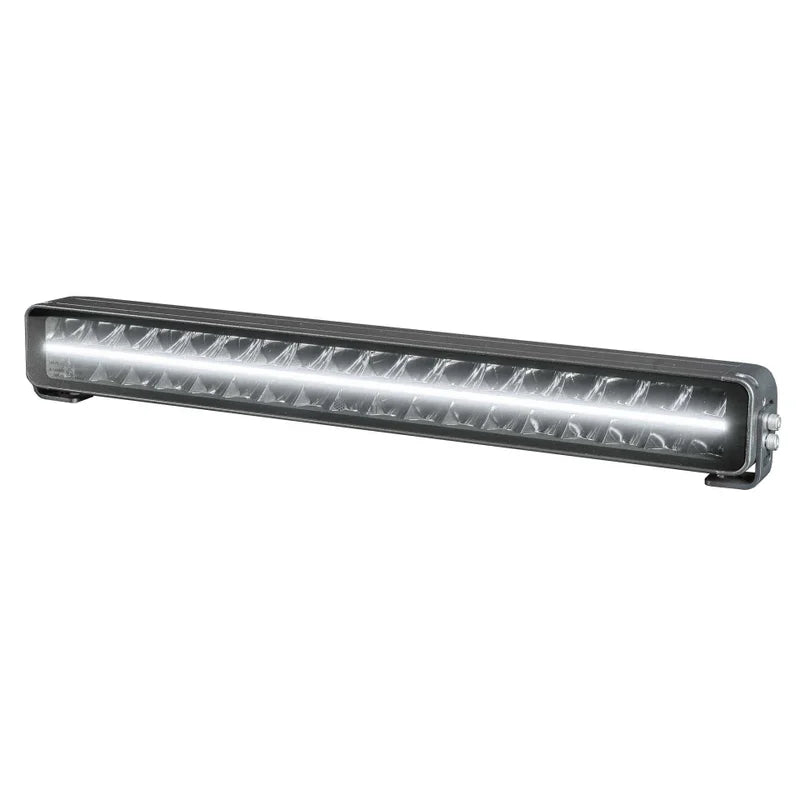

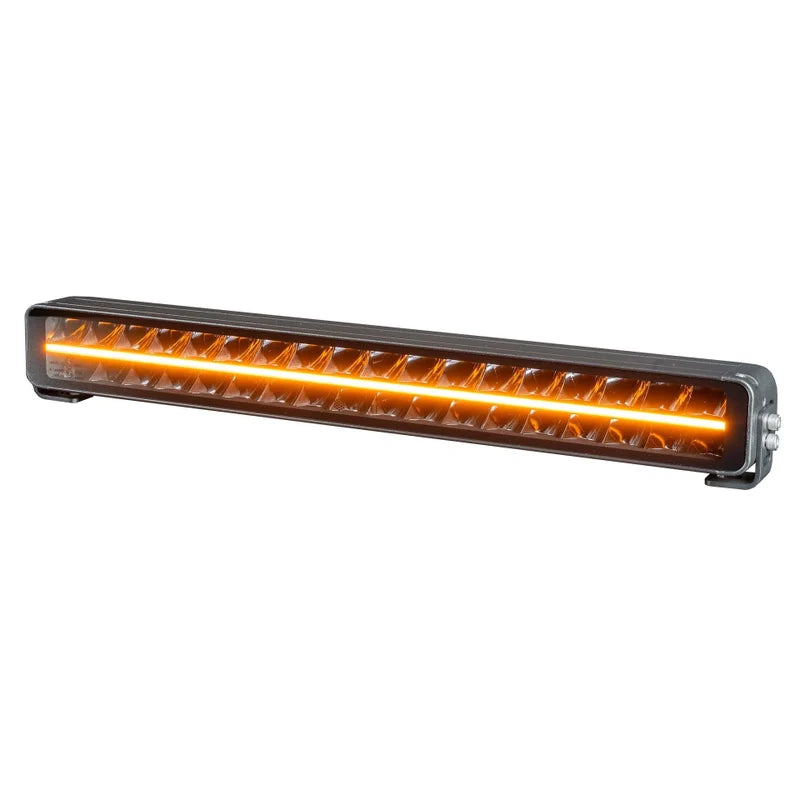

• White & amber position lights
• Dynamic start-up position light
• Suitable for 10–32V DC systems
• Compatible with 12V and 24V vehicles
• ECE R149 approved driving beam
• ECE R10 EMC approved
• IP69K rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• Supplied with side and rear mounting brackets
• Deutsch connector with 3-metre cable
• 2-year warranty

Ideal Applications

• Trucks
• Commercial vehicles
• 4x4 vehicles
• Pickup trucks
• Agricultural machinery
• Tractors and telehandlers
• Excavators
• Plant and construction equipment
• Utility vehicles
• Off-road vehicles

Technical Specifications

• Voltage: 10–32V DC
• Light Source: 36 × 5W LEDs
• Light Output: 15,120 Lumens
• Beam Pattern: Driving Beam
• Reference Number: 40
• Position Lights: White & Amber with Dynamic Start-Up
• Protection Rating: IP69K
• Approvals: CE, ECE R10, ECE R149
• Housing: Aluminium
• Lens: Polycarbonate
• Connection: Deutsch connector
• Cable Length: 3m

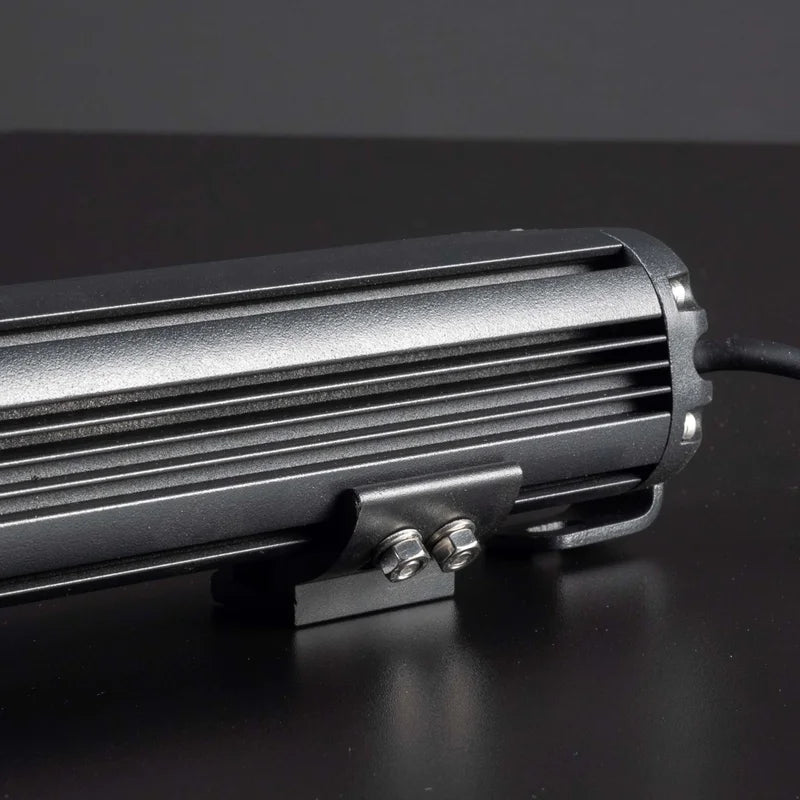

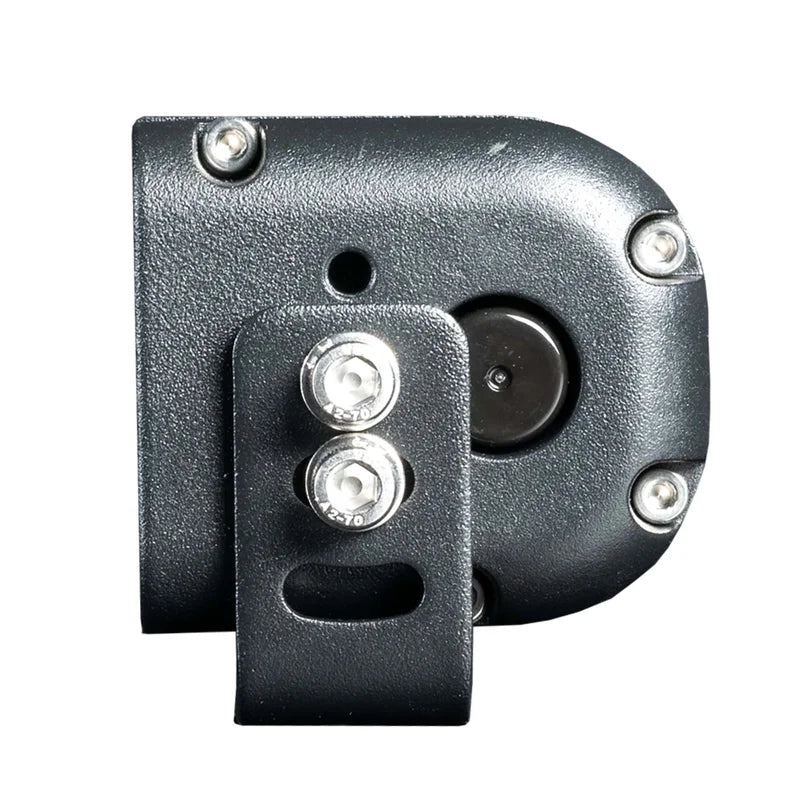

• Mounting: Side and rear mounting brackets included

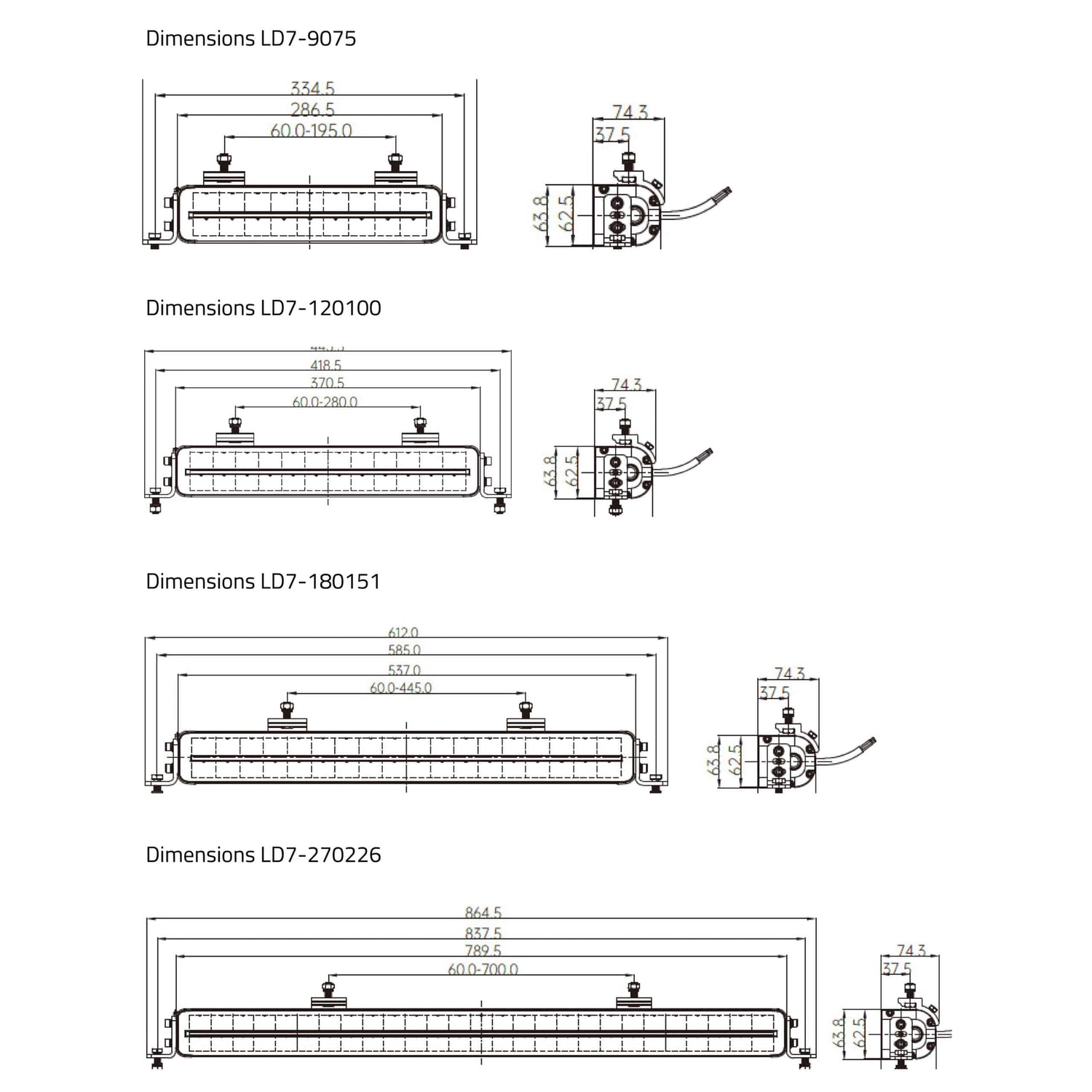

• Dimensions: 537 × 62.5 × 70.1mm
• Warranty: 2 Years
