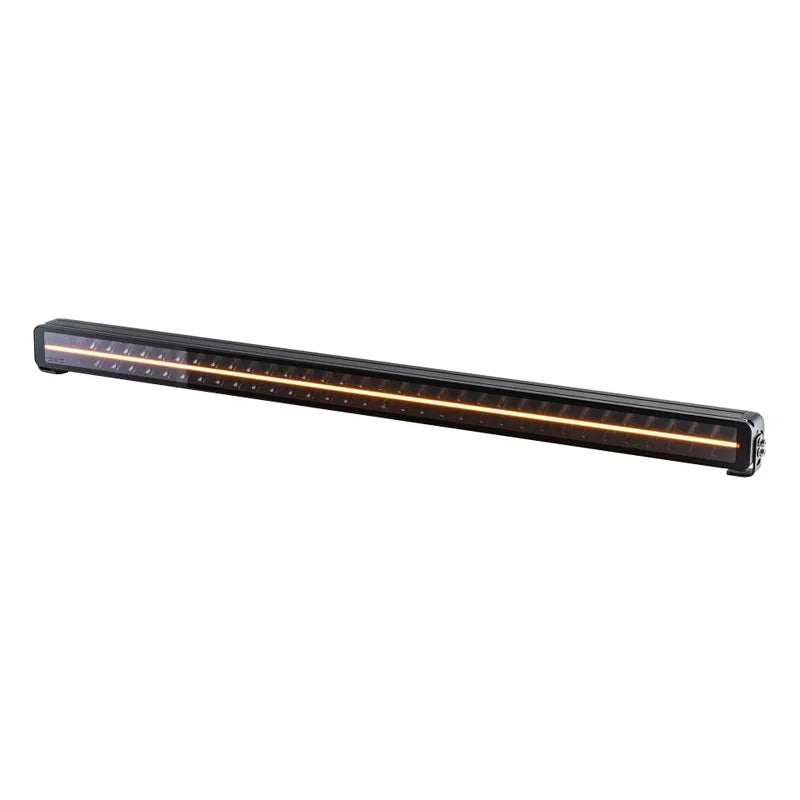

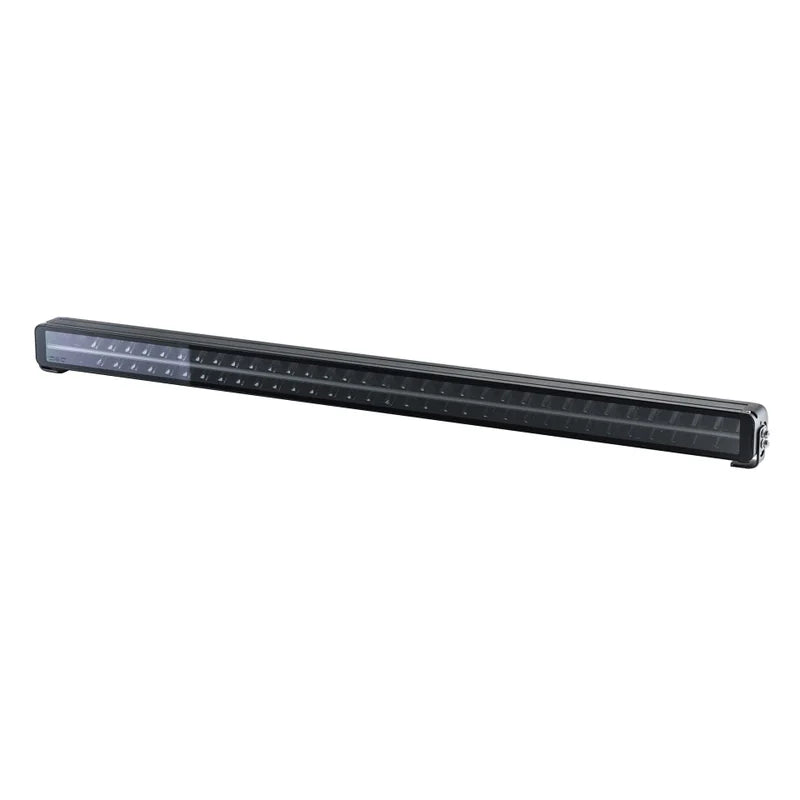

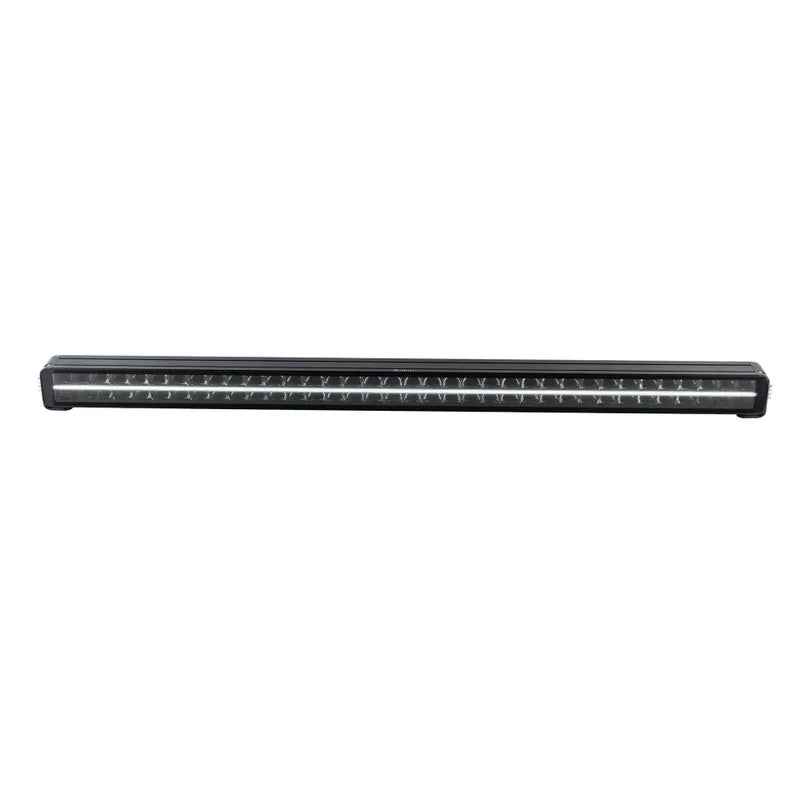

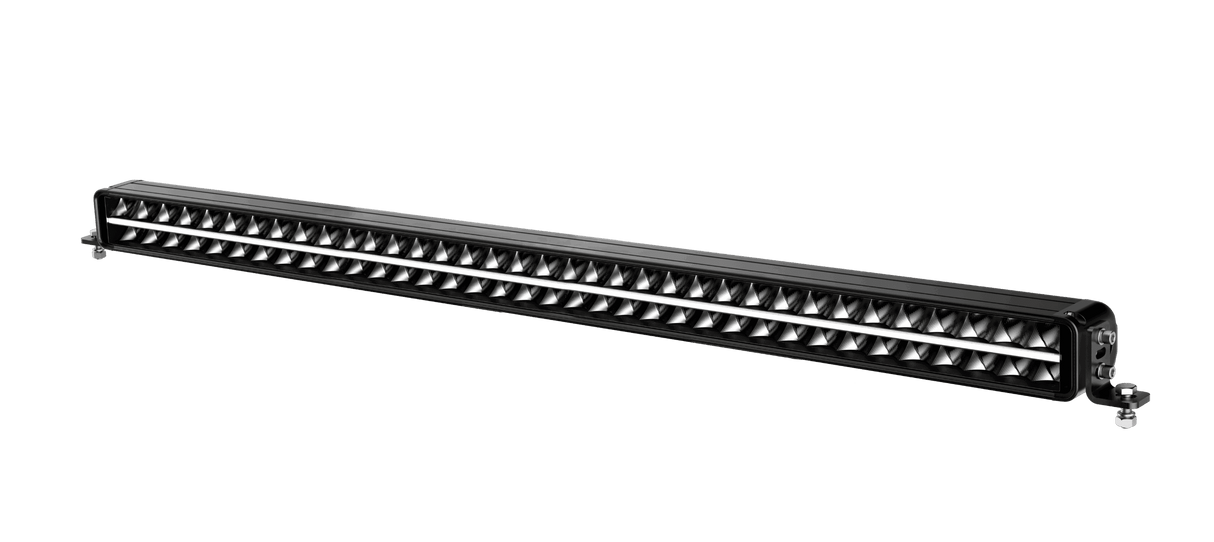

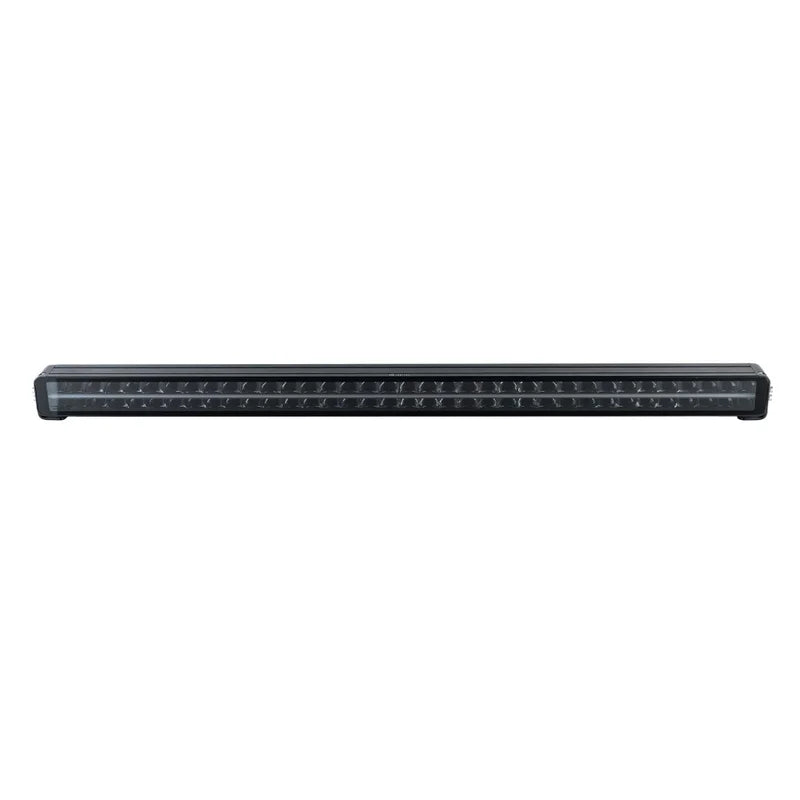

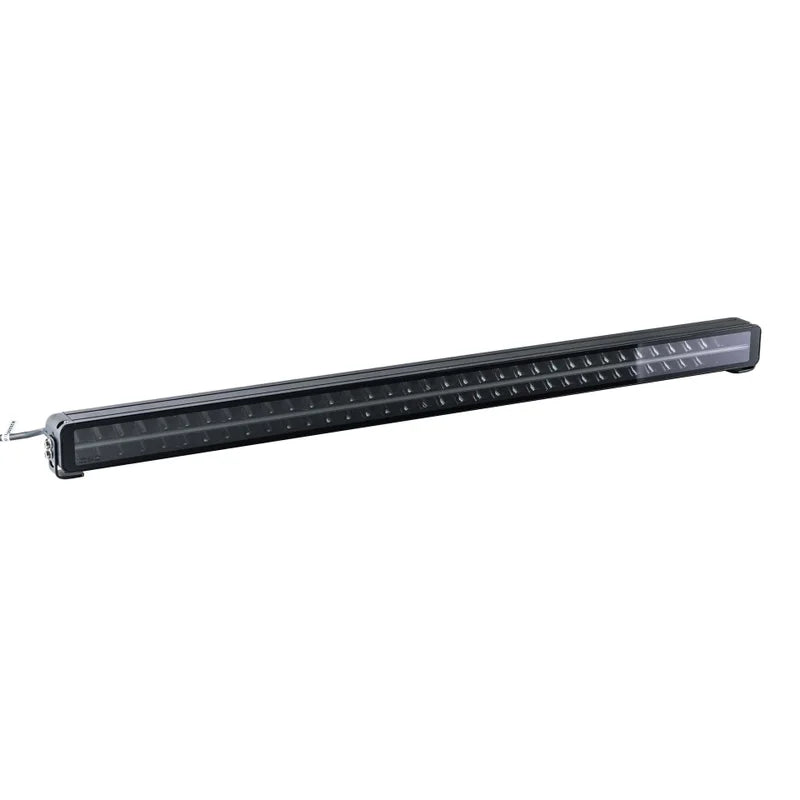

TRALERT® Nemesis XL 1020 LED Driving Light Bar – 30,240 Lumen with White & Amber Position Light, ECE Approved, 10–32V

The TRALERT® Nemesis XL 1020 LED Driving Light Bar is the flagship model in the Nemesis XL range, engineered to deliver outstanding illumination for trucks, commercial vehicles, agricultural machinery, construction equipment and heavy-duty off-road applications. Producing an exceptional 30,240 lumens, it provides an extremely powerful driving beam to maximise visibility and improve safety in the most demanding working environments.

Featuring a high-performance double-row LED design, the Nemesis XL 1020 combines outstanding light output with a rugged construction built for professional use. Integrated white and amber position lights feature a distinctive dynamic start-up sequence, giving the light bar a premium appearance while enhancing vehicle visibility both on and off the road.

Constructed with a heavy-duty aluminium housing and an impact-resistant polycarbonate lens, the light bar is designed to withstand vibration, harsh weather and intensive daily use. Its IP69K protection rating provides maximum resistance against dust, water ingress and high-pressure washing, making it ideal for demanding commercial and industrial applications.

Operating across a wide 10–32V DC voltage range, the Nemesis XL 1020 is compatible with both 12V and 24V electrical systems. The generous 1024mm length makes it particularly well suited to larger vehicles requiring maximum forward illumination. Supplied complete with a 3-metre cable, Deutsch connector, and both side and rear mounting brackets, it offers flexible installation across a wide variety of vehicle types.

Fully approved to ECE R149 for driving beam performance and ECE R10 for electromagnetic compatibility, the TRALERT® Nemesis XL 1020 delivers exceptional performance, premium styling and uncompromising reliability for professional operators.

Main Features

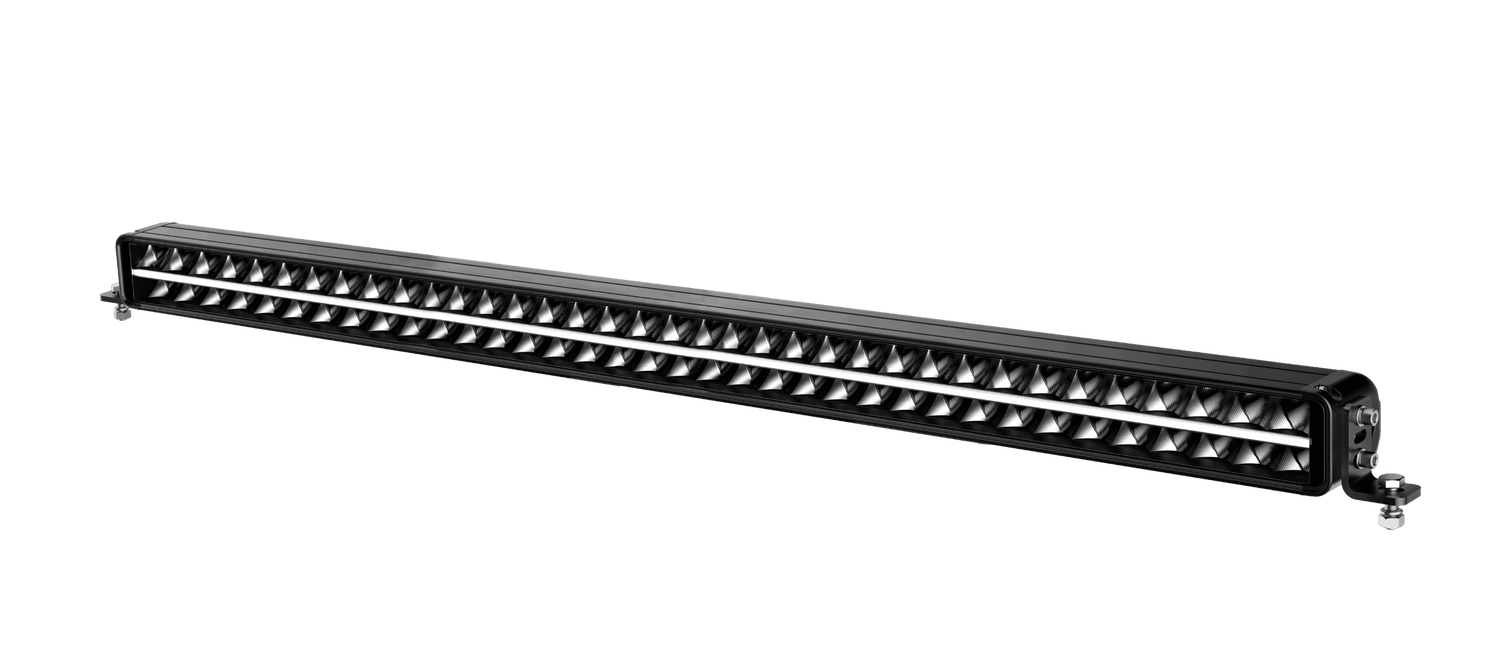

• Premium double-row LED driving light bar
• Exceptional 30,240 lumen driving beam

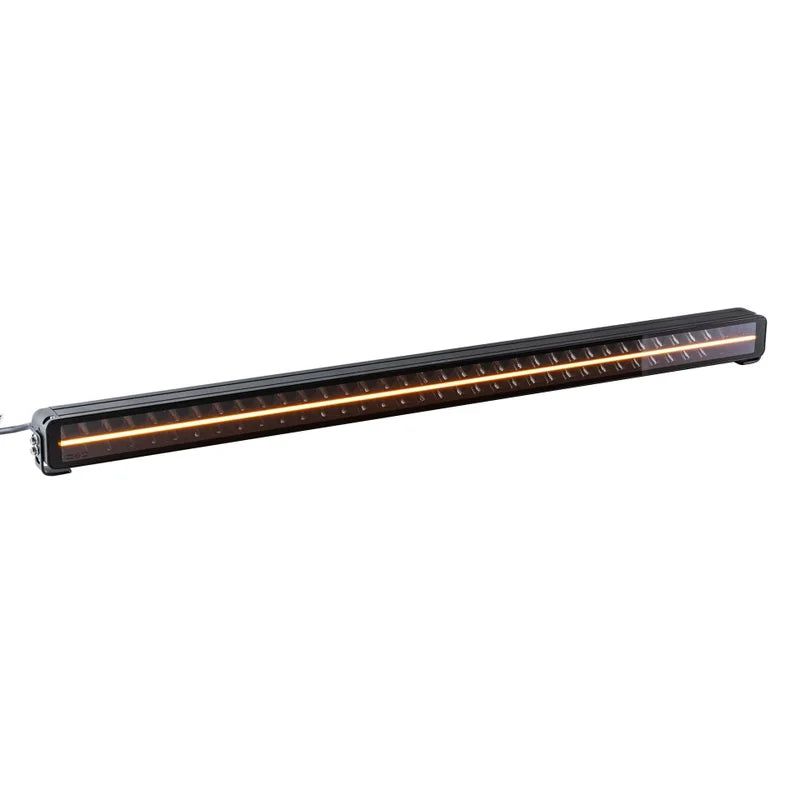

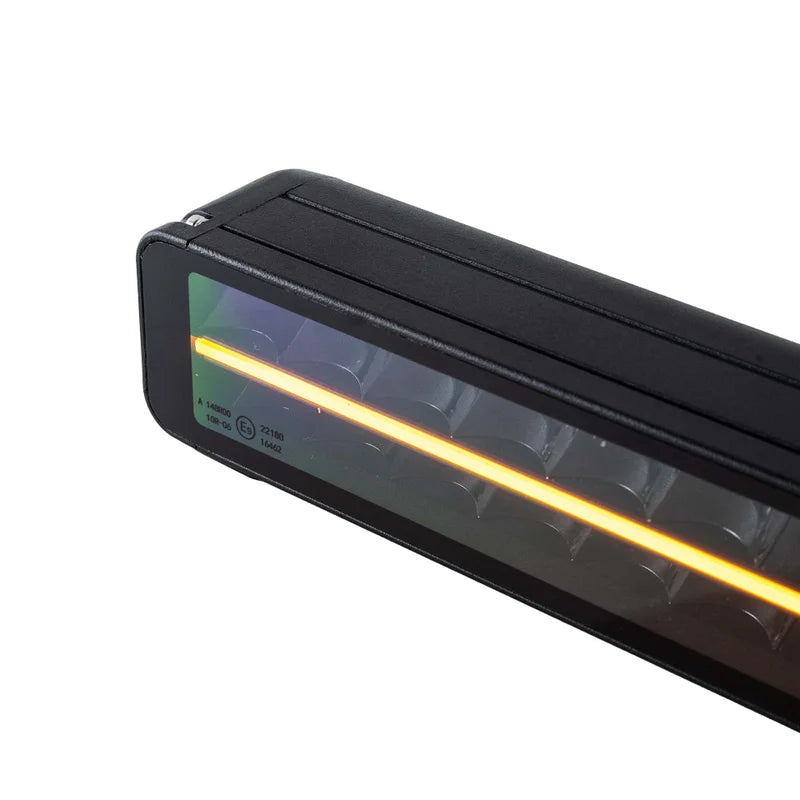

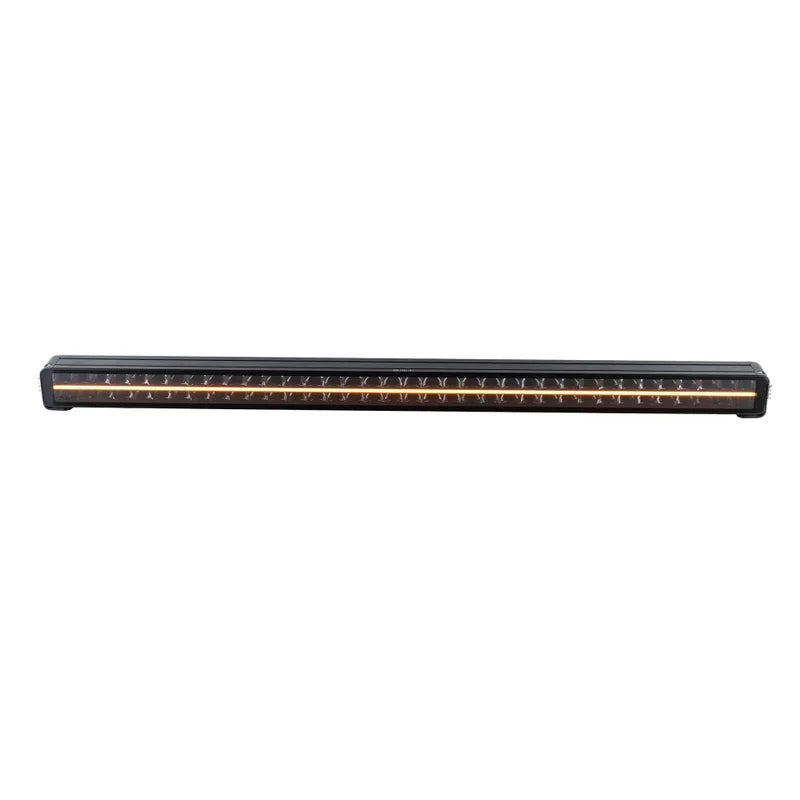

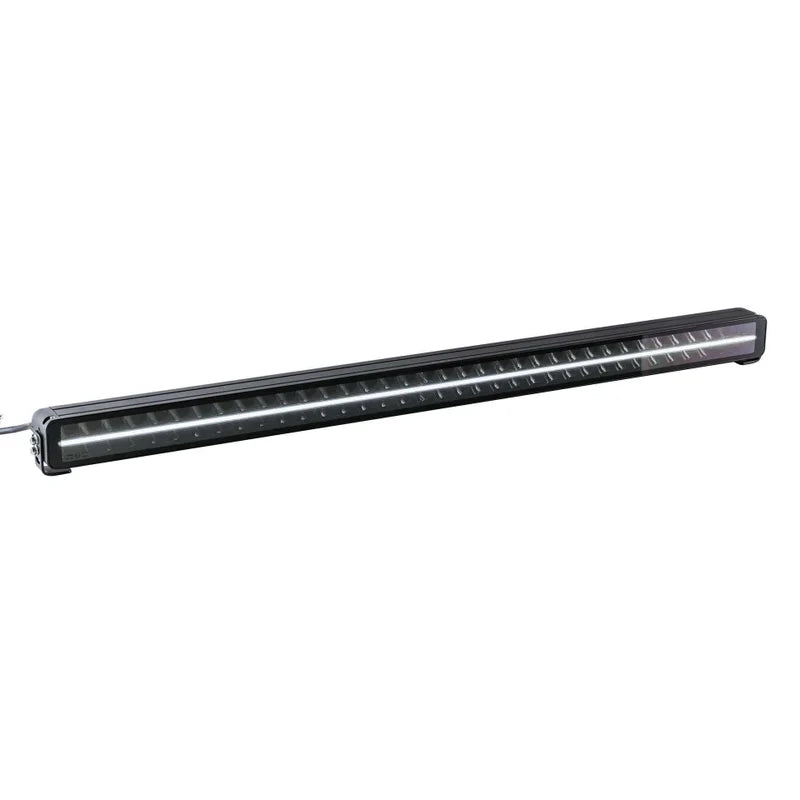

• White & amber position lights
• Dynamic start-up position light
• Suitable for 10–32V DC systems
• Compatible with 12V and 24V vehicles
• ECE R149 approved driving beam
• ECE R10 EMC approved
• IP69K rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• Supplied with side and rear mounting brackets
• Deutsch connector with 3-metre cable
• 2-year warranty

Ideal Applications

• Heavy goods vehicles (HGVs)
• Commercial vehicles
• Agricultural machinery
• Tractors and telehandlers
• Construction and plant equipment
• Mining vehicles
• Forestry machinery
• Utility vehicles
• Off-road vehicles
• Specialist fleet vehicles

Technical Specifications

• Voltage: 10–32V DC
• Light Output: 30,240 Lumens
• Beam Pattern: Driving Beam
• Position Lights: White & Amber with Dynamic Start-Up
• Protection Rating: IP69K
• Approvals: CE, ECE R10, ECE R149
• Housing: Aluminium
• Lens: Polycarbonate

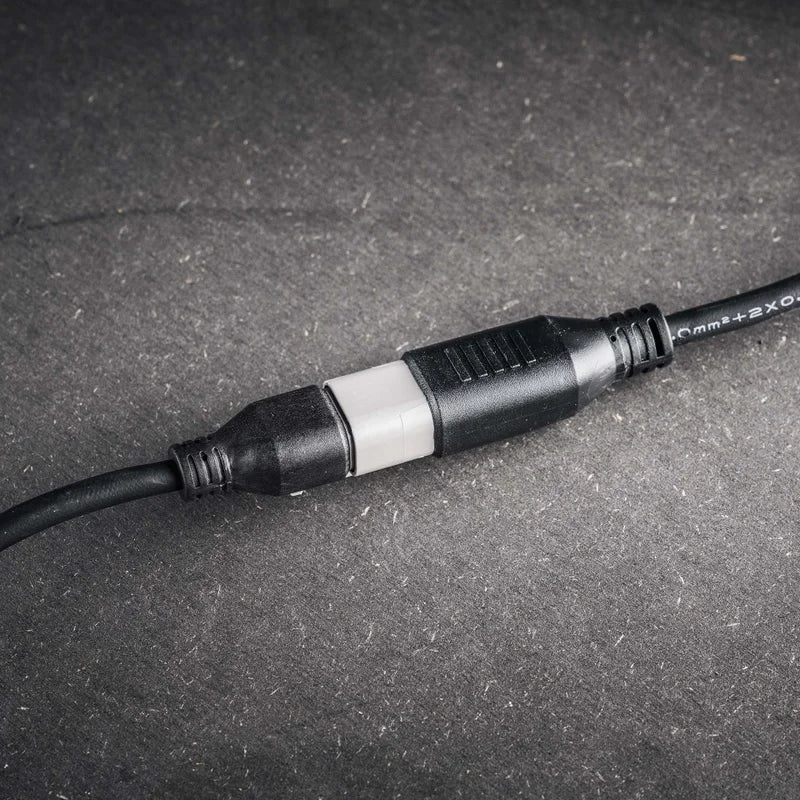

• Connection: Deutsch connector
• Cable Length: 3m

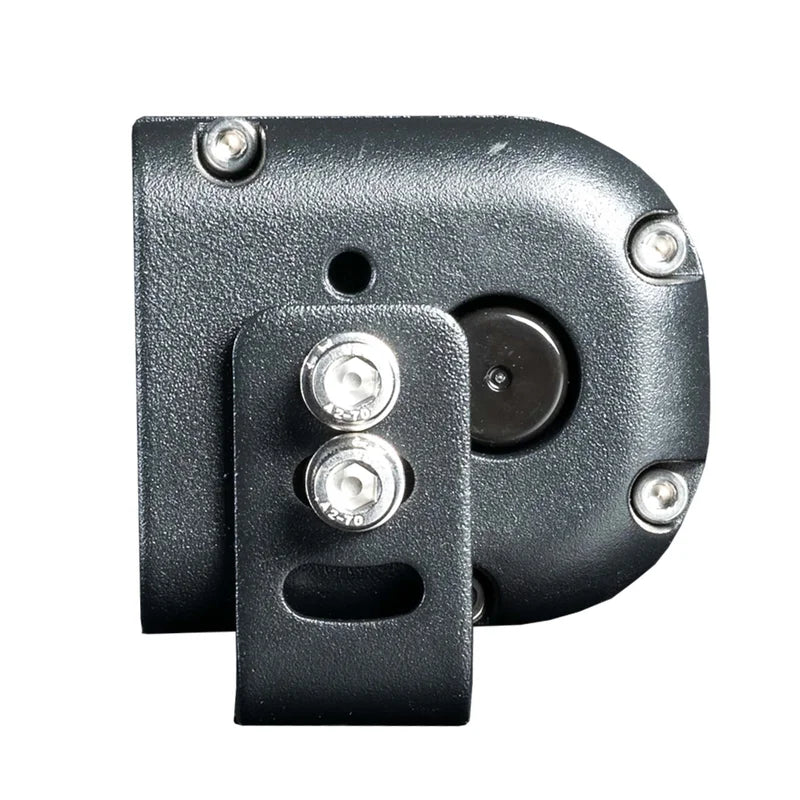

• Mounting: Side and rear mounting brackets included
• Dimensions: 1024 × 62.5 × 70.1mm
• Warranty: 2 Years
