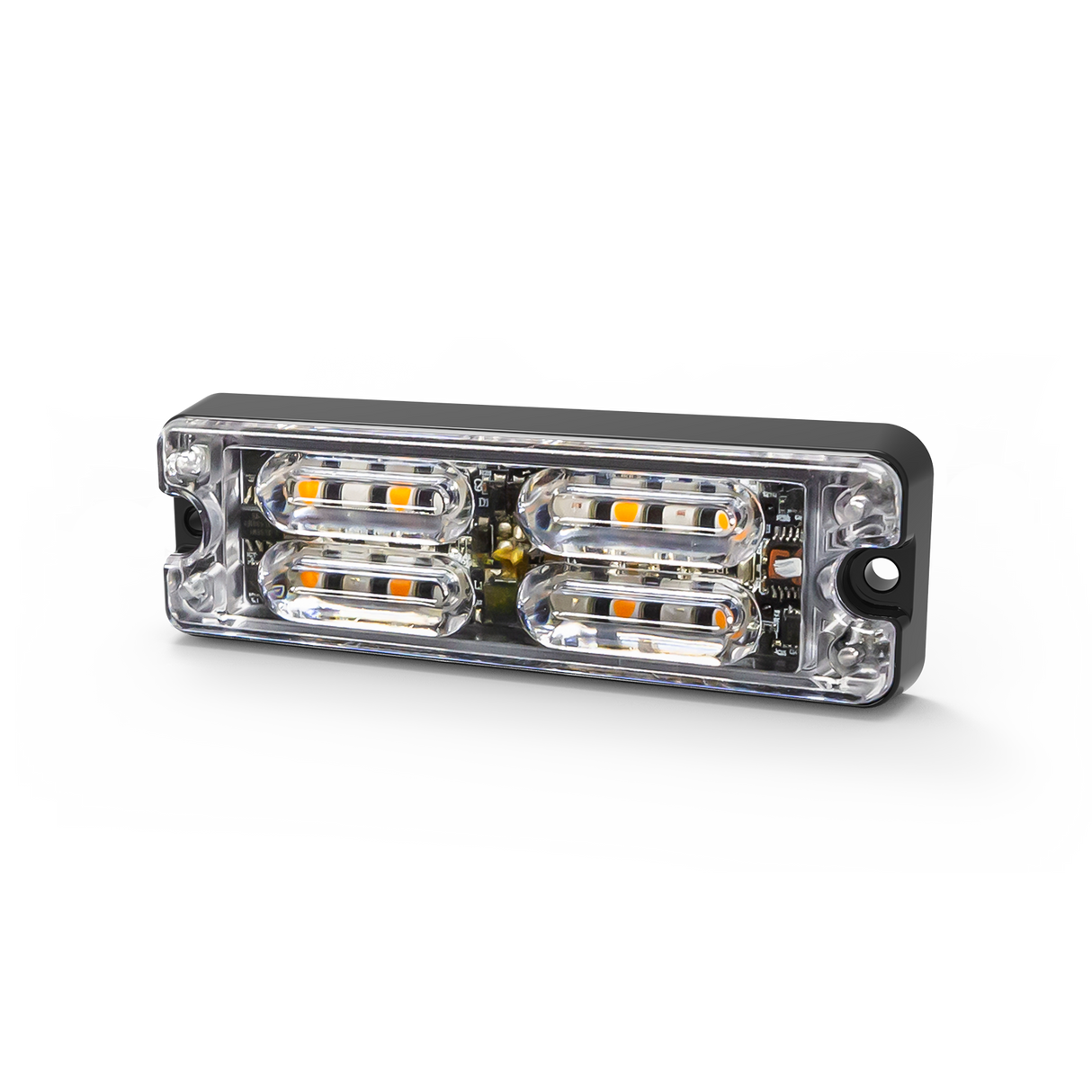

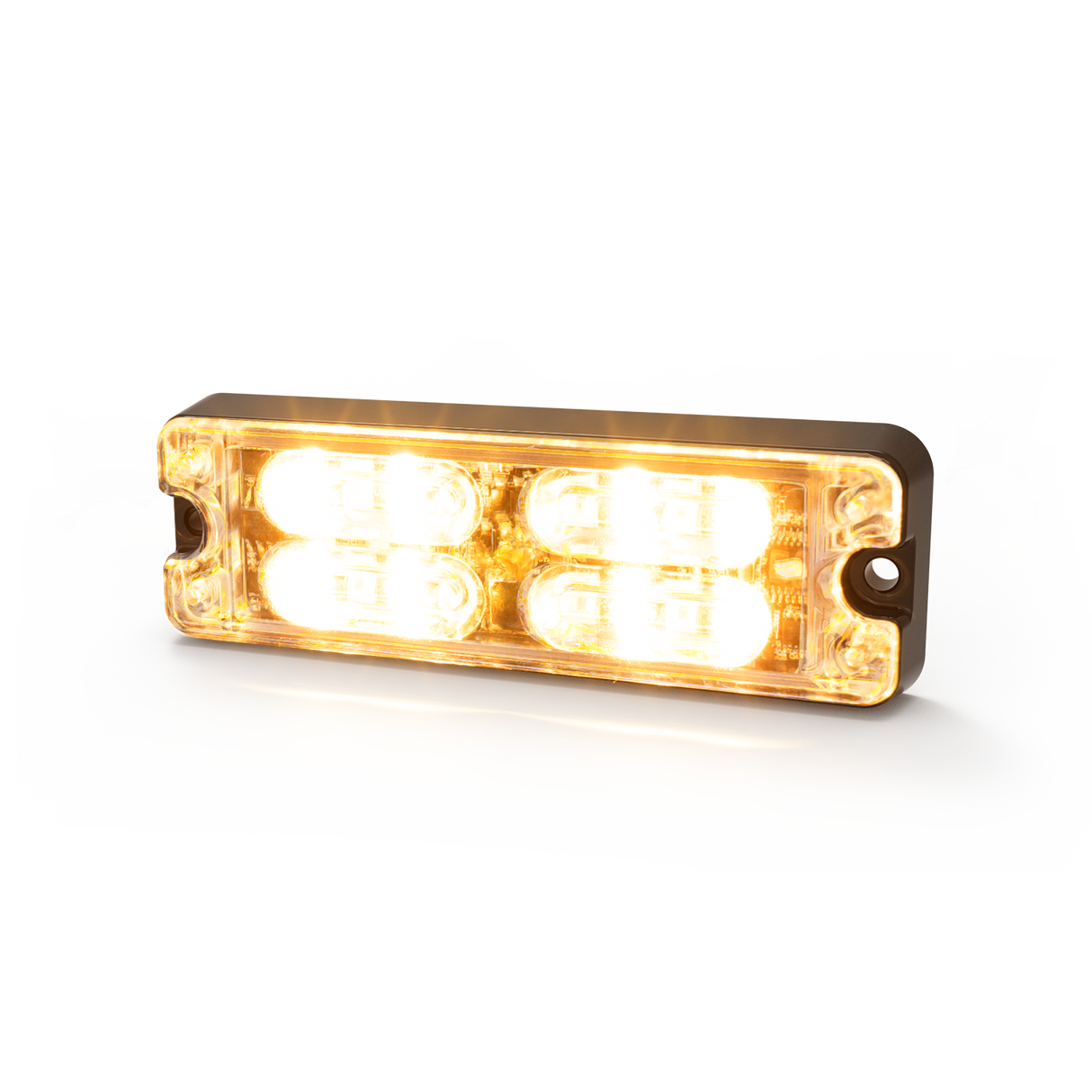

ECCO ESG Surface Mount Low Profile LED Strobe Lamp ED3511 Series

The ED3511 LED warning light is designed to offer maximum performance with a minimal footprint. This surface mount LED measures only 0.5” (13mm) deep, features 36 flash patterns and is available in amber or green. Its compact form allows for mounting in virtually any location on a vehicle body, while its twelve 1-watt LEDs provide high-intensity utility and warning lighting. With a low current draw, long maintenance-free service life and a 5-year warranty, the ED3511 Series is a small yet powerful LED for work trucks, recovery vehicles or any other commercial vehicle application.

Main features:

• 12/24V dual voltage
• ECE EMC R10 approved
• ECE R65 approved
• 12 x 1-watt high-intensity LEDs provide exceptional warning
• 36 selectable flash patterns
• All electronics embedded in lighthead
• Can be synchronised with additional ED3511s and ECCO Hide-A-LEDs
• UV-stabilized polycarbonate lens

• 13” (330mm) cable

• Temperature Range: -22 F to +122 F (-30 C to +50 C)

•  IP67 rated against ingress protection
• SAE class 1 approved
• Dimensions: 84 (L) x 28 (H) x 13 (D)mm
• 5 year warranty
