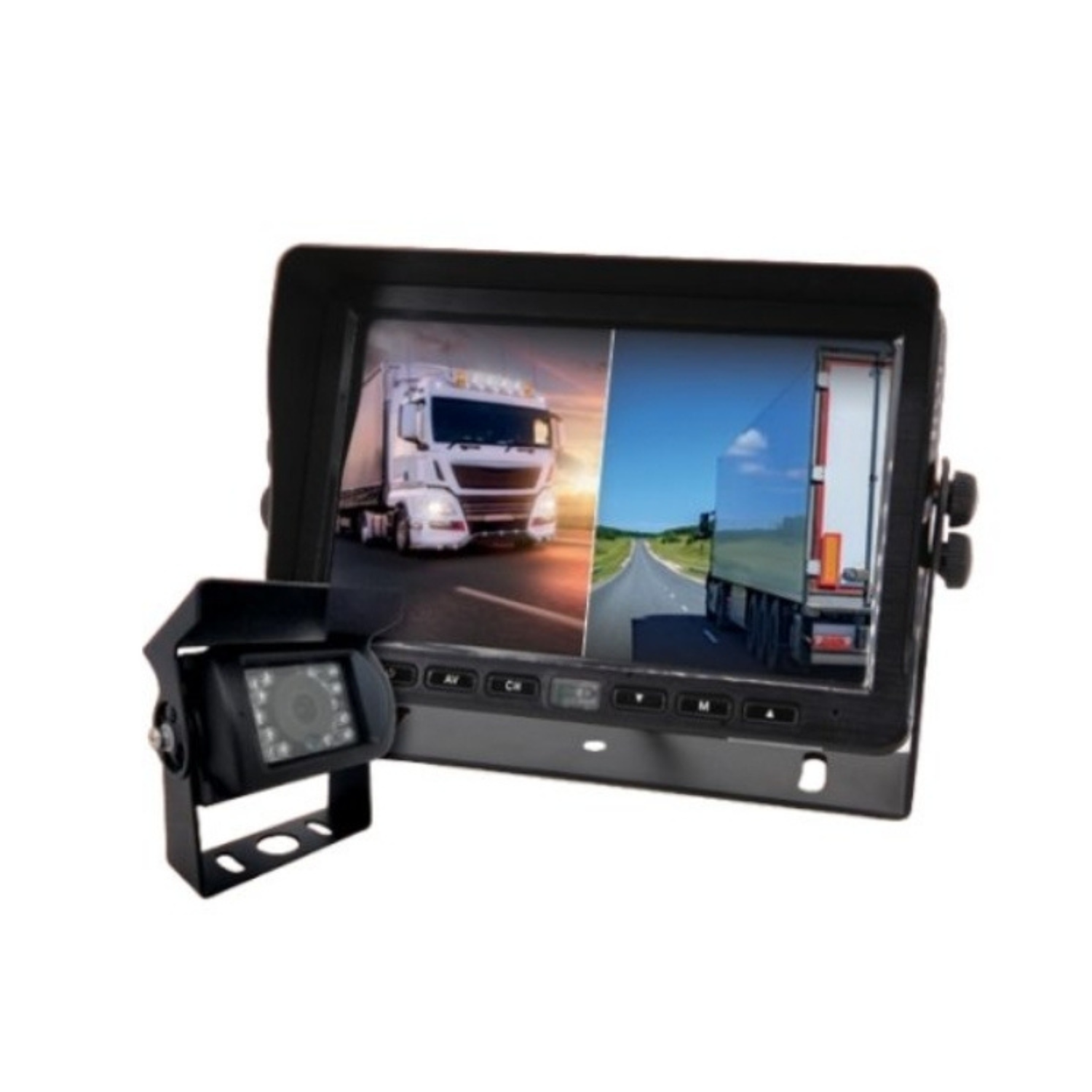

7" HD Split Screen Reversing Camera Kit – 2 Camera Input, Audio, 12–32V

Improve safety and visibility with the 7" HD Split Screen Reversing Camera Kit, designed for commercial vehicles, vans, trucks, agricultural machinery and specialist vehicles. Featuring a 7-inch digital HD monitor with support for two camera inputs, this system provides a clear, reliable view around your vehicle, helping to reduce blind spots and improve driver awareness when reversing and manoeuvring.

The supplied rear-view camera delivers a sharp image and features 10-metre infrared night vision, providing dependable visibility in low-light and nighttime conditions. With an IP69K-rated housing, the camera is protected against dust, water ingress and high-pressure washing, making it ideal for demanding commercial and industrial environments.

The monitor supports split-screen viewing, allowing up to two cameras to be displayed simultaneously (additional camera sold separately). Integrated audio functionality provides added awareness where supported, while the automatic PAL/NTSC switching ensures compatibility across a range of camera systems.

Designed for professional installations, the system operates from 12–32V DC, making it suitable for both 12V and 24V vehicles. The supplied 20-metre extension cable provides ample length for larger vehicles including HGVs, coaches, agricultural machinery and trailers.

Complete with a remote control, sun visor, adjustable U-bracket monitor mount, and all essential installation accessories, this kit provides a dependable reversing camera solution for everyday commercial use.

Main Features

• Complete HD reversing camera system
• 7" digital HD split-screen monitor
• Supports 2 camera inputs
• Split-screen display
• High-definition rear-view camera
• 10m infrared night vision
• Audio function
• Automatic PAL / NTSC switching
• Suitable for 12–32V DC systems
• Compatible with 12V and 24V vehicles
• IP69K-rated waterproof camera
• CE, EMC & ECE R10 approved
• Adjustable monitor and camera mounting brackets
• 20m extension cable included
• 1-year warranty

Kit Includes

• 7" HD Split Screen Digital Monitor
• Rear-View Camera
• 20m Extension Cable
• Remote Control
• Sun Visor
• Operating Instructions

Ideal Applications

• Commercial vehicles
• Vans
• HGVs
• Recovery vehicles
• Agricultural machinery
• Tractors
• Plant and construction equipment
• Horseboxes
• Motorhomes
• Utility vehicles
• Trailers

Technical Specifications

Monitor

• Voltage: 12–32V DC
• Screen Size: 7"
• Display Type: Digital HD Split Screen
• Camera Inputs: 2
• Display Resolution: 800 RGB (H) × 480 (V)
• Video Format: PAL / NTSC (Auto Switching)
• Audio: Yes
• Connection: 9-Pin Cable
• Cable Length: 1.5m
• Mounting: U-Bracket
• Dimensions: 177 (W) × 122 (H) × 26 (D) mm
• Approvals: CE, EMC, ECE R10

Camera

• Voltage: 12V DC
• Night Vision: Up to 10m
• Resolution: PAL 720 × 487px
• Protection Rating: IP69K
• Connection: 4-Pin
• Cable Length: 550mm
• Mounting: Iron Bracket
• Dimensions: 70 × 45 × 60mm
• Operating Temperature: -20°C to +70°C
• Approvals: CE, EMC
