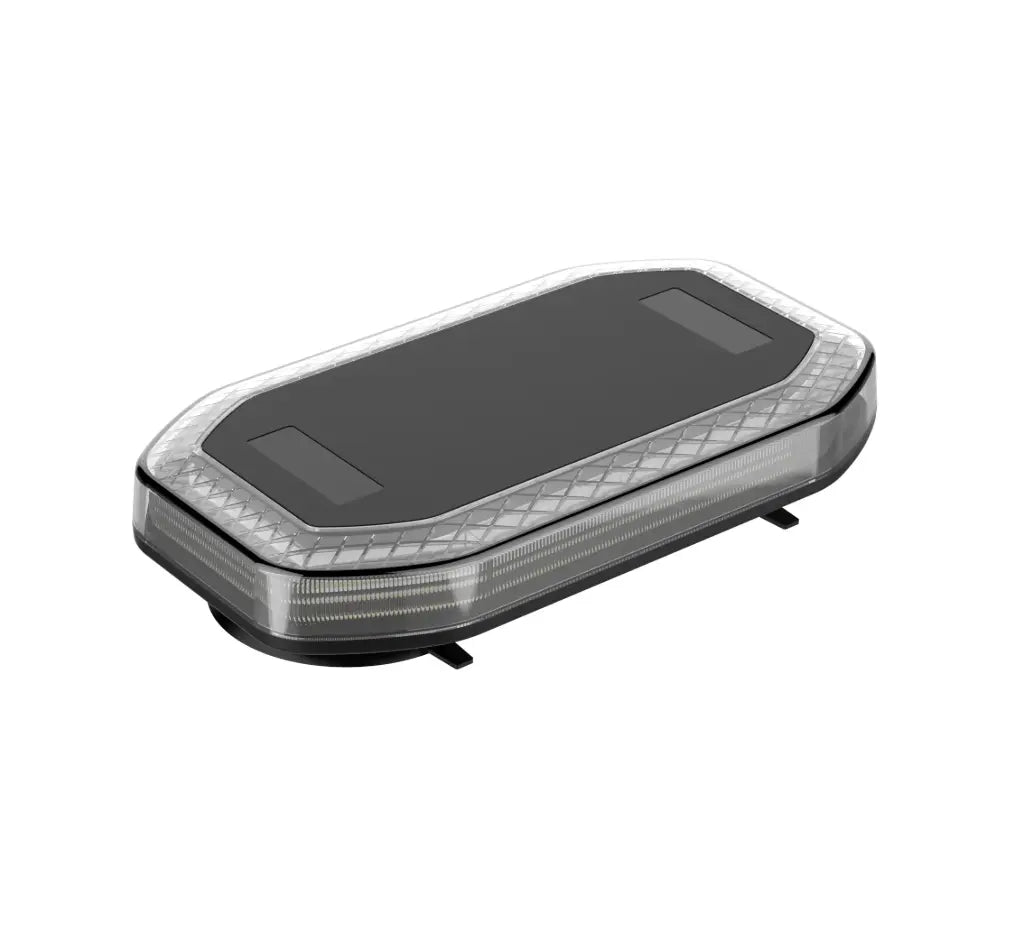

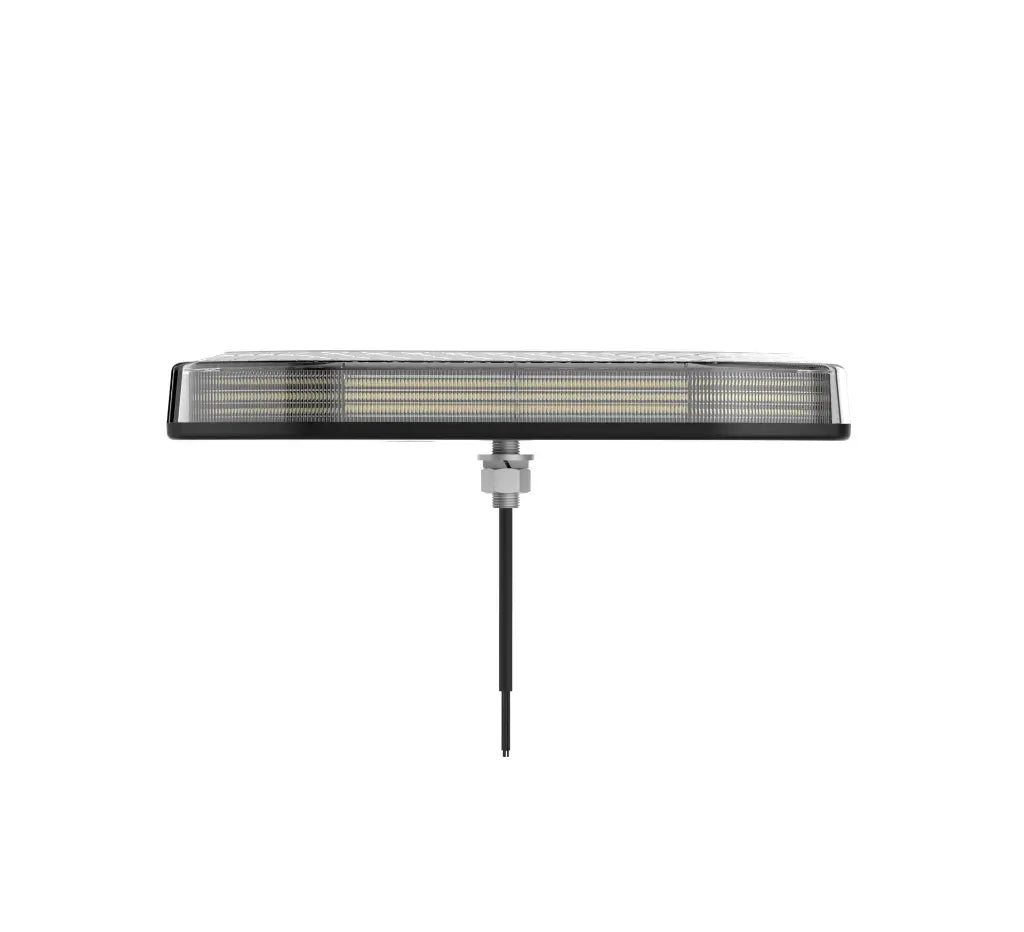

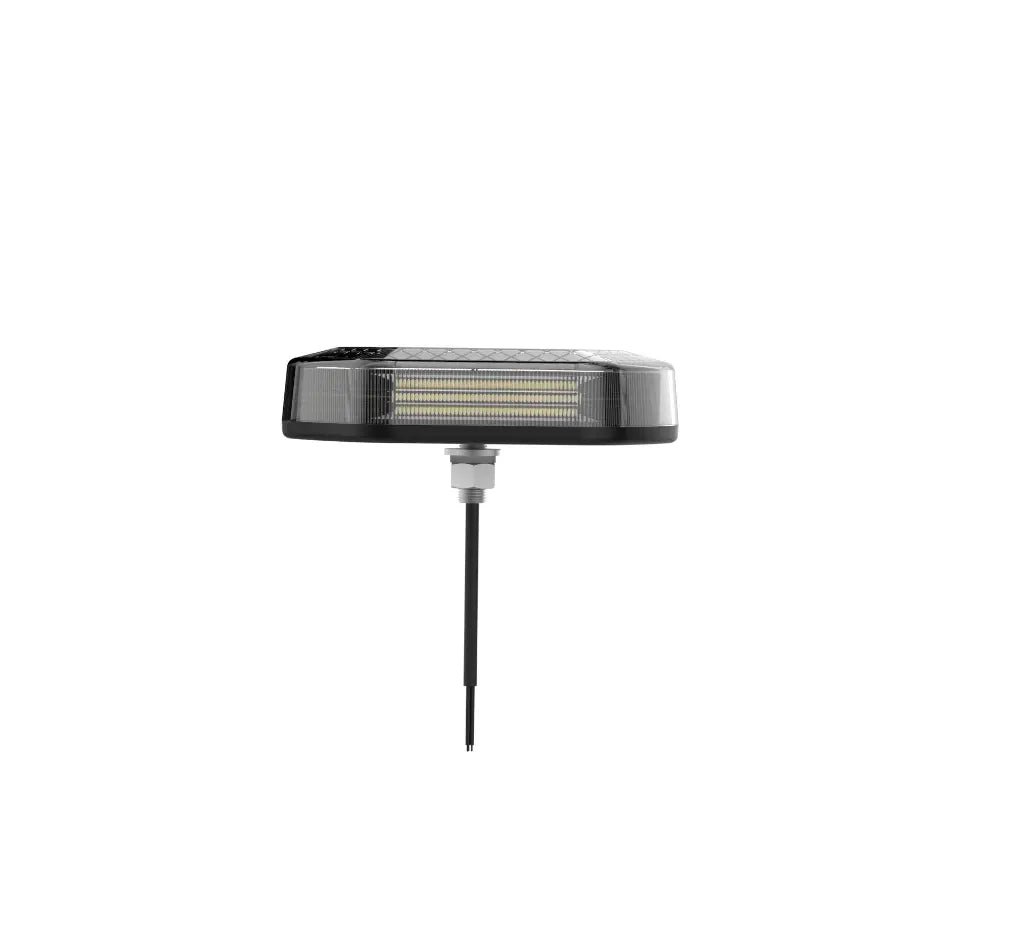

280mm Low Profile LED Mini Lightbar – ECE R65 Amber Warning Beacon, Single Bolt Mount, 10–30V

The 280mm Low Profile LED Mini Lightbar is a compact amber warning beacon designed for commercial vehicles, utility fleets, agricultural machinery, recovery vehicles and other specialist applications where reliable warning lighting is required.

Despite its compact size, this mini lightbar produces excellent all-round visibility using 108 high-output LEDs and a 65W output. The low-profile design gives a neat, professional appearance while reducing overall height, making it ideal where roof space is limited.

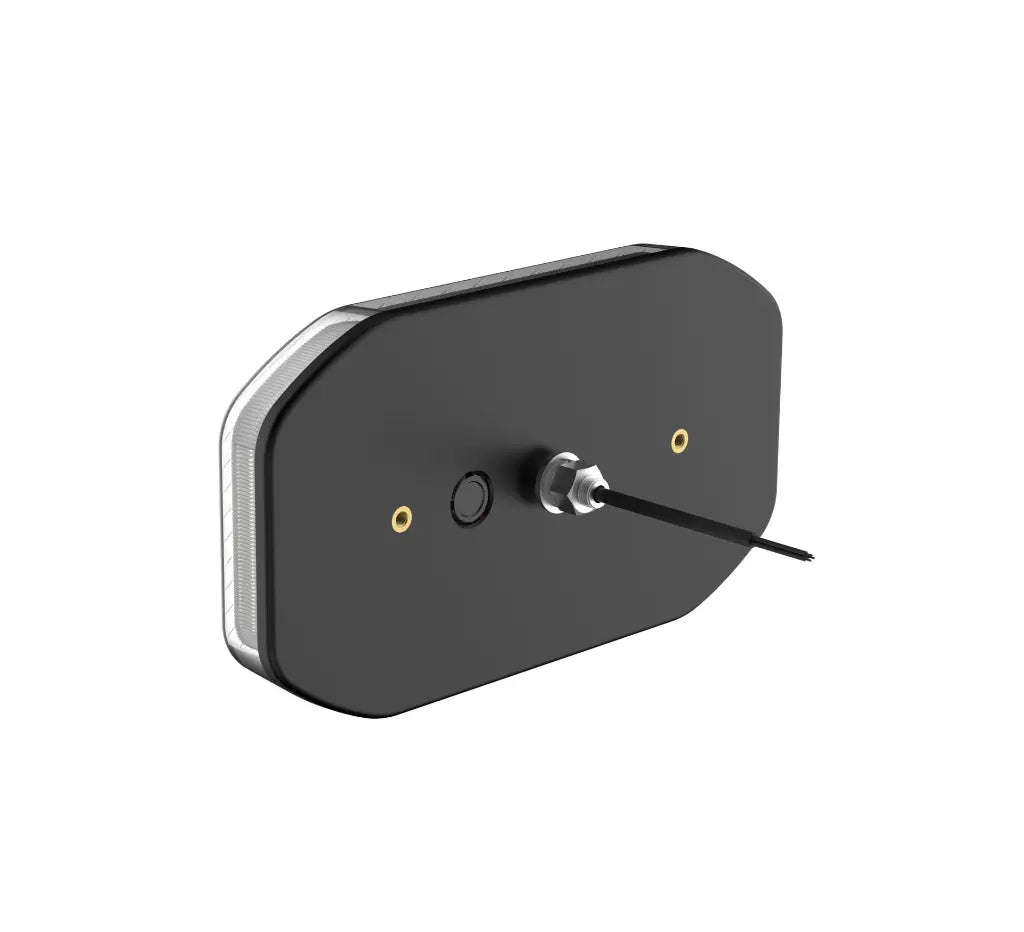

A secure single bolt mounting system provides a permanent installation that's suitable for vehicles operating on the road, on site or off-road. With 21 selectable flash patterns, the lightbar can be configured to suit a wide range of applications.

Built for professional use, the lightbar is approved to ECE R65, ECE R10 and SAE J845 standards, ensuring reliable performance and compliance for many commercial vehicle applications. The robust housing is IP67 rated and designed to withstand harsh weather, dust and vibration, with an operating temperature range of -40°C to +60°C.

Suitable for both 12V and 24V vehicles, this compact mini lightbar is equally at home on vans, pickup trucks, utility vehicles, recovery trucks, tractors, plant machinery and highway maintenance vehicles.

Main Features

• Compact 280mm low-profile LED mini lightbar
• Permanent single bolt mounting
• 108 high-output LEDs
• 65W power output
• ECE R65 approved amber warning beacon
• ECE R10 EMC approved
• SAE J845 certified
• CISPR 25
• 10–30V DC operation
• 21 selectable flash patterns
• IP67 rated against dust and water ingress
• Operating temperature: -40°C to +60°C
• Suitable for 12V and 24V vehicles
• 3-year warranty
• Dimensions: 280 (L) x 36 (H) x 156 (D) mm

Ideal Applications

• Utility vehicles
• Highway maintenance vehicles
• Recovery trucks
• Agricultural tractors and machinery
• Plant equipment
• Commercial vans
• Pickup trucks
• Traffic management vehicles
• Fleet vehicles
