247 Lighting  |  SKU: CA 9745

247 5" Wireless Vehicle Reversing Camera Kit

Regular priceexcluding VAT £170.83 GBP (excl. VAT) Regular priceincluding VAT £204.99 GBP (inc. VAT)

Delivery and Shipping

  • Free UK delivery on orders over £75
  • Standard UK delivery £4.99
  • Express UK delivery £12.99

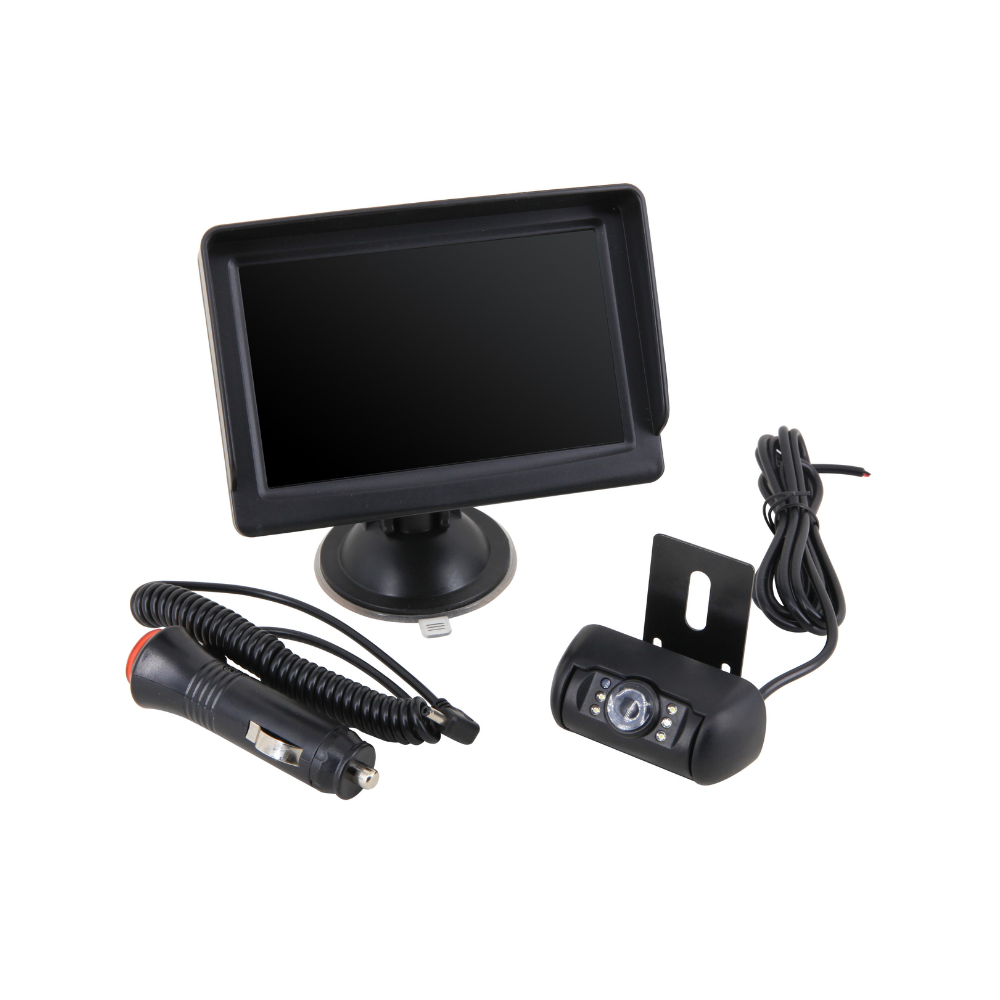

The CA 9745 Wireless Reversing Camera System provides a reliable and easy-to-install solution for improving vehicle safety and visibility when reversing. Featuring a 5” high-resolution digital monitor (800 x 480) and a 600TVL CMOS camera with a wide 120° viewing angle, this system delivers clear, detailed images while significantly reducing blind spots. The wireless connection with up to 50m signal range allows for quick installation without running long cables, making it ideal for trucks, vans, motorhomes, agricultural machinery and commercial vehicles. With infrared night vision up to 8m, IP69 waterproof camera rating, parking guidelines, and 12V/24V compatibility, this ECE R10 approved reversing camera kit is built to perform reliably in demanding professional environments.

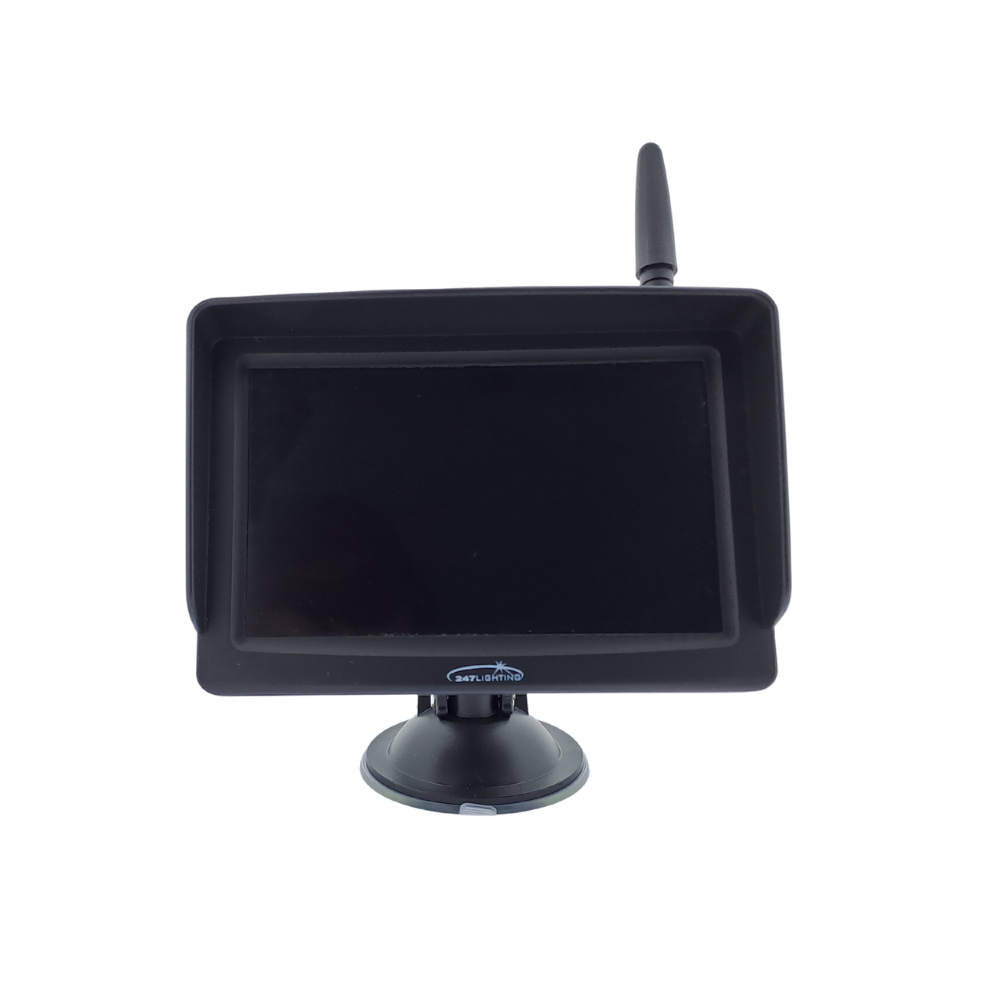

MONITOR SPECIFICATIONS
• Screen: 5” (127mm) Digital Panel
• Voltage: 12-24 Volts
• Display Resolution: 800 RGB (H) x 480 (V) Dot
• TV Colour System: NTSC/PAL (Auto Switch)
• OSD Menu: Brightness; Contrast; Colour.
• Video Input: 1 Way / Brightness: 500cd/m2 / Contrast: 1200:1
• Cigarette Lighter Cable Connection / 0.43m Length
• Mount: Suction Bracket • Functions: Three button, Sunshade, Parking Guidelines
• Dimensions: 132mm*88mm*38mm
• IP Rated: IP54 / ECE Approved Reg 10

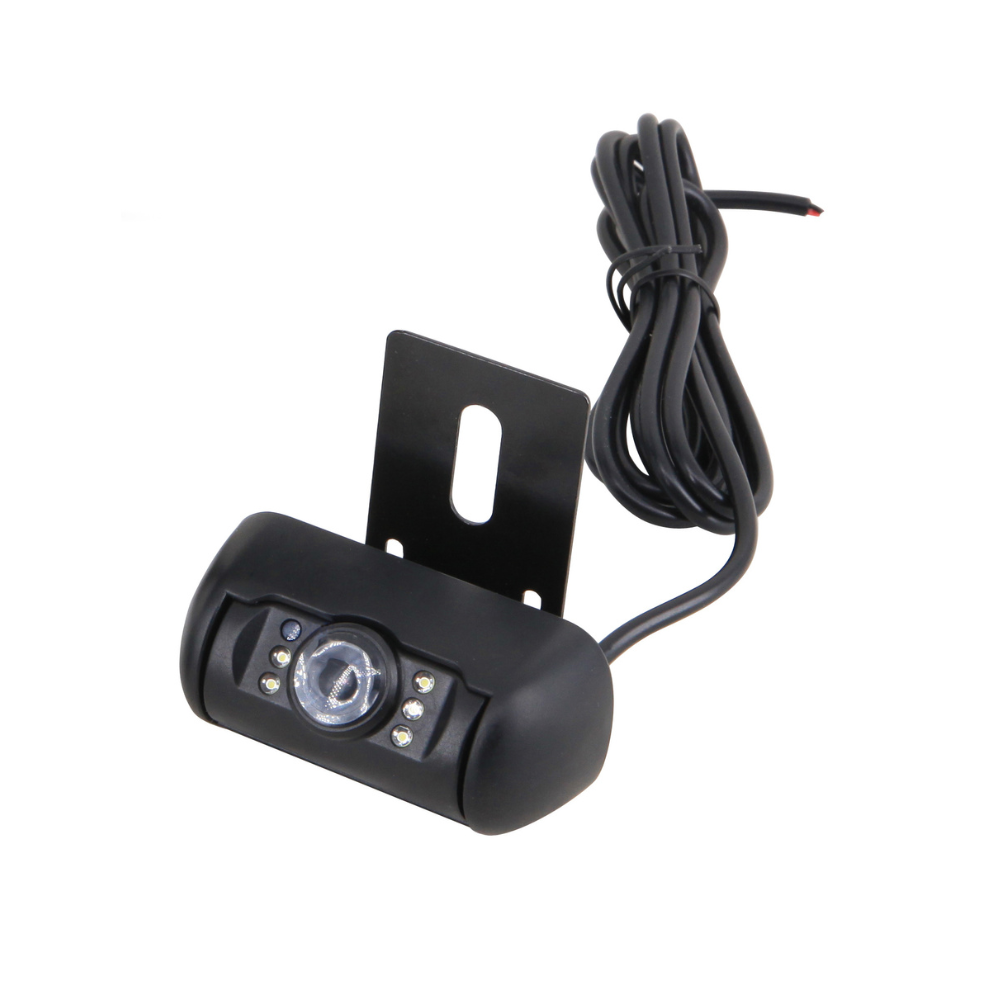

CAMERA SPECIFICATIONS

• Image Sensor Type: CMOS 1/4” • Weight: 0.20kg • Voltage: 12-24 Volts
• Effective Pixels: PAL:960(H)*576(V)
• Horizontal Resolution (TV Lines): 600TVL
• Video Output: 1.0Vp-p / 75Ω
• Audio Function: No • Built-In Lens: 2.5mm • Infrared Lens: 5 LEDs
• Night Vision: 8m / Wireless Signal 50m • Lens Viewing Angle: 120°
• DC Connector / 146mm Length
• Operating Temperature: -20°C ~ +70°C
• Dimensions: 65mm*58mm*43mm
• IP Rated: IP69 / ECE Approved Reg 10

Monitor Part Number : CA 9746
Camera Part Number : CA 9747
