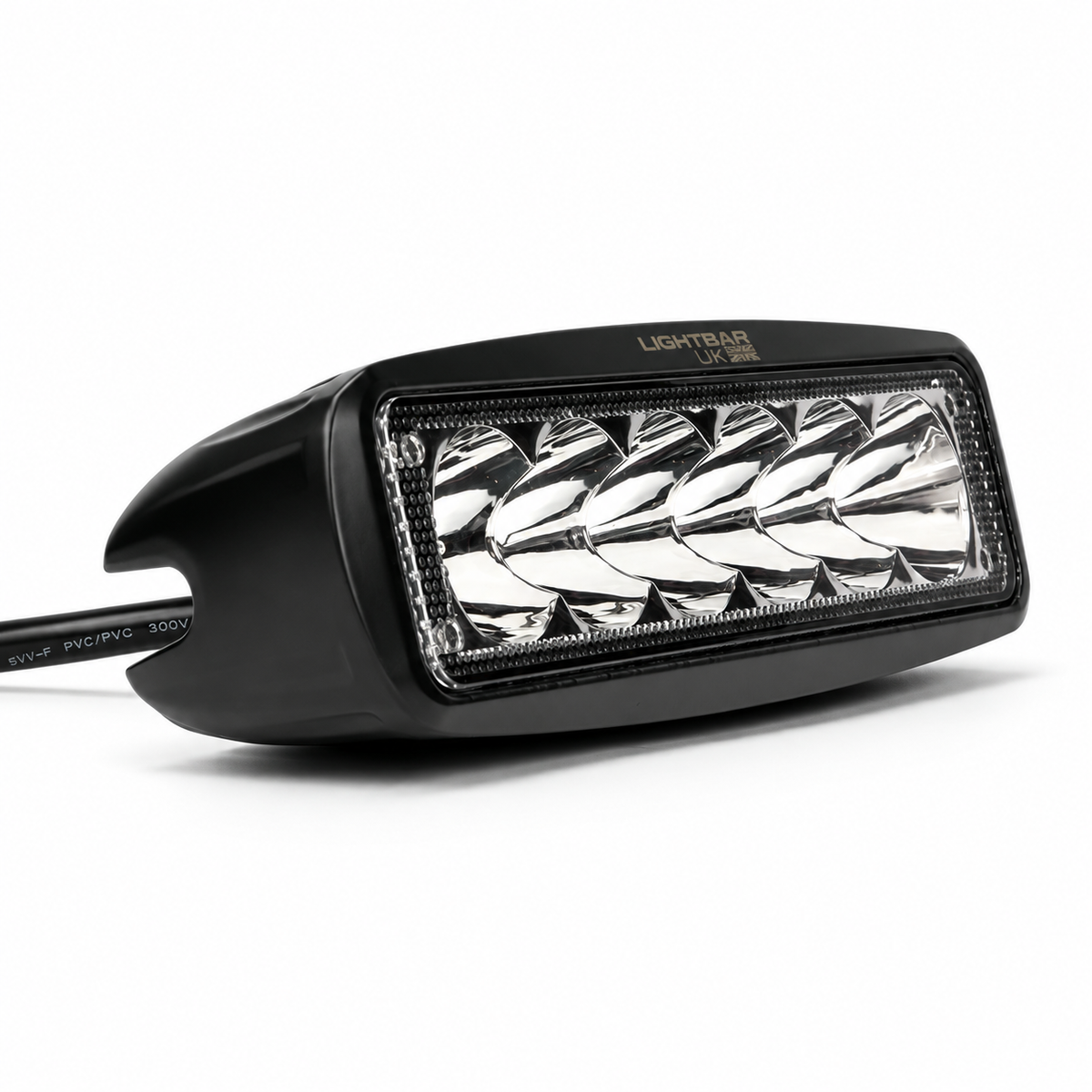

Slimline 18W LED Work Lamp – 1,260 Lumen Spot Beam, 12–80V, ECE R10

The Slimline 18W LED Work Lamp is a compact, low-profile auxiliary work light designed for commercial vehicles, agricultural machinery, plant equipment, forklifts, recovery vehicles and other specialist applications where installation space is limited.

Measuring just 161mm wide and 47mm high, its slim rectangular design makes it particularly useful for installations where a conventional square or round work lamp may be too bulky. Despite its compact dimensions, 6 × 3W LEDs produce an effective output of 1,260 lumens.

Unlike a wide flood work lamp, this model produces a focused spot beam, directing the available light further ahead. This makes it ideal for applications where additional forward or long-range illumination is required rather than simply lighting the immediate area around the vehicle.

One of the lamp's biggest advantages is its exceptionally wide 12–80V DC operating range. This allows it to be used across a broad selection of electrical systems, from standard 12V and 24V commercial vehicles through to specialist machinery and equipment operating at higher voltages.

Built for professional vehicle use, the lamp is ECE R10 EMC approved and UKCA compliant. An IP67 protection rating provides resistance against dust and water ingress, while integrated reverse polarity protection helps protect the lamp against incorrect electrical connection.

With reliable operation across temperatures from -30°C to +60°C, this compact work lamp provides a simple, durable and cost-effective lighting solution for demanding vehicle and machinery applications.

Main Features

• Compact slimline LED work lamp
• 18W power output
• 1,260 effective lumens

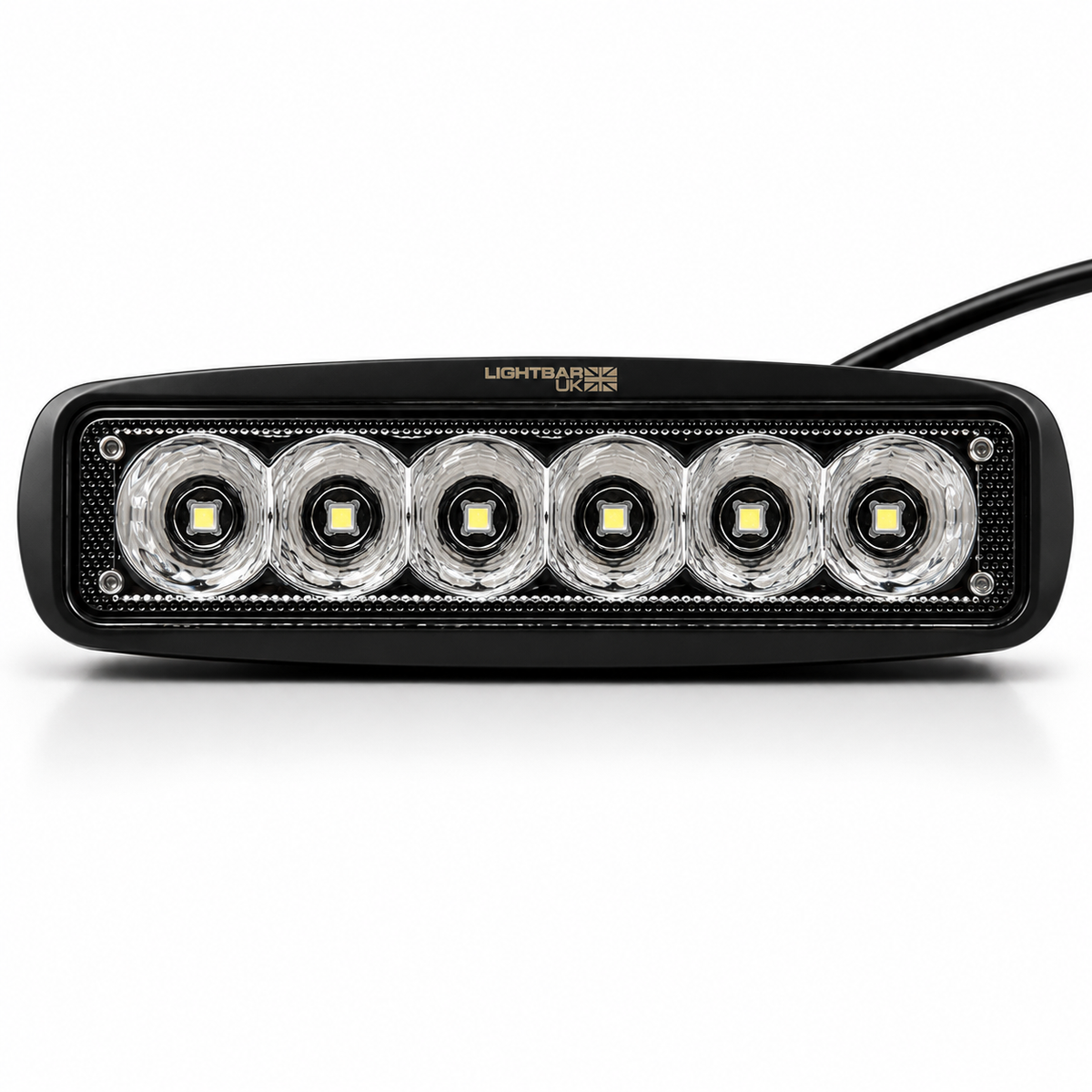

• 6 × 3W LEDs
• Focused spot beam
• Exceptional 12–80V DC compatibility
• Suitable for 12V, 24V and specialist higher-voltage systems
• ECE R10 EMC approved
• UKCA approved
• IP67 rated
• Reverse polarity protection

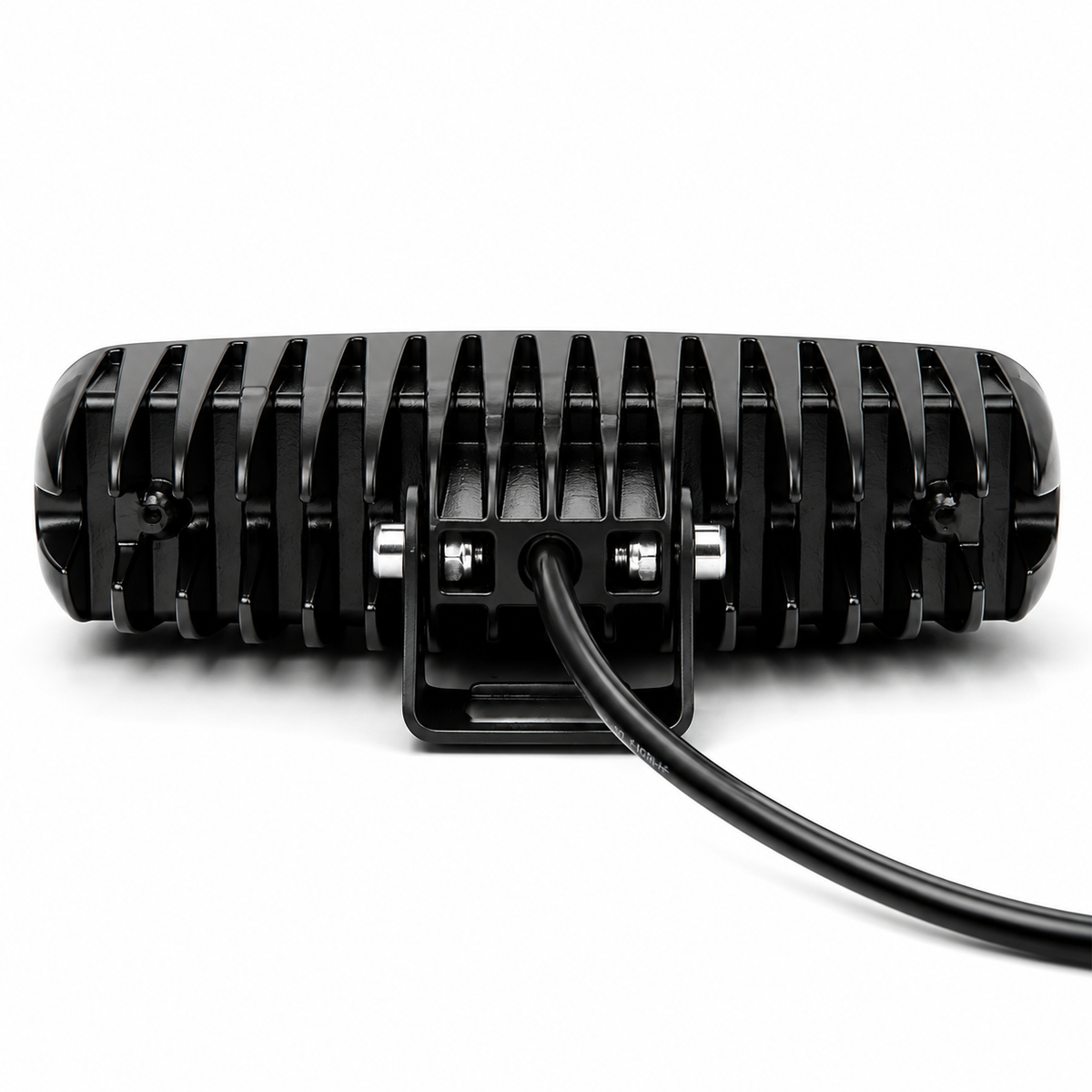

• Secure bolt mounting
• Compact rectangular housing
• Only 47mm high
• Operating temperature: -30°C to +60°C

Ideal Applications

• Commercial vehicles
• Vans and trucks
• Agricultural machinery
• Tractors
• Excavators and plant machinery
• Forklifts
• Recovery vehicles
• Utility vehicles
• Industrial equipment
• Specialist and higher-voltage machinery

Technical Specifications

• Product Type: Slimline LED Work Lamp
• Power: 18W
• Light Output: 1,260 Effective Lumens
• LEDs: 6 × 3W
• Voltage: 12–80V DC
• Beam Pattern: Spot
• Mounting: Bolt Mount
• Approval: ECE R10 EMC
• Compliance: UKCA
• Protection Rating: IP67
• Reverse Polarity Protection: Yes
• Dimensions: 161 × 47 × 56mm
• Operating Temperature: -30°C to +60°C

Why Choose This Slimline Work Lamp?

Where this lamp really makes sense is space-restricted installations.

At only 47mm high, the slim rectangular housing can be installed in locations where larger conventional work lamps may be impractical. The focused spot beam provides useful directional illumination without requiring a physically large lamp.

Its 12–80V operating range is another major advantage, particularly for plant, forklifts and specialist machinery where standard 12/24V-only work lamps may not be suitable.

Compact, ECE R10 approved, IP67 rated and competitively priced, it's a straightforward professional work lamp for applications where size, voltage flexibility and directional illumination matter.
