OZZ XB1 15" LED Driving Light Bar – 9,600 Lumen, White, 10–32V

The OZZ XB1 15" LED Driving Light Bar combines premium Scandinavian styling with exceptional lighting performance, delivering an impressive 9,600 lumens from a sleek, low-profile white housing. Designed for drivers who demand outstanding visibility and a factory-inspired appearance, the XB1 is ideal for commercial vehicles, 4x4s, agricultural machinery and off-road applications.

Featuring a powerful Driving Beam pattern, the XB1 provides excellent long-range illumination while maintaining broad road coverage, reaching 1 Lux at up to 525 metres. Whether travelling rural roads, operating agricultural equipment or working in low-light environments, the XB1 delivers the confidence and visibility needed to work safely.

A standout feature of the OZZ XB series is its dynamic start-up sequence, creating a premium lighting effect every time the light bar is switched on. Combined with its slimline design and distinctive styling, the XB1 enhances both the appearance and functionality of your vehicle.

Built for demanding professional use, the XB1 features a robust white aluminium housing and an impact-resistant polycarbonate lens. With an IP69K protection rating, it offers maximum resistance against dust, water ingress and high-pressure washing, making it suitable for year-round use in harsh working environments.

Operating across a wide 10–32V DC voltage range, the XB1 is compatible with both 12V and 24V electrical systems. Installation is quick and flexible thanks to the supplied side and rear mounting brackets, while the 1-metre cable with 3-pin Deutsch connector provides a secure, weather-resistant connection.

Certified to ECE R10 and ECE R149, the OZZ XB1 complies with the latest standards for electromagnetic compatibility and road-legal driving lamps, delivering dependable performance wherever the road—or the job—takes you.

Main Features

• Premium 15" slimline LED driving light bar
• Powerful 9,600 lumen output
• Driving Beam pattern for exceptional long-range visibility
• 1 Lux at up to 525 metres
• Signature dynamic start-up sequence
• Suitable for 10–32V DC systems
• Compatible with 12V and 24V vehicles
• Durable white aluminium housing
• Impact-resistant polycarbonate lens
• IP69K rated against dust and water ingress
• Certified to ECE R10 & ECE R149
• Side and rear mounting brackets included
• 3-pin Deutsch connector
• 1m cable
• Surface mounting
• 3-year warranty

Ideal Applications

• 4x4 vehicles
• Pickup trucks
• Commercial vehicles
• HGVs
• Agricultural machinery
• Tractors
• Construction and plant equipment
• Utility vehicles
• Forestry vehicles
• Off-road vehicles

Technical Specifications

• Voltage: 10–32V DC
• Power Consumption: 87W
• Current Draw: 6.58A @ 12V / 3.63A @ 24V
• Light Output: 9,600 Lumens
• Beam Pattern: Driving Beam
• Beam Distance: 1 Lux @ 525m
• Position Lights: No
• Warning Light Function: No
• Housing Material: Aluminium
• Housing Colour: White
• Lens Material: Polycarbonate
• Lens Colour: Clear
• Protection Rating: IP69K
• Mounting: Surface Mount
• Mounting Brackets: Side & Rear Included
• Connection: 3-Pin Deutsch Connector
• Cable Length: 1m

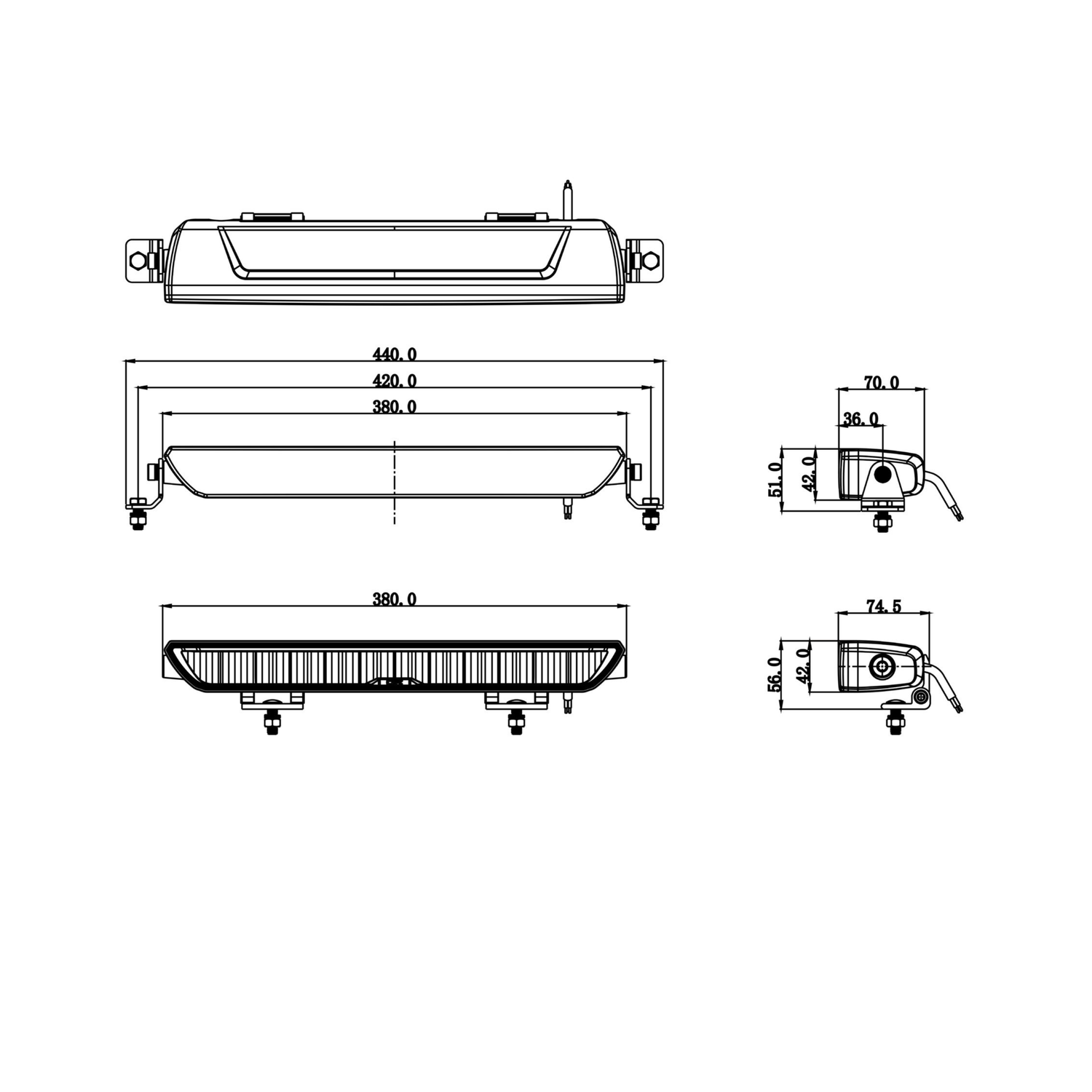

• Dimensions: 380 × 42 × 70mm
• Centre Distance: 420mm
• Approvals: CE, ECE R10, ECE R149
• Warranty: 3 Years

Why Choose the OZZ XB1?

The OZZ XB1 15" offers the perfect balance of modern styling, durability and high-performance illumination. Its slimline profile and premium white finish blend seamlessly with light-coloured commercial vehicles, recovery trucks and agricultural machinery, while the unique dynamic start-up sequence provides a distinctive finishing touch.

Delivering 9,600 lumens through a focused Driving Beam pattern, the XB1 significantly improves visibility on dark roads and worksites without adding unnecessary bulk to your vehicle. Combined with its rugged construction, flexible mounting options and full ECE certification, it is a premium lighting solution built for professionals who demand reliable performance every day.
