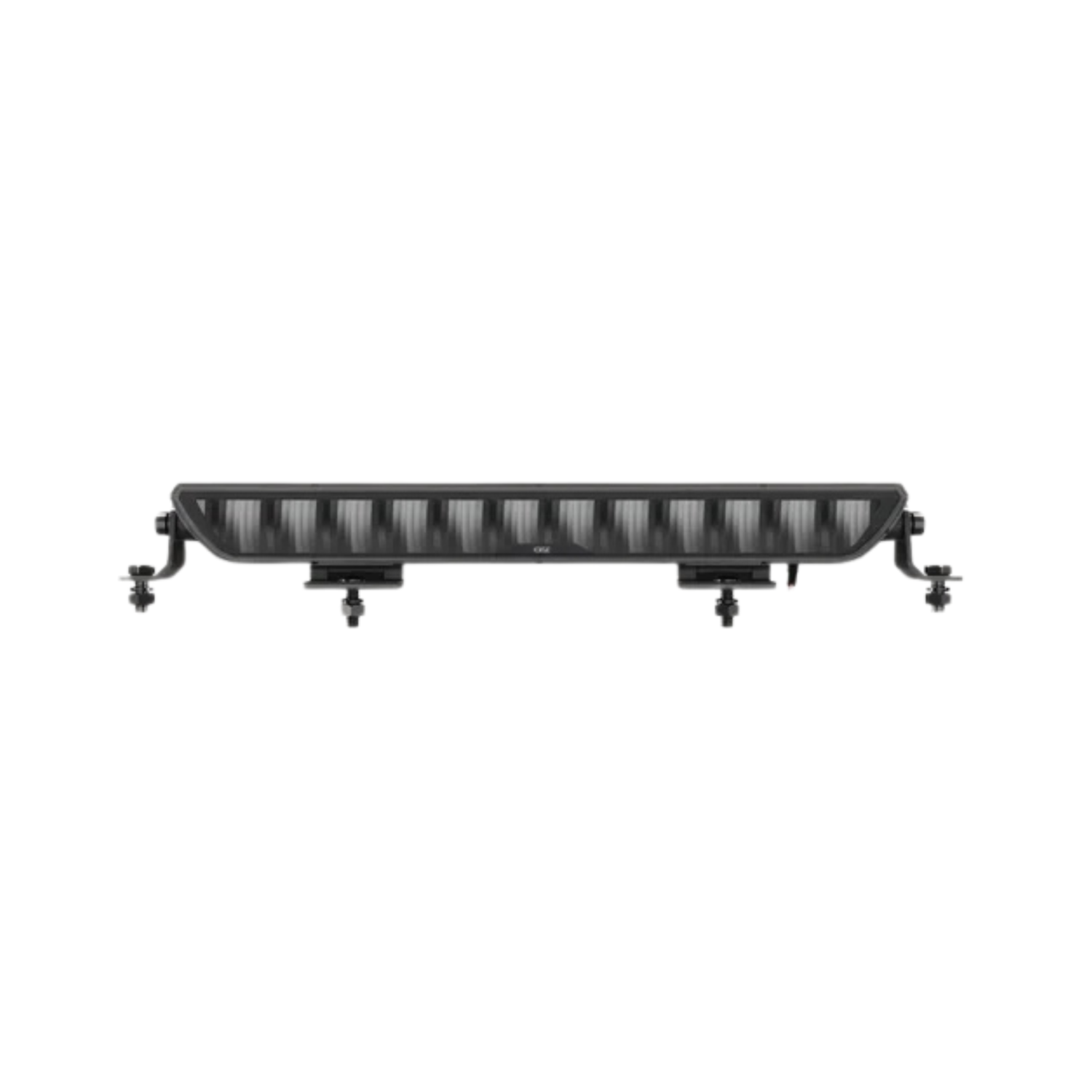

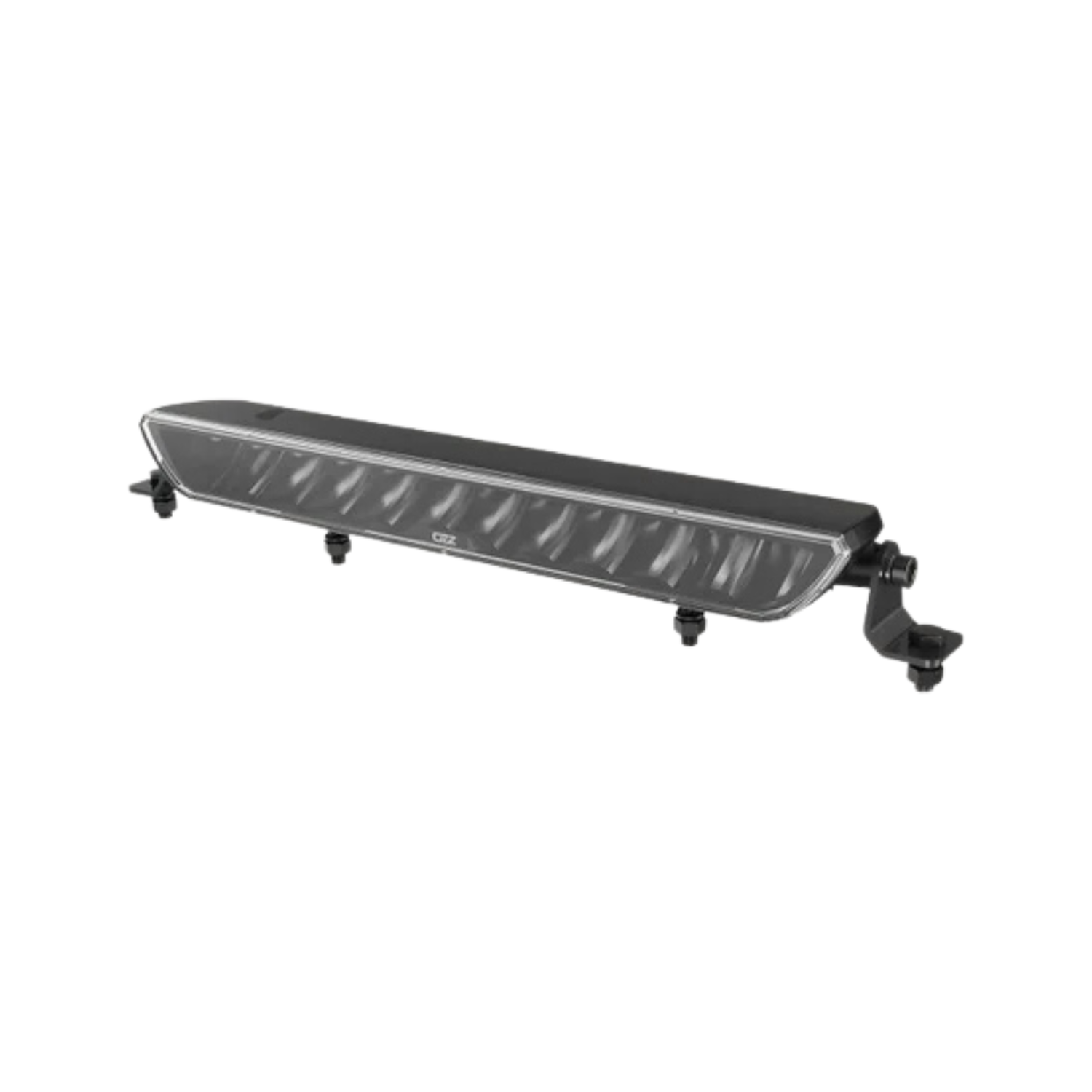

OZZ XB1 15" LED Driving Light Bar – 9,600 Lumen, Black, 10–32V

The OZZ XB1 15" LED Driving Light Bar combines premium Scandinavian design with exceptional lighting performance, delivering an impressive 9,600 lumens in a sleek, low-profile housing. Designed for drivers who demand outstanding visibility without compromising on style, the XB1 is ideal for commercial vehicles, 4x4s, agricultural machinery and off-road applications.

Producing a powerful Driving Beam pattern, the XB1 delivers both excellent distance and road coverage, projecting light up to 525 metres at 1 Lux. Whether travelling rural roads, working on-site or exploring off-road terrain, the XB1 provides the clarity and confidence needed in low-light conditions.

A signature feature of the OZZ XB series is its dynamic start-up sequence, adding a premium visual effect every time the light bar is switched on. Combined with its distinctive styling and slimline profile, the XB1 offers a modern appearance that complements any vehicle.

Manufactured with a robust black aluminium housing and an impact-resistant polycarbonate lens, the XB1 is engineered to withstand demanding working environments. Its IP69K protection rating ensures maximum resistance against dust, water ingress and high-pressure washing, making it suitable for year-round professional use.

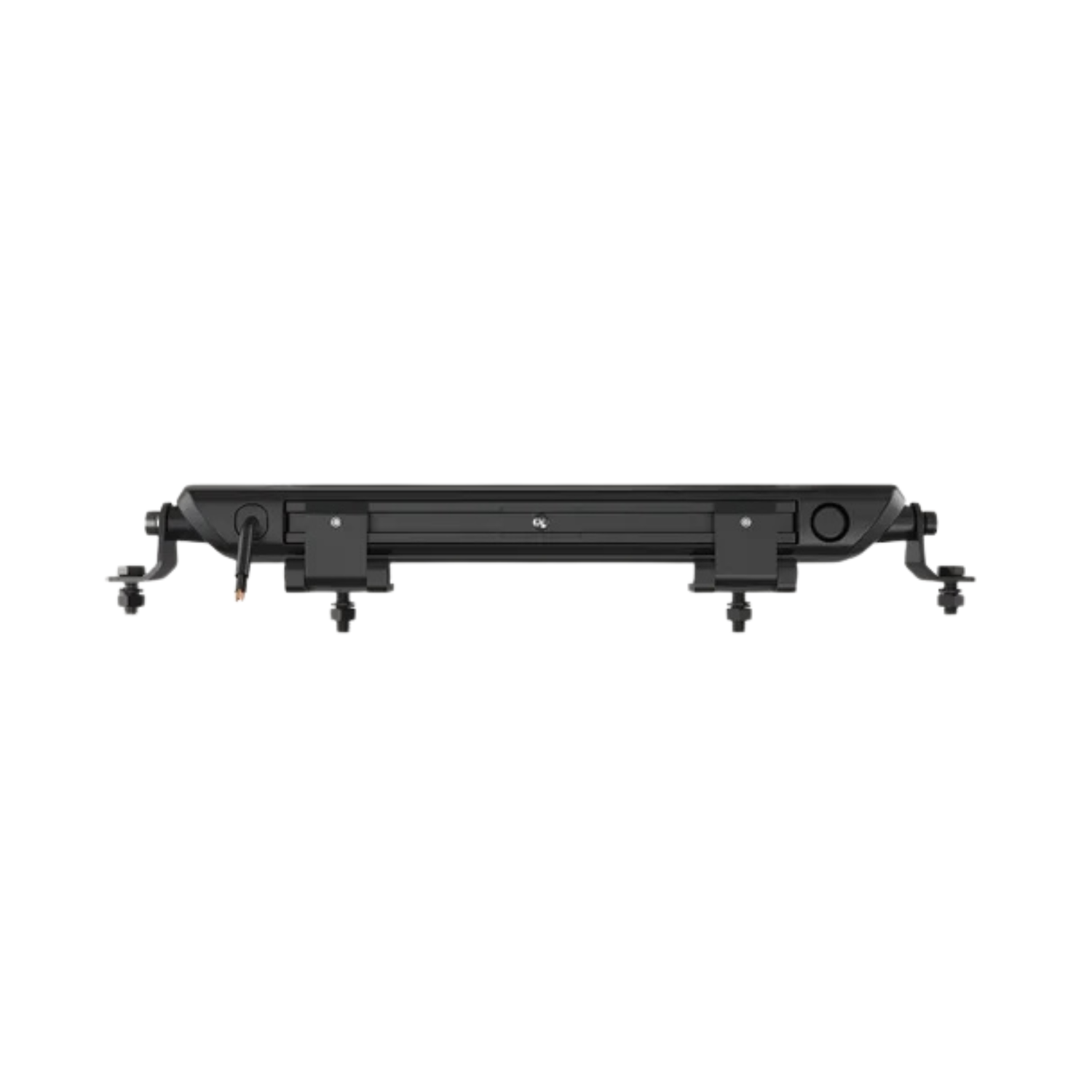

Operating across a wide 10–32V DC voltage range, the XB1 is compatible with both 12V and 24V electrical systems. Installation is made simple with the included side and rear mounting brackets, allowing flexible mounting options to suit a wide range of vehicles. A 1-metre cable with a 3-pin Deutsch connector ensures a reliable and weather-resistant electrical connection.

Certified to ECE R10 and ECE R149, the OZZ XB1 meets the latest standards for electromagnetic compatibility and road-legal driving lamps, delivering outstanding performance with complete peace of mind.

Main Features

• Premium 15" slimline LED driving light bar
• Powerful 9,600 lumen output
• Driving Beam pattern for exceptional long-range visibility
• 1 Lux at up to 525 metres
• Signature dynamic start-up sequence
• Suitable for 10–32V DC systems
• Compatible with 12V and 24V vehicles
• Durable black aluminium housing
• Impact-resistant polycarbonate lens
• IP69K rated against dust and water ingress
• Certified to ECE R10 & ECE R149
• Side and rear mounting brackets included
• 3-pin Deutsch connector
• 1m cable
• Surface mounting
• 3-year warranty

Ideal Applications

• 4x4 vehicles
• Pickup trucks
• Commercial vehicles
• HGVs
• Agricultural machinery
• Tractors
• Construction and plant equipment
• Utility vehicles
• Forestry vehicles
• Off-road vehicles

Technical Specifications

• Voltage: 10–32V DC
• Power Consumption: 87W
• Current Draw: 6.58A @ 12V / 3.63A @ 24V
• Light Output: 9,600 Lumens
• Beam Pattern: Driving Beam
• Beam Distance: 1 Lux @ 525m
• Position Lights: No
• Warning Light Function: No
• Housing Material: Aluminium
• Housing Colour: Black
• Lens Material: Polycarbonate
• Lens Colour: Clear
• Protection Rating: IP69K
• Mounting: Surface Mount
• Mounting Brackets: Side & Rear Included
• Connection: 3-Pin Deutsch Connector
• Cable Length: 1m
• Dimensions: 380 × 42 × 70mm
• Centre Distance: 420mm
• Approvals: CE, ECE R10, ECE R149
• Warranty: 3 Years

Why Choose the OZZ XB1?

The OZZ XB1 15" is designed for drivers who want maximum lighting performance in a compact, stylish package. Its slimline profile, premium black finish and distinctive dynamic start-up sequence give it a modern, high-end appearance, while the powerful 9,600-lumen Driving Beam delivers exceptional visibility on dark roads and challenging terrain.

With flexible mounting options, rugged construction and full ECE certification, the XB1 is equally at home on commercial vehicles, agricultural machinery, off-road vehicles and daily-driven pickups, making it a versatile lighting upgrade for both work and leisure.
