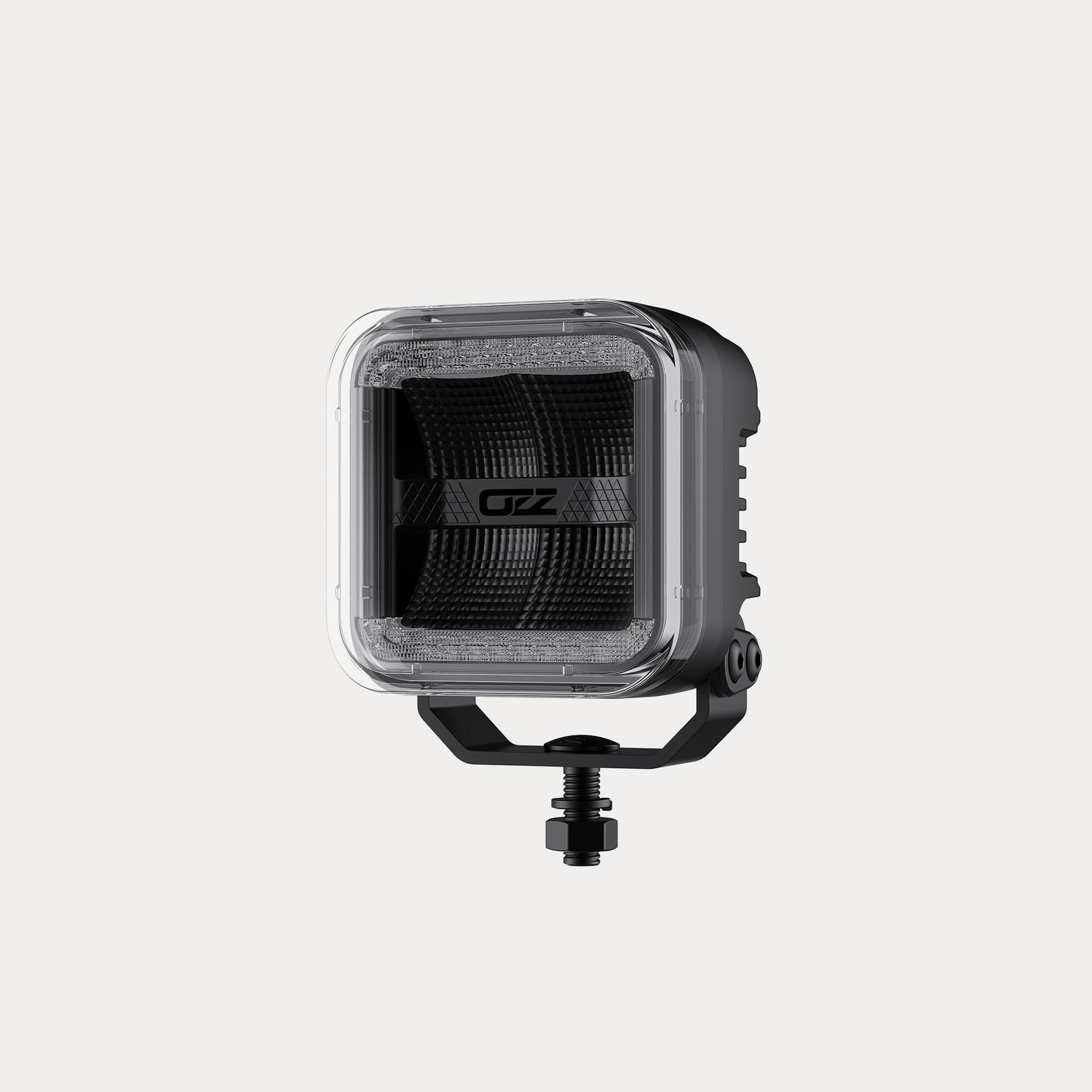

OZZ SQR 3" LED Work Light – Flood Beam with R65 Class 2 Warning Light, 12–24V

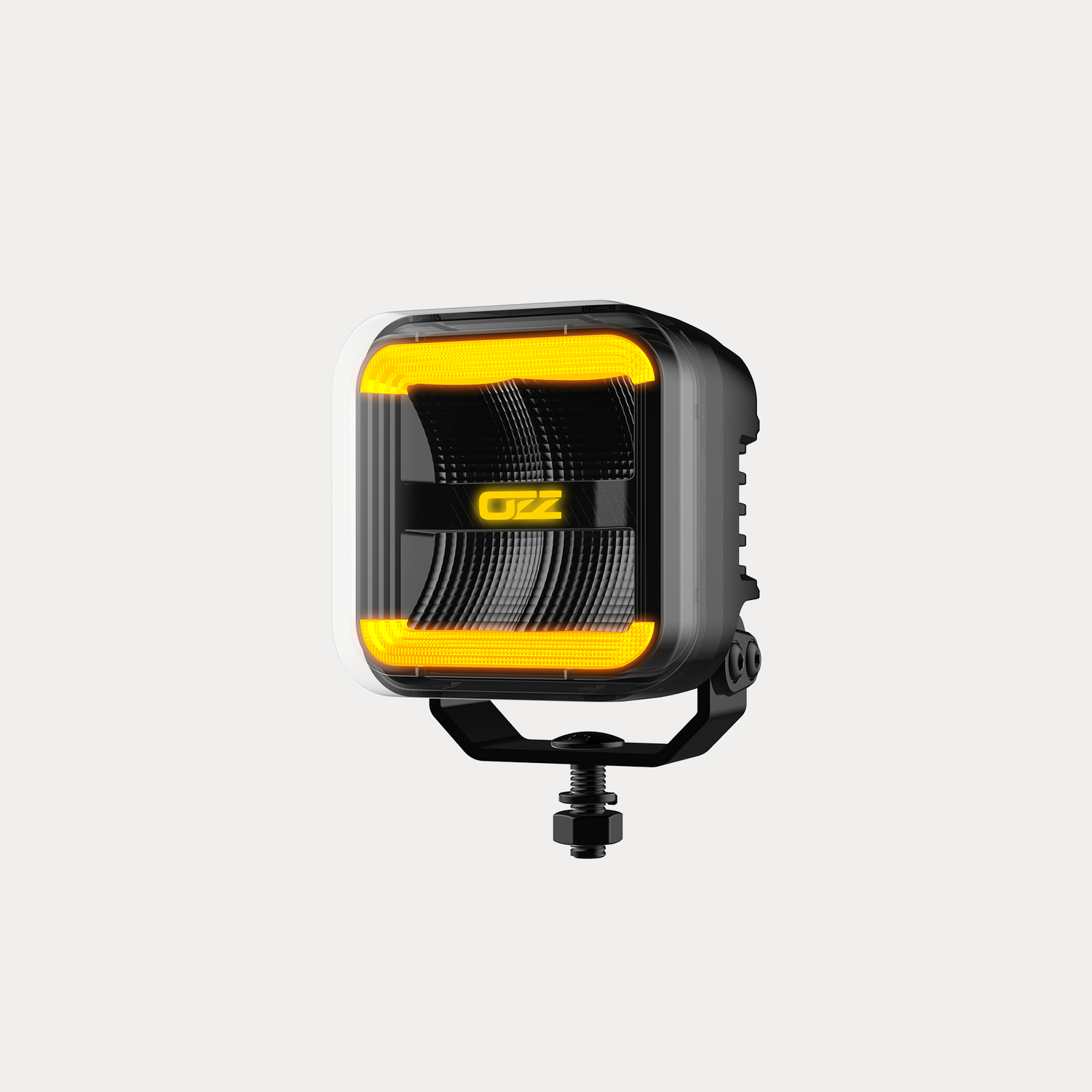

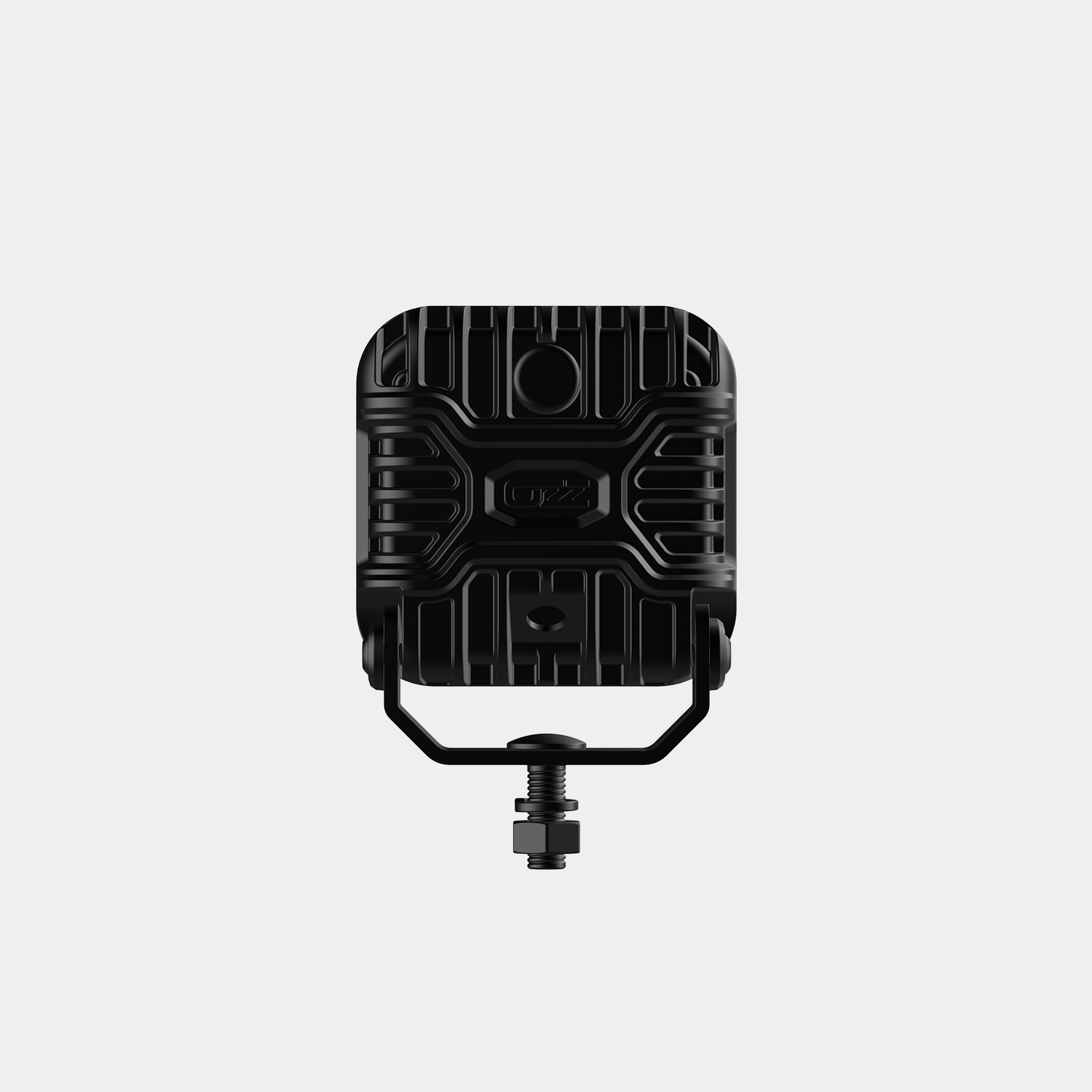

The OZZ SQR series is designed for use as a work light and warning light on 12-24 V vehicles within industrial, agricultural and transport applications. This square LED unit combines a robust aluminium housing with an impact-resistant polycarbonate lens for durability under harsh conditions. With a light colour combination of amber and white, this model offers both work lights and dual warning light functions for increased visibility.

The compact dimensions of 97x97x80 mm ensure efficient deployment in limited mounting spaces. Thanks to its IP69K rating, the unit can withstand high pressure and heat, enabling mounting outside the cabin. The 4-PIN Deutsch connector and a cable length of 100 cm facilitate electrical connection. The luminaire complies with CE, ECE-R10, ECE-R148 and ECE-R65 class 2 guidelines.

Plus points of this series:

• Square design
• Work light
• Double flash warning
• 3500 lm, 1 lux @75m

Main features:

• 10-32V DC dual voltage
• ECE EMC R10 approved
• ECE R65 class 2 approved
• ECE R23 approved
• Kelvin: 5000K
• 50W
• 3500 lumen
• Current draw: 4.18A @ 12V, 1.94 @ 24V
• Work and warning light function
• Beam pattern: Flood
• Flash pattern: Double flash
• IP68/IP69K rated
• DT connection
• Cable length: 1000mm
• Dimensions: 97 x 80 x 97/115,81 mm
• Operating temperature: -40°C to +60°C
• 3 year warranty
