Odyssey 9" ECE R149 LED Driving Light with Position Light – 14,400 Lumens, 10-48V – Single Unit

The Odyssey 9" LED Driving Light is a high-performance auxiliary driving lamp designed for 4x4s, commercial vehicles, trucks, agricultural machinery and specialist vehicles requiring powerful additional forward illumination.

Producing an impressive 14,400 lumens from 22 high-output LEDs, the Odyssey features a dedicated driving beam designed to provide strong, focused forward illumination for improved visibility on dark roads and in demanding operating environments.

Unlike many high-output off-road lamps, the Odyssey carries ECE R149 approval for its driving light function, making it suitable for compliant road-going applications when correctly installed. An integrated ECE R148 approved position light adds a distinctive modern appearance while providing an additional approved lighting function.

Please Note: This product is sold individually. Where product imagery shows more than one lamp, this is for illustration purposes only. The price shown is for one lamp.

The substantial 9" format provides excellent lighting performance while retaining a relatively slim 70mm depth, allowing the Odyssey to integrate neatly into 4x4s, trucks and other commercial or specialist vehicle installations.

Built for demanding environments, the lamp features IP67 protection against dust and water ingress, helping provide dependable performance in challenging weather, working and off-road conditions.

With an exceptionally wide 10-48V operating range, the Odyssey is suitable for a broad variety of vehicle and machinery electrical systems. ECE R10 EMC approval provides electromagnetic compatibility with vehicle electrical systems.

A secure bolt and adjustable bracket mounting system provides straightforward installation while allowing the driving beam to be correctly positioned for the vehicle and application.

Key Features

• High-performance 9" LED auxiliary driving light
• Sold individually – price is per lamp
• Powerful 14,400 lumen output
• 22 high-output LEDs
• Dedicated driving beam
• ECE R149 approved driving light
• Integrated position light
• ECE R148 approved position light
• ECE R10 EMC approved
• Wide 10-48V DC operating range
• Suitable for 12V and 24V vehicles
• Relatively slim 70mm deep housing
• IP67 rated against dust and water ingress
• Secure bolt and bracket mounting
• Adjustable mounting angle
• Ideal for 4x4, commercial, truck, agricultural and specialist vehicle applications

Technical Specifications

• Range: Odyssey
• Product Type: LED Auxiliary Driving Light
• Size: 9"
• Quantity Supplied: 1 × Lamp
• Voltage: 10-48V DC
• Light Output: 14,400 Lumens
• Number of LEDs: 22
• Beam Pattern: Driving Beam
• Position Light: Yes
• Approvals: ECE R10 / ECE R148 / ECE R149
• Protection Rating: IP67
• Mounting: Bolt & Bracket

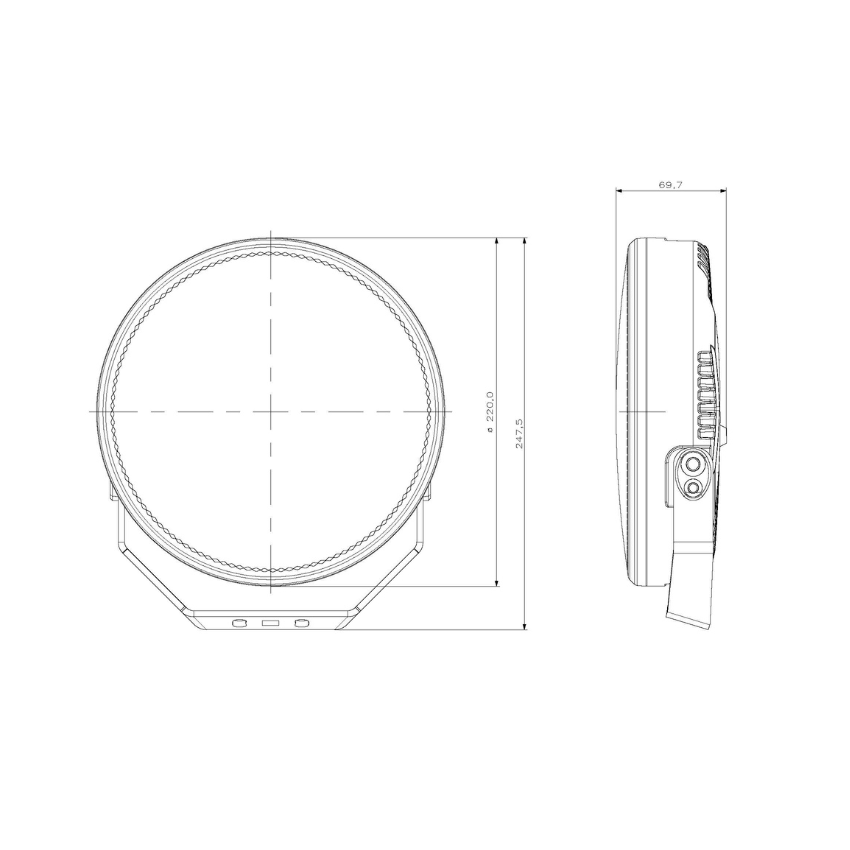

• Dimensions: 220mm × 220mm × 70mm

Why Choose the Odyssey 9" LED Driving Light?

The Odyssey 9" combines 14,400 lumens of powerful driving illumination, ECE R149 road-lighting approval and an integrated ECE R148 position light in one substantial auxiliary lamp.

Its dedicated driving beam makes this model particularly suited to customers looking for improved forward visibility rather than the broad working-area illumination produced by the Flood models in the Odyssey range.

Crucially, the ECE R149 approval distinguishes it from many high-output off-road lamps. When correctly installed and used in accordance with applicable requirements, the Odyssey provides an approved auxiliary driving-light solution for road-going vehicles.

The integrated ECE R148 position light adds another approved lighting function and gives the lamp a distinctive, contemporary appearance.

With 14,400 lumens, 10-48V compatibility, ECE R10/R148/R149 approvals, IP67 protection and adjustable bracket mounting, the Odyssey 9" is a premium auxiliary driving light for 4x4s, trucks, commercial vehicles and specialist applications requiring serious additional illumination.

This product is supplied as one individual lamp. Order two units where a matching pair is required.
