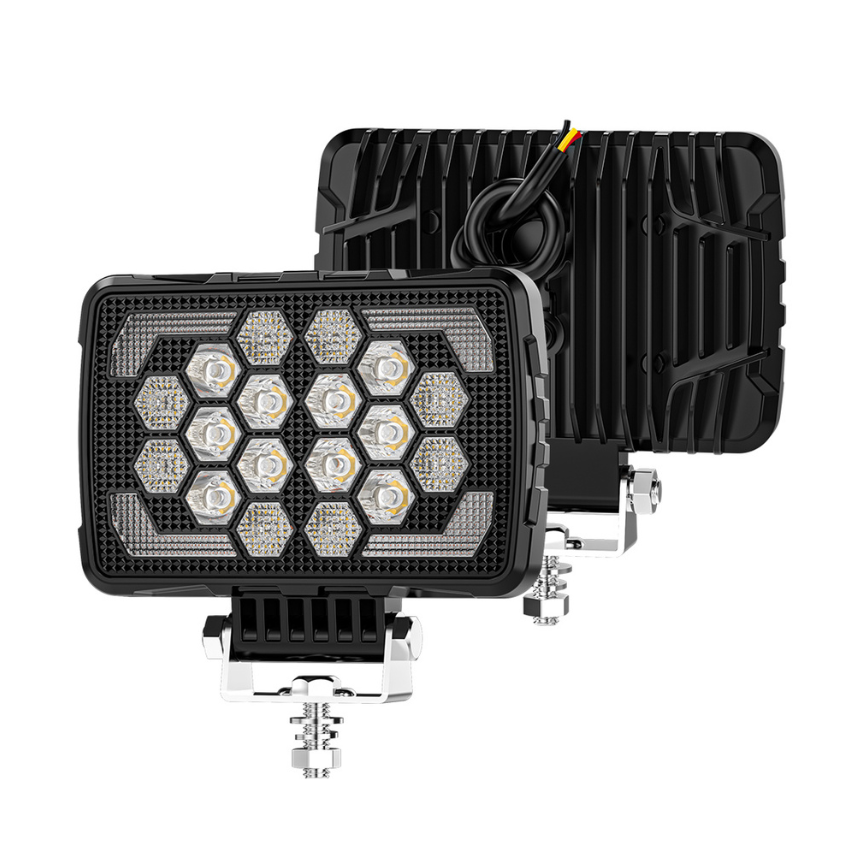

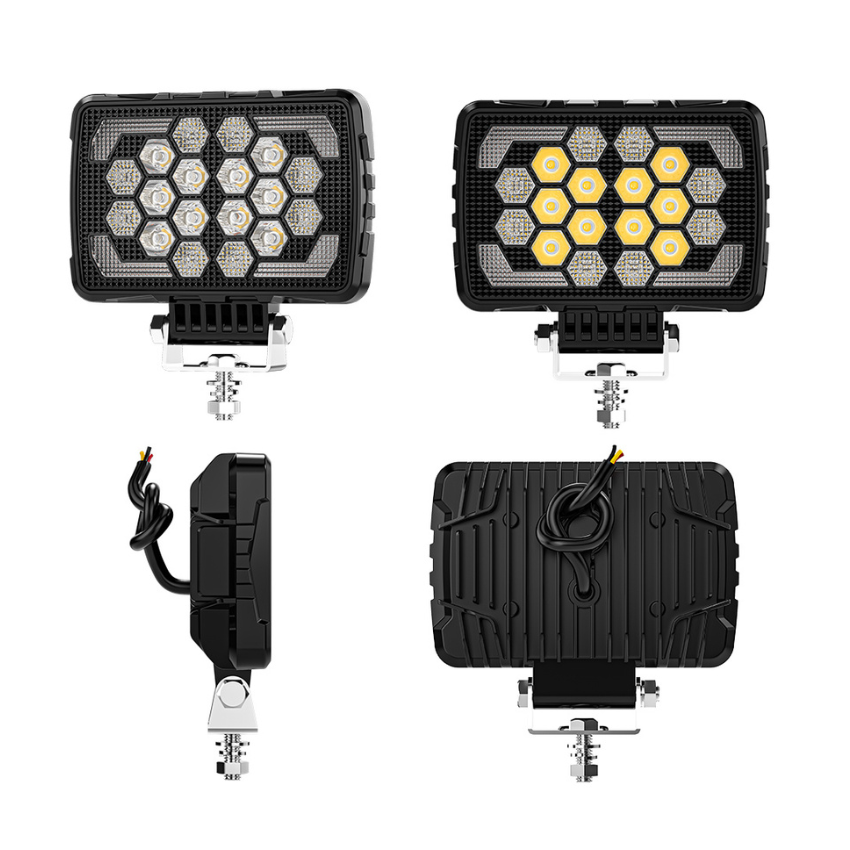

Odyssey 5" Square LED Off-Road Light with Position Light – 3,600 Lumens, 9-36V – Single Unit

The Odyssey 5" Square LED Off-Road Light is a powerful, compact auxiliary lamp designed for 4x4s, off-road vehicles, agricultural machinery, plant equipment and commercial vehicles requiring high-output illumination from a modern, low-profile housing.

Producing an impressive 3,600 lumens from 18 high-output LEDs, the Odyssey delivers a wide flood beam designed to provide broad illumination across the working area. This makes it particularly effective for off-road driving, agricultural work, construction sites and machinery operating in dark or low-visibility environments.

An integrated position light adds a distinctive modern appearance while providing an additional lighting function. Combined with the contemporary square housing, the Odyssey is particularly well suited to 4x4 and off-road installations where both powerful illumination and appearance are important.

Please Note: This product is sold individually. Where product imagery shows more than one lamp, this is for illustration purposes only. The price shown is for one lamp.

Despite its powerful output, the Odyssey features a slim housing measuring just 37mm deep, allowing it to integrate neatly into vehicles and machinery where installation space may be limited.

Built for demanding environments, the lamp features IP67 protection against dust and water ingress, helping provide dependable performance in challenging working and off-road conditions.

With a wide 9-36V operating range, the Odyssey is suitable for both 12V and 24V electrical systems and a broad variety of vehicles and machinery. ECE R10 EMC approval provides electromagnetic compatibility with vehicle electrical systems.

A secure bolt and bracket mounting system provides straightforward installation while allowing the lamp angle to be adjusted to direct the flood beam where it is needed most.

Key Features

• Powerful 5" square LED off-road light
• Sold individually – price is per lamp
• Impressive 3,600 lumen output
• 18 high-output LEDs
• Wide flood beam illumination
• Integrated position light
• Slim 37mm deep housing
• Wide 9-36V DC operating range
• Suitable for 12V and 24V vehicles
• ECE R10 EMC approved
• IP67 rated against dust and water ingress
• Secure bolt and bracket mounting
• Adjustable mounting angle
• Modern square design
• Ideal for 4x4, off-road, agricultural, plant and commercial vehicle applications

Technical Specifications

• Range: Odyssey
• Product Type: Square LED Off-Road / Auxiliary Light
• Size: 5"
• Quantity Supplied: 1 × Lamp
• Voltage: 9-36V DC
• Light Output: 3,600 Lumens
• Number of LEDs: 18
• Beam Pattern: Flood
• Position Light: Yes
• Approval: ECE R10
• Protection Rating: IP67
• Mounting: Bolt & Bracket

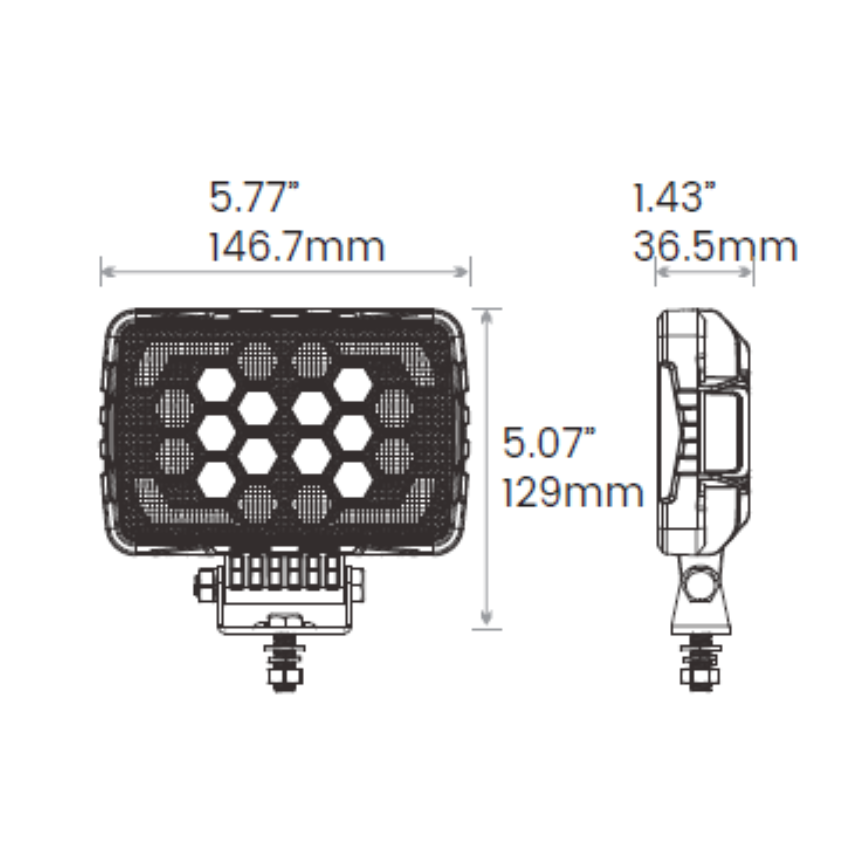

• Dimensions: 147mm × 129mm × 37mm

Why Choose the Odyssey 5" Square LED Light?

The Odyssey 5" combines 3,600 lumens of powerful flood illumination, integrated position lighting and a slim square housing in one versatile auxiliary lamp.

The high-output flood beam provides broad illumination around the vehicle or working area, making it an excellent choice for 4x4s, tractors, excavators, plant machinery and other off-road equipment where strong visibility is required after dark.

At only 37mm deep, the Odyssey provides substantial output without the bulky construction of many conventional work and off-road lights. Its compact dimensions allow greater flexibility when mounting to bumpers, roof systems, brackets or machinery.

With 9-36V compatibility, ECE R10 approval, IP67 protection and adjustable bracket mounting, the Odyssey 5" Square provides a robust, high-output lighting solution for demanding off-road and professional applications.

This product is supplied as one individual lamp. Order two units where a matching pair is required.
