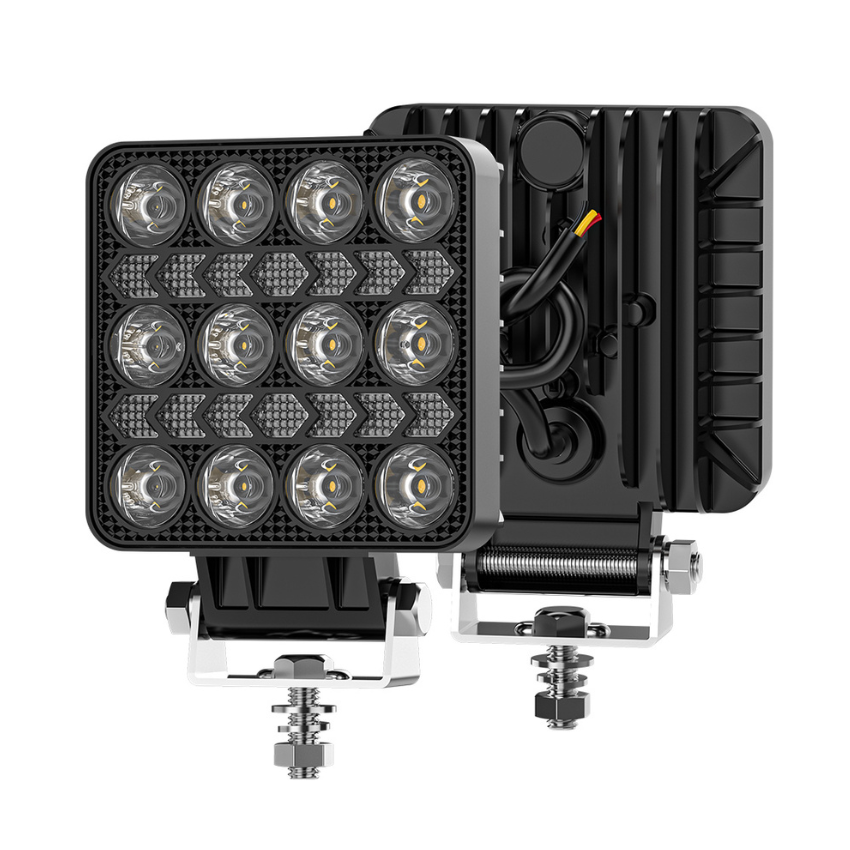

Odyssey 4" Square LED Off-Road Light with Position Light – 2,000 Lumens, 9-36V – Single Unit

The Odyssey 4" Square LED Off-Road Light is a compact and versatile auxiliary lamp designed for 4x4s, off-road vehicles, agricultural machinery, plant equipment and commercial vehicles requiring powerful illumination from a modern, compact housing.

Producing 2,000 lumens from 12 high-output LEDs, the Odyssey delivers a wide flood beam designed to provide broad illumination across the working area. This makes it particularly useful for off-road driving, agricultural work, construction sites and machinery operating in dark or low-visibility environments.

An integrated position light adds a distinctive modern appearance while providing an additional lighting function. Combined with the contemporary square housing, this makes the Odyssey particularly well suited to 4x4 and off-road installations where both lighting performance and appearance are important.

Please Note: This product is sold individually. Where product imagery shows more than one lamp, this is for illustration purposes only. The price shown is for one lamp.

Despite its powerful output, the Odyssey measures just 32mm deep, creating an exceptionally slim profile that can be integrated neatly into vehicles and machinery where installation space is limited.

Built for demanding environments, the lamp features IP67 protection against dust and water ingress, helping provide dependable performance in challenging working and off-road conditions.

With a wide 9-36V operating range, the Odyssey is suitable for both 12V and 24V electrical systems and a broad variety of vehicles and machinery. ECE R10 EMC approval provides electromagnetic compatibility with vehicle electrical systems.

A secure bolt and bracket mounting system provides straightforward installation while allowing the lamp angle to be adjusted to direct the flood beam where it is needed most.

Key Features

• Compact 4" square LED off-road light
• Sold individually – price is per lamp
• Powerful 2,000 lumen output
• 12 high-output LEDs
• Wide flood beam illumination
• Integrated position light
• Ultra-slim 32mm deep design
• Wide 9-36V DC operating range
• Suitable for 12V and 24V vehicles
• ECE R10 EMC approved
• IP67 rated against dust and water ingress
• Secure bolt and bracket mounting
• Adjustable mounting angle
• Modern square housing
• Ideal for 4x4, off-road, agricultural, plant and commercial vehicle applications

Technical Specifications

• Range: Odyssey
• Product Type: Square LED Off-Road / Auxiliary Light
• Size: 4"
• Quantity Supplied: 1 × Lamp
• Voltage: 9-36V DC
• Light Output: 2,000 Lumens
• Number of LEDs: 12
• Beam Pattern: Flood
• Position Light: Yes
• Approval: ECE R10
• Protection Rating: IP67
• Mounting: Bolt & Bracket

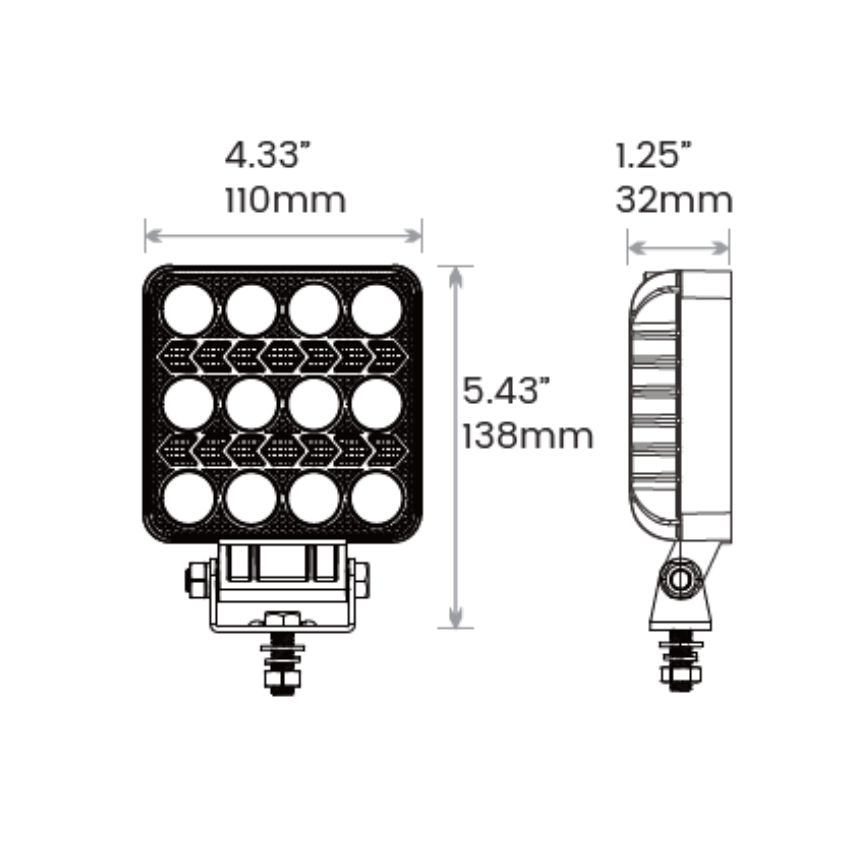

• Dimensions: 138mm × 110mm × 32mm

Why Choose the Odyssey 4" Square LED Light?

The Odyssey 4" combines powerful flood illumination, integrated position lighting and an ultra-slim square housing in one compact auxiliary light.

Producing 2,000 lumens, its flood beam provides broad illumination around the vehicle or working area, while the integrated position light gives the lamp a distinctive modern appearance.

At only 32mm deep, the Odyssey is particularly useful where conventional work lights or auxiliary lamps would be too bulky. Its compact dimensions provide excellent mounting flexibility across bumpers, brackets, roof systems and machinery.

With 9-36V compatibility, ECE R10 approval, IP67 protection and adjustable bracket mounting, the Odyssey 4" Square is a versatile LED auxiliary light for 4x4s, off-road vehicles, agricultural machinery, plant equipment and commercial vehicles.

This product is supplied as one individual lamp. Order two units where a matching pair is required.
