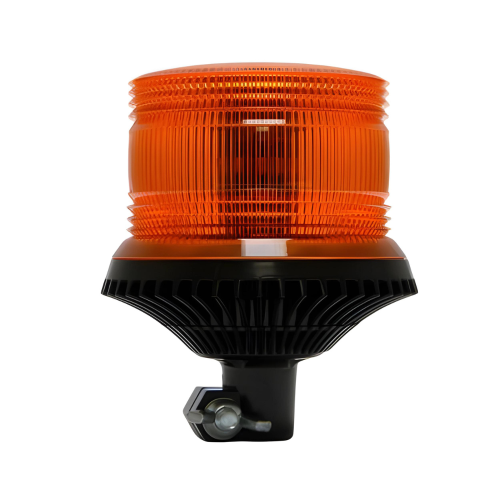

LAP LFB DIN Mount LED Fresnel Beacon – ECE R65, 12/24V, IP69K

The LAP LFB DIN Mount LED Fresnel Beacon is a professional, British-manufactured LED warning beacon designed to provide reliable 360° warning illumination for commercial vehicles, agricultural machinery, recovery trucks and specialist equipment.

Featuring high-performance LED Fresnel technology and a practical DIN mounting connection, this beacon provides an effective warning light solution for vehicles equipped with a compatible DIN beacon mounting point.

Available in Amber or Green, the LAP LFB DIN Beacon combines ECE R65-approved warning performance with durable construction and versatile 12/24V compatibility.

High-Visibility Warning Performance

The LAP LFB DIN Beacon features a double-flash warning pattern, providing bright, attention-grabbing visual warning for professional vehicle applications.

Operating at 120 flashes per minute, the beacon also incorporates a memory function to recall the last selected flash setting.

Its DIN mounting configuration provides a convenient installation solution for vehicles fitted with a compatible beacon socket.

Manufactured in the UK

Proudly manufactured in the United Kingdom, the LAP LFB range combines dependable British manufacturing with modern LED Fresnel warning technology.

Its lightweight polyamide heat sink, durable polycarbonate lens and conformal-coated PCB provide reliable performance in demanding environments.

With IP69K ingress protection, ECE R10 EMC approval and reverse polarity protection, the beacon is engineered for challenging commercial and agricultural applications.

The wide 10–30V operating range ensures compatibility with both 12V and 24V vehicle electrical systems.

Key Features

• Manufactured in the United Kingdom

• LAP LFB LED Fresnel warning beacon

• DIN mounting configuration

• Available in Amber or Green

• ECE R65-approved warning performance

• Double-flash warning pattern

• 120 flashes per minute

• Flash pattern memory function

• ECE R10 EMC approved

• 10–30V DC operating range

• Suitable for 12V and 24V vehicles

• IP69K ingress protection

• Lightweight polyamide heat sink

• Durable polycarbonate lens

• Conformal-coated PCB

• Reverse polarity protection

• 3-year manufacturer's warranty

Technical Specifications

• Brand: LAP Electrical

• Range: LFB LED Fresnel

• Product Type: LED Warning Beacon

• Mounting: DIN

• Colour Options: Amber / Green

• Flash Pattern: Double Flash

• Flash Rate: 120 Flashes Per Minute

• Memory Function: Yes

• Voltage: 10–30V DC

• Warning Approval: ECE R65 (applicable approved patterns and variants)

• EMC Approval: ECE R10

• Ingress Protection: IP69K

• Heat Sink Material: Polyamide

• Lens Material: Polycarbonate

• PCB Protection: Conformal Coating

• Polarity Protection: Reverse Polarity

• Country of Manufacture: United Kingdom

• Warranty: 3 Years

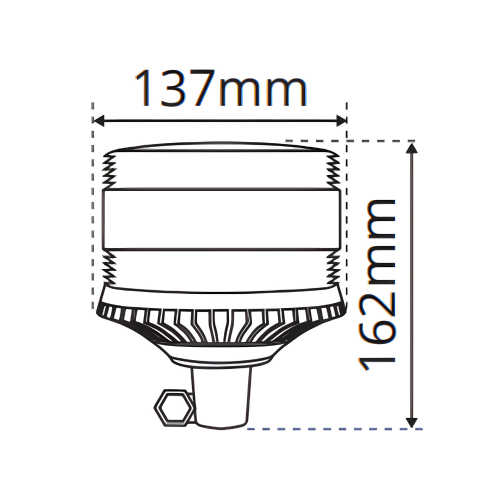

• Dimensions: 137 (dia) x 162 (H) mm

Why Choose the LAP LFB DIN LED Beacon?

The LAP LFB DIN Mount Beacon combines British manufacturing, professional warning illumination and practical DIN mounting for commercial and specialist vehicles.

Its high-visibility LED Fresnel design, IP69K protection and 12/24V compatibility make it an excellent choice for agricultural machinery, recovery vehicles and professional fleet applications.

A dependable, British-made LED warning beacon with convenient DIN mounting and a 3-year warranty.
