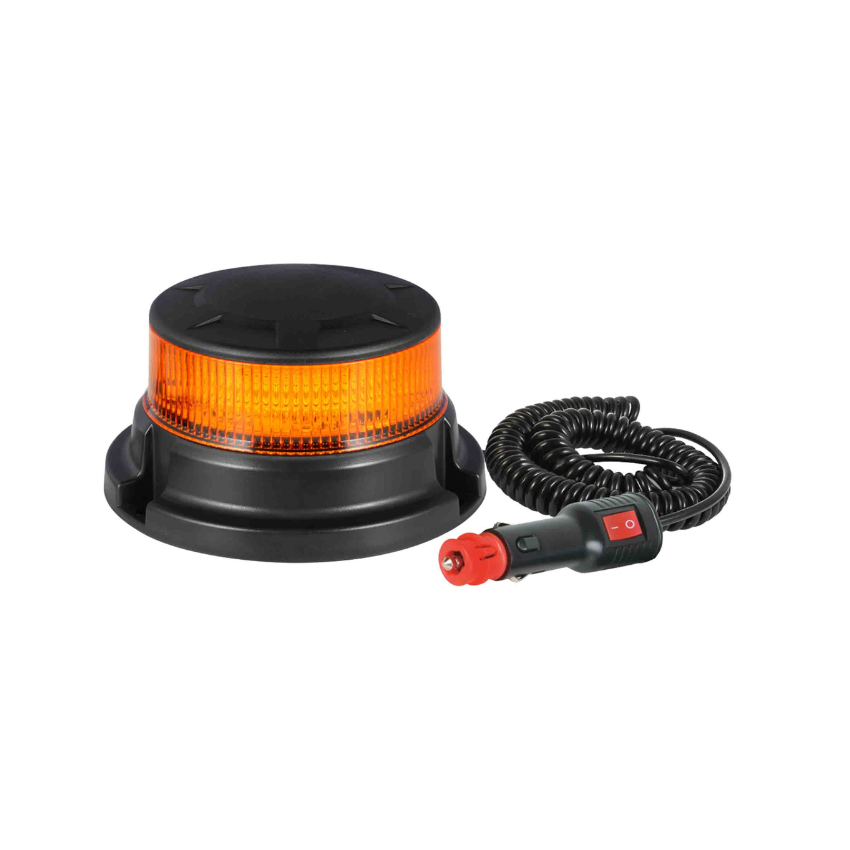

LAP BLPB Compact Magnetic LED Beacon – ECE R65, CAP168, 12/24V, IP66

The LAP BLPB Compact Magnetic LED Beacon is an ultra-compact, low-profile LED warning beacon designed to provide bright, reliable 360° warning illumination for agricultural machinery, plant equipment, commercial vehicles and specialist applications.

Featuring 18 high-intensity LEDs, this economical warning beacon combines effective visual warning performance with a compact, modern design. Its practical magnetic mounting configuration makes it particularly suitable for temporary installations on compatible vehicle surfaces.

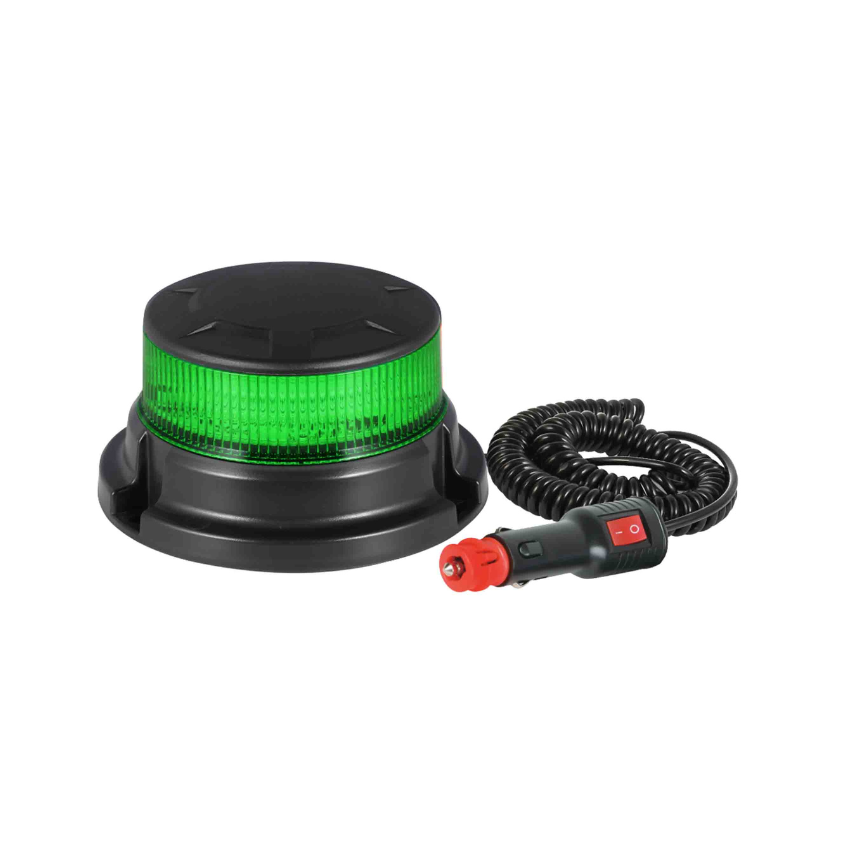

Available in Amber or Green, the LAP BLPB Magnetic Beacon offers seven selectable flash patterns, ECE R65-approved warning modes and a dedicated CAP168 airport flash pattern, making it a versatile choice for agricultural, industrial and airside applications.

Ultra-Compact Design & High-Visibility Performance

Designed for applications where installation space is limited, the LAP BLPB features a compact, low-profile housing with a durable polycarbonate lens and distinctive black top.

Its seven selectable flash patterns include single, double and quad flash modes with ECE R65 approval, alongside a dedicated CAP168 airport flash pattern for suitable airside applications.

The magnetic model is supplied with approximately 3 metres of cable, providing convenient positioning and connection for temporary vehicle installations.

Heavy-Duty Construction & Reliable Performance

Engineered for demanding working environments, the BLPB features a robust polycarbonate lens and IP66 ingress protection, providing resistance to dust and powerful water jets.

Its wide 10–30V operating range ensures compatibility with both 12V and 24V vehicle electrical systems.

The beacon is ECE R10 EMC approved and meets CISPR25 Class 3, helping minimise electromagnetic interference with vehicle electronics and communication equipment.

Designed to operate in temperatures from -30°C to +50°C, the BLPB combines dependable performance with an economical, lightweight construction.

Backed by a 3-year manufacturer's warranty, this compact LED beacon provides a practical warning light solution for professional vehicle applications.

Key Features

• LAP BLPB ultra-compact LED warning beacon

• Magnetic mounting configuration

• Available in Amber or Green

• Compact, low-profile design

• 18 high-intensity LEDs

• Seven selectable flash patterns

• ECE R65-approved single, double and quad flash modes

• Dedicated CAP168 airport flash pattern

• Bright 360° warning illumination

• Durable polycarbonate lens

• Stylish black top

• 10–30V DC operating range

• Suitable for 12V and 24V vehicles

• ECE R10 EMC approved

• CISPR25 Class 3

• IP66 ingress protection

• Approximately 3m cable length

• Operating temperature range of -30°C to +50°C

• Low current consumption

• Ideal for agricultural machinery, plant equipment and commercial vehicles

• 3-year manufacturer's warranty

Technical Specifications

• Brand: LAP Electrical

• Range: BLPB Compact LED

• Product Type: LED Warning Beacon

• Mounting: Magnetic

• Colour Options: Amber / Green

• LED Configuration: 18 LEDs

• Flash Patterns: 7 Selectable

• ECE R65 Flash Modes: Single / Double / Quad

• Additional Flash Mode: CAP168 Airport Flash

• Voltage: 10–30V DC

• Current Consumption: 0.6A @ 12V / 0.3A @ 24V

• Warning Approval: ECE R65

• EMC Approval: ECE R10

• EMC Classification: CISPR25 Class 3

• Ingress Protection: IP66

• Lens Material: Polycarbonate

• Housing Design: Low Profile with Black Top

• Cable Length: Approximately 3m

• Operating Temperature: -30°C to +50°C

• Warranty: 3 Years

• Dimensions: 120 (dia) x 65 (H) mm

Why Choose the LAP BLPB Magnetic LED Beacon?

The LAP BLPB Compact Magnetic Beacon combines effective LED warning performance with an ultra-compact design and convenient temporary mounting.

Its seven flash patterns, ECE R65-approved modes and CAP168 airport flash function make it particularly suitable for agricultural, plant, commercial and specialist vehicle applications.

With IP66 protection, 12/24V compatibility and a 3-year warranty, this economical beacon offers a dependable solution for operators requiring a compact, versatile warning light.

Compact, versatile and economical – professional LED warning performance with convenient magnetic mounting.
