LAP BLPB Compact Flexi DIN LED Beacon – ECE R65, CAP168, 12/24V, IP66

The LAP BLPB Compact Flexi DIN LED Beacon is an ultra-compact, low-profile LED warning beacon designed to deliver reliable 360° warning illumination for agricultural machinery, plant equipment, commercial vehicles and specialist applications.

Featuring 18 high-intensity LEDs, this economical warning beacon combines effective visual warning performance with a durable, modern design. Its practical flexible DIN mounting configuration makes it ideal for vehicles equipped with compatible DIN beacon mounting points.

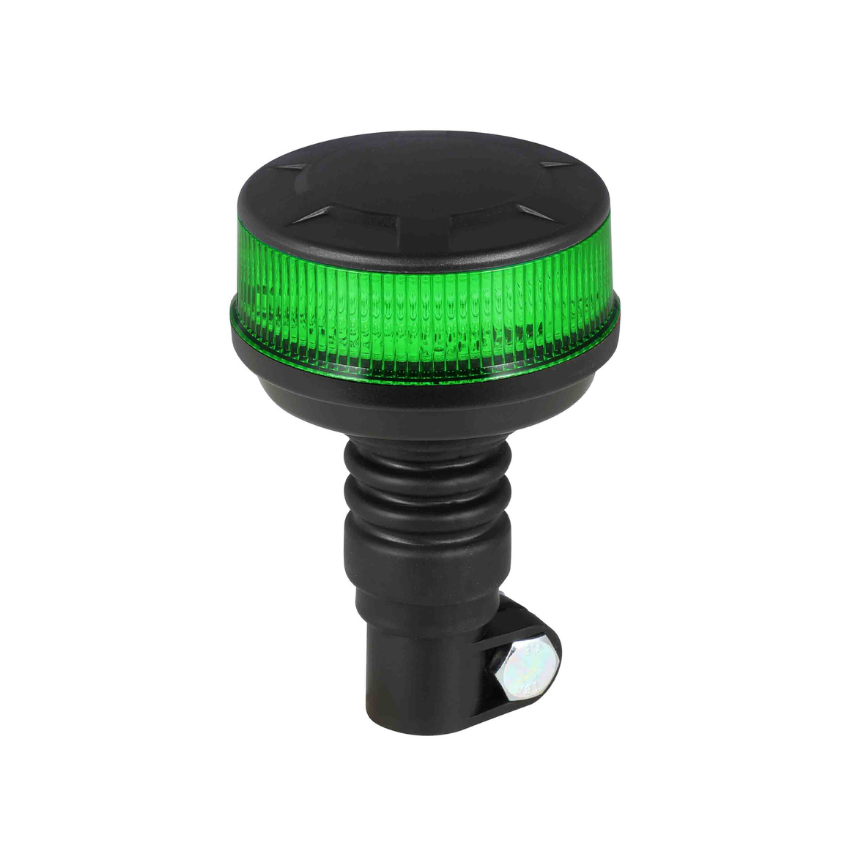

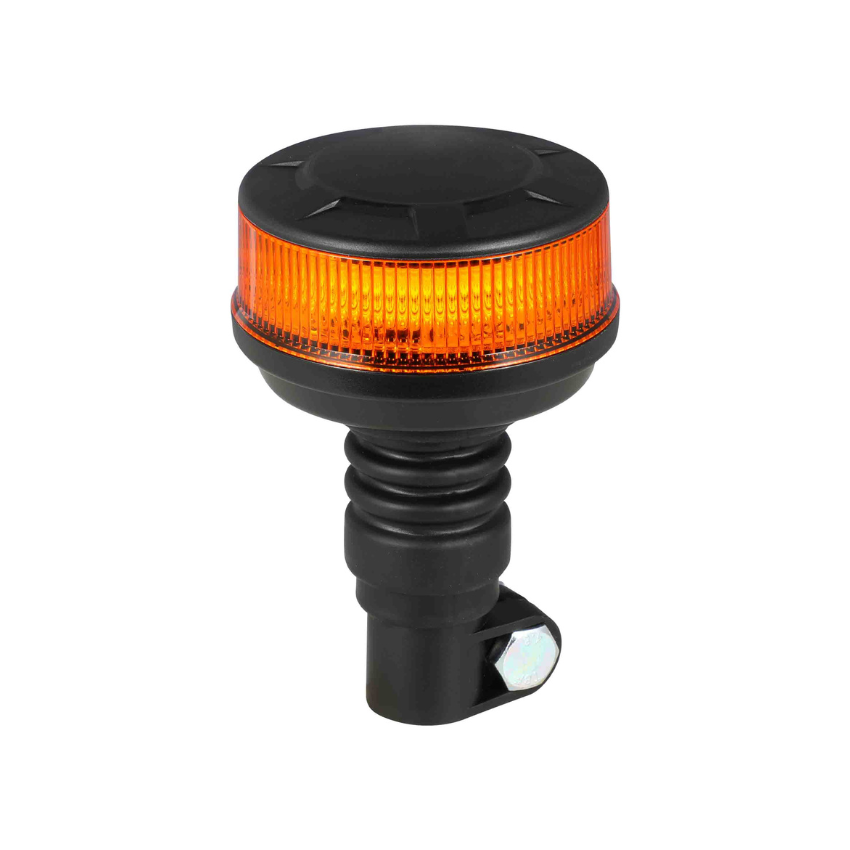

Available in Amber or Green, the LAP BLPB Flexi DIN Beacon features seven selectable flash patterns, ECE R65-approved warning modes and a dedicated CAP168 airport flash pattern, providing versatile warning performance for demanding professional environments.

Ultra-Compact Design & High-Visibility Performance

The LAP BLPB features a compact, low-profile housing with a durable polycarbonate lens and distinctive black top, offering a modern alternative to conventional larger warning beacons.

Its seven selectable flash patterns include single, double and quad flash modes with ECE R65 approval, alongside a dedicated CAP168 airport flash pattern for suitable airside applications.

The Flexi DIN mounting configuration provides a practical installation solution for agricultural, construction and commercial vehicles where a flexible beacon mounting arrangement is preferred.

Heavy-Duty Construction & Reliable Performance

Designed for demanding working environments, the beacon features a robust polycarbonate lens and IP66 ingress protection, providing resistance to dust and powerful water jets.

Its wide 10–30V operating range ensures compatibility with both 12V and 24V vehicle electrical systems.

The beacon is ECE R10 EMC approved and meets CISPR25 Class 3, helping reduce electromagnetic interference with vehicle electronics.

With an operating temperature range of -30°C to +50°C, the BLPB is engineered for dependable performance in challenging working conditions.

Backed by a 3-year manufacturer's warranty, this compact LED beacon combines practical mounting, effective warning illumination and economical construction.

Key Features

• LAP BLPB ultra-compact LED warning beacon

• Flexible DIN mounting configuration

• Available in Amber or Green

• Compact, low-profile design

• 18 high-intensity LEDs

• Seven selectable flash patterns

• ECE R65-approved single, double and quad flash modes

• Dedicated CAP168 airport flash pattern

• Bright 360° warning illumination

• Durable polycarbonate lens

• Stylish black top

• 10–30V DC operating range

• Suitable for 12V and 24V vehicles

• ECE R10 EMC approved

• CISPR25 Class 3

• IP66 ingress protection

• Operating temperature range of -30°C to +50°C

• Low current consumption

• Ideal for agricultural machinery, plant equipment and commercial vehicles

• 3-year manufacturer's warranty

Technical Specifications

• Brand: LAP Electrical

• Range: BLPB Compact LED

• Product Type: LED Warning Beacon

• Mounting: Flexi DIN

• Colour Options: Amber / Green

• LED Configuration: 18 LEDs

• Flash Patterns: 7 Selectable

• ECE R65 Flash Modes: Single / Double / Quad

• Additional Flash Mode: CAP168 Airport Flash

• Voltage: 10–30V DC

• Current Consumption: 0.6A @ 12V / 0.3A @ 24V

• Warning Approval: ECE R65

• EMC Approval: ECE R10

• EMC Classification: CISPR25 Class 3

• Ingress Protection: IP66

• Lens Material: Polycarbonate

• Housing Design: Low Profile with Black Top

• Operating Temperature: -30°C to +50°C

• Warranty: 3 Years

• Dimensions: 95 (dia) x 148 (H) mm

Why Choose the LAP BLPB Flexi DIN LED Beacon?

The LAP BLPB Compact Flexi DIN Beacon combines professional LED warning performance with an ultra-compact design and practical flexible DIN mounting.

Its seven selectable flash patterns, ECE R65-approved warning modes and CAP168 airport flash function make it particularly suitable for agricultural machinery, construction equipment and specialist vehicle applications.

With IP66 protection, ECE R10 approval, 12/24V compatibility and a 3-year warranty, the BLPB provides a reliable, economical warning light solution.

Compact, durable and versatile – professional LED warning illumination with practical Flexi DIN mounting.
