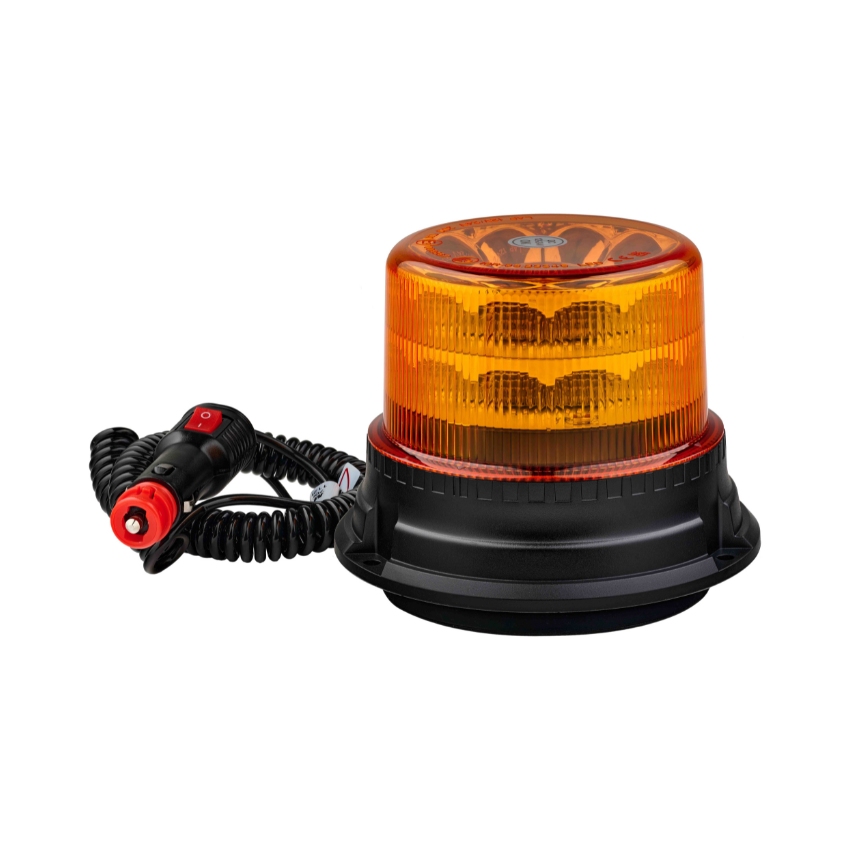

LAP A-ELPB Magnetic LED Airport Beacon – CAP168, ICAO, 12/24V, IP67

The LAP A-ELPB Magnetic LED Airport Beacon is a high-performance amber LED warning beacon specifically designed for airport, airfield and airside vehicle applications.

Featuring 24 high-intensity 1W LEDs arranged across two levels, this professional airport beacon delivers bright, highly visible 360° warning illumination. Its dedicated slow single-flash mode meets CAP168 and ICAO airport requirements, making it ideal for airside support vehicles, airport maintenance equipment, ground handling vehicles and specialist airfield operations.

The magnetic mounting configuration provides a convenient solution for temporary installation on compatible vehicle surfaces, with the A-ELPB020-2 magnetic model rated for speeds of up to 70mph when correctly installed.

CAP168 & ICAO Airport Warning Performance

Designed specifically for airfield environments, the LAP A-ELPB incorporates a slow single-flash warning mode to meet CAP168 and ICAO airport requirements.

The beacon features four selectable ECE R65-approved flash patterns, including single, double, quad and simulated rotating modes, providing additional flexibility for appropriate non-airport applications.

For airport and airside use, the dedicated slow single-flash mode should be selected to meet the stated airport warning requirements.

Magnetic Mounting & Heavy-Duty Construction

The A-ELPB020-2 features a practical magnetic mounting arrangement, allowing convenient installation on suitable vehicle surfaces without permanent drilling.

With a manufacturer-stated 70mph speed rating, it is designed for professional mobile applications when installed in accordance with LAP's mounting instructions.

The beacon operates across a wide 10–30V DC voltage range, ensuring compatibility with both 12V and 24V vehicle electrical systems.

Its IP67 ingress protection provides resistance to dust and temporary water immersion, while ECE R10 EMC approval supports reliable integration with vehicle electrical systems.

Designed to operate in temperatures from -30°C to +50°C, the LAP A-ELPB is backed by a 2-year manufacturer's warranty.

Key Features

• LAP A-ELPB professional LED airport warning beacon

• Magnetic mounting configuration

• Amber LED warning illumination

• 24 × 1W LEDs arranged across two levels

• Bright 360° warning visibility

• CAP168 and ICAO airport requirements

• Dedicated slow single-flash airport warning mode

• Four ECE R65-approved flash patterns

• Single, double, quad and simulated rotating modes

• 70mph magnetic mounting speed rating

• 10–30V DC operating range

• Suitable for 12V and 24V vehicles

• ECE R10 EMC approved

• IP67 ingress protection

• Operating temperature range of -30°C to +50°C

• Low current consumption

• Ideal for airport support vehicles, ground handling equipment and airfield maintenance vehicles

• 2-year manufacturer's warranty

Technical Specifications

• Brand: LAP Electrical

• Range: A-ELPB Airport Beacons

• Model: A-ELPB020-2

• Product Type: LED Airport Warning Beacon

• Mounting: Magnetic

• LED Colour: Amber

• LED Configuration: 24 × 1W LEDs

• Flash Patterns: 4 Selectable

• Flash Modes: Single / Double / Quad / Simulated Rotating

• Airport Flash Mode: Slow Single Flash

• Airport Requirements: CAP168 / ICAO

• Warning Approval: ECE R65 (approved modes)

• Voltage: 10–30V DC

• Current Consumption: 1.6A @ 12V / 0.8A @ 24V

• EMC Approval: ECE R10

• Ingress Protection: IP67

• Magnetic Speed Rating: 70mph

• Operating Temperature: -30°C to +50°C

• Warranty: 2 Years

Why Choose the LAP A-ELPB Magnetic Airport Beacon?

The LAP A-ELPB Magnetic LED Airport Beacon combines dedicated airport warning performance with practical temporary mounting.

Its CAP168 and ICAO slow single-flash mode, high-intensity amber LEDs and 70mph-rated magnetic mounting make it particularly suitable for airport support vehicles, airfield maintenance operations and specialist ground handling equipment.

With ECE R10 approval, IP67 protection and 12/24V compatibility, it provides dependable warning illumination for demanding airside environments.

Professional amber LED airport warning performance with CAP168 and ICAO functionality and convenient magnetic mounting.
