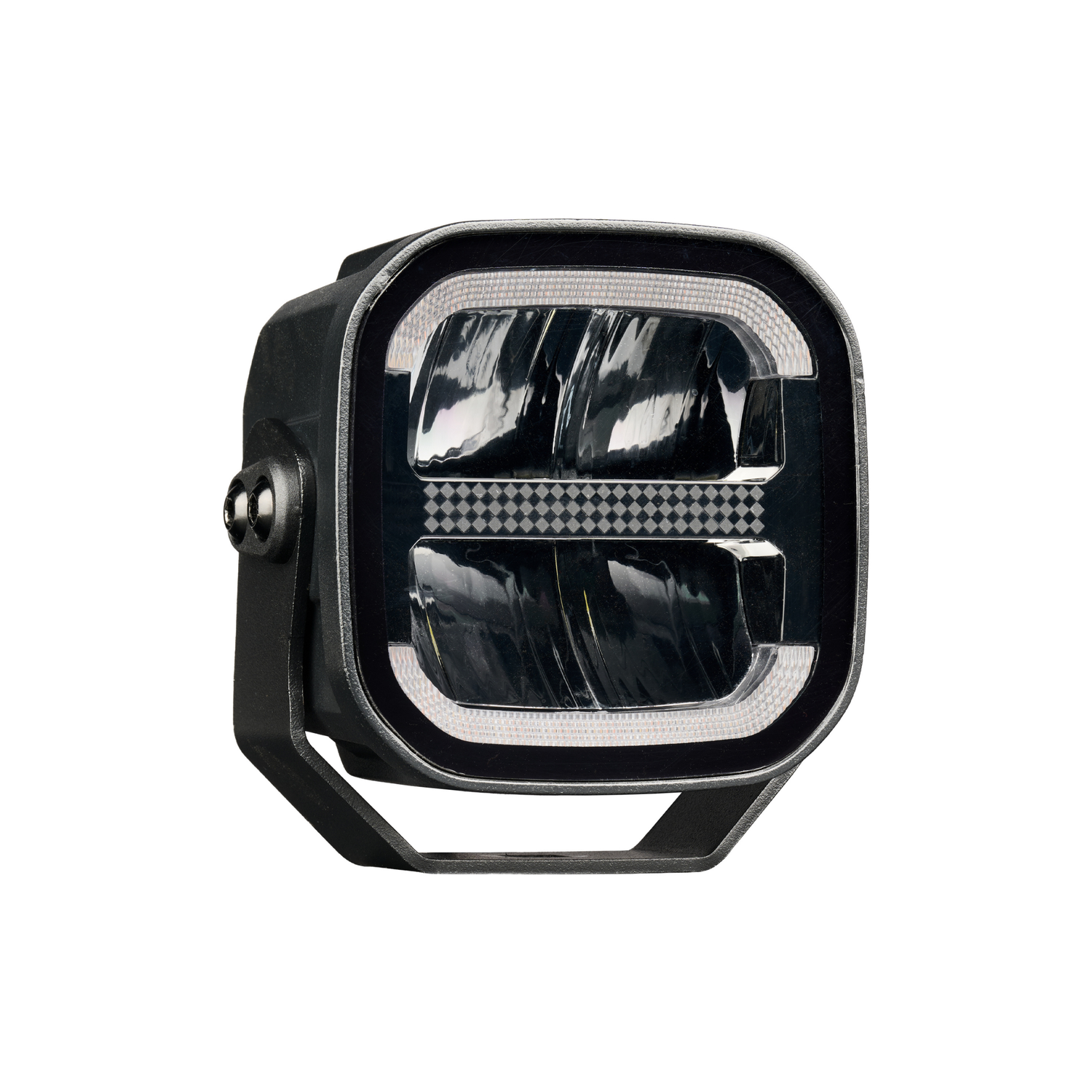

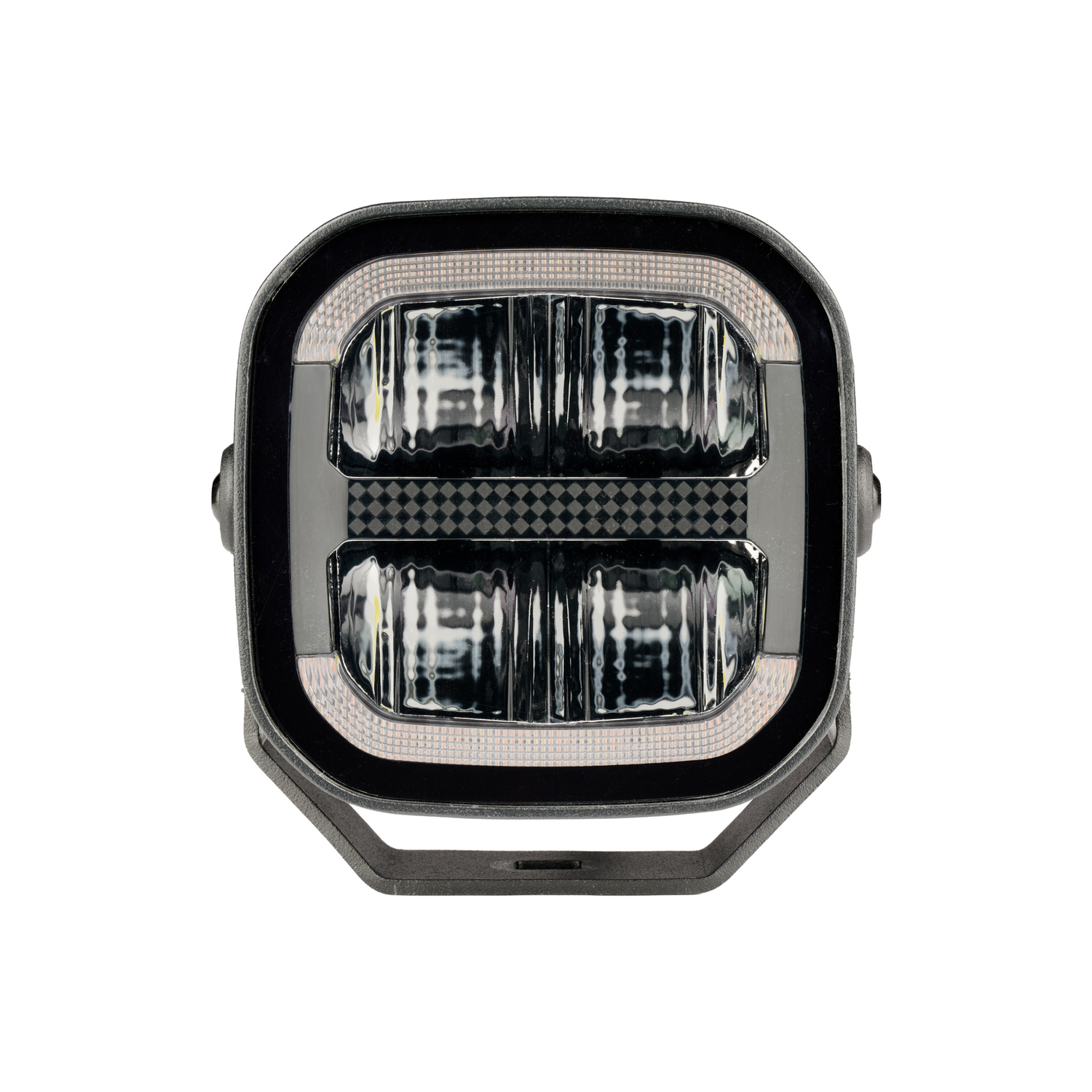

LAP Electrical 4" Round LED Driving Light – 4800 Lumen with Dynamic White & Amber Position Light, ECE Approved, 10–30V

The LAP 4" Round LED Driving Light is a compact, high-performance auxiliary driving light designed for 4x4s, commercial vehicles, pickups, agricultural machinery and utility vehicles. Producing 4800 lumens from 4 high-performance 15W OSRAM LEDs, it delivers a powerful, ECE-approved driving beam to improve visibility and driver confidence in challenging conditions.

Featuring integrated white and amber position lights, the lamp includes Dynamic Start-Up Technology, creating a distinctive start-up sequence every time the position lights are activated. The selectable white or amber marker light allows you to tailor the appearance of your vehicle while improving visibility in a range of applications.

Built for demanding environments, the lamp features a heavy-duty aluminium housing and impact-resistant polycarbonate lens for excellent durability. With IP67 and IP69K ingress protection, it is resistant to dust, water and high-pressure washing, making it ideal for year-round professional use.

Operating across a wide 10–30V DC voltage range, the driving light is suitable for both 12V and 24V electrical systems. It is supplied complete with a 4-way Deutsch connector and matching plug for quick and reliable installation.

Fully approved to ECE R149 for driving beam performance, ECE R148 for the white position light and ECE R10 for electromagnetic compatibility, the LAP 4" Round LED Driving Light delivers dependable performance in a compact package.

Main Features

• Compact 4" round LED driving light
• High-output 4800 lumen driving beam
• 4 high-performance 15W OSRAM LEDs
• White and amber position light functions
• Dynamic Start-Up position light
• Suitable for 10–30V DC systems
• Compatible with 12V and 24V vehicles
• ECE R149 approved driving beam
• ECE R148 approved white position light
• ECE R10 EMC approved
• IP67 & IP69K rated against dust and water ingress
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• Supplied with 4-way Deutsch connector and mating plug
• 2-year warranty

Ideal Applications

• 4x4 vehicles
• Pickup trucks
• Commercial vehicles
• Agricultural machinery
• Tractors and telehandlers
• Utility vehicles
• Recovery trucks
• Off-road vehicles
• Plant and construction equipment

Technical Specifications

• Voltage: 10–30V DC
• Light Source: 4 × 15W OSRAM LEDs
• Light Output: 4800 Lumens
• Beam Pattern: Driving Beam
• Position Lights: White & Amber with Dynamic Start-Up
• Protection Rating: IP67 / IP69K
• Approvals: ECE R10, ECE R148, ECE R149
• Housing: Heavy-duty aluminium
• Lens: Polycarbonate
• Connection: 4-way Deutsch connector with mating plug
• Current Draw: 4.3A @ 12V / 1.9A @ 24V
• Dimensions: 108 (L) × 139/197 (H) × 70 (D) mm
• Warranty: 2 Years
