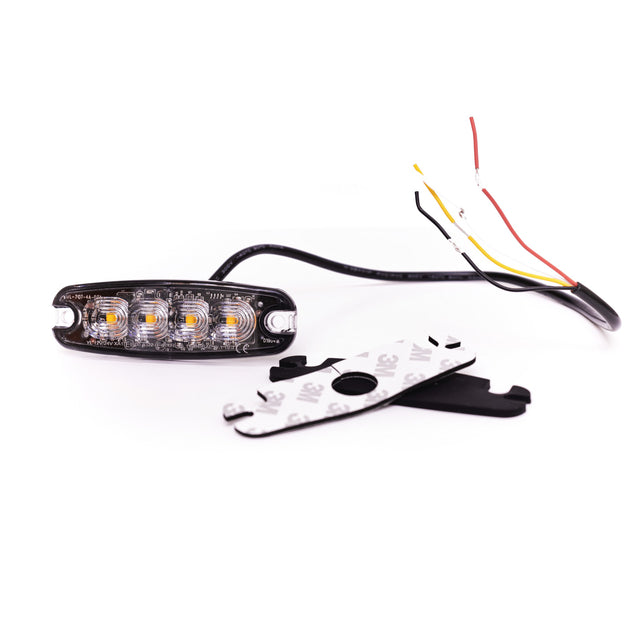

Lightbar UK Ecoline™ Ultra Slim LED Warning Light Head | ECE R65 | 12–24V

 range from Lightbar UK

When installation space is limited but visibility remains critical, the Lightbar UK Ecoline™ Ultra Slim Warning Light Head delivers professional-grade warning performance in an exceptionally compact package.

Measuring just 7mm deep, the Ecoline is one of the lowest-profile warning modules available, making it ideal for discreet installation on recovery vehicles, highways maintenance fleets, utility vehicles, traffic management equipment, agricultural machinery and commercial vans. Its slim design allows installation in locations where traditional warning lights simply won't fit, while maintaining a clean, professional vehicle appearance.

Despite its compact size, the Ecoline is equipped with 4 high-intensity 5W LEDs, producing a powerful warning signal designed to maximise vehicle visibility and improve safety in demanding working environments.

The unit features 26 selectable flash patterns and can be synchronised with additional Ecoline modules to create a fully coordinated warning system across your vehicle or equipment.

Built for year-round reliability, the Ecoline is fully sealed to IP67 standards and operates in temperatures from -30°C to +60°C, making it suitable for roadside, construction, agricultural and industrial applications.

Amber and blue variants are fully approved to ECE R65, while all models are certified to ECE R10 EMC standards, ensuring dependable performance and compliance for professional users.

Key Features

✔ Ultra-slim 7mm low-profile design

✔ High-intensity 4 x 5W LEDs

✔ ECE R65 approved (Amber & Blue variants)

✔ ECE R10 EMC approved

✔ Suitable for 12V and 24V vehicle systems

✔ 26 selectable flash patterns

✔ Synchronisation capability

✔ IP67 waterproof and dustproof construction

✔ Supplied with fixing screws and adhesive mounting pad

✔ Ideal for discreet vehicle installations

✔ Operating temperature: -30°C to +60°C

Technical Specifications

• Voltage: 12–24V DC
• LEDs: 4 x 5W High-Intensity LEDs
• Flash Patterns: 26
• Synchronisation: Yes
• Approvals: ECE R10 | ECE R65 (Amber & Blue)
• Protection Rating: IP67
• Operating Temperature: -30°C to +60°C
• Dimensions: 98mm (L) x 31mm (H) x 7mm (D)
• Mounting: Adhesive Pad & Screw Fixing
• Warranty: 1 Year

Ideal For

• Recovery vehicles
• Highway maintenance fleets
• Utility contractors
• Traffic management vehicles
• Agricultural machinery
• Construction equipment
• Commercial vans
• Plant and specialist vehicles
