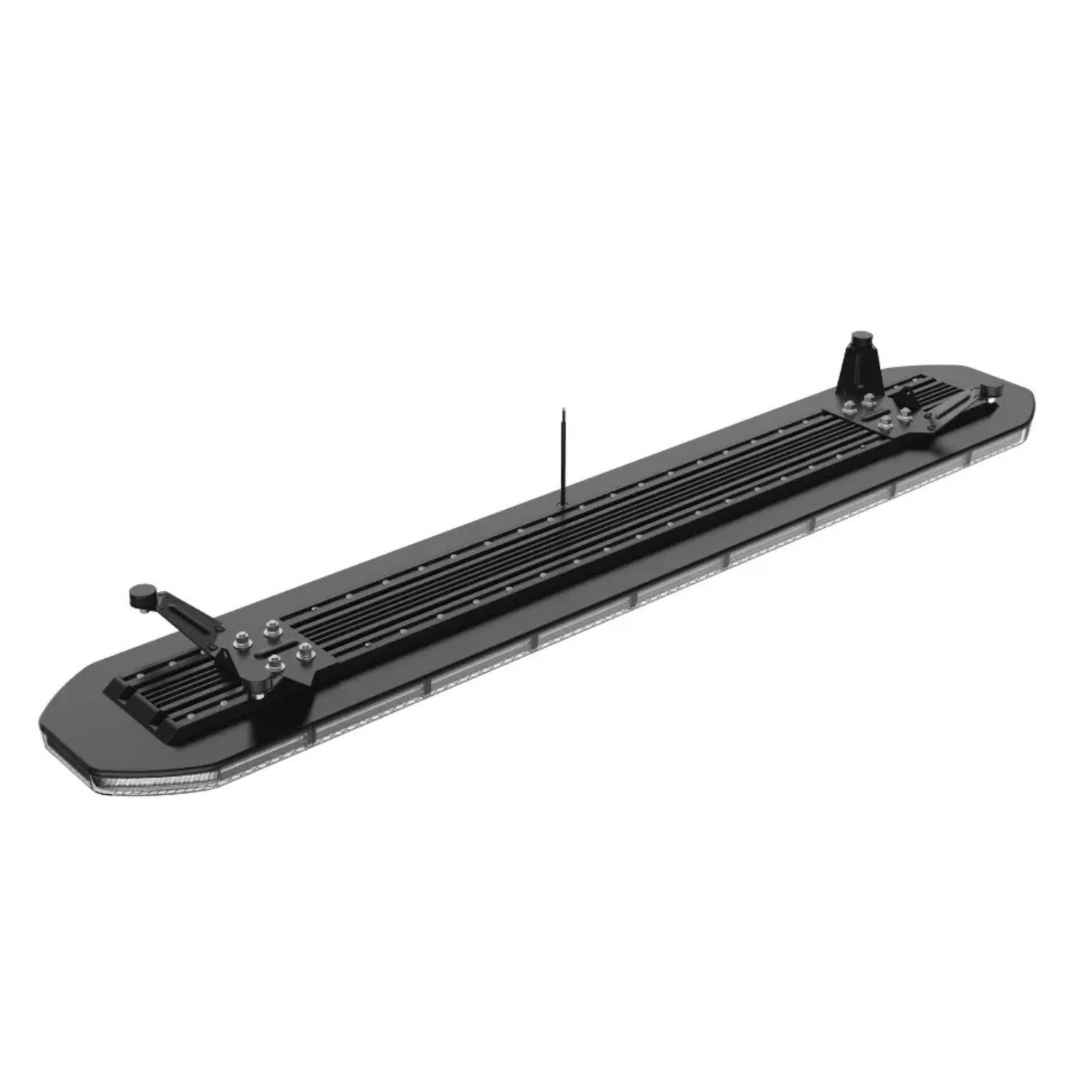

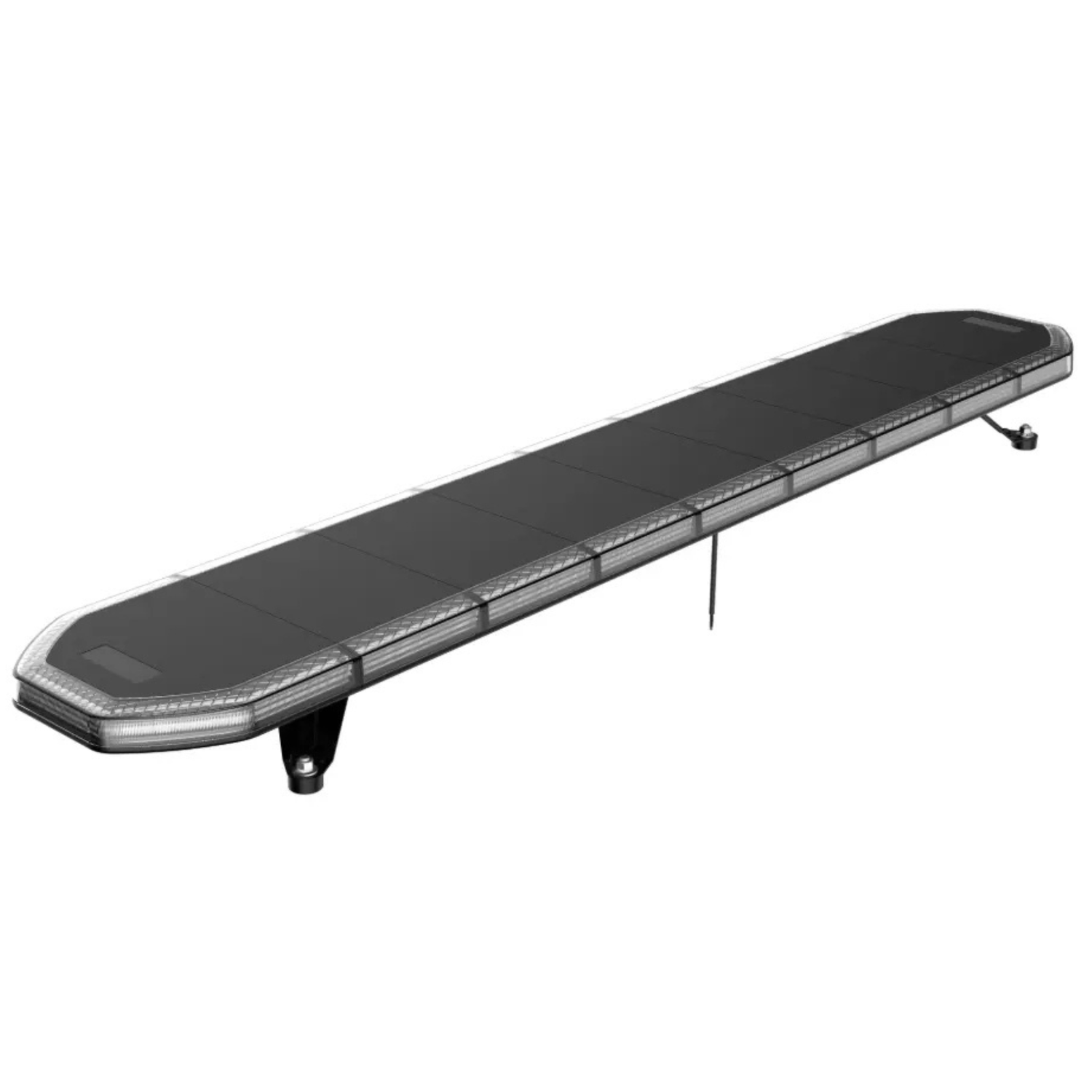

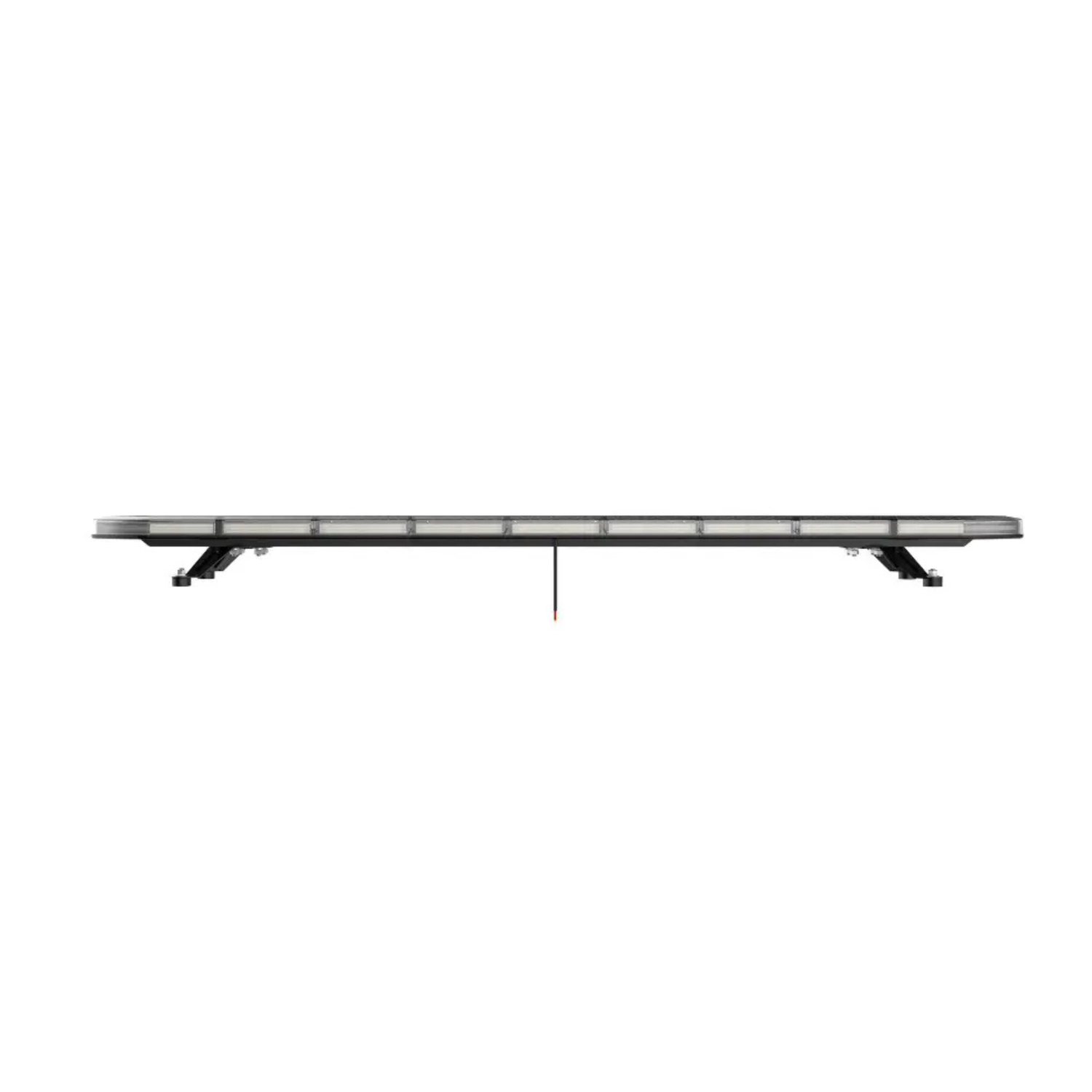

APEX Black Top LED Warning Lightbar 1500mm – Low Profile ECE R65 Amber Beacon, 10–30V

The APEX Black Top LED Warning Lightbar 1500mm is the largest and most powerful model in the APEX Black Top range, delivering maximum warning coverage for HGVs, highway maintenance vehicles, recovery fleets, utility vehicles and other specialist commercial applications.

With its extended 1500mm length and sleek low-profile black top design, the Apex provides exceptional 360° amber warning visibility while maintaining a modern, professional appearance. Equipped with 528 high-intensity LEDs, it produces outstanding warning performance, helping to maximise vehicle conspicuity and improve safety for operators, work crews and other road users.

Featuring 20 selectable flash patterns, the Apex allows operators to choose the most appropriate warning signal for a wide range of working environments. Its high-output LED technology delivers excellent visibility in both daytime and night-time conditions, making it ideal for roadside operations, traffic management, construction, highways maintenance and recovery work.

Built using a heavy-duty aluminium housing and impact-resistant polycarbonate lens, the Apex is engineered to withstand demanding daily use. Its IP67-rated construction protects against dust and water ingress, while the wide operating temperature range of -45°C to +60°C ensures dependable performance in even the harshest weather conditions.

Designed for both 12V and 24V vehicles, the Apex operates across a 10–30V DC voltage range, making it suitable for a broad range of commercial and specialist vehicle applications.

Certified to ECE R65, ECE R10, SAE J845 and CISPR 25, the Apex Black Top Lightbar meets internationally recognised standards for warning light performance and electromagnetic compatibility, giving professional operators complete confidence in its performance, durability and compliance.

*Not supplied with switch - Try this switch unit

Main Features

• Premium low-profile LED warning lightbar
• 1500mm overall length
• High-output 528 LED design
• Powerful 360° amber warning coverage
• 20 selectable flash patterns
• Modern black top styling
• Suitable for 10–30V DC systems
• Compatible with 12V and 24V vehicles
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• IP67 rated against dust and water ingress
• Certified to ECE R65, ECE R10, SAE J845 & CISPR 25
• Operating temperature from -45°C to +60°C
• 3-year warranty
• Dimensions: 1500 (L) x 36 (H - excl brackets) x 260 (D) mm

Ideal Applications

• HGVs
• Highway maintenance vehicles
• Recovery trucks
• Traffic management vehicles
• Utility fleets
• Agricultural machinery
• Construction and plant equipment
• Local authority vehicles
• Escort vehicles
• Specialist commercial vehicles
• Airport and airside support vehicles

Technical Specifications

• Length: 1500mm
• Voltage: 10–30V DC
• Power Consumption: 130W
• LED Quantity: 528 LEDs
• Flash Patterns: 20
• Housing Material: Aluminium
• Lens Material: Polycarbonate (PC)
• Top Colour: Black
• Protection Rating: IP67
• Operating Temperature: -45°C to +60°C
• Approvals: ECE R65, ECE R10, SAE J845, CISPR 25
• Warranty: 3 Years

Why Choose the APEX Black Top?

The APEX Black Top 1500mm is engineered for operators who require uncompromising warning performance on the largest commercial and specialist vehicles. With its 528 high-intensity LEDs and extended 1500mm profile, it delivers exceptional 360° visibility, helping to keep your vehicle highly conspicuous in demanding roadside and off-road environments.

Despite its impressive size and output, the Apex maintains a sleek, aerodynamic profile that complements modern fleet vehicles while reducing wind resistance and preserving a professional appearance. Manufactured from premium materials and certified to internationally recognised standards, the APEX Black Top 1500mm offers outstanding reliability, durability and performance for professional operators who depend on their warning equipment every day.
