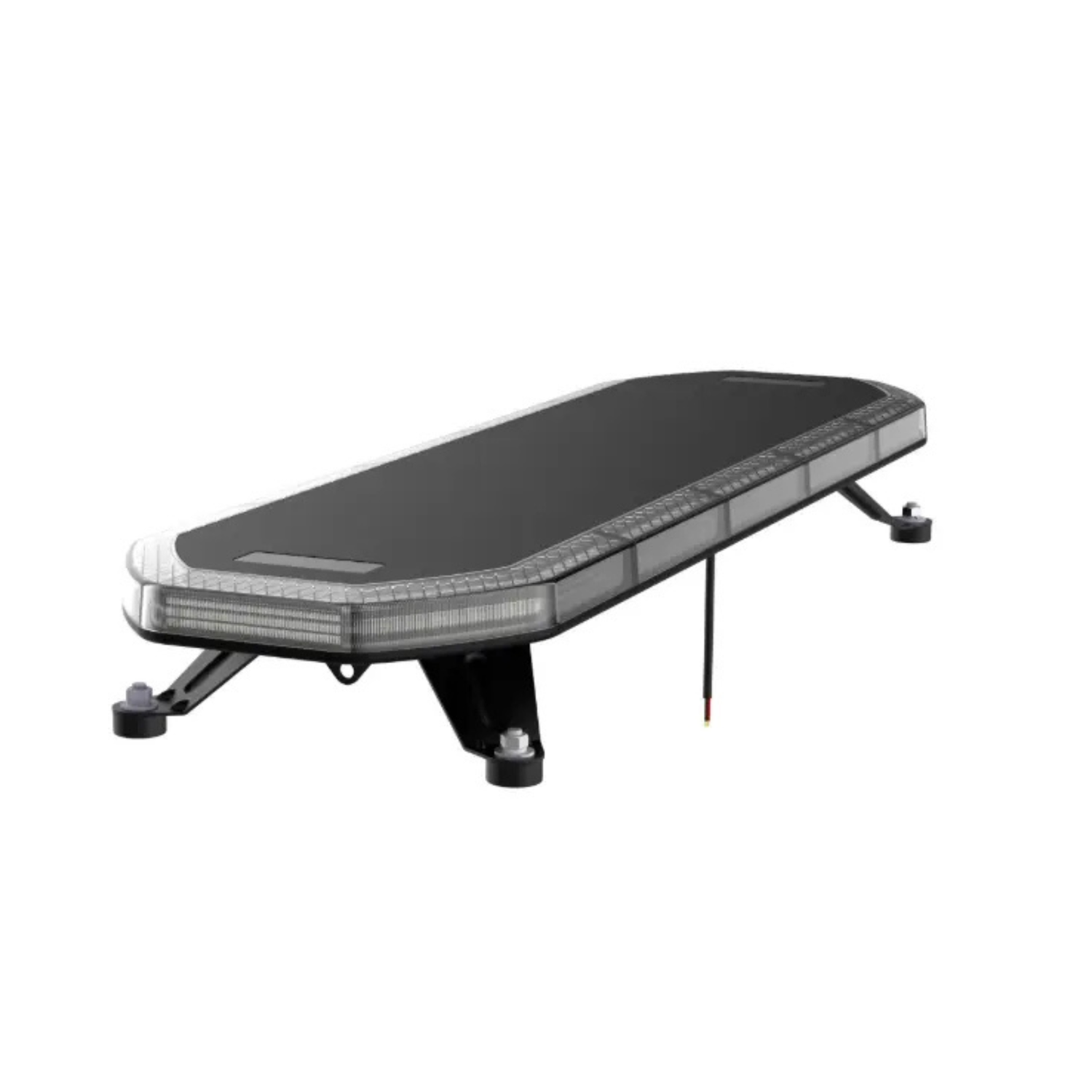

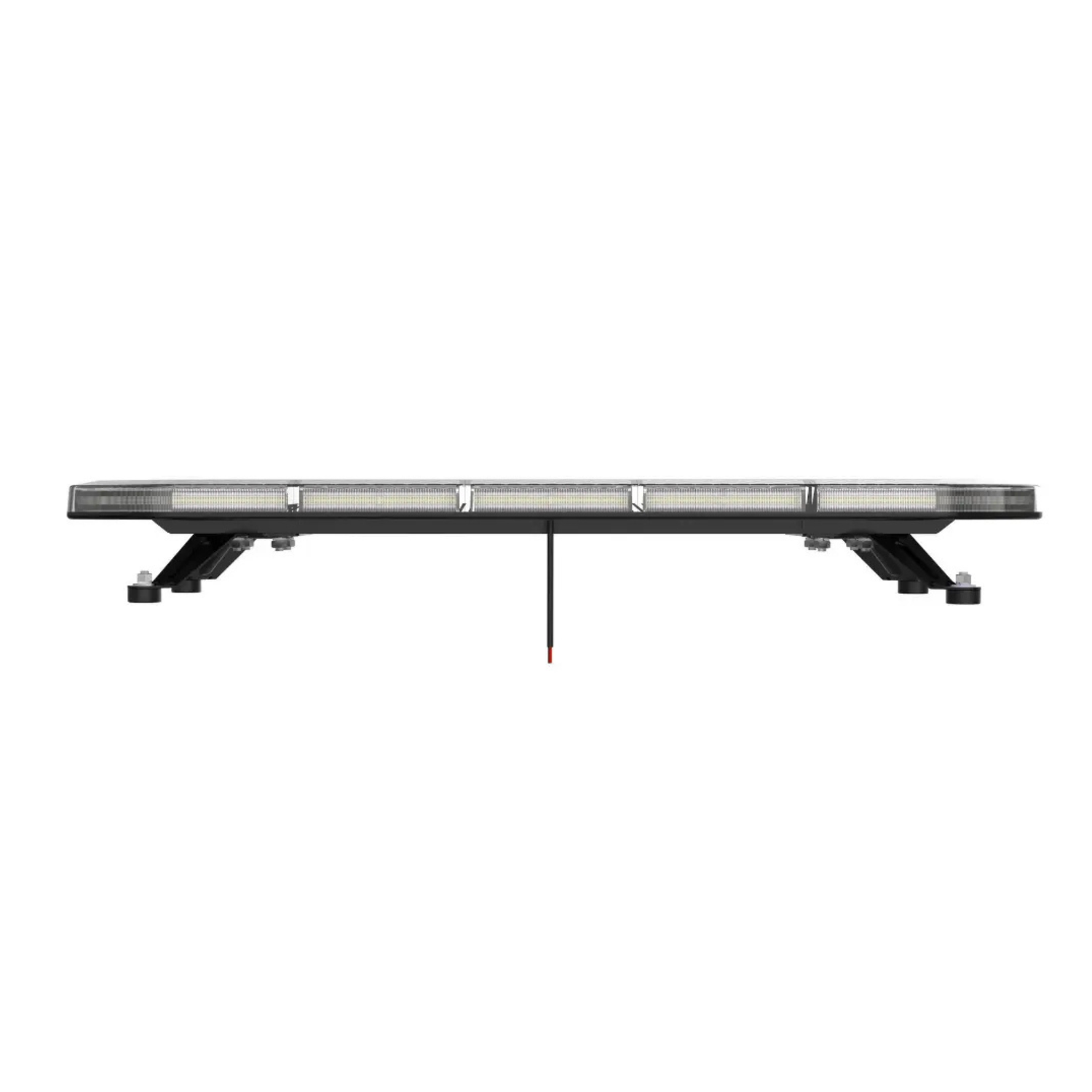

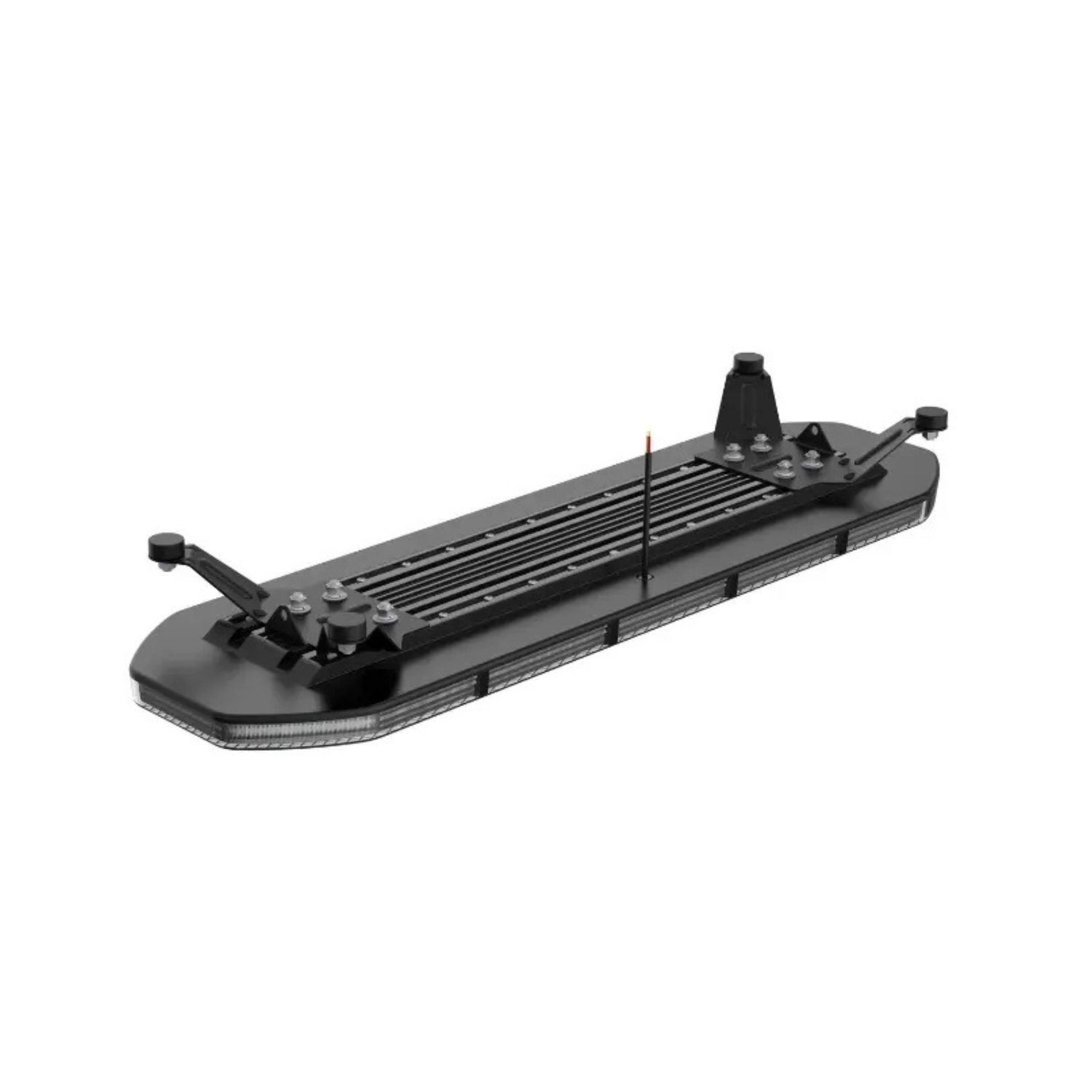

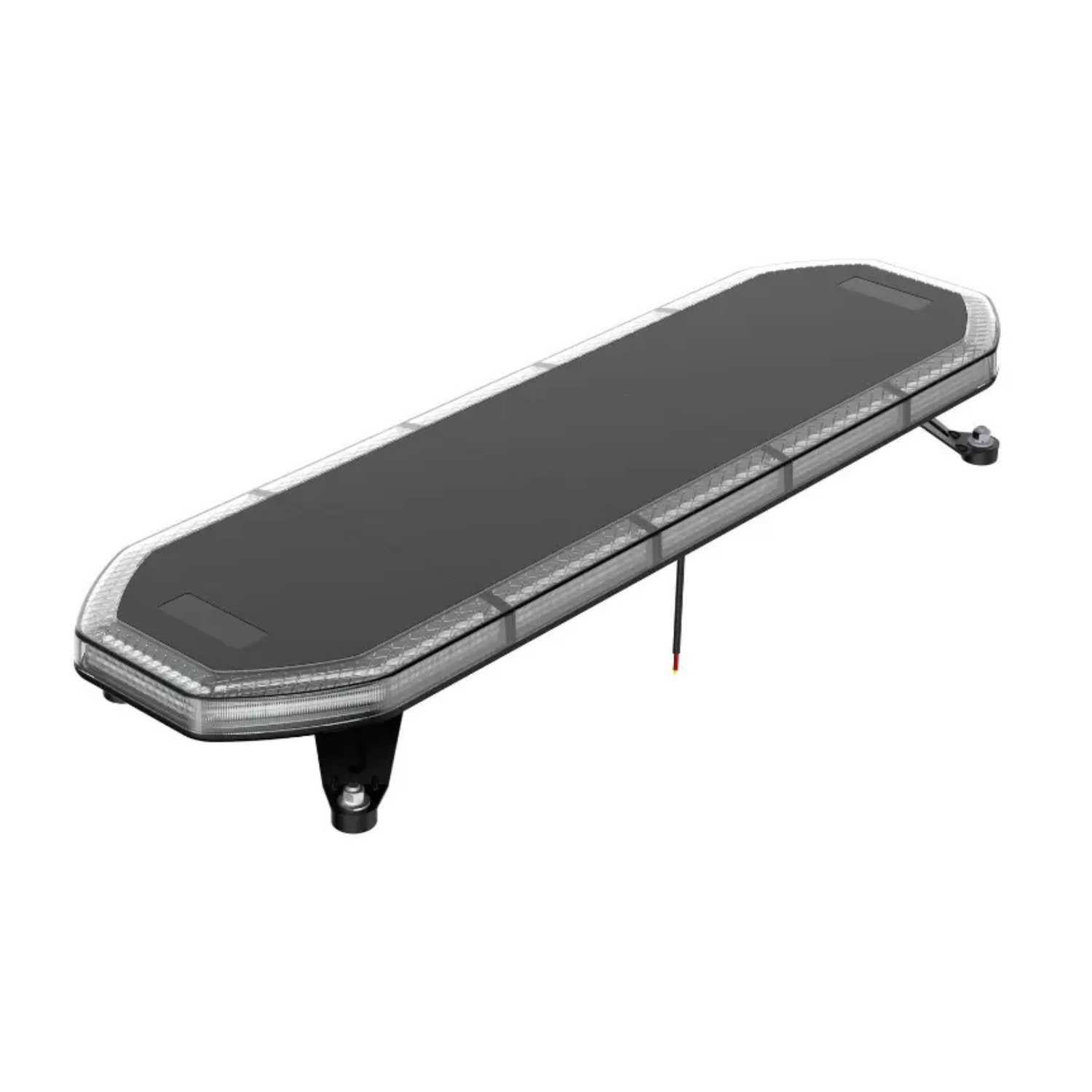

APEX Black Top 900mm Low Profile LED Lightbar – ECE R65 Chapter 8 Amber Warning Beacon, 10–30V

The APEX Black Top LED Warning Lightbar 900mm is a premium low-profile amber warning lightbar designed to provide exceptional all-round visibility for commercial vehicles, recovery trucks, highway maintenance fleets, agricultural machinery and specialist vehicles.

With its sleek black top design, the Apex combines powerful warning performance with a clean, professional appearance, making it an ideal choice for modern fleet vehicles. Measuring 900mm in length and featuring 324 high-intensity LEDs, it delivers outstanding 360° warning coverage while maintaining a slim aerodynamic profile.

Offering 20 selectable flash patterns, the Apex allows operators to choose the most suitable warning signal for a wide range of applications. Its high-performance LED technology ensures excellent visibility in both daytime and night-time conditions, helping to improve vehicle conspicuity and enhance safety for operators and other road users.

Manufactured with a heavy-duty aluminium housing and impact-resistant polycarbonate lens, the Apex is built to withstand demanding working environments. The IP67-rated construction protects against dust and water ingress, while the wide operating temperature range of -45°C to +60°C ensures reliable operation in all weather conditions.

Suitable for both 12V and 24V electrical systems, the Apex operates across a 10–30V DC voltage range, making it an ideal solution for a wide variety of commercial and specialist vehicles.

Certified to ECE R65, ECE R10, SAE J845 and CISPR 25, the Apex Black Top Lightbar delivers dependable warning performance while meeting recognised international standards for safety and electromagnetic compatibility.

*Not supplied with switch - Try this switch unit

Main Features

• Premium low-profile LED warning lightbar
• 900mm overall length
• High-output 324 LED design
• Powerful 360° amber warning coverage
• 20 selectable flash patterns
• Modern black top styling
• Suitable for 10–30V DC systems
• Compatible with 12V and 24V vehicles
• Heavy-duty aluminium housing
• Impact-resistant polycarbonate lens
• IP67 rated against dust and water ingress
• Certified to ECE R65, ECE R10, SAE J845 & CISPR 25
• Operating temperature from -45°C to +60°C
• 3-year warranty
• Dimensions: 900 (L) x 36 (H - excl brackets) x 260 (D) mm

Ideal Applications

• Highway maintenance vehicles
• Recovery vehicles
• Traffic management vehicles
• Utility fleets
• Agricultural machinery
• Tractors
• Construction and plant equipment
• Local authority vehicles
• Escort vehicles
• Commercial vehicles
• Specialist fleet vehicles

Technical Specifications

• Length: 900mm
• Voltage: 10–30V DC
• Power Consumption: 85W
• LED Quantity: 324 LEDs
• Flash Patterns: 20
• Housing Material: Aluminium
• Lens Material: Polycarbonate
• Top Colour: Black
• Protection Rating: IP67
• Operating Temperature: -45°C to +60°C
• Approvals: ECE R65, ECE R10, SAE J845, CISPR 25
• Warranty: 3 Years

Why Choose the APEX Black Top?

The APEX Black Top has been designed for operators who want professional-grade warning performance without compromising on vehicle appearance. Its low-profile aerodynamic design delivers a modern, OEM-inspired look while the powerful 324 LED array provides outstanding visibility in demanding roadside and off-road environments.

Whether fitted to a recovery truck, utility vehicle, agricultural machine or highway maintenance fleet, the Apex offers reliable, compliant warning performance backed by robust construction and premium materials. Built to withstand everyday commercial use, it's a dependable lighting solution for professionals who need safety, durability and style in one package.
