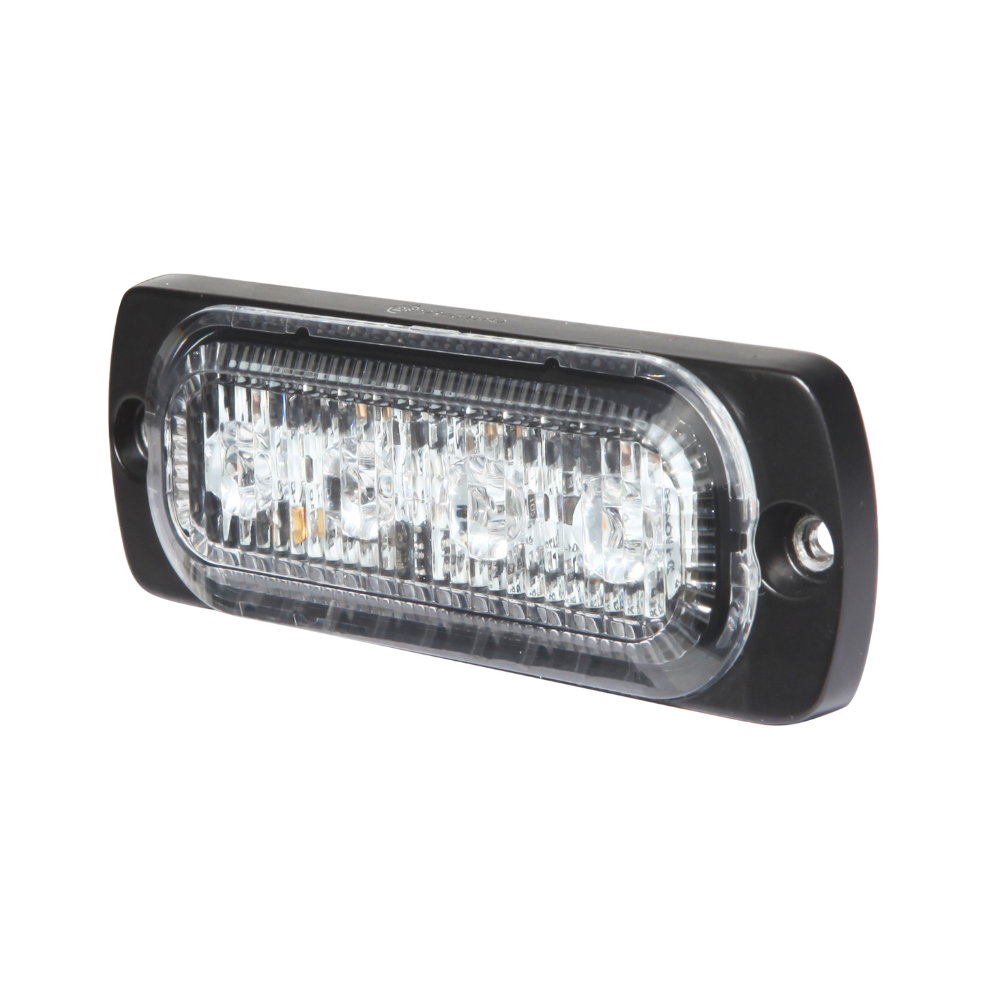

Adventure LED Directional Warning Light – Amber, 19 Flash Patterns, ECE R10, 10–30V

The Adventure LED Directional Warning Light is a compact, low-profile amber warning module designed for commercial vehicles, utility fleets, recovery vehicles and specialist applications where discreet but effective warning illumination is required.

Featuring 4 × 0.5W high-intensity amber LEDs, the module produces a clear directional warning signal while consuming just 2 watts of power. With 19 selectable flash patterns, it provides plenty of flexibility for different vehicle installations and operating requirements.

At just 12.6mm deep, the Adventure has an exceptionally slim profile, making it ideal for installations where space is limited or where a neat, unobtrusive appearance is preferred. Its compact 96.8 × 28.3mm footprint allows multiple units to be installed around a vehicle to provide additional directional warning coverage.

Built for demanding environments, the light features a durable aluminium housing with a tough polycarbonate lens and an IP69 protection rating for excellent resistance against dust and water ingress. A wide operating temperature range of -40°C to +60°C ensures reliable performance throughout the year.

Operating from 10–30V DC, the Adventure is suitable for both 12V and 24V vehicles. It is also ECE R10 approved, providing electromagnetic compatibility for professional vehicle installations.

Main Features

• Compact amber LED directional warning light

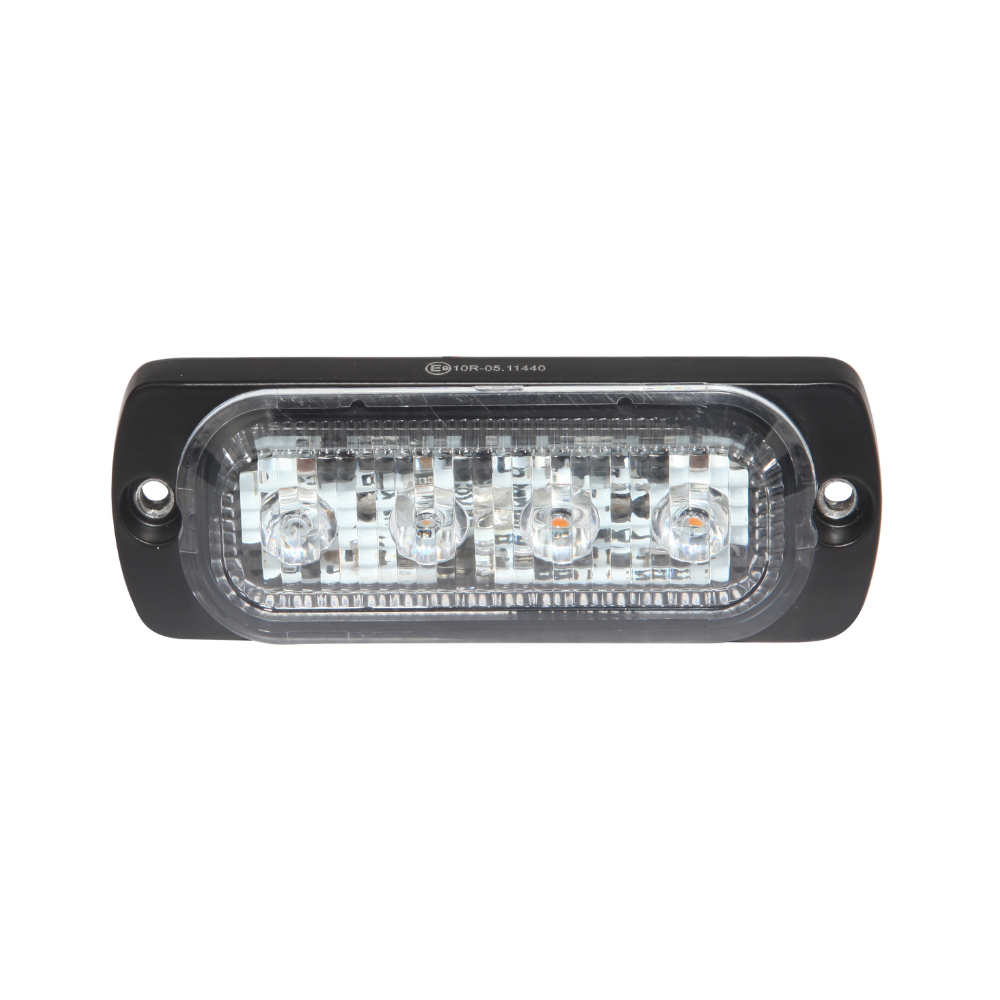

• 4 × 0.5W LEDs
• Low 2W power consumption
• 19 selectable flash patterns
• Ultra-slim 12.6mm profile
• Suitable for 10–30V DC
• Compatible with 12V and 24V vehicles
• ECE R10 approved
• IP69 rated
• Heavy-duty aluminium housing
• Durable polycarbonate lens

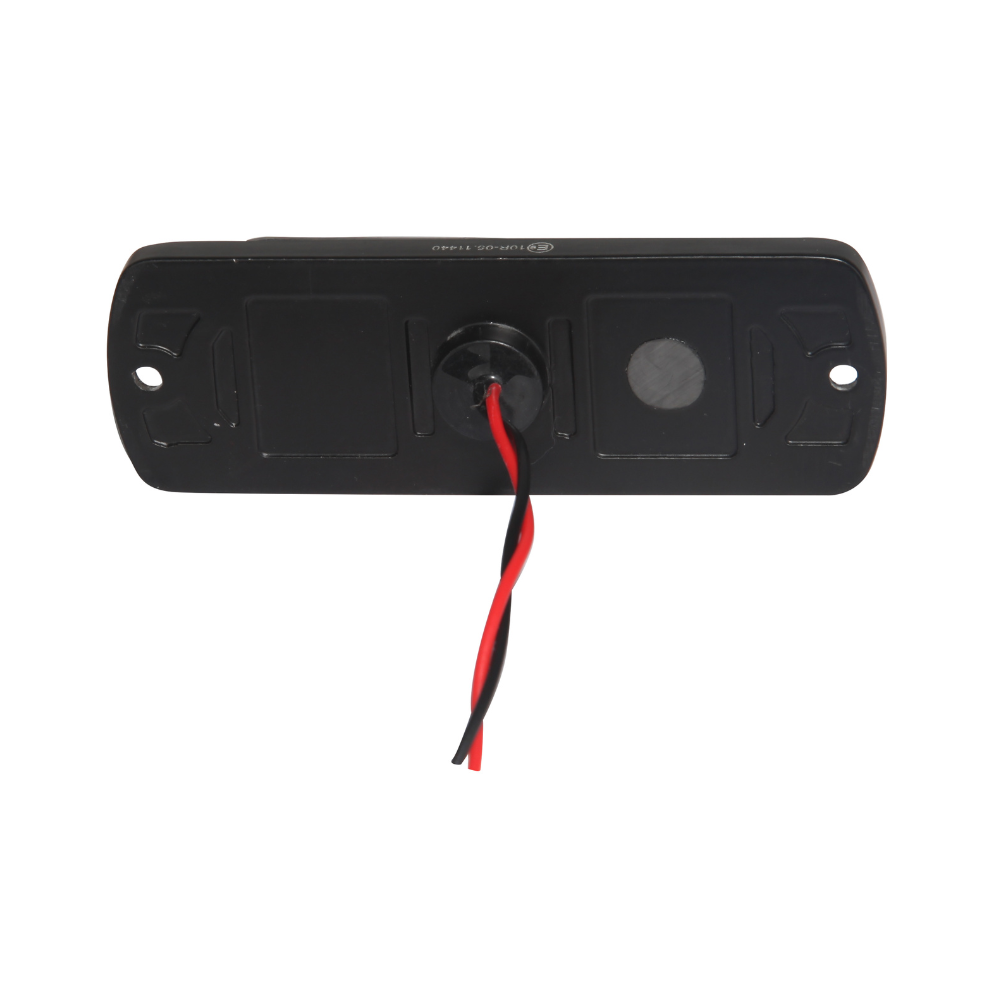

• Surface mount installation

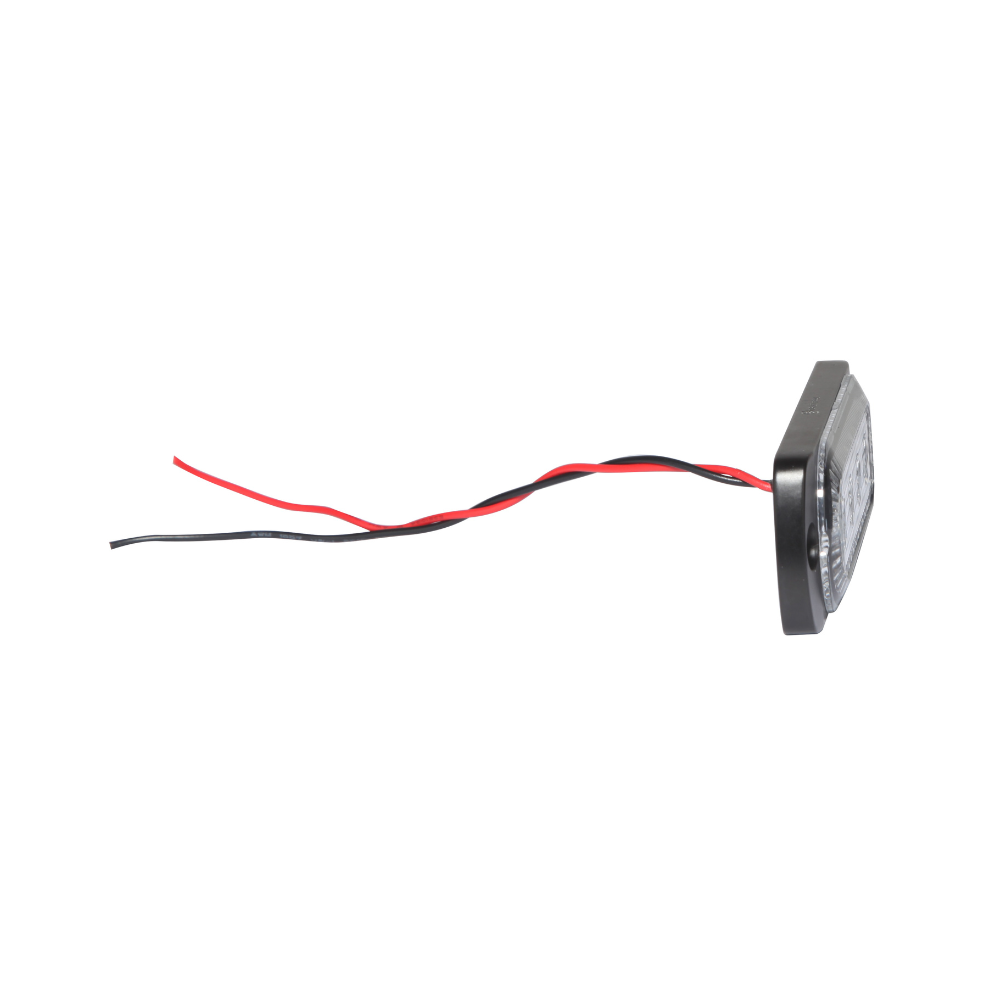

• 200mm connection cable
• Operating temperature from -40°C to +60°C

Ideal Applications

• Recovery vehicles
• Commercial vans
• Highway maintenance vehicles
• Utility vehicles
• Traffic management vehicles
• Agricultural machinery
• Construction and plant equipment
• Fleet vehicles
• Specialist vehicles

Technical Specifications

• Voltage: 10–30V DC
• Power: 2W
• LEDs: 4 × 0.5W
• Light Colour: Amber
• Flash Patterns: 19
• Approval: ECE R10
• Protection Rating: IP69
• Housing Material: Aluminium
• Lens Material: Polycarbonate
• Mounting: Surface Mount
• Connection: Wire
• Cable Length: 200mm
• Dimensions: 96.8 × 28.3 × 12.6mm
• Current Draw @ 12V: 0.20A
• Current Draw @ 24V: 0.11A
• Operating Temperature: -40°C to +60°C

Why Choose the Adventure Directional Warning Light?

The Adventure LED Directional Warning Light is a practical solution for adding discreet amber warning illumination to almost any commercial or specialist vehicle. Its exceptionally slim design makes it easy to integrate into grilles, bumpers, bodywork and other areas where larger warning modules may not be suitable.

With 19 flash patterns, IP69 protection, multi-voltage compatibility and a rugged aluminium construction, the Adventure provides a compact and dependable warning solution for everyday professional use.
