7" Heavy Duty Wireless Reversing Camera Kit – HD 1080p Camera, 200m Range, IP69K, 12–24V

Improve rear visibility without the need for lengthy cable runs with the 7" Heavy Duty Wireless Reversing Camera Kit. Designed for commercial vehicles, HGVs, trailers, plant machinery, horseboxes and motorhomes, this professional wireless camera system delivers clear high-definition video with a stable wireless connection, making installation faster and more convenient.

Featuring a 7" IPS widescreen monitor and a 1080p HD wireless rear-view camera, the system provides exceptional image clarity to help reduce blind spots and improve driver confidence when reversing, manoeuvring or monitoring equipment.

With a wireless transmission range of up to 200 metres (under optimal conditions), this kit is ideally suited to longer vehicles and trailers where traditional wired camera systems can be difficult or time-consuming to install.

The heavy-duty IP69K-rated camera is housed within a robust black aluminium alloy casing, providing outstanding protection against water, dust and harsh working conditions. Combined with a wide 120° viewing angle, the camera delivers excellent visibility behind the vehicle in all weather conditions.

The high-brightness 7" IPS monitor features a 1024 × 600 HD display, built-in audio, automatic PAL/NTSC compatibility and a fast 120ms response time for smooth, real-time video. Designed to operate from 12V or 24V electrical systems, the system also incorporates low power consumption and built-in circuit protection for dependable everyday use.

Whether you're reversing a trailer, monitoring agricultural machinery or improving visibility on a commercial vehicle, this wireless camera kit offers professional performance with the convenience of cable-free installation.

Key Features

• Complete heavy-duty wireless reversing camera kit
• High-definition 1080p wireless rear-view camera
• Premium 7" IPS widescreen monitor
• Wireless transmission range of up to 200 metres
• Sharp 1024 × 600 HD display
• Wide 120° viewing angle
• Built-in audio
• Fast 120ms video transmission
• Automatic PAL / NTSC compatibility
• IP69K waterproof and dustproof camera
• Heavy-duty black aluminium alloy camera housing
• Suitable for 12V & 24V vehicles
• Low power consumption with built-in circuit protection
• Designed for quick and straightforward installation

Ideal Applications

• HGVs
• Vans
• Trailers
• Horseboxes
• Motorhomes
• Agricultural machinery
• Tractors
• Plant machinery
• Construction equipment
• Recovery vehicles
• Utility vehicles
• Commercial fleets

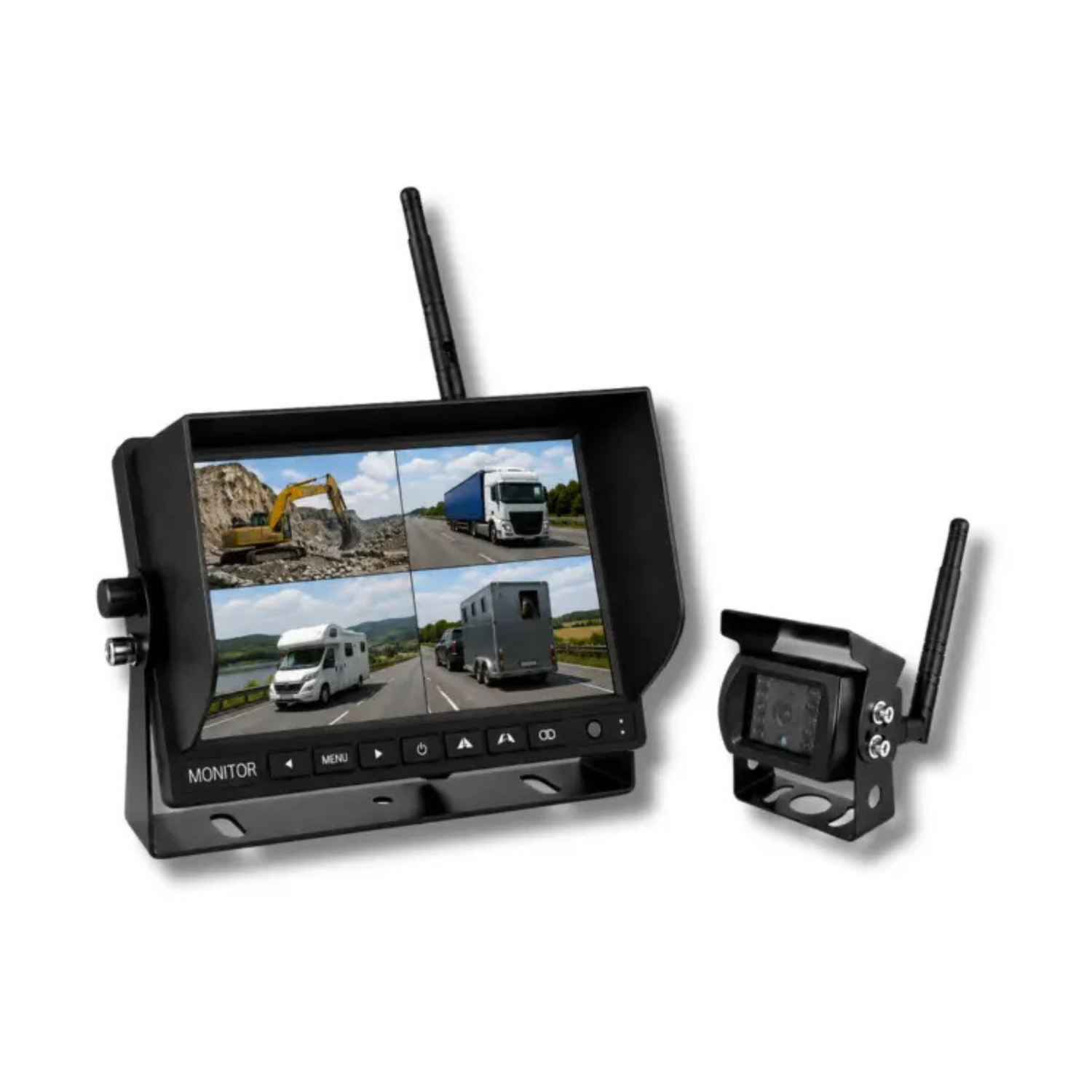

Kit Contents

• 1 × 7" IPS Wireless HD Monitor
• 1 × Heavy Duty 1080p Wireless Rear View Camera
• Power Cable
• Mounting Hardware

Technical Specifications

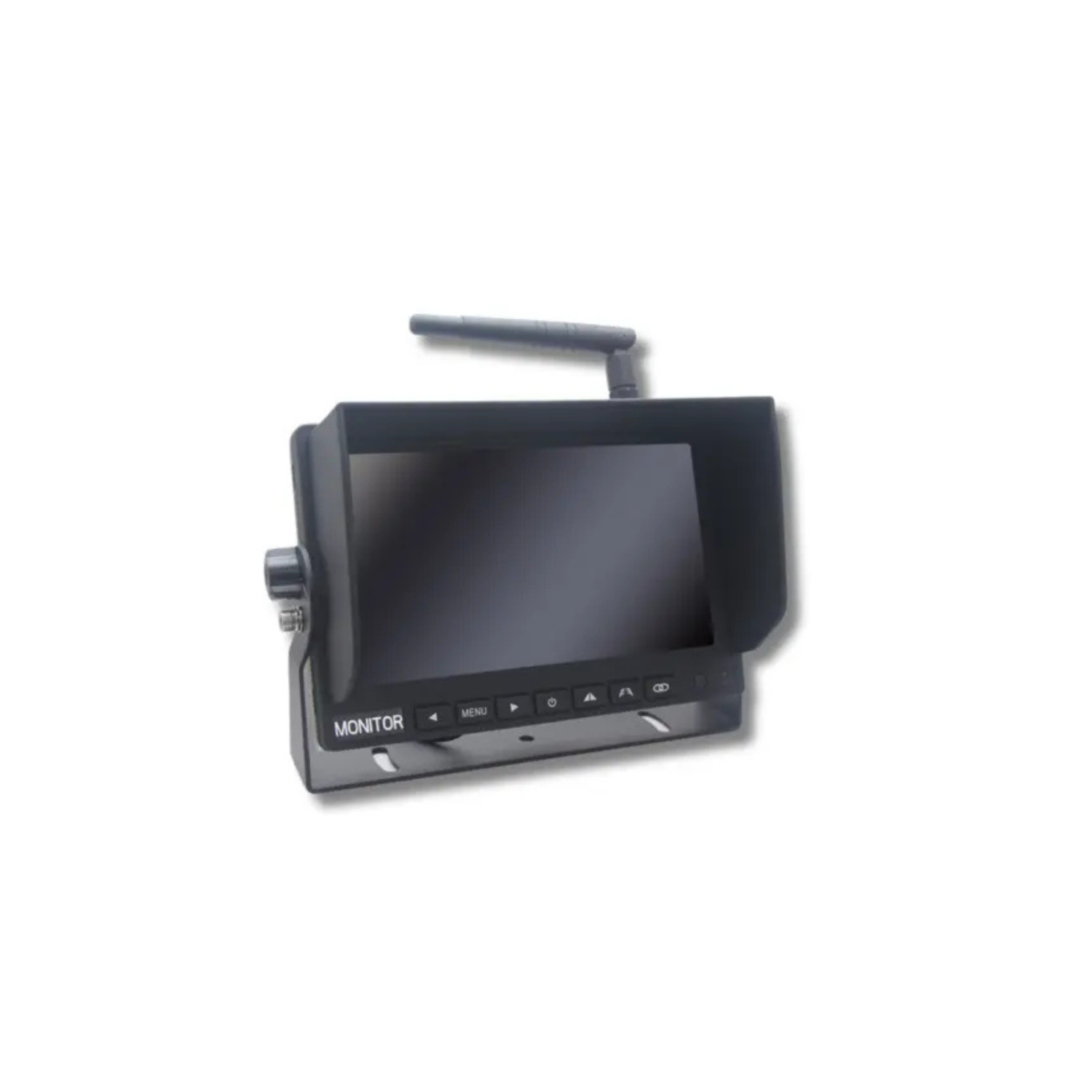

Monitor

• Screen Size: 7"
• Display Type: IPS LCD
• Screen Ratio: 16:9
• Resolution: 1024 × RGB × 600
• Brightness: 500 cd/m²
• Audio: Built-in
• Video System: PAL / NTSC Automatic
• Response Delay: 120ms
• Power Supply: 12–24V DC
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +85°C

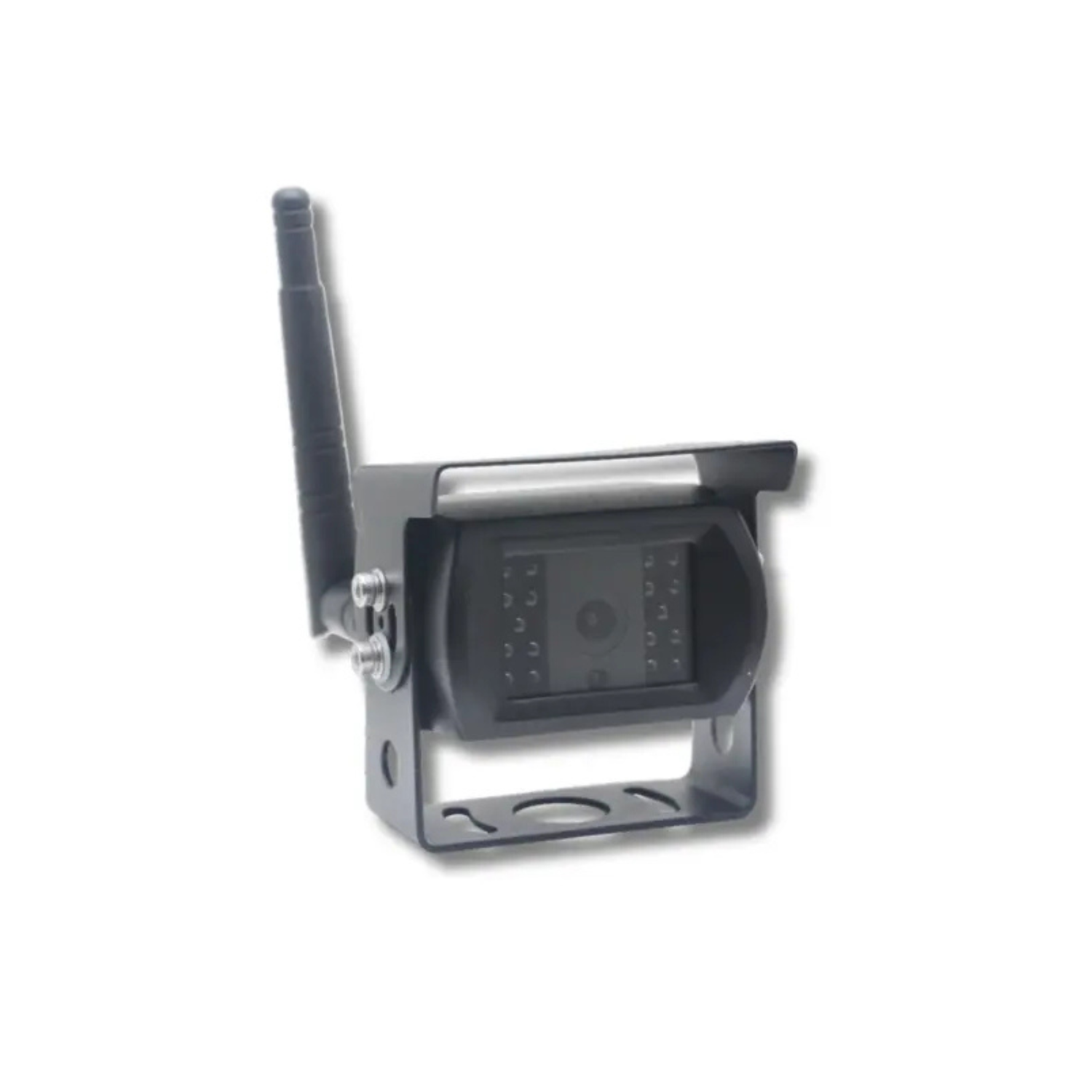

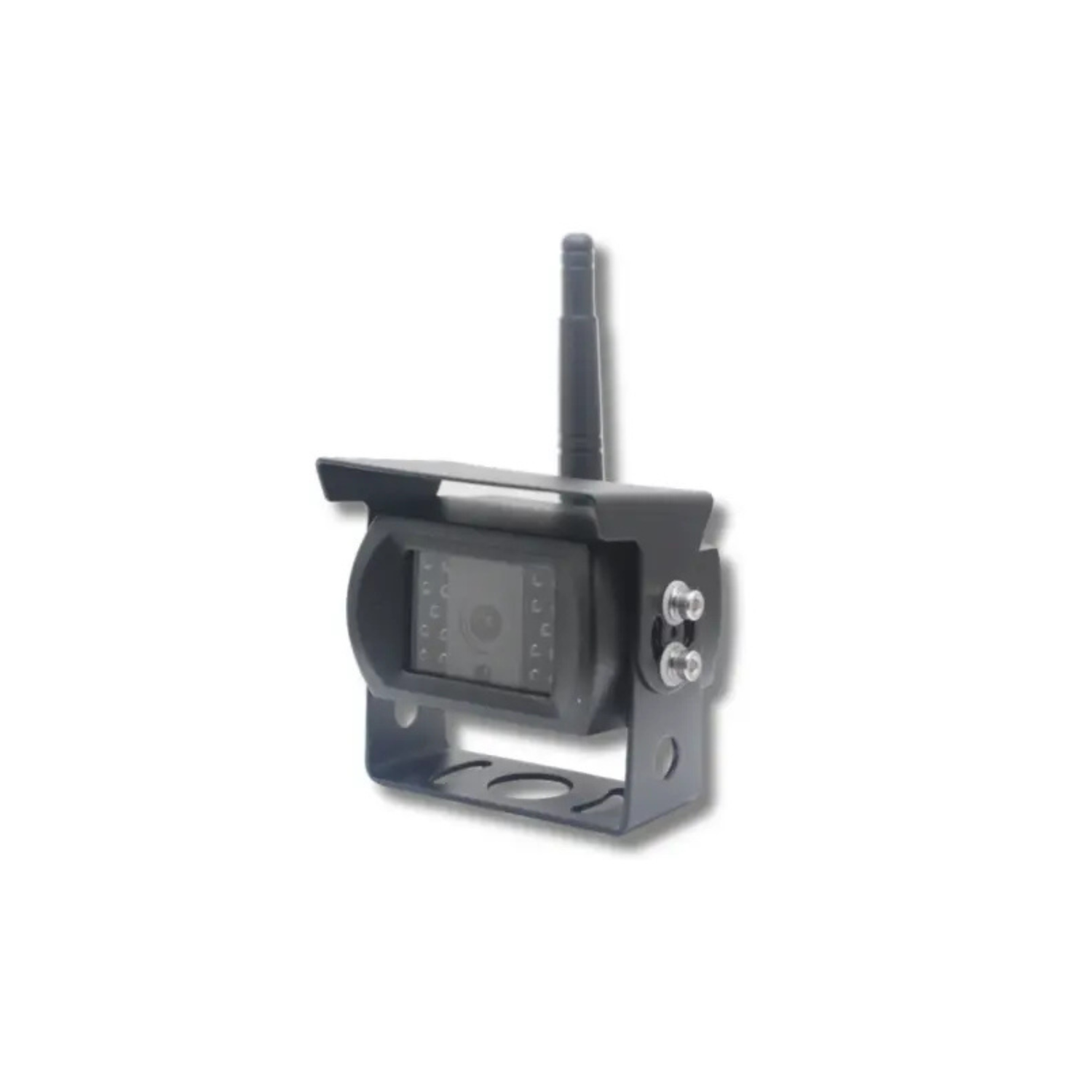

Camera

• Resolution: 1080p HD
• Image Sensor: CMOS 1/2.7"
• Viewing Angle: 120°
• Audio: Built-in
• Housing Material: Black Aluminium Alloy
• Protection Rating: IP69K
• Operating Temperature: -20°C to +70°C

Wireless System

• Wireless Transmission Range: Up to 200 metres (line of sight)
• Power Supply: 12–24V DC
• Video Transmission: Digital Wireless

Why Choose This Wireless Camera Kit?

The 7" Heavy Duty Wireless Reversing Camera Kit provides a professional rear-view solution without the complexity of running long video cables throughout the vehicle. Its wireless design makes it particularly well suited to trailers, articulated vehicles, agricultural equipment and other applications where traditional wired systems are impractical.

Combining a high-brightness IPS monitor, 1080p HD camera, IP69K weatherproof construction and an impressive 200-metre wireless transmission range, this system delivers reliable, high-quality performance in demanding environments. Whether you're managing a fleet, operating plant machinery or touring in a motorhome, it provides the visibility and confidence needed to manoeuvre safely and efficiently.
