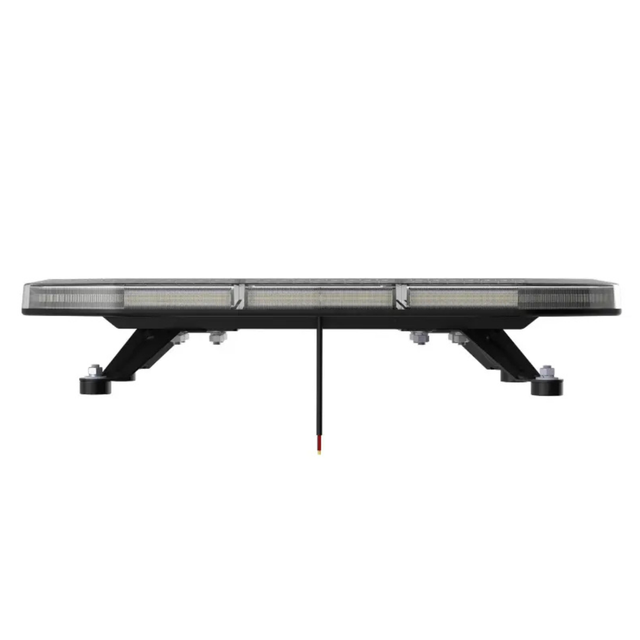

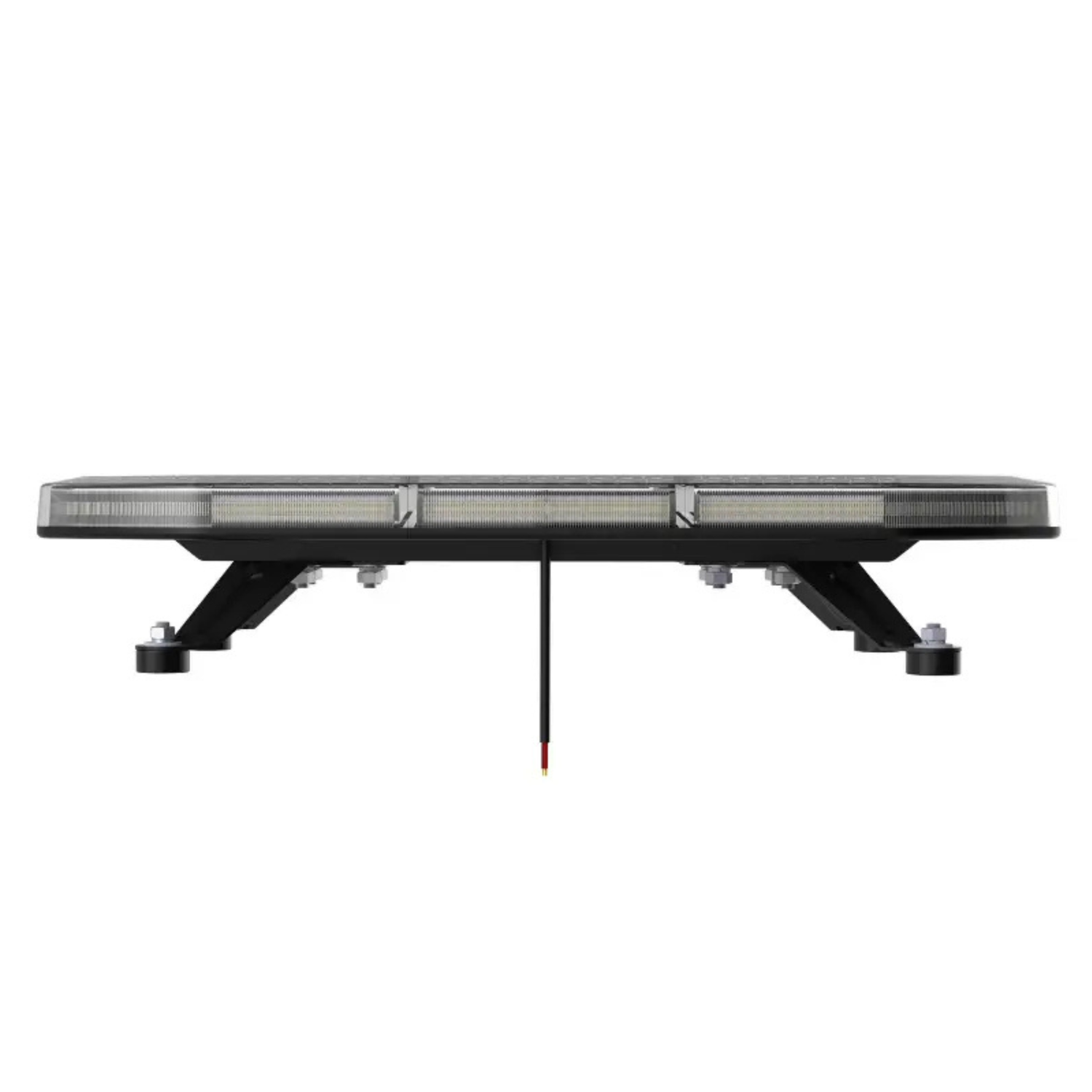

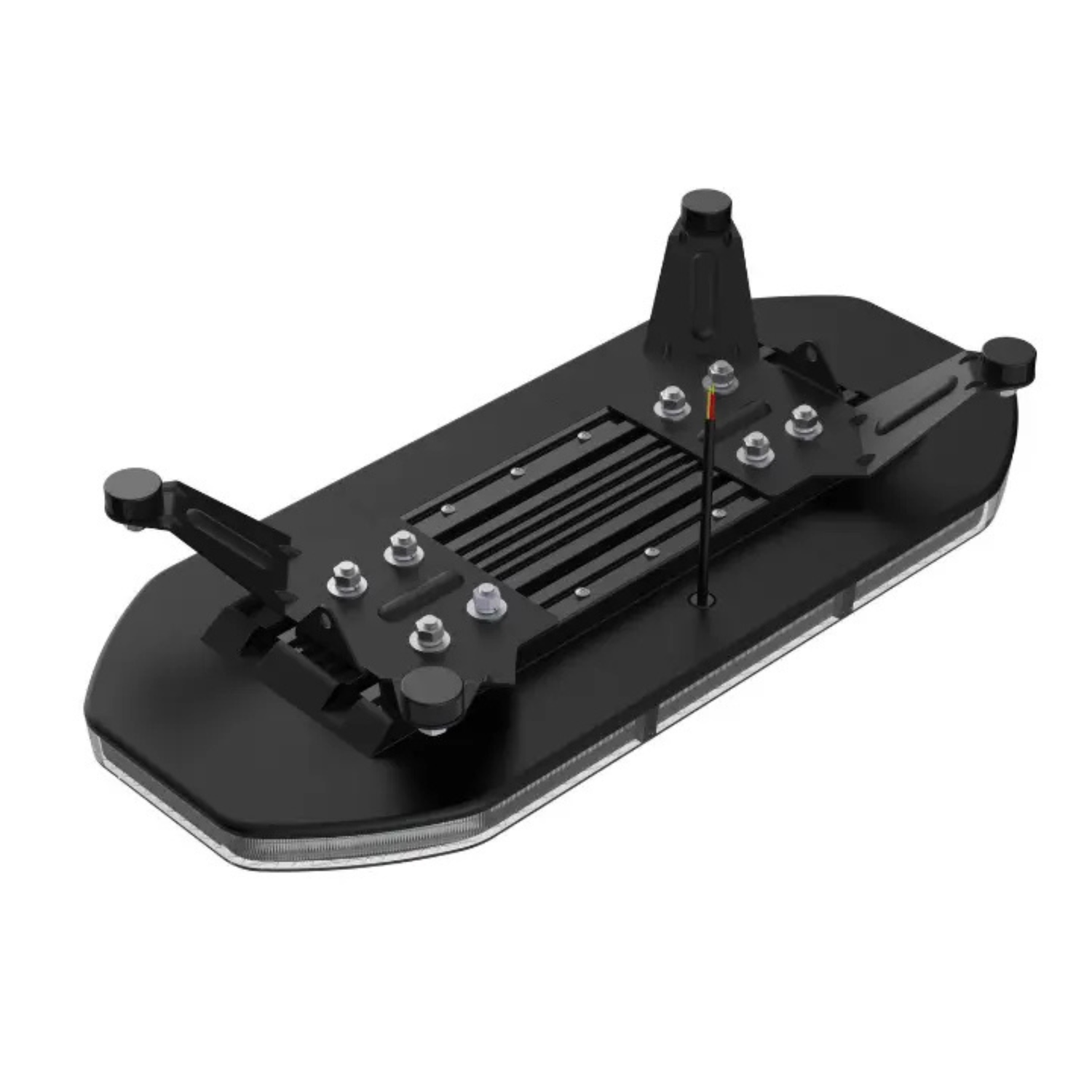

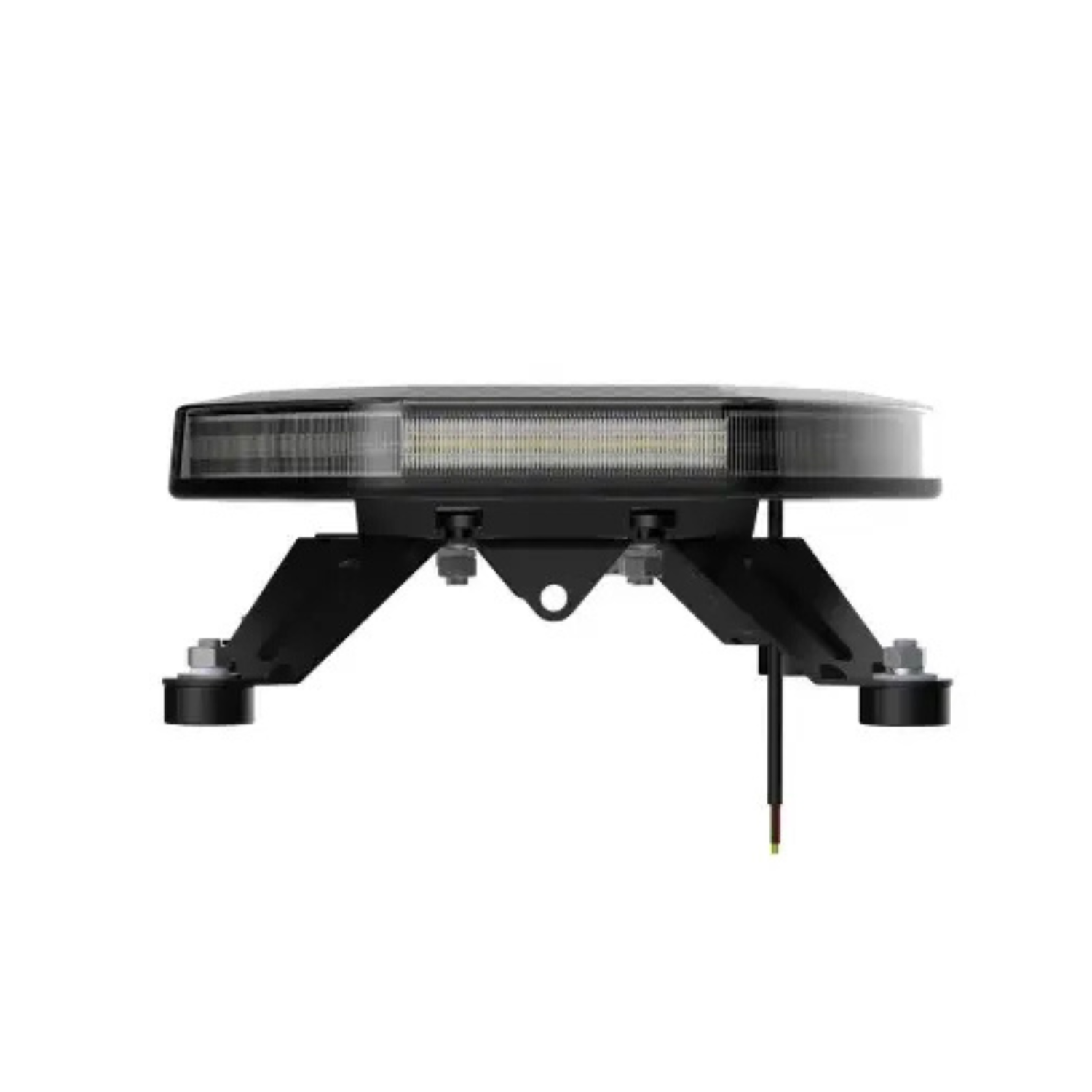

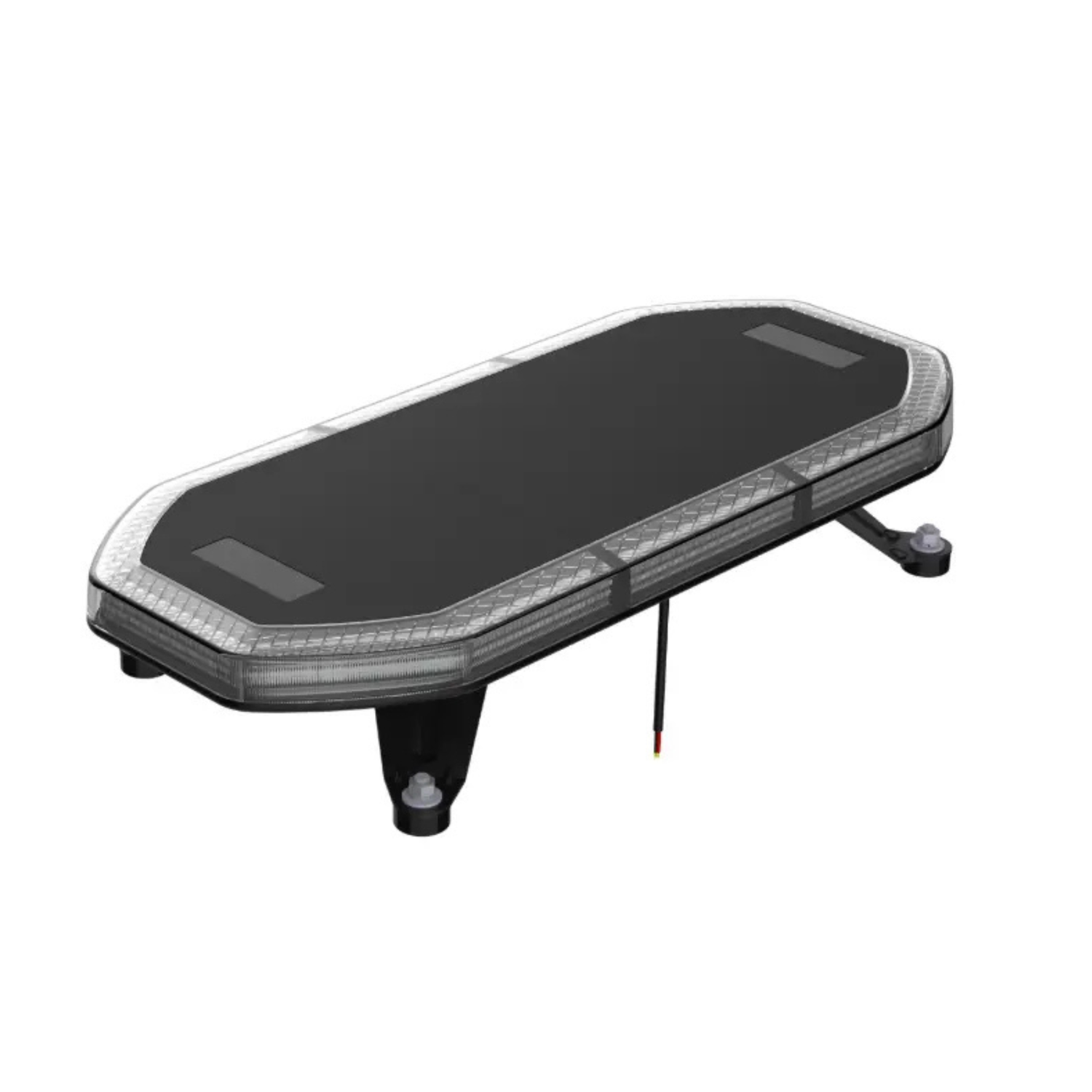

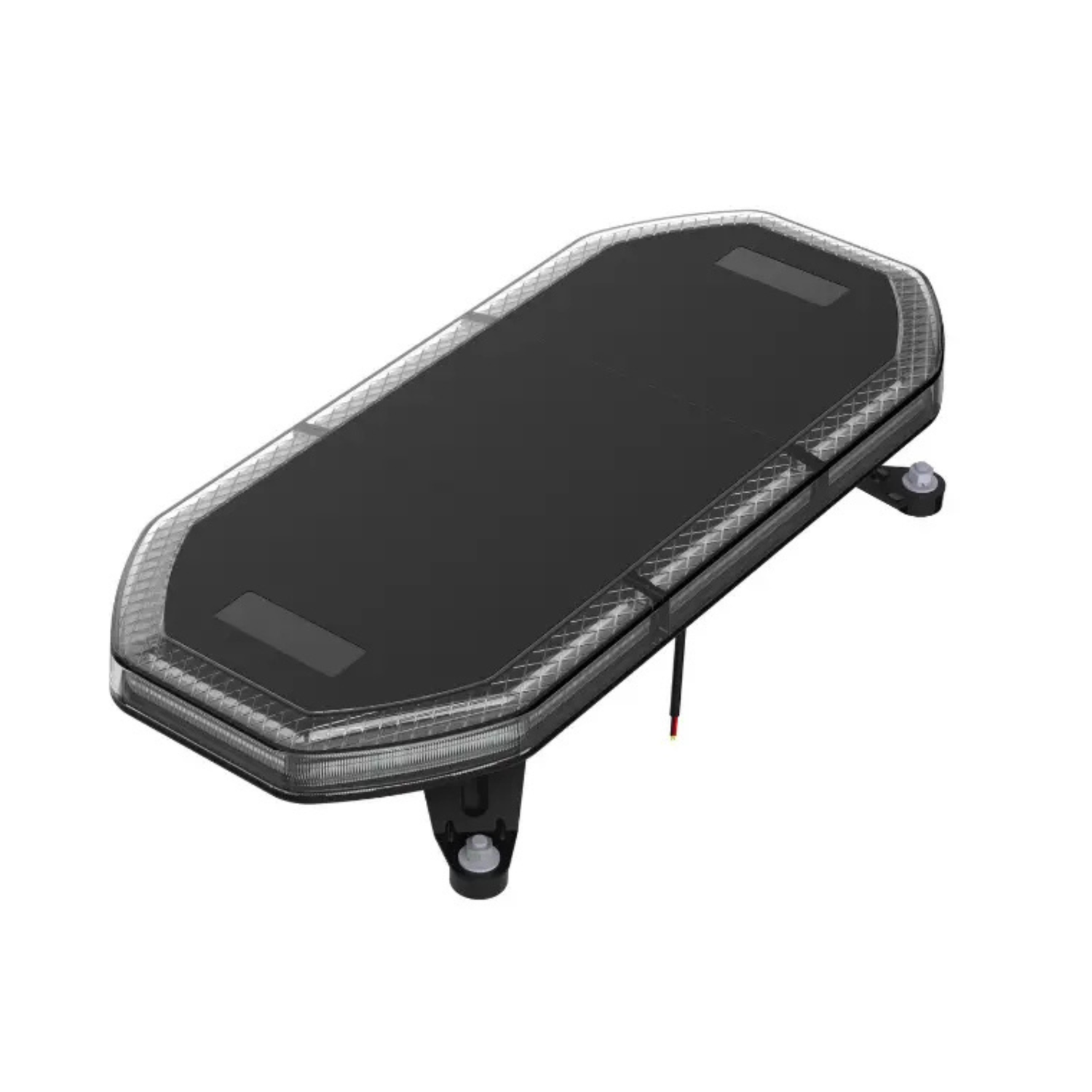

APEX Black Top 600mm Low Profile LED Lightbar – ECE R65 Chapter 8 Amber Warning Beacon, 10–30V

The Apex 600mm Low Profile LED Lightbar is a compact, high-performance amber warning beacon designed for commercial vehicles, utility fleets, recovery operators, agricultural machinery and specialist applications where maximum visibility is required without compromising vehicle appearance.

Featuring 228 high-output LEDs and a powerful 78W output, the Apex delivers outstanding 360° warning visibility in a sleek, low-profile design. Its aerodynamic black top housing provides a modern, professional finish while helping to minimise overall vehicle height, making it ideal for vans, pickups, utility vehicles and other applications where roof space is limited.

Manufactured with a durable aluminium housing and impact-resistant polycarbonate lens, the Apex is built to withstand the demands of everyday commercial use. With 20 selectable flash patterns, operators can configure the lightbar to suit a wide range of roadside, off-road and site applications.

Fully approved to ECE R65, ECE R10, SAE J845 and CISPR 25 standards, the Apex provides dependable, compliant warning performance for professional vehicle operators. Its IP67-rated construction protects against dust and water ingress, while reliable operation between -45°C and +60°C ensures dependable performance in all weather conditions.

Suitable for both 12V and 24V electrical systems, the Apex is an excellent choice for commercial fleets, recovery vehicles, highways maintenance, local authorities, contractors and agricultural operators looking for a durable, professional-grade LED warning lightbar.

*Not supplied with switch - Try this switch unit

Main Features

• Compact 600mm low-profile LED lightbar
• High-output 228 LED design
• Powerful 78W warning light output
• ECE R65 approved amber warning beacon
• ECE R10 EMC approved
• SAE J845 certified
• CISPR 25 compliant
• 20 selectable flash patterns
• Suitable for 10–30V DC vehicle systems
• Durable aluminium housing
• Impact-resistant polycarbonate lens
• IP67 rated against dust and water ingress
• Operating temperature: -45°C to +60°C
• Modern black top design
• 3-year warranty
• Dimensions: 600 (L) x 36 (H - excl brackets) x 260 (D) mm

Ideal Applications

• Recovery vehicles
• Highway maintenance vehicles
• Utility fleets
• Agricultural machinery
• Plant and construction equipment
• Commercial vans
• Pickup trucks
• Traffic management vehicles
• Local authority fleets
• Service and contractor vehicles

Technical Specifications

• Voltage: 10–30V DC
• LEDs: 228
• Power: 78W
• Flash Patterns: 20
• Approvals: ECE R65, ECE R10, SAE J845, CISPR 25
• Protection Rating: IP67
• Housing: Aluminium
• Lens: Polycarbonate (PC)
• Operating Temperature: -45°C to +60°C
• Length: 600mm
• Warranty: 3 Years
